TecTake Garden Armchair User Manual

Indledning

Thank you for choosing the TecTake Garden Armchair. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor furniture. Please read it thoroughly before use and retain it for future reference.

This elegant garden armchair features a lacquered solid wood frame and high-quality poly rattan weave, reinforced by a stainless aluminum frame. Its robust, UV-protected design ensures durability, making it a perfect addition to your outdoor space.

Image: The TecTake Garden Armchair positioned on a patio next to a swimming pool, surrounded by lush greenery, highlighting its suitability for outdoor relaxation.

Sikkerhedsinstruktioner

• Sørg for, at alle komponenter er forsvarligt fastgjort før brug.
• Overskrid ikke den maksimale bæreevne på 150 kg.
• Hold børn væk under montering.
• Avoid placing the chair on uneven surfaces without adjusting the feet.
• Regularly inspect the chair for any signs of wear or damage.
• Do not use abrasive cleaners or harsh chemicals on the frame or cushions.

Pakkens indhold

Før montering skal du kontrollere, at alle dele er til stede:

• Armchair frame components (wood and aluminum)
• Poly rattan weave sections
• Sædehynde
• Ryglænspude
• Samlebeslag (skruer, bolte, værktøj hvis inkluderet)
• Instruktionsmanual (dette dokument)

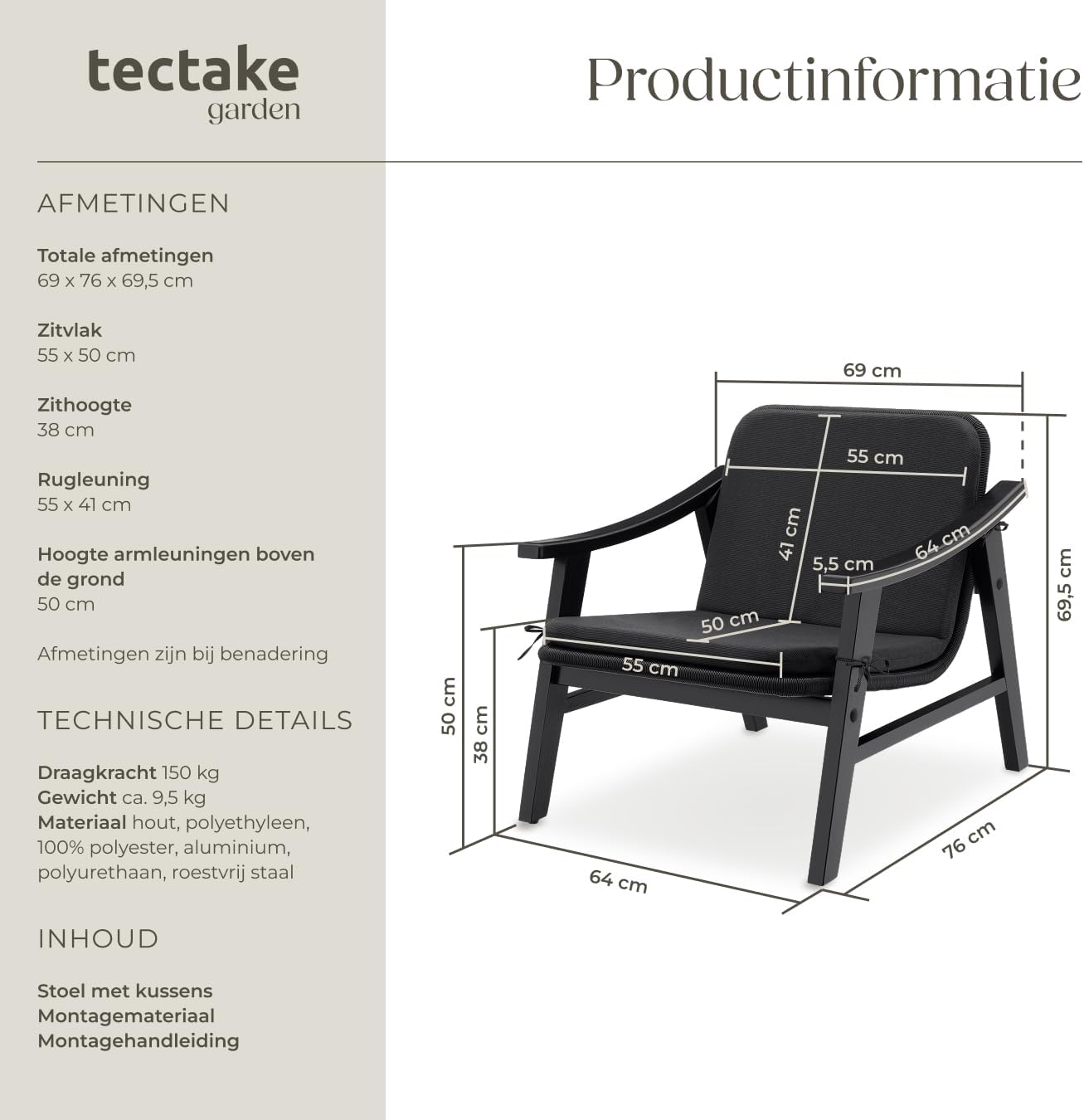

Image: A detailed diagram illustrating the dimensions of the armchair (69cm width, 76cm depth, 69.5cm height) and its various parts, including the seat, backrest, and armrests.

Opsætning og montering

The TecTake Garden Armchair is designed for quick and easy assembly. Follow these steps carefully:

1. Udpak komponenter: Tag forsigtigt alle dele ud af emballagen, og læg dem på en ren, blød overflade for at forhindre ridser.
2. Saml ramme: Connect the main wooden frame components using the provided hardware. Ensure all connections are finger-tight at this stage.
3. Attach Poly Rattan Sections: Secure the poly rattan weave sections to the frame.
4. Spænd alle fastgørelseselementer: Once the frame is fully assembled, systematically tighten all screws and bolts using the provided tool. Do not overtighten.
5. Placer puder: Position the seat and backrest cushions. Use the four integrated tie-down cords to secure the cushions to the wooden frame, preventing them from slipping.
6. Juster fødder: The front feet are height-adjustable. Turn them to compensate for uneven surfaces and ensure the chair is stable.

Image: Four detailed close-ups: top-left shows the cushion tie-down cords, top-right shows an adjustable foot, bottom-left shows water droplets on the fabric indicating water resistance, and bottom-right shows the intricate poly rattan weave.

Betjeningsvejledning

Your TecTake Garden Armchair is ready for use. It is designed for comfortable outdoor relaxation.

• Siddepladser: Sit gently into the chair. The comfortable seat and backrest cushions, along with wide armrests, provide optimal support.
• Placering: Position the chair on a stable, level surface. If the surface is uneven, adjust the front feet to ensure stability.
• Vægtgrænse: Overskrid ikke den maksimale vægtkapacitet på 150 kg.

Pleje og vedligeholdelse

Proper care will extend the life and appearance of your garden armchair.

• Rengøring af rammen: The lacquered wood frame and aluminum components can be cleaned with a soft, damp cloth and mild soap. Avoid harsh chemicals or abrasive materials.
• Pudepleje: The cushion covers are made from durable, water-repellent polyester. They are removable and washable. Follow the care instructions on the cushion label, typically machine wash cold and air dry.
• Vejrbeskyttelse: While the chair is designed to be weather-resistant (UV protection, lacquered wood, aluminum frame), it is recommended to store cushions indoors during prolonged periods of rain or harsh weather. Covering the chair when not in use will further protect it.
• Sæsonbestemt opbevaring: For long-term storage, especially during winter, clean the chair thoroughly and store it in a dry, protected area.

Image: A composite image demonstrating the armchair's weather resistance. It shows the chair enduring rain, sun, and wind, with insets highlighting the lacquered wooden frame, durable aluminum frame, and 100% stainless steel screws.

Fejlfinding

Her er løsninger på almindelige problemer, du kan støde på:

Stolen føles ustabil:

Ensure all assembly screws are tightened. Adjust the height-adjustable front feet to stabilize the chair on uneven ground.

Cushions slide off:

Utilize the four tie-down cords on the cushions to secure them firmly to the chair frame.

Misfarvning eller falmning:

While UV-protected, prolonged exposure to direct sunlight can cause some fading over time. Consider using a protective cover when the chair is not in use for extended periods.

Produktspecifikationer

Garantioplysninger

For specific warranty details, please refer to the purchase documentation or contact TecTake customer service. Generally, products are covered against manufacturing defects for a specified period from the date of purchase.

Kundesupport

If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact TecTake customer support through their official webwebstedet eller forhandleren, hvor produktet blev købt. Hav venligst modelnummeret (405377) og købsoplysningerne klar.

Official TecTake Webwebsted: www.tectake.eu
