Herzberg Elektronisk Pengeskab Brugermanual

Indledning

The Herzberg HG03848 Electronic Digital Steel Safe is designed to provide secure storage for your valuables.Constructed from high-quality alloy steel and metal, featuring a robust 2.0mm cold-rolled steel plate, this safe offers enhanced durability and protection.It incorporates a dual-bolt electronic locking mechanism and is equipped with fireproof and waterproof capabilities, making it suitable for safeguarding documents, papers, and other cherished items.Its compact dimensions (17cm x 22cm x 17cm) and versatile mounting options allow for seamless integration into various home or office environments.

Figur 1: Forside view of the Herzberg HG03848 Electronic Safe, showing the digital keypad and manual knob.

Sikkerhedsoplysninger

• Always keep the emergency keys in a secure location, separate from the safe itself, and not inside the safe.
• Ensure the safe is installed on a stable and level surface, or securely mounted to a wall or floor using the provided anchor bolts to prevent unauthorized removal.
• Do not store flammable liquids or materials inside the safe.
• Keep the keypad clean and dry to ensure proper functionality.

Pakkens indhold

Kontroller venligst pakkens indhold for at sikre, at alle varer er til stede:

• 1 x Herzberg HG03848 Electronic Safe
• 2 x nødnøgler
• 2 x Anchor Bolts for mounting
• 4 x AA 1.5V batterier
• 1 x Brugermanual (dette dokument)

Opsætning

1. Initial Opening (First Use)

Upon receiving your safe, the batteries are not pre-installed. You will need to use the emergency key for the initial opening.

1. Locate the key cover on the front panel, usually near the knob. Gently remove it.
2. Insert one of the emergency keys into the keyhole.
3. Turn the key counter-clockwise (to the left).
4. Mens du holder nøglen drejet, skal du dreje knappen med uret for at åbne pengeskabslågen.

Figure 2: Using the emergency key for initial access.

2. Batteriinstallation

Once the safe is open, install the batteries to enable the electronic keypad.

1. Find batterirummet inde i pengeskabslågen.
2. Insert the 4 x AA 1.5V batteries, ensuring correct polarity (+/-).
3. Luk batterirummets dæksel.

3. Montering af pengeskabet (valgfrit)

For enhanced security, the safe can be mounted to a wall or floor using the provided anchor bolts.

1. Vælg et passende sted til montering, og sørg for, at det er en solid overflade (f.eks. betonvæg, træstolpe eller gulv).
2. Open the safe door. Locate the pre-drilled mounting holes on the back or bottom of the safe.
3. Position the safe and mark the drilling points on the wall or floor through the mounting holes.
4. Drill pilot holes at the marked points using an appropriate drill bit for your surface.
5. Align the safe with the drilled holes and insert the anchor bolts.
6. Tighten the anchor bolts securely to fix the safe in place.

Figur 3: Bagside view of the safe, indicating pre-drilled mounting holes.

Betjeningsvejledning

1. Indstilling af din personlige adgangskode

You can set a custom password for convenient access.

1. Med pengeskabslågen åben skal du finde den røde nulstillingsknap på indersiden af ​​døren, nær hængslet.
2. Press the red reset button. You will hear a beep, and the indicator light on the keypad will illuminate.
3. Within 5 seconds, enter your desired new passcode (3-8 digits) on the keypad.
4. Press the "E" (Enter) button to confirm. You will hear a confirmation beep.
5. Test den nye adgangskode med døren åben, før du lukker den.

2. Opening the Safe with Your Passcode

1. Enter your personal passcode on the keypad.
2. Press the "E" (Enter) button. The indicator light will turn green.
3. Drej knappen med uret inden for 5 sekunder for at åbne pengeskabslågen.

3. Lukning og låsning af pengeskabet

To lock the safe, simply close the door firmly. The electronic locking mechanism will engage automatically.

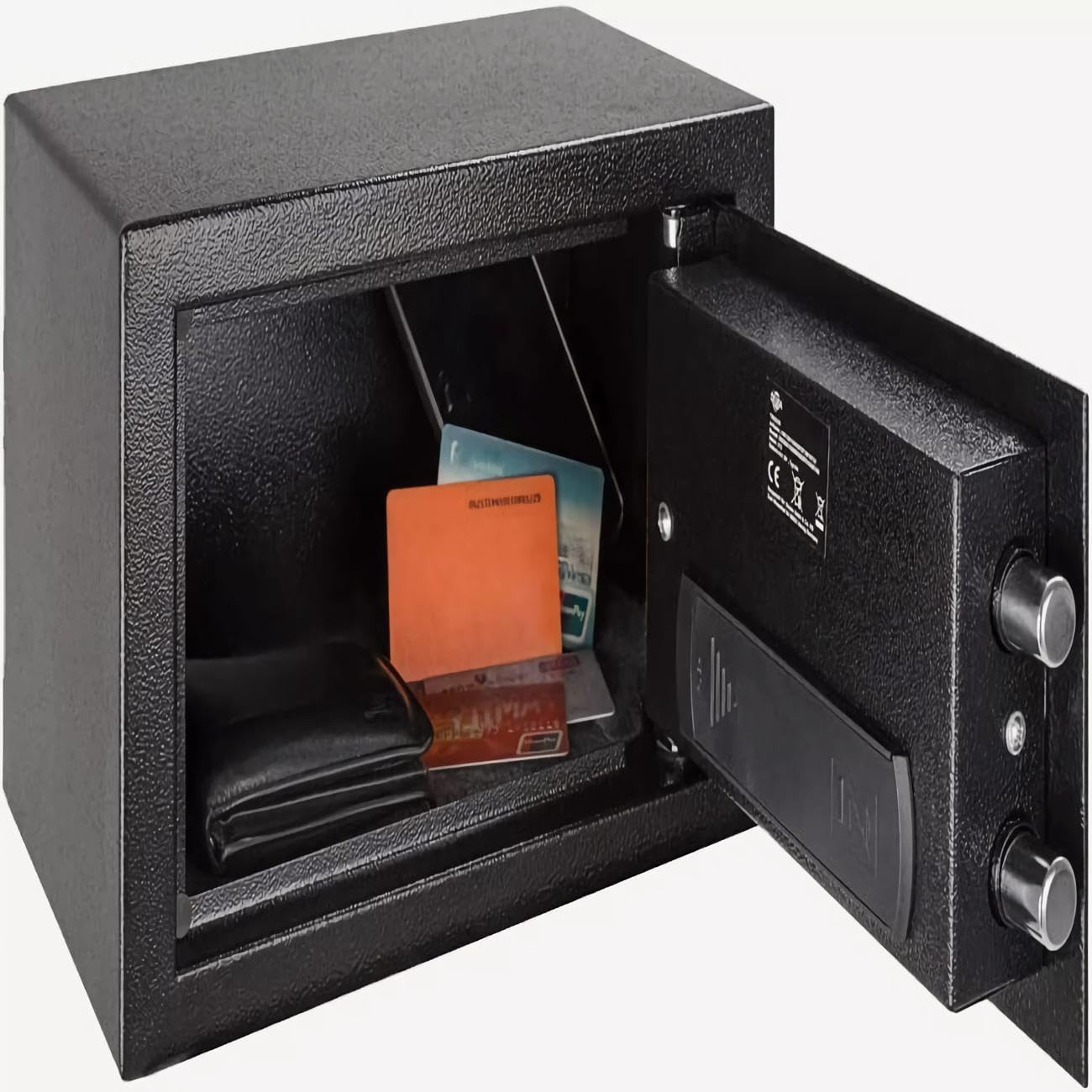

Figur 4: Interiør view of the safe, demonstrating storage capacity.

4. Emergency Key Access

In case you forget your passcode, the batteries run out, or the keypad malfunctions, you can use the emergency keys.

1. Remove the key cover on the front panel.
2. Insert the emergency key into the keyhole and turn it counter-clockwise (to the left).
3. Mens du holder nøglen drejet, skal du dreje knappen med uret for at åbne pengeskabslågen.

5. Security Lockout Feature

The safe is equipped with an enhanced security locking system to prevent unauthorized access.

• Efter three consecutive incorrect passcode entries, the keypad will be temporarily deactivated for 5 minutes.
• If incorrect entries continue, the keypad will be blocked for 20 minutes on the third lockout attempt.
• During any lockout period, the emergency key can still be used to access the safe.

Opretholdelse

• Rensning: Tør ydersiden af ​​pengeskabet af med en blød, tør klud.amp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Udskiftning af batteri: When the battery indicator light flashes or the keypad becomes unresponsive, it's time to replace the batteries. Use 4 x AA 1.5V batteries. Always replace all four batteries at once.
• Nøglevedligeholdelse: Keep emergency keys clean and dry. Do not lubricate the keyhole.

Fejlfinding

Specifikationer

Garanti og support

Specific warranty information for the Herzberg HG03848 Electronic Safe is not provided in this manual.For details regarding warranty coverage, technical support, or replacement parts, please contact Herzberg customer service or refer to the product packaging for contact information.
