ANFIER M3 Translator Earbuds + W09 Handheld Translator User Manual

Indledning

Welcome to the user manual for your ANFIER M3 Translator Earbuds and W09 Handheld Translator. This guide provides detailed instructions on setting up, operating, and maintaining your devices to ensure a seamless translation experience. Please read this manual thoroughly before using the products.

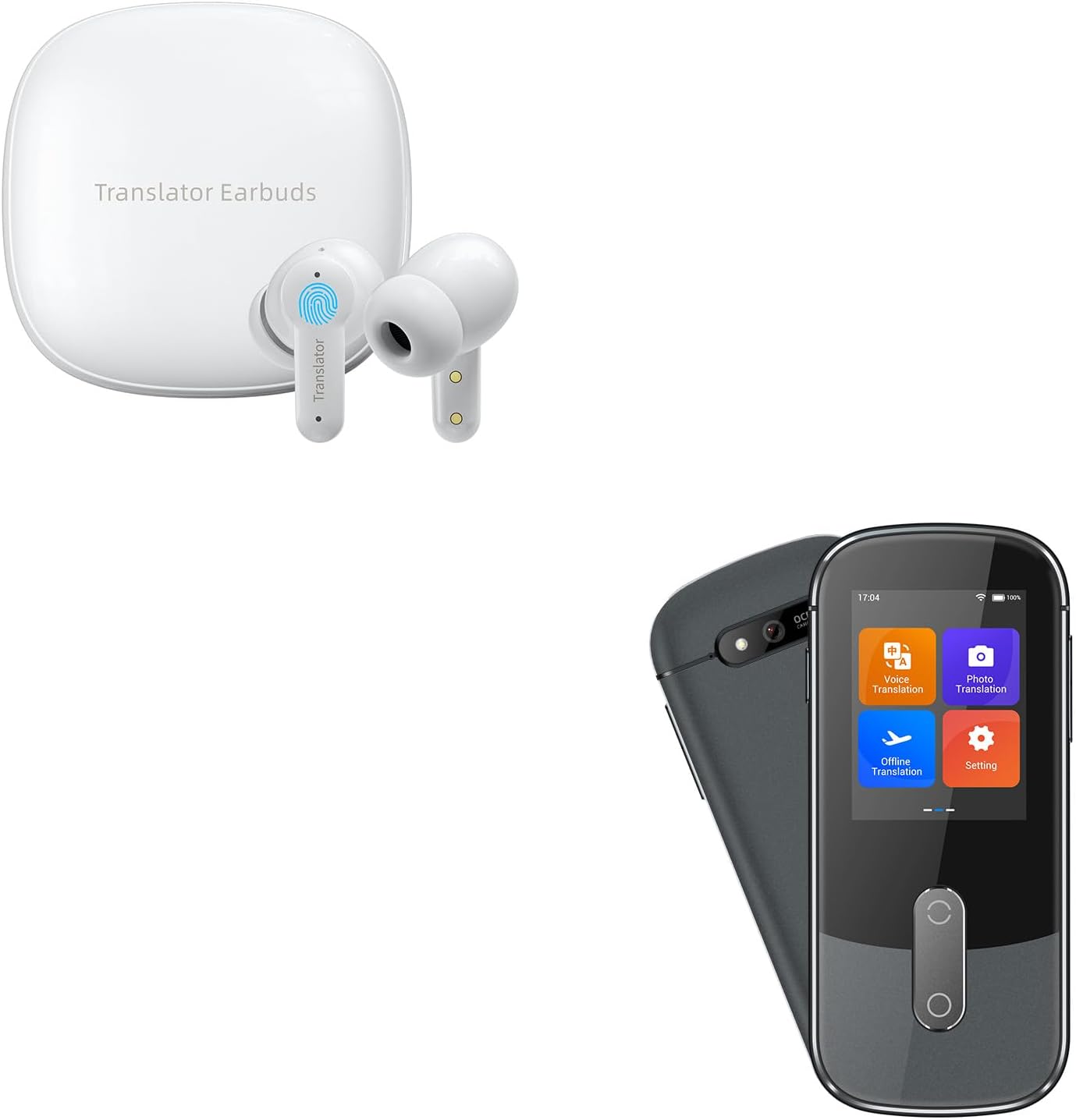

Image: The ANFIER M3 Translator Earbuds in their charging case alongside the W09 Handheld Translator.

Hvad er der i æsken

Ved udpakning skal du kontrollere, at alle komponenter er til stede:

• M3 Translator Earbuds (Left and Right)
• Charging Case for M3 Earbuds
• W09 Handheld Translator
• USB opladningskabel
• Flere størrelser ørepuder (S, M, L)
• Brugermanual (dette dokument)
• Lanyard/Strap for W09 Handheld Translator

Opsætningsvejledning

1. Første opladning

Before first use, fully charge both the M3 Translator Earbuds and the W09 Handheld Translator.

• M3 Earbuds: Place the earbuds into their charging case. Connect the USB charging cable to the charging case and a power source. The indicator light on the case will show charging status.
• W09 Handheld Translator: Connect the USB charging cable directly to the W09 device and a power source. The screen will indicate charging progress.

2. W09 Handheld Translator Setup

Power on the W09 Handheld Translator by pressing and holding the power button.

2.1. Netværksforbindelse

The W09 Handheld Translator requires an internet connection for most translation functions. It supports both Wi-Fi and Hotspot connections.

1. From the main screen, tap on the Indstillinger icon (gear symbol).
2. Vælge WLAN or Hotspot.
3. Vælg det ønskede netværk fra listen, og indtast adgangskoden, hvis du bliver bedt om det.
4. Bekræft forbindelsen.

Image: The W09 Handheld Translator displaying its Wi-Fi and Hotspot connection settings.

2.2. System Language and Time Settings

Configure the device's interface language and time settings for optimal usability.

1. Naviger til Indstillinger.
2. Vælge Systemsprog to choose your preferred interface language.
3. Vælge Tid og dato to adjust these settings as needed.

Image: The W09 Handheld Translator's HD touch screen displaying the main menu with options for Voice Translation, Photo Translation, Offline Translation, and Settings, along with a detailed view of the Settings menu.

3. M3 Translator Earbuds Setup

The M3 Earbuds are designed for comfort and secure fit. Choose the ear cushions that best suit your ear canal.

Image: A diagram illustrating the ergonomic design of the M3 Earbuds and how they seamlessly conform to the ear for a secure and comfortable fit, along with a note about three sizes of skin-friendly silicone earplugs.

The M3 Earbuds connect to your smartphone via Bluetooth. Ensure your phone's Bluetooth is enabled.

1. Open the charging case and remove the M3 Earbuds. They will automatically enter pairing mode.
2. On your smartphone, go to Bluetooth settings and select "ANFIER M3" from the list of available devices.
3. Once paired, you can use the earbuds with the dedicated ANFIER translation app on your smartphone.

Betjeningsvejledning

1. W09 Handheld Translator Operation

The W09 Handheld Translator offers various translation modes via its HD touch screen.

1.1. Stemmeoversættelse

Denne tilstand muliggør oversættelse af talesprog i realtid.

1. Tryk på på hovedskærmen Stemmeoversættelse.
2. Select the source and target languages. The device supports 74 languages and 70 accents.
3. Press and hold the designated button (usually indicated on screen) and speak clearly into the microphone. Release the button when finished speaking.
4. The device will translate and play the audio in the target language, displaying the text on screen.

Image: The W09 Handheld Translator showcasing its extensive language support, listing 74 languages and 70 accents available for translation.

1.2. Fotooversættelse

Translate text from images, signs, or documents.

1. Tryk på Foto oversættelse på hovedskærmen.
2. Align the text you wish to translate within the camera frame.
3. Tap the capture button. The device will process the image and display the translated text.

1.3. Offline oversættelse

For situations without internet access, the W09 supports offline translation for a selection of languages.

1. Before going offline, navigate to Indstillinger > Offline download.
2. Download the language packs you require.
3. Once downloaded, select Offline oversættelse fra hovedskærmen.
4. Choose your downloaded languages and proceed with voice translation as usual.

Image: Two individuals on an airplane demonstrating the W09 Handheld Translator's offline translation capability, with flags indicating support for 16 languages in offline mode.

2. M3 Translator Earbuds Operation

The M3 Earbuds provide simultaneous translation with high accuracy and rapid response when paired with the ANFIER app.

Image: The M3 Earbuds highlighted with text indicating 98% accuracy and 0.5-second response time for simultaneous translation, demonstrating their speed and precision.

2.1. Real-time Conversation Translation

Use the earbuds for natural, two-way conversations with language barriers.

1. Ensure your M3 Earbuds are connected to your smartphone via Bluetooth and the ANFIER translation app is open.
2. In the app, select the two languages for the conversation.
3. One person wears an earbud, the other wears the second earbud (or uses the phone's speaker).
4. Speak naturally. The app will translate and play the audio in the respective earbud/speaker.

Image: A man on an airplane using the M3 Earbuds, illustrating their capability for offline voice translation between 8 languages, indicated by various country flags.

2.2. Støjreduktionsfunktion

The M3 Earbuds incorporate high-precision ENC (Environmental Noise Cancellation) technology, reducing ambient noise by up to 35dB for clearer audio during translation and listening.

Image: A visual representation of the M3 Earbuds' noise reduction capability, showing a sound wave before and after filtering, highlighting a 35dB reduction in noise.

Vedligeholdelse og pleje

Proper maintenance ensures the longevity and optimal performance of your ANFIER devices.

• Rensning: Use a soft, dry, lint-free cloth to clean the surfaces of both the earbuds and the handheld translator. For the ear cushions, remove them and gently wipe with a slightly damp cloth, then dry completely before reattaching. Do not use harsh chemicals or abrasive materials.
• Opbevaring: Store devices in a cool, dry place away from direct sunlight and extreme temperatures. Always keep the M3 Earbuds in their charging case when not in use.
• Vandtæthed: These devices are not waterproof. Avoid exposure to water, rain, or excessive moisture.
• Batteripleje: To preserve battery life, avoid fully discharging the devices frequently. Charge them regularly, even if not in constant use.

Fejlfinding

Hvis du støder på problemer, kan du se følgende almindelige problemer og løsninger:

Specifikationer

Key technical specifications for the ANFIER M3 Translator Earbuds and W09 Handheld Translator:

• Produktnavn: ANFIER M3 Translator Earbuds + W09 Handheld Translator
• Mærke: ANFIER
• Modelnumre: M3 (Earbuds), W09 (Handheld Translator)
• Supported Online Languages: 74 Languages, 70 Accents
• Understøttede offline-sprog: 16 Languages (for W09 Handheld Translator)
• Oversættelsesnøjagtighed: Up to 98% (Simultaneous Translation)
• Translation Response Time: 0.5 sekunder
• W09 Display: 2.4" HD Touch Screen (480*854 resolution)
• Forbindelse: Wi-Fi, Hotspot (W09), Bluetooth (M3 Earbuds)
• Earbuds Noise Reduction: Up to 35dB ENC (Environmental Noise Cancellation)
• Fabrikant: ANFIER
• Første tilgængelige: 13. juli 2024

Garanti og support

ANFIER products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your purchase or visit the official ANFIER webwebsted.

For technical support, troubleshooting assistance beyond this manual, or inquiries regarding your product, please contact ANFIER customer service through the following channels:

• ANFIER Official Webwebsted: Visit ANFIER Store on Amazon (til generelle forespørgsler og produktinformation)
• Kundeservice email: (Please refer to packaging or official webwebsted for nuværende e-mailadresse)
• Online support: (Check ANFIER website for chat or FAQ sections)

When contacting support, please have your product model (M3 Earbuds, W09 Handheld Translator) and purchase date ready.
