1. Introduktion
Thank you for choosing the VTech Interactive Video Microscope. This digital microscope is designed to introduce users to the fascinating world of microscopy through interactive learning and exploration. Featuring a 2.4-inch color screen and up to 200x magnification, it allows for detailed observation of various specimens. This manual provides essential information for setting up, operating, and maintaining your microscope, along with important safety guidelines.
2. Produktet er slutview
2.1 Nøglefunktioner
- 2.4 tommer farveskærm: Giver en klar view of magnified images.
- 200x forstørrelse: Observe intricate details of specimens.
- Three Observation Modes: Explore illustrated slides, transparent slides for personal samples, and a 3D object base for three-dimensional items.
- Pædagogisk indhold: Includes 9 double-sided illustrated slides (18 categories) featuring over 70 BBC videos, 144 images, and 432 scientific facts.
- Interactive Navigation: Easy control with a joystick and 5 function buttons.
- Indbyggede spil: Four educational games for engaging learning.
- MicroSD -kortplads: Save photos of your observations (MicroSD card not included).
- Volume Control & Auto-Off: Adjustable sound and automatic shutdown after 3 minutes of inactivity to conserve battery life.
2.2 Komponenter
The VTech Interactive Video Microscope package includes the following components:
- VTech Interactive Video Microscope Unit
- 9 Illustrated Slides (double-sided)
- 2 Transparent Slides
- 3D Object Base
- 4 AA-batterier (forinstalleret eller medfølger separat)

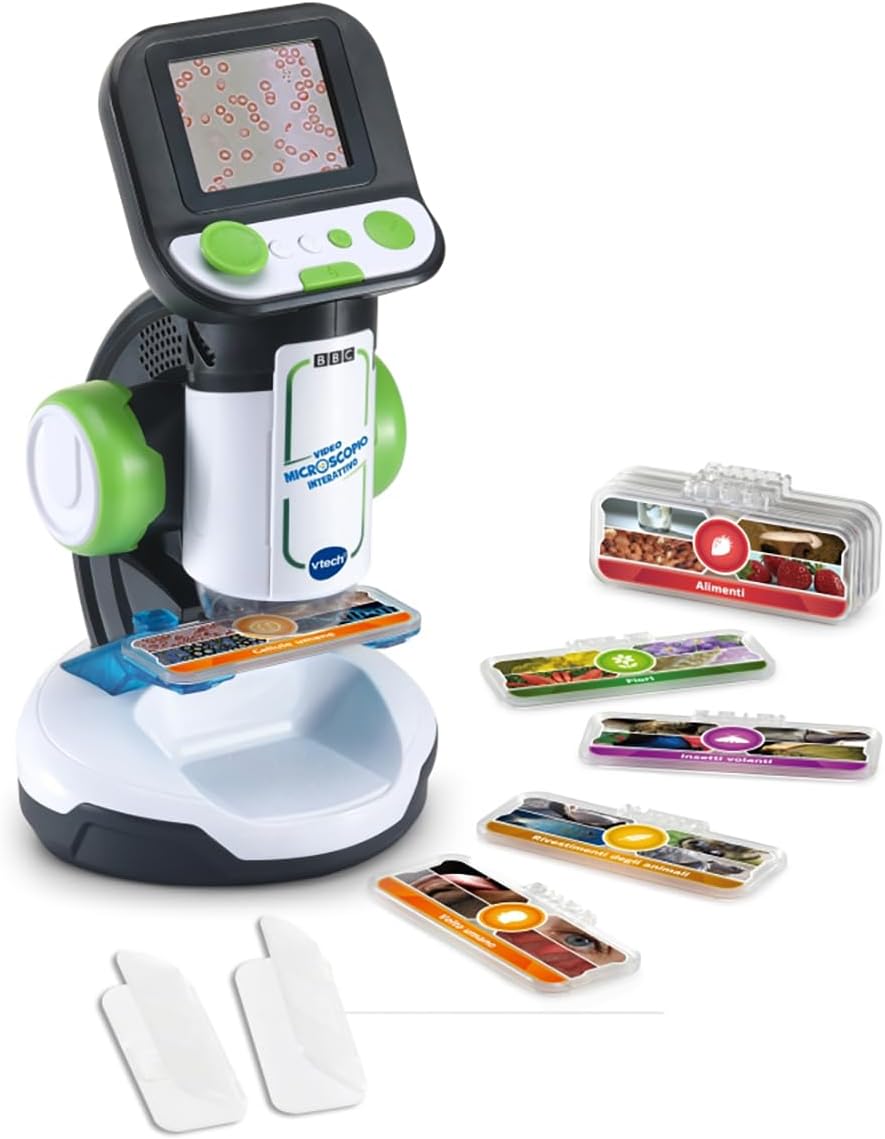

Image 2.2.1: The VTech Interactive Video Microscope unit shown with a selection of illustrated slides and transparent slides.
Image 2.2.2: A visual representation of the 9 double-sided illustrated slides, detailing the 18 categories available for observation, such as 'Flowers', 'Human Cells', and 'Food'.
3. Opsætning
- Unpack the Microscope: Carefully remove the microscope and all its components from the packaging. Ensure all packaging materials, such as plastic bags and ties, are removed before use.
- Installer batterier: The microscope requires 4 AA alkaline batteries. If not already installed, open the battery compartment (usually located at the base or back of the unit) and insert the batteries, ensuring correct polarity (+/-). Close the compartment securely.
- Tænd: Locate the power button (refer to the unit's controls) and press it to turn on the microscope. The screen should illuminate.
4. Betjeningsvejledning
4.1 Placing a Specimen
- For Illustrated or Transparent Slides: Place the desired slide onto the microscope's stage. Ensure it is flat and centered under the lens.
- For 3D Objects: Use the provided 3D object base. Place small, three-dimensional items (e.g., a leaf, a small coin, a piece of fabric) onto the base and position it under the microscope's lens.
Image 4.1.1: A child demonstrating how to place a natural specimen, such as a leaf, onto the 3D object base for observation.
4.2 Selecting Observation Modes
The microscope offers three distinct observation modes. Use the joystick and navigation buttons to select your preferred mode:
- Illustrated Slides Mode: Browse through pre-loaded videos, images, and quizzes related to the 18 categories on the illustrated slides.
- Transparent Slides Mode: Observe your own prepared samples on the transparent slides.
- 3D Object Mode: Examine small, three-dimensional objects placed on the 3D object base.
4.3 Navigation and Interaction
Use the joystick and the 5 directional buttons to navigate through menus, select options, play games, and interact with the educational content.
Image 4.3.1: A user engaging with the microscope, pressing buttons to navigate its features and content.
4.4 Saving Photos (MicroSD)
To save images of your observations, insert a MicroSD card (not included) into the designated slot. Follow the on-screen prompts or refer to the specific button for capturing and saving photos.
4.5 Lydstyrkejustering
Adjust the volume using the dedicated volume control button or menu option to suit your environment.
4.6 Automatisk nedlukning
The microscope is equipped with an automatic shutdown feature. If left inactive for approximately 3 minutes, it will power off to conserve battery life. Press any button to reactivate the unit.
5. Vedligeholdelse
- Rensning: Wipe the microscope's exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents. For the screen, use a soft, lint-free cloth.
- Linsepleje: Avoid touching the lens directly. If cleaning is necessary, use a lens cleaning cloth or a soft brush designed for optics.
- Opbevaring: Store the microscope in a cool, dry place away from direct sunlight and extreme temperatures.
- Udskiftning af batteri: If the microscope's performance diminishes, replace all 4 AA batteries with new ones. Do not mix old and new batteries or different types of batteries.
6. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Microscope does not turn on. | Lave eller døde batterier; forkert batteriinstallation. | Replace batteries with new AA alkaline batteries. Ensure batteries are inserted with correct polarity. |
| Skærmen er blank eller flimrer. | Low batteries; unit malfunction. | Udskift batterierne. Kontakt kundesupport, hvis problemet fortsætter. |
| Billedet er sløret eller uklart. | Specimen not properly positioned; lens is dirty. | Ensure the specimen is flat and centered. Gently clean the lens with a soft, lint-free cloth. |
| Cannot save photos. | No MicroSD card inserted; MicroSD card full or corrupted. | Insert a compatible MicroSD card. Check if the card has free space or try a different card. |
| Ingen lyd eller lav lyd. | Volume is turned down; mute function activated. | Juster lydstyrken ved hjælp af den dedikerede knap. |
7. Specifikationer
- Mærke: VTech
- Modelnummer: 80-616107-007
- Uddannelsesmål: Recognition and learning across various fields
- Tema: Science, Education
- Farve: Flerfarvet
- Aldersinterval: 7-99 år
- Produktdimensioner: 13.5 cm (længde) x 12.3 cm (bredde) x 0.1 cm (højde)
- Batterier: 4 x AA Alkaline (inkluderet)
- Produktvægt: 1 kilo
- Materiale: Plast
- Formfaktor: Handheld with screen
- Montering påkrævet: Ingen
- Driftstilstand: Manuel
- Antal spillere: 1
- Strømkilde: Batteri
8. Sikkerhedsoplysninger
Please read and adhere to the following safety guidelines to ensure safe operation of the VTech Interactive Video Microscope:
- Produktets tilstand: Always inspect the product for any damage or loose parts before each use. Do not use if damaged.
- Fjernelse af emballage: Before giving the product to a child, remove all packaging materials, including plastic bags, ties, and any other components that are not part of the toy itself.
- Advarsel om kvælningsfare: ADVARSEL: This product is not suitable for children under 36 months (3 years) due to small parts which could be swallowed and/or inhaled. Choking hazard.
- Voksenopsyn: Adult supervision is recommended during use, especially when handling small specimens or batteries.
- Batterisikkerhed: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. Remove exhausted batteries from the product.
9. Garanti og support
Information regarding product warranty and customer support is not available in the provided product details. Please refer to the product packaging or the manufacturer's official website for warranty terms and contact information for support.
