ACAMMZAR 1:24 RC Drift Car Model S812 Instruction Manual

1. Introduktion

Thank you for choosing the ACAMMZAR 1:24 RC Drift Car Model S812. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new remote control car. Please read it thoroughly before use to ensure safe and optimal performance.

The ACAMMZAR RC Drift Car is a 1:24 scale, 4WD high-speed vehicle designed for exciting drifting and racing. It features LED lights, two types of tires (drifting and racing), and comes with two rechargeable batteries for extended playtime.

2. Sikkerhedsoplysninger

• Voksenopsyn: Brug altid fjernstyrede biler under opsyn af voksne, især med yngre brugere.
• Batterisikkerhed: Use only the specified batteries and charging cable. Do not attempt to charge non-rechargeable batteries. Do not short-circuit, disassemble, or expose batteries to extreme temperatures.
• Driftsmiljø: Avoid operating the car in crowded areas, near water, or on public roads. Ensure a clear, open space for safe operation.
• Undgå forhindringer: Do not drive the car into people, animals, or furniture to prevent injury or damage.
• Rensning: Disconnect the battery before cleaning. Use a dry cloth; avoid water or chemicals.
• Aldersanbefaling: This product is recommended for users aged 8 years and above.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• 1x ACAMMZAR 1:24 RC Drift Car (Model S812)
• 1x fjernbetjening
• 2x 3.7V 500mAh Li-ion Rechargeable Batteries (one pre-installed in car, one spare)
• 1x USB opladningskabel
• 4x Extra Drifting Tires
• 4x Racing Tires (pre-installed)
• 1 x skruetrækker
• 1x brugsanvisning
• Barricade Accessories (cones and barrels)

4. Komponenter overview

4.1 RC bil

The RC car features a durable body, LED headlights and taillights, and a 4WD system for stable drifting. It includes independent front shock absorbers for smoother operation.

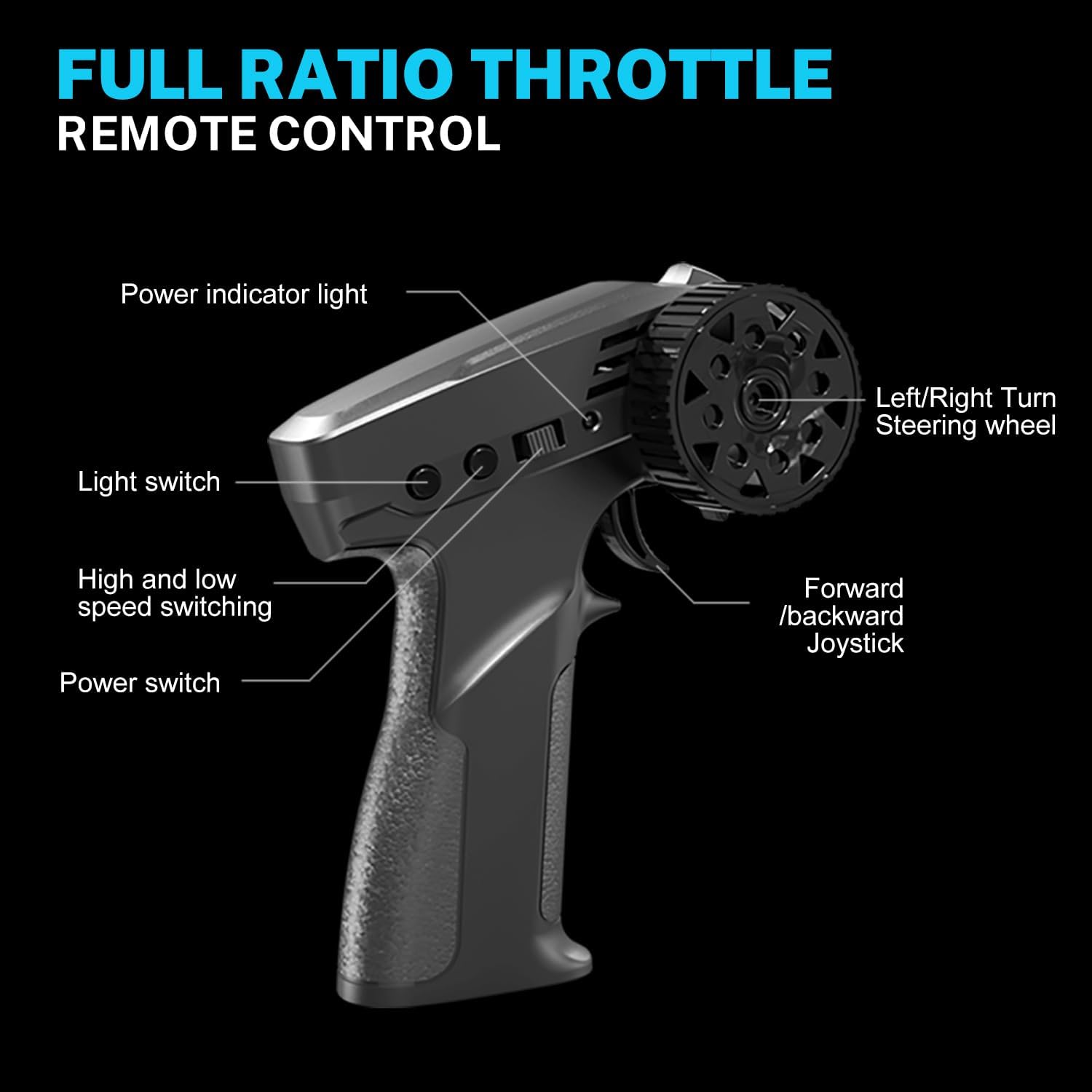

4.2 Fjernbetjening

The remote control operates on 2.4GHz frequency, providing a control distance of up to 50 meters. It features a full proportional throttle for precise speed control and a steering wheel for accurate turns.

5. Opsætning

5.1 Battery Installation (RC Car)

1. Find batterirummet på undersiden af ​​bilen.
2. Brug den medfølgende skruetrækker til at åbne batteridækslet.
3. Connect the 3.7V 500mAh Li-ion battery to the car's connector, ensuring correct polarity.
4. Placer batteriet i batterirummet, og luk dækslet sikkert med skruetrækkeren.

5.2 Batteriinstallation (fjernbetjening)

1. Find batterirummet på undersiden af ​​fjernbetjeningen.
2. Åbn batteridækslet.
3. Insert 2x AA batteries (not included) into the compartment, observing the correct polarity (+/-).
4. Luk batteridækslet.

5.3 Opladning af bilbatteriet

1. Tilslut 3.7V 500mAh Li-ion-batteriet til USB-opladerkablet.
2. Sæt USB-opladerkablet i en USB-strømkilde (f.eks. computer, USB-vægadapter).
3. The indicator light on the USB cable will show charging status (refer to charger instructions for details).
4. Når det er fuldt opladet, skal du frakoble batteriet fra opladeren.

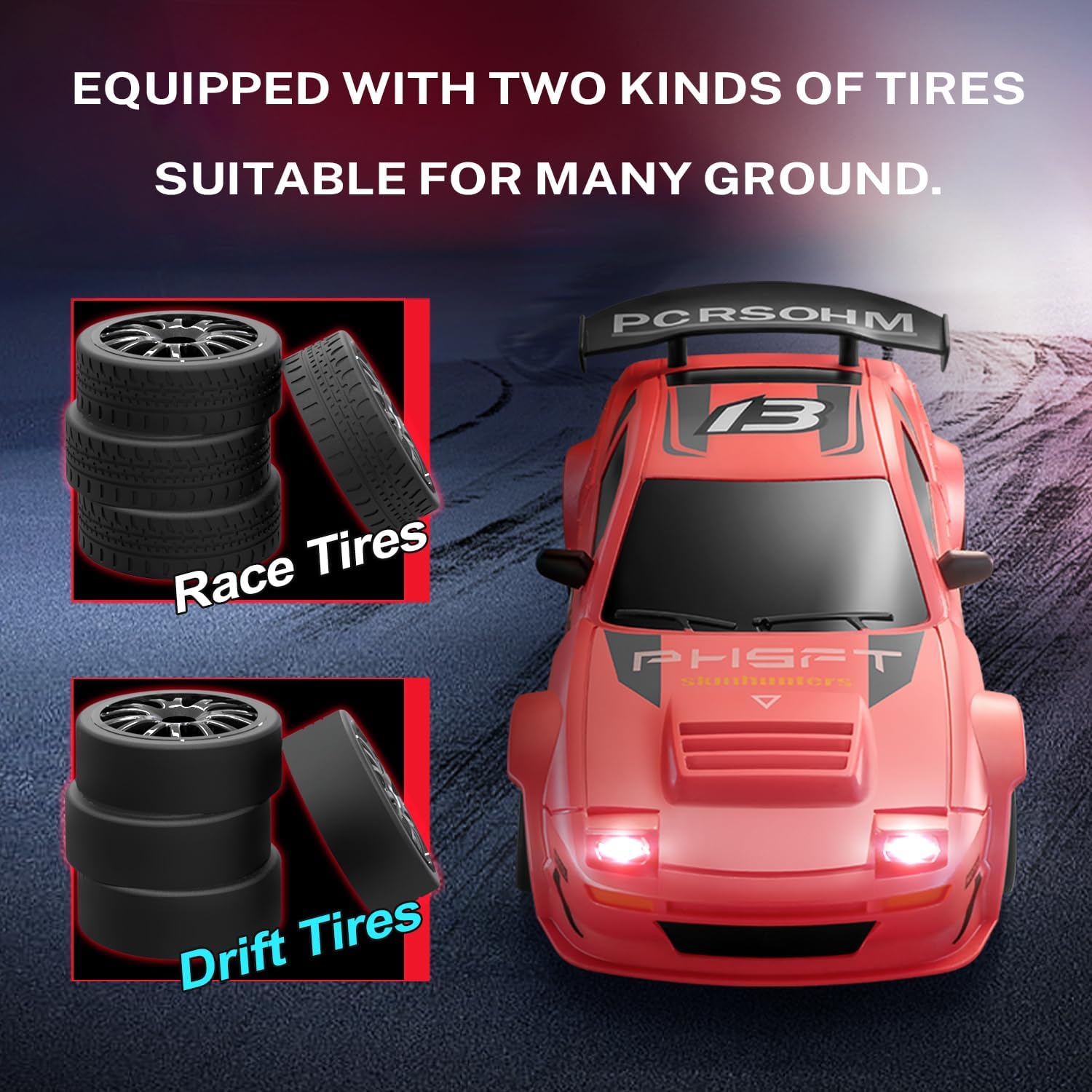

5.4 Tire Replacement

The car comes with two sets of tires: racing tires (pre-installed) for grip and drifting tires for easy sliding. You can switch them using the provided screwdriver.

1. Use the screwdriver to remove the screw in the center of each wheel.
2. Carefully pull off the current tire and wheel assembly.
3. Align the desired tire (drifting or racing) with the axle and push it into place.
4. Secure the new tire with the screw using the screwdriver.
5. Repeat for all four wheels.

6. Betjeningsvejledning

6.1 Parring af fjernbetjeningen

1. Turn on the RC car using the switch on its underside. The car's lights will blink, indicating it's waiting for connection.
2. Tænd fjernbetjeningen ved hjælp af dens tænd/sluk-knap.
3. The remote control and car will automatically pair. Once paired, the car's lights will become solid.

6.2 Grundlæggende kontroller

• Frem/tilbage: Use the trigger on the remote control. Pull to move forward, push to move backward. The full proportional throttle allows for variable speed control.
• Venstre/højre: Brug rattet på fjernbetjeningen til at dreje bilen til venstre eller højre.

6.3 Hastighedsjustering

The remote control allows you to switch between high and low speed modes, making it suitable for beginners and experienced users alike. Refer to the remote control diagram for the speed switch button.

6.4 LED-lysstyring

The car is equipped with headlights, taillights, and chassis lights. These can be controlled via the remote control, enhancing visibility and aesthetics, especially for night play.

6.5 Drifting Techniques

Utilize the 4WD system and full proportional throttle to perform various drifting stunts. The included barricade accessories (cones and barrels) can be used to set up courses for practice and competition.

7. Vedligeholdelse

• Rensning: Use a soft, dry cloth to wipe down the car after each use. Avoid using water or harsh cleaning agents, which can damage electronic components.
• Batteripleje: Always fully charge the batteries before storage. If not used for an extended period, charge the batteries every 3 months to prolong their lifespan. Store batteries in a cool, dry place.
• Opbevaring: Store the RC car and remote control in a dry, cool place away from direct sunlight and extreme temperatures.
• Inspektion: Kontrollér regelmæssigt for løse skruer, beskadigede dele eller slidte dæk. Udskift alle beskadigede komponenter med det samme for at opretholde ydeevne og sikkerhed.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

ACAMMZAR is committed to providing reliable products. If you encounter any issues during the use of your RC Drift Car, please contact ACAMMZAR customer support. We are dedicated to assisting you with any problems you may experience.
