GE 12,000 BTU Through-the-Wall Air Conditioner with Electric Heat

Produkt overview

The GE AKEQ12DCJ is a 12,000 BTU through-the-wall air conditioner designed to provide efficient cooling and electric heating for your space. This unit offers a true universal fit design with a sleek appearance, integrating seamlessly into various environments without occupying window space.

Billede: Forside view of the GE AKEQ12DCJ through-the-wall air conditioner, showing the main grille and control panel.

Key features include a large LCD auto-dimming display, four operational modes (ECO, Dry, Auto, Sleep) for optimized comfort and energy efficiency, three fan speeds, and six directional vents for precise airflow control. It also comes with a washable filter and a remote control for convenient operation.

Hvad er der i æsken

Sørg for, at alle komponenter er til stede ved udpakning:

• GE AKEQ12DCJ Through-the-Wall Air Conditioner Unit
• Fjernbetjening (med 2 AAA-batterier inkluderet)
• Universal Trim Kit
• Vaskbart filter (forinstalleret)

Installation og opsætning

This through-the-wall air conditioner requires proper installation into a wall case. For new installations, the additional purchase of a GE wall case (part number RAB24, RAB46, RAB47, or RAB48) is required to ensure the unit fits properly and securely.

Vigtig sikkerhedsbemærkning:

• The unit operates on 208/230 Volts with a 60 Hertz frequency. A perpendicular/NEMA 6-20P plug type is required for installation and operation.
• Due to the electrical requirements and the nature of through-the-wall installation, it is highly recommended that installation be performed by a qualified professional.
• Ensure the unit is properly grounded to prevent electrical shock hazards.

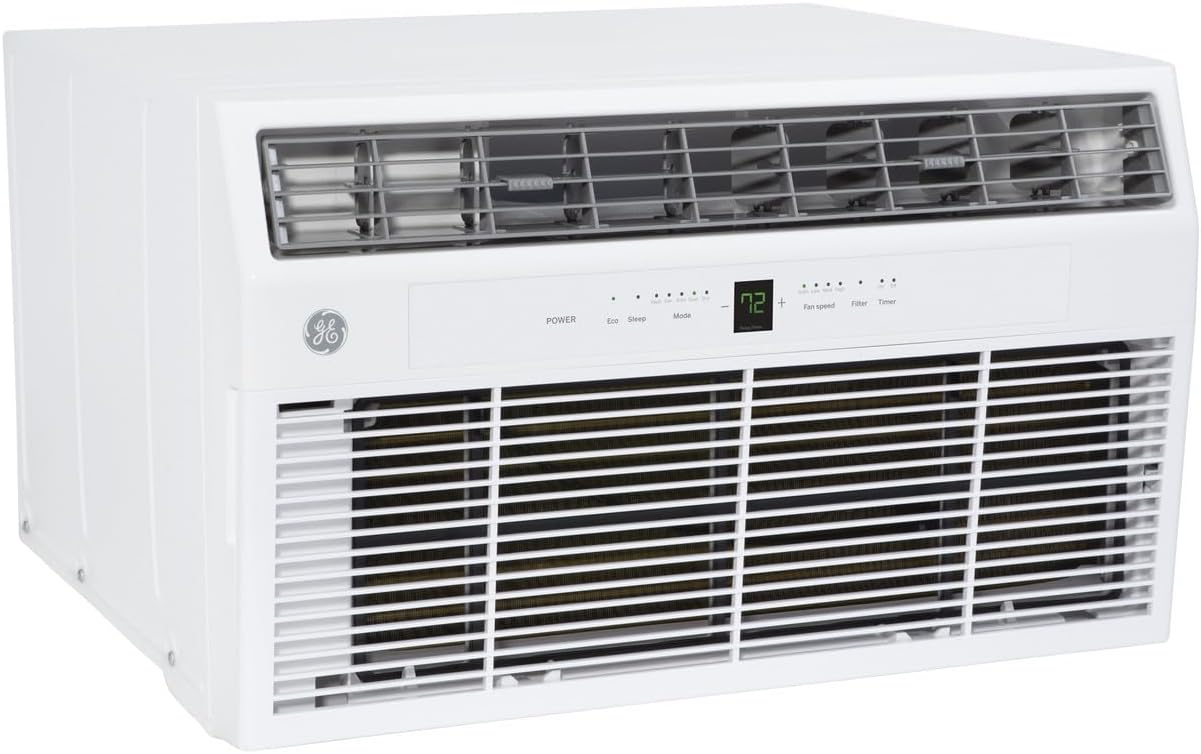

Billede: Vinklet view of the GE AKEQ12DCJ unit, showing its side profile and the air intake/exhaust grilles.

Betjeningsvejledning

The GE AKEQ12DCJ can be operated using either the integrated control panel or the included remote control.

Kontrolpanel

Image: Close-up of the unit's control panel, displaying the digital temperature readout and various indicator lights for modes and fan speeds.

• MAGT: Tænder eller slukker for enheden.
• ØKO -tilstand: Optimizes energy consumption by cycling the compressor and fan on and off to maintain the set temperature.
• Sove mode: Gradually adjusts the temperature and fan speed for comfortable sleeping conditions while conserving energy.
• KØRSELSVEJLEDNING: Skifter gennem tilgængelige driftstilstande:
  • Auto: Automatically selects cooling or fan-only operation based on room temperature.
  • Afkøle: Giver køling.
  • Varme: Provides electric heating.
  • Tør (Affugt): Reducerer luftfugtigheden i rummet.
  • Ventilator: Operates the fan only, without cooling or heating.
• +/- knapper: Juster den ønskede temperaturindstilling.
• Blæserhastighed: Cycles through Low, Medium, and High fan speeds.
• Filter: Indicator light for filter cleaning reminder.
• Timer: Indstiller en timer, så enheden automatisk tændes eller slukkes.

Fjernbetjening

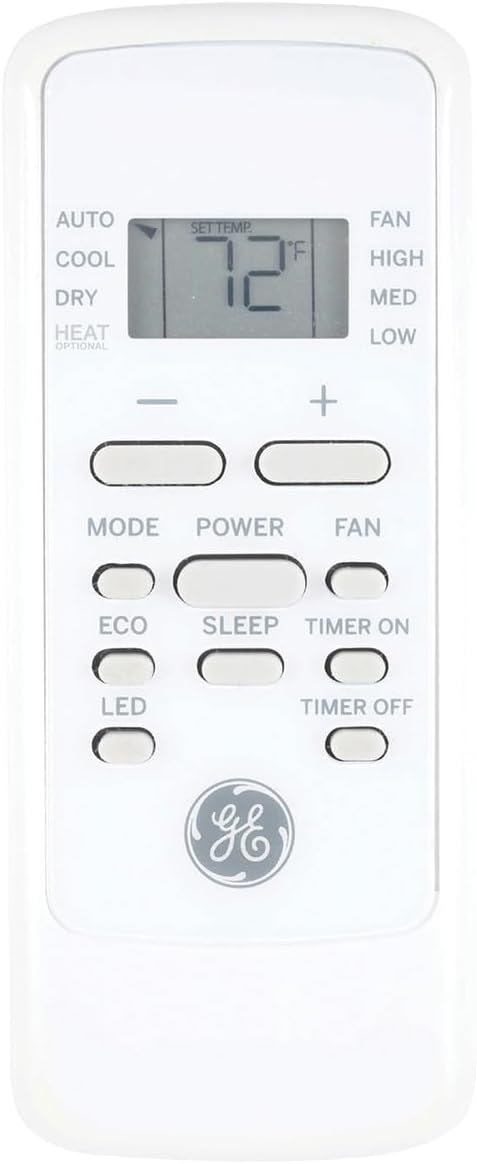

Image: The remote control for the GE AKEQ12DCJ unit, showing its LCD display and various function buttons for mode, fan speed, temperature, and timer settings.

The remote control provides full functionality of the unit from a distance. Ensure the remote is pointed towards the unit's receiver when pressing buttons. The remote requires 2 AAA batteries (included).

• Buttons on the remote mirror most functions available on the main control panel, including Power, Mode, Fan Speed, Temperature Adjustment (+/-), ECO, Sleep, Timer On, Timer Off, and LED display control.

Opretholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for dit klimaanlæg.

Rengøring af det vaskbare filter

The unit is equipped with a washable filter. A "Filter" indicator light on the control panel will illuminate to remind you when it's time to clean the filter. Cleaning the filter regularly (typically every 2 weeks, or more often depending on usage and air quality) helps maintain air quality and unit efficiency.

1. Sluk for enheden, og tag stikket ud af stikkontakten.
2. Locate and remove the air filter from its slot (refer to your unit's specific diagram for exact location).
3. Vask filteret med varmt sæbevand. Skyl grundigt.
4. Allow the filter to air dry completely before reinserting it into the unit. Do not use direct heat to dry the filter.
5. Once the filter is reinserted, plug in the unit and reset the filter indicator if necessary (refer to the operating instructions for your model).

Generel rengøring

• Tør ydersiden af ​​enheden af ​​med en blød, damp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Sørg for, at luftindtag og udstødningsventiler er fri for blokeringer.

Fejlfinding

If your GE AKEQ12DCJ unit is not operating as expected, please consult the following common issues before contacting service.

Specifikationer

Garanti og support

This GE Through-the-Wall Air Conditioner (Model AKEQ12DCJ) comes with the following manufacturer's warranty:

• 2-års begrænset garanti: Covers labor and parts for two years from the date of purchase.
• 5-års begrænset garanti: Covers the sealed refrigeration system for five years from the date of purchase.

For warranty claims or technical support, please refer to the contact information provided in your product packaging or visit the official GE Appliances webwebsted.
