wheelfun 1/14 Metal R946 Hydraulic Excavator Instruction Manual

Indledning

This manual provides essential information for the safe and effective operation, setup, and maintenance of your wheelfun 1/14 Metal R946 Hydraulic Excavator. Please read this manual thoroughly before operating the model to ensure proper function and longevity.

Pakkens indhold

Inkluderet i pakken:

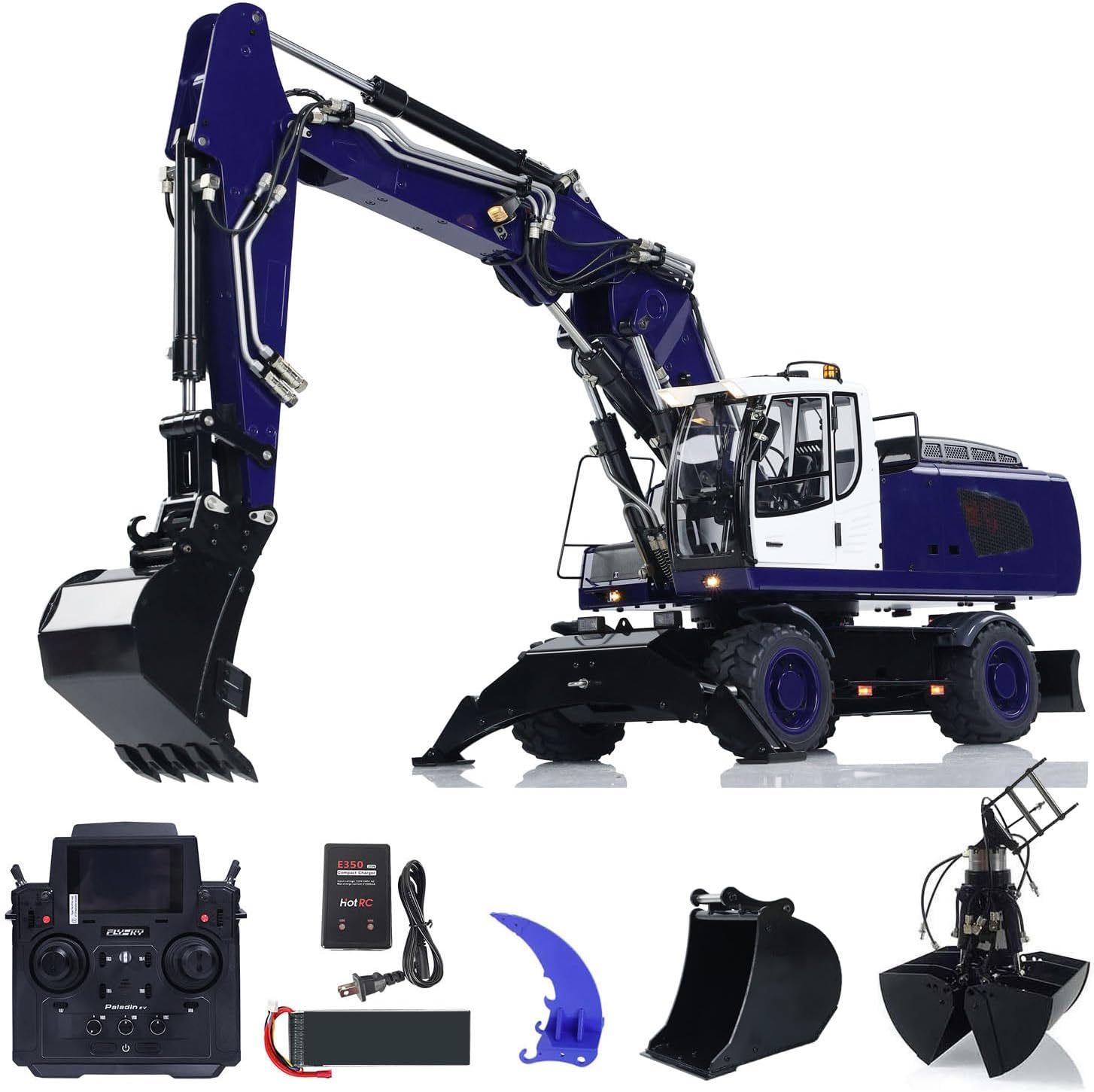

• Hydraulisk gravemaskinemodel i skala 1/14 (samlet og malet)
• 3 x metalspande
• 1 x Metalriver
• Flysky PL18EV RC-controller og -modtager
• Lydsystem (forinstalleret)
• Motor (forinstalleret)
• Servo (forinstalleret)
• ESC (Pre-installed)
• Lights (Pre-installed)
• Batteri
• Oplader
• Spare Parts: Screws, Shims, Connectors, Pipes, Rubber Rings

Not Included in Package:

• Light System (Note: Lights are pre-installed, this likely refers to additional or specific light accessories not included)
• Hydraulic Oil (Required for operation, must be purchased separately)

Specifikationer

Opsætning

Before operating your hydraulic excavator, follow these steps to ensure it is ready for use.

1. Oplad batteriet: Connect the provided battery to the charger and plug the charger into a suitable power outlet. Ensure the battery is fully charged before first use. Refer to the charger's specific instructions for charging times and indicators.

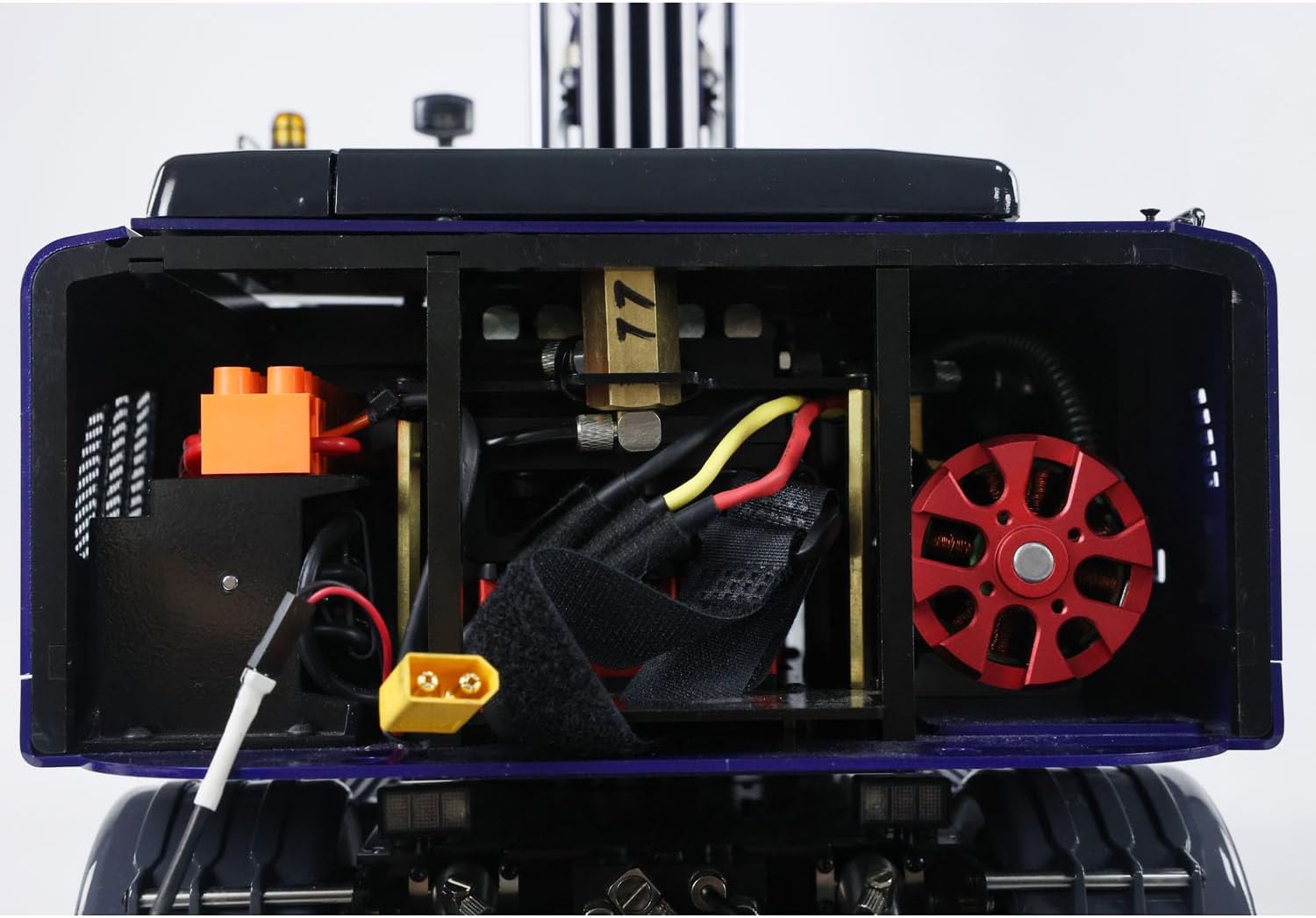

2. Installer batteri: Open the battery compartment on the excavator. Carefully insert the charged battery, ensuring the XT60 connector is properly aligned and connected. Secure the battery compartment cover.



3. Fill Hydraulic System: The hydraulic system requires hydraulic oil, which is not included. Carefully fill the hydraulic reservoir with appropriate hydraulic oil according to the manufacturer's recommendations. Avoid overfilling.
4. Opsætning af controller:
   • Install batteries into the Flysky PL18EV RC Controller.
   • Tænd for controlleren.
   • Power on the excavator. The controller and receiver should automatically bind. If not, refer to the Flysky PL18EV manual for binding procedures.
5. Indledende kontrol: Before operation, perform a visual inspection:
   • Sørg for, at alle forbindelser er sikre.
   • Check for any visible damage to the model.
   • Verify that the hydraulic cylinders move smoothly without obstruction.

Betjeningsvejledning

Familiarize yourself with the controls of the Flysky PL18EV RC Controller before operating the excavator. The excavator features 8-way hydraulic valves for precise control.

Grundlæggende kontroller:

• Kørsel: Use the designated joystick/lever on the controller to move the excavator forward, backward, left, and right. The 4-wheel drive system provides robust mobility.
• Arm and Bucket Movement: Utilize the hydraulic controls to manipulate the excavator arm, boom, and bucket. The 8-way hydraulic valves allow for complex and realistic movements.





• Kropsrotation: The excavator body can rotate 360 degrees without limit due to the internal oil ring design. Use the dedicated control for rotation.





• Lydsystem: The integrated sound system enhances realism. Refer to the controller manual for sound activation and volume adjustments.
• Digital Hydraulic Pressure Gauge: Monitor the hydraulic pressure via the digital gauge in the cab for optimal performance.

Sikkerhedsforanstaltninger:

• Operate in open areas, away from people, pets, and obstacles.
• Avoid operating in wet conditions or near water to prevent damage to electronics.
• Do not attempt to lift objects heavier than the excavator's capacity.
• Always turn off the excavator and controller when not in use.

Opretholdelse

Regular maintenance ensures the longevity and optimal performance of your wheelfun R946 Hydraulic Excavator.

• Rensning: After each use, clean the excavator to remove dirt, dust, and debris. Use a soft brush or cloth. Avoid using water directly on electronic components.
• Hydrauliksystem:
  • Regularly check the hydraulic oil level and refill as needed.
  • Inspect hydraulic lines and connections for leaks or damage.
  • Ensure hydraulic cylinders are clean and free of obstructions.
• Smøring: Periodically lubricate moving parts, such as pivot points and gears, with appropriate RC-grade lubricant.
• Batteripleje:
  • Opbevar batterier på et køligt, tørt sted.
  • Undlad at overoplade eller overaflade batterier.
  • Disconnect the battery from the excavator when storing.
• Generel inspektion: Regularly inspect all screws, connectors, and mechanical parts for looseness or wear. Tighten or replace as necessary using the provided spare parts.

Fejlfinding

This section addresses common issues you might encounter with your excavator.

• Excavator Not Responding:
  • Check if the excavator and controller are both powered on.
  • Ensure the battery in the excavator is charged and properly connected.
  • Verify that the controller and receiver are correctly bound. Refer to the Flysky PL18EV manual for binding instructions.
  • Tjek for løse ledningsforbindelser.
• Hydraulic Functions Not Working:
  • Check the hydraulic oil level and refill if low.
  • Inspect hydraulic lines for kinks or blockages.
  • Ensure the hydraulic pump is operating.
  • Verify that the hydraulic valves are functioning correctly.
• Weak Performance / Slow Movement:
  • Batteriet kan være lavt; oplad det helt.
  • Check for any mechanical obstructions or excessive friction in moving parts.
  • Ensure the hydraulic system has sufficient oil and is free of air bubbles.
• Usædvanlige lyde:
  • Stop straks driften.
  • Inspect for loose gears, damaged motors, or obstructions in moving parts.
  • Hvis støjen fortsætter, skal du kontakte kundesupport.

Garanti og support

wheelfun is committed to providing quality products and excellent customer service.

Skader ved ankomst:

If your item arrives damaged out of the box, please contact us immediately. We use solid packaging for all items. We can resend a free replacement part if damage occurs during shipping.

Technical Support and Maintenance Services:

We have a professional after-sales team and a technical maintenance team. Our technicians can provide guidance in English through video or text for repairs and troubleshooting. For any queries or assistance, please contact wheelfun customer support.

Du kan besøge embedsmanden wheelfun-butik på Amazon for mere information og kontaktmuligheder.
