Indledning
The Flylin Carburetor Pilot Screw Adjustment Tool is an essential instrument designed to facilitate the precise adjustment of air and fuel mixture screws on various engines. Its unique angled head and rotating tip allow access to hard-to-reach carburetor screws, ensuring optimal engine performance and fuel efficiency. This manual provides detailed instructions for the safe and effective use of your new tool.
Sikkerhedsoplysninger
Please read and understand all safety instructions before using this tool. Failure to follow these instructions may result in injury or damage to equipment.
- Motortemperatur: Always ensure the engine is kold before attempting any adjustments to avoid burns from hot engine components.
- Overstramning: Be careful when using the tool to avoid damaging screws by applying excessive force.
- Engine Monitoring: Pay close attention to the engine's operating condition during adjustment. Stop immediately if any abnormality occurs.
- Kompatibilitet: The carburetor adjustment screwdriver tool may vary from model to model and brand to brand. Ensure you are using the correct adjustment tool that matches your specific carburetor.
- Personligt beskyttelsesudstyr: Brug passende sikkerhedsbriller og handsker for at beskytte mod potentielle farer.
Opsætning
The Flylin Carburetor Pilot Screw Adjustment Tool comes pre-assembled and ready for use. No complex setup is required.
- Undersøg værktøjet: Before each use, visually inspect the tool for any signs of damage or wear. Ensure the rotating tip moves freely.
- Forbered arbejdsområdet: Ensure your work area is well-lit and clear of obstructions. Have any necessary engine diagrams or service manuals readily available.
Image: The Flylin Carburetor Pilot Screw Adjustment Tool, a long, slender black tool with an angled tip and a textured handle.
Image: A diagram showing the dimensions of the tool. It measures approximately 419mm (16.5 inches) in total length, with the handle section being about 19mm (0.75 inches) wide.
Betjeningsvejledning
This tool is specifically designed for adjusting air and fuel mixture screws, particularly those located in confined or difficult-to-reach areas.
- Identify the Screw: Locate the air or fuel mixture screw on your carburetor that requires adjustment. These are often recessed or positioned at an awkward angle.
- Indsæt værktøjet: Carefully insert the angled tip of the adjustment tool into the slot of the mixture screw. The 110° bend allows you to navigate around obstacles.
- Engage the Tip: Ensure the slotted tip is fully engaged with the screw head. The tip is designed to rotate independently via the handle, allowing for precise adjustments.
- Adjust the Screw: Gently rotate the handle to turn the mixture screw. Make small, incremental adjustments as recommended by your engine's service manual.
- Overvåg motorens ydeevne: While adjusting, observe the engine's idle, acceleration, and overall performance. Adjust until optimal performance is achieved.
- Fjern værktøjet: Once adjustments are complete, carefully withdraw the tool from the carburetor.
Billede: En detaljeret view showing the angled tip designed for hard-to-reach screws and the rotating handle for precise adjustments.
Image: A hand holding the tool, demonstrating its use to reach and adjust a mixture screw on an engine, highlighting its design for difficult access points.

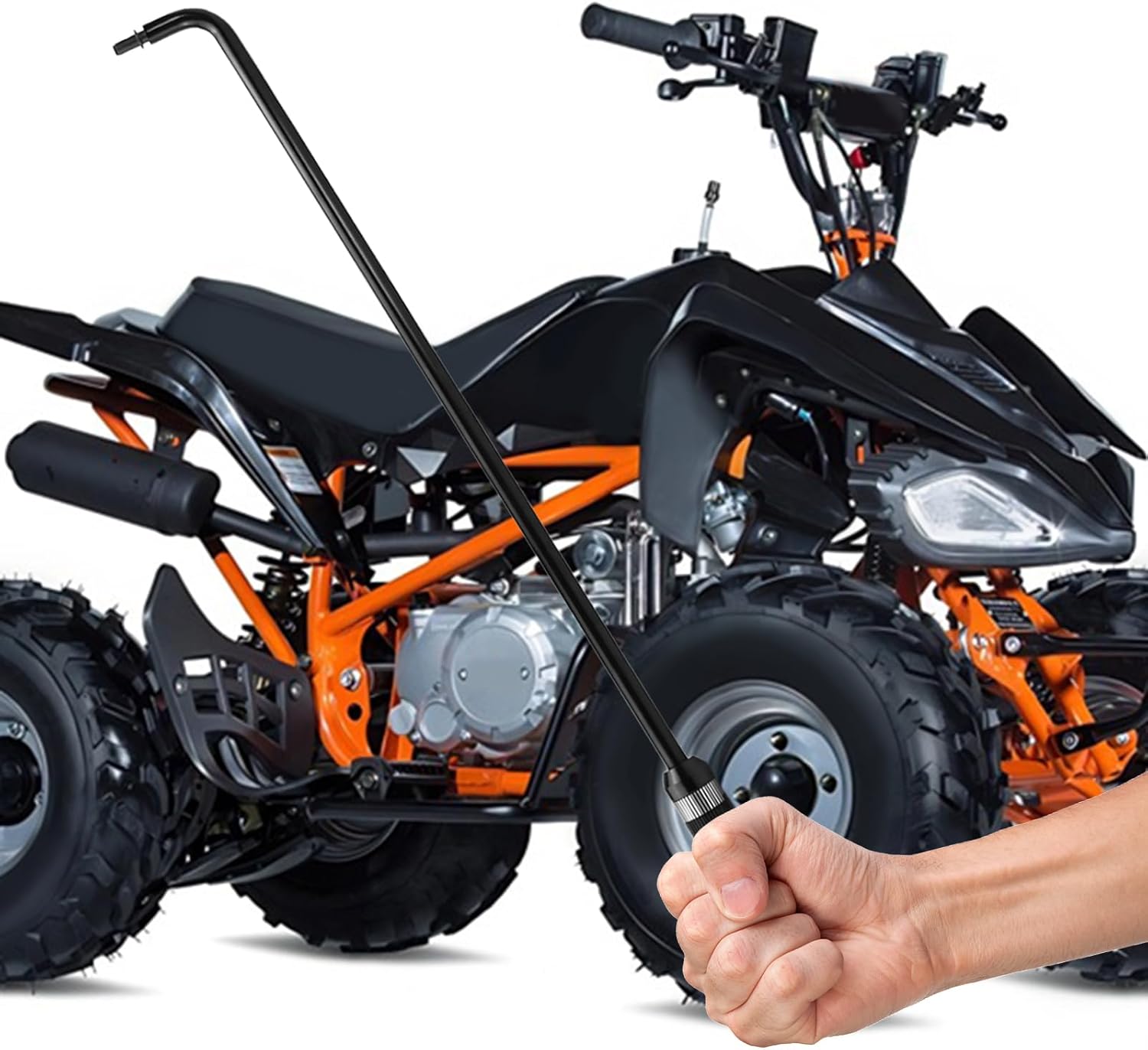

Image: The adjustment tool positioned near the engine of an ATV, showing how its length and angled tip facilitate access to carburetor components.
Image: The tool displayed prominently with an ATV in the background, indicating its suitability for such vehicles.
Image: The tool shown alongside a snowmobile, illustrating its universal application across various recreational vehicles.
Opretholdelse
Proper maintenance will ensure the longevity and reliable performance of your adjustment tool.
- Rensning: After each use, wipe the tool clean with a dry cloth to remove any oil, grease, or debris.
- Opbevaring: Opbevar værktøjet på et rent, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
- Inspektion: Periodically inspect the tool for any signs of wear, bending, or damage, especially the tip and the rotating mechanism.
Fejlfinding
This tool is simple in design, and issues are rare. However, if you encounter problems, consider the following:
- Tip Not Engaging: Ensure the screw head is not stripped or damaged. Verify you are using the correct size and type of tool for your carburetor's screw.
- Vanskeligheder med at rotere: Check for any debris obstructing the rotating mechanism. If the screw itself is seized, do not force the tool; consult a professional.
- Engine Performance Issues After Adjustment: If engine performance worsens, re-check your adjustments against the manufacturer's specifications. It may indicate an incorrect adjustment or an underlying engine issue unrelated to the tool.
Specifikationer
| Feature | Specifikation |
|---|---|
| Varetype | Carburetor Pilot Screw Adjustment Tool |
| Mærke | Flylin |
| Modelnummer | JY2024054-01 |
| Materiale | Metal |
| Farve | Sort |
| Længde | Ca. 41.9 cm |
| Angled Tip | 110° bend, extends up to 1 inch (2.54 cm) |
| Kompatibilitet | Universal for ATVs, UTVs, Snowmobiles, and other multi-cylinder engines |
| Vægt | Ca. 106 g |
Garanti og support
Your Flylin Carburetor Pilot Screw Adjustment Tool is manufactured to high-quality standards. While specific warranty details are not provided in this manual, we stand behind the quality of our products.
If you have any questions, concerns, or require assistance with your tool, please do not hesitate to contact our customer support. We are committed to ensuring your satisfaction and providing the necessary support for your product.
Se venligst din købsdokumentation eller forhandlerens website for specific contact information and warranty terms.
