Rosieres RF9Z170IN Sublime Multifunction Oven User Manual

Indledning

Thank you for choosing the Rosieres RF9Z170IN Sublime Multifunction Oven. This appliance is designed to provide a superior cooking experience with its advanced features and spacious 105-liter capacity. To ensure safe operation, optimal performance, and longevity of your oven, please read this manual thoroughly before installation, first use, and maintenance. Keep this manual for future reference.

Vigtige sikkerhedsinstruktioner

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, burns, or injury. This section contains critical information for your safety.

• Elektrisk sikkerhed: Ensure the oven is properly grounded. Do not operate with a damaged power cord or plug. Disconnect power before servicing.
• Børnesikkerhed: Keep children away from the oven during operation and when it is cooling down. The oven surfaces can become very hot.
• Forbrændingsfare: Use oven mitts when handling hot dishes or oven racks. Do not touch hot surfaces directly.
• Brandfare: Never store flammable materials in or near the oven. Do not use water on grease fires; smother the fire or use a dry chemical or foam-type extinguisher.
• Ventilation: Sørg for tilstrækkelig ventilation omkring ovnen som angivet i installationsvejledningen.
• Rensning: Always allow the oven to cool before cleaning. Use only recommended cleaning agents and methods.
• Service: Do not attempt to repair or replace any part of the oven unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.

Produkt overview

The Rosieres RF9Z170IN oven features a modern design with Inox/Black finish and a spacious interior for diverse cooking needs.

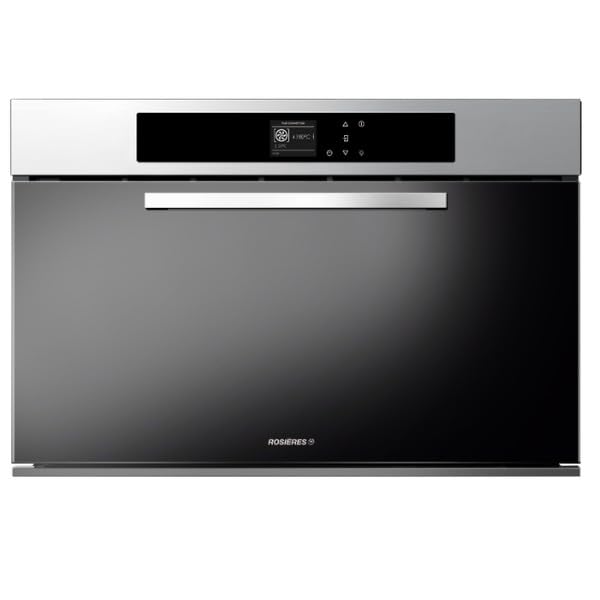

Figur 1: Forside view of the Rosieres RF9Z170IN Sublime Multifunction Oven, showcasing its Inox/Black finish and digital display.

Nøglefunktioner:

• 105 liters kapacitet: Large interior suitable for cooking multiple dishes or larger items.
• Digitale berøringskontroller: Intuitive interface for precise temperature and time adjustments.
• Multifunktionelle egenskaber: Offers various cooking modes including baking, roasting, and grilling.
• Easy to Clean Enamel Interior: Designed for hassle-free maintenance.
• Kvalitetsmaterialer: Constructed with durable stainless steel for longevity.

Opsætning og installation

Korrekt installation er afgørende for sikker og effektiv drift af din ovn. Det anbefales, at installationen udføres af en kvalificeret tekniker.

1. Udpakning: Carefully remove all packaging materials and accessories. Inspect the oven for any damage. Report any damage to your retailer immediately.
2. Placering: Install the oven in a suitable cabinet opening according to the provided installation template (not included in this manual, refer to separate installation guide). Ensure adequate clearance for ventilation.
3. Elektrisk tilslutning: Connect the oven to a properly grounded electrical outlet as per local electrical codes. The power supply must match the specifications listed on the oven's rating plate.
4. Forberedelse af første brug: Rengør ovnens inderside med en sprayflaske før første brug.amp cloth. Heat the empty oven at maximum temperature for approximately 30 minutes to burn off any manufacturing residues. Ensure the room is well-ventilated during this process.

Betjeningsvejledning

Your Rosieres RF9Z170IN oven features intuitive digital touch controls for selecting cooking functions, temperature, and time.

1. Indstilling af uret:

• Upon first connection, the display will flash.
• Brug + og - knapper for at indstille det aktuelle klokkeslæt.
• Tryk på OK knappen for at bekræfte.

2. Selecting a Cooking Function:

• Tryk på Fungere button to cycle through available cooking modes (e.g., Bake, Roast, Grill, Convection).
• The selected function icon will illuminate on the display.

3. Indstilling af temperatur:

• After selecting a function, press the Temperatur knap.
• Brug + og - knapper for at justere den ønskede temperatur.
• Trykke OK for at bekræfte.

4. Setting Cooking Time:

• Tryk på Timer knap.
• Brug + og - buttons to set the cooking duration.
• Trykke OK to start cooking. The oven will automatically turn off when the time expires.

Note: Refer to specific recipe guidelines for optimal temperature and cooking times for various dishes. Always preheat the oven when recommended.

Vedligeholdelse og rengøring

Regular cleaning and maintenance will ensure your oven remains in excellent condition and performs efficiently.

Udvendig rengøring:

• Tør de udvendige overflader af med en blød kludampvaskes med varmt sæbevand.
• For stainless steel parts, use a non-abrasive stainless steel cleaner and polish in the direction of the grain.
• Undgå slibende rengøringsmidler, skuresvampe eller barske kemikalier, der kan beskadige overfladen.

Interior Cleaning (Easy to Clean Enamel):

• Lad ovnen køle helt af før rengøring.
• Fjern ovnriste og tilbehør.
• Tør spild og madrester af med enamp klud og mildt rengøringsmiddel.
• For stubborn stains, use a non-abrasive oven cleaner specifically designed for enamel interiors. Follow the product instructions carefully.
• Skyl grundigt med en ren, damp klud for at fjerne alle rester af rengøringsmiddel.

Udskiftning af ovnlys:

• Sørg for, at ovnen er afbrudt fra strømforsyningen.
• Remove the protective glass cover.
• Unscrew the old bulb and replace it with a new, heat-resistant oven bulb of the same specifications.
• Udskift glasdækslet.

Fejlfinding

Før du kontakter kundeservice, bedes du læse følgende almindelige problemer og deres løsninger:

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kvalificeret servicepersonale.

Specifikationer

Technical details for the Rosieres RF9Z170IN Sublime Multifunction Oven:

Garanti og support

Rosieres products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official Rosieres website. For technical support, spare parts, or service inquiries, please contact your local authorized Rosieres service center.

Reservedelsinformation er ikke tilgængelig eller angivet i produktdataene.
