Kozyard Apollo 12'x14' Hardtop Gazebo Instruction Manual

1. Introduktion

Thank you for choosing the Kozyard Apollo 12'x14' Hardtop Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Figure 1.1: The Kozyard Apollo 12'x14' Hardtop Gazebo provides a spacious outdoor living area.

2. Sikkerhedsoplysninger

To ensure safe use and prevent injury or damage, observe the following safety guidelines:

• Always follow the assembly instructions provided in the complete manual.
• This gazebo is heavy and large; ensure at least two people are present during assembly and disassembly.
• Exercise caution when handling the mosquito net to avoid injury.
• Do not exceed the specified weight limit of 2500 lbs for snow loads.
• Do not exceed the specified wind speed limit of 40 MPH.
• Secure the gazebo to a stable foundation to prevent it from tipping over in strong winds.

3. Pakkens indhold

Verify that all components are present and undamaged before beginning assembly. Refer to the detailed parts list in your physical assembly manual for specific quantities and part numbers. Key components include:

• Aluminum Frame Components (wood-look finish)
• Galvanized Steel Double Roof Panels
• Myggenet
• Hardware Kit (bolts, screws, washers, etc.)
• Tools for Assembly (basic tools may be included, but personal tools are recommended)

4. Monteringsvejledning

Assembly of the Kozyard Apollo Gazebo requires careful attention to detail and adherence to the step-by-step instructions provided in the dedicated assembly guide included with your product. It is highly recommended to have at least two adults for the assembly process.

4.1 Trin i den generelle samling

1. Udpak og organiser: Lay out all parts and hardware. Verify against the parts list.
2. Saml ramme: Connect the main aluminum frame components, ensuring all connections are secure but not fully tightened until the structure is complete.
3. Installer tagpaneler: Carefully attach the galvanized steel double roof panels. The gutter system is integrated to direct rainwater efficiently.
4. Attach Mosquito Netting: Install the mosquito netting onto the designated tracks.
5. Endelig opstramning og forankring: Once the entire structure is assembled, tighten all bolts and screws. Securely anchor the gazebo to a stable ground surface using appropriate anchoring hardware (not always included, check your package).

Figure 4.1: The durable wood-look aluminum frame provides structural integrity.

Figure 4.2: The double roof design enhances ventilation and weather resistance.

Figure 4.3: The water gutter system efficiently directs rainwater away from the structure.

4.2 Assembly Video Reference

Video 4.1: An official Kozyard LLC video demonstrating features and aspects of the four-season hardtop gazebo, which can aid in understanding the assembly process.

5. Betjeningsvejledning

5.1 Myggenet

The gazebo includes a mosquito net to provide protection from insects. The netting runs on tracks integrated into the frame. To use, simply pull the netting closed and secure it with the zippers or ties provided. When not in use, the netting can be tied back to the posts.

Figure 5.1: The double track system allows for simultaneous use of mosquito nets and optional privacy curtains.

5.2 Optional Curtains

The gazebo frame is designed with double tracks to accommodate optional privacy curtains (sold separately). These can be installed on the outer track for added privacy or sun protection.

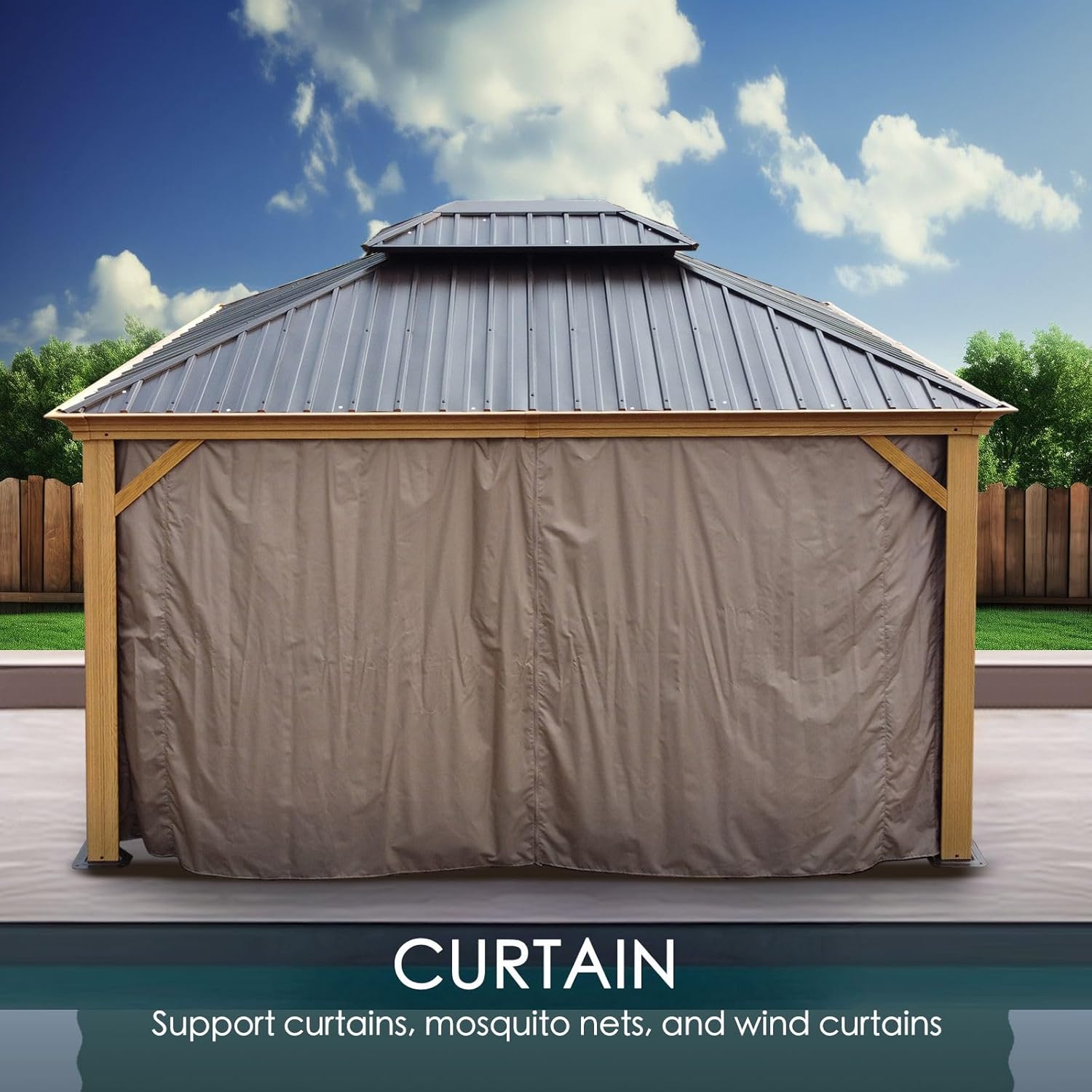

Figure 5.2: The gazebo supports the installation of privacy curtains for enhanced comfort.

6. Vedligeholdelse

Regelmæssig vedligeholdelse vil forlænge levetiden og udseendet af din pavillon.

• Rensning: Clean the frame and roof panels periodically with mild soap and water. Rinse thoroughly and dry to prevent water spots. Do not use abrasive cleaners or harsh chemicals.
• Netpleje: The mosquito net can be gently hand-washed with mild soap and water. Ensure it is completely dry before storing or reattaching.
• Hardware inspektion: Kontrollér regelmæssigt alle bolte og skruer for at sikre, at de forbliver stramme. Spænd efter behov.
• Snerydning: While the roof is designed to withstand snow loads up to 2500 lbs, it is recommended to remove heavy accumulations of snow to prevent excessive stress on the structure. Use a soft brush or broom to avoid damaging the roof panels.
• Vinteropbevaring (valgfrit): If you live in an area with extreme winter conditions, consider disassembling and storing the gazebo indoors to prolong its lifespan.

7. Fejlfinding

Hvis du støder på problemer med din pavillon, kan du bruge følgende almindelige løsninger:

• vaklende struktur: Ensure all bolts and screws are fully tightened. Verify that the gazebo is anchored securely to a level surface.
• Vandlækage: Check that all roof panels are correctly installed and overlapping as per the assembly instructions. Ensure the gutter system is clear of debris.
• Difficulty with Netting/Curtains: Inspect the tracks for any obstructions or damage. Ensure the netting/curtains are properly aligned on the tracks.

For further assistance, please contact Kozyard customer support.

8. Specifikationer

Figure 8.1: Detailed dimensions of the Kozyard Apollo 12'x14' Gazebo.

9. Garanti og support

Kozyard provides a 1-year after-sales protection for this product. For warranty claims, missing parts, or technical support, please contact Kozyard customer service directly. Refer to your purchase documentation for specific contact details.
