SENIX X6 60V Max Cordless String Trimmer GTX6-M Instruction Manual

1. Introduktion

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your SENIX X6 60V Max Cordless String Trimmer. The trimmer features a 16-inch cutting diameter, a 0.095-inch cutting line, an aluminum shaft, and a brushless motor for powerful performance. It includes a 3.0 Ah Lithium-ion battery and charger. Please read this manual thoroughly before first use.

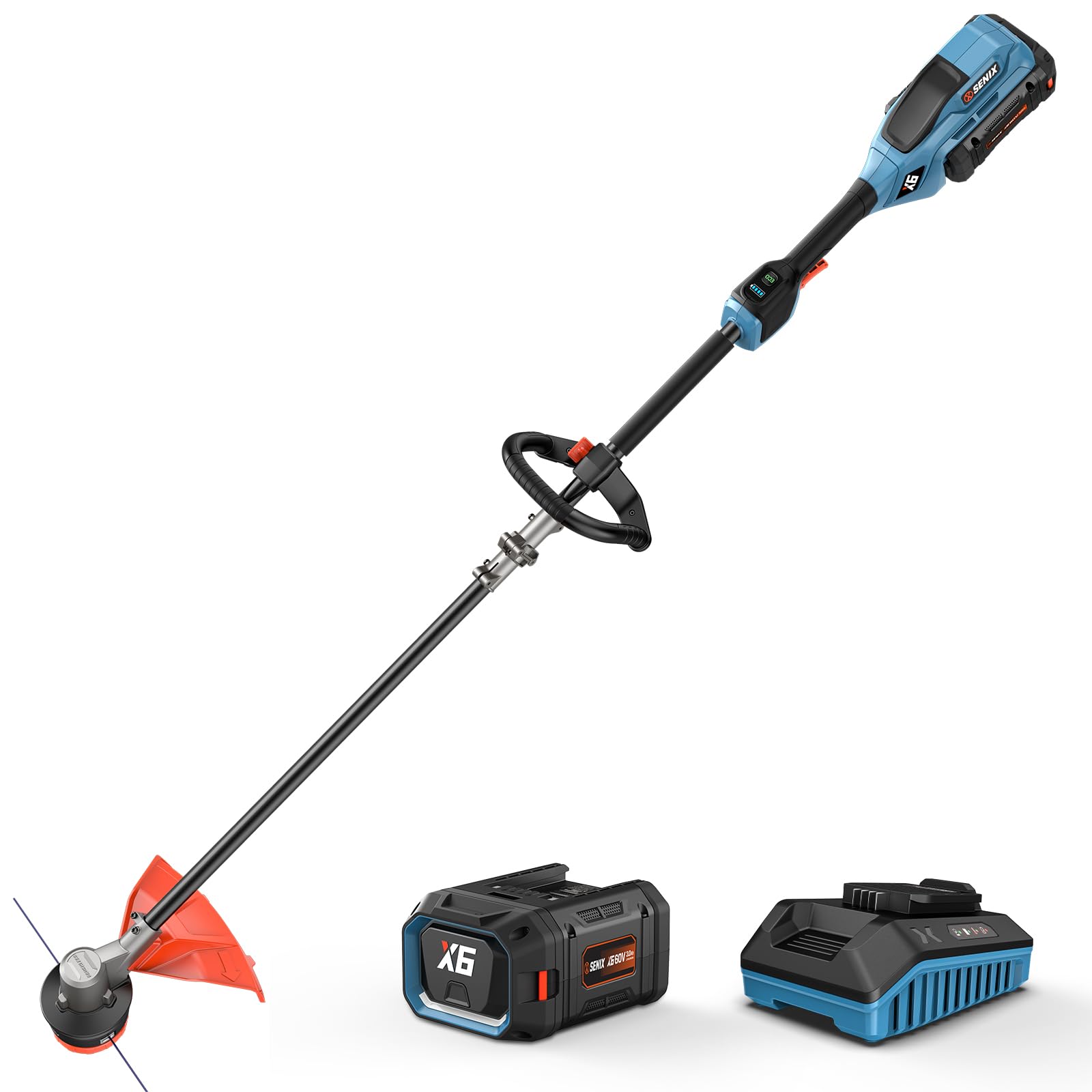

Image: The SENIX X6 60V Max Cordless String Trimmer, ready for use.

2. Sikkerhedsoplysninger

ADVARSEL: To reduce the risk of injury, the user must read the entire instruction manual before operating this product. Do NOT connect any power before making any adjustments or performing maintenance.

• Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and earplugs, during operation and maintenance.
• Ensure the battery is fully charged before use, but disconnect it before any assembly or maintenance.
• Hold tilskuere, især børn og kæledyr, på sikker afstand af driftsområdet.
• Inspect the work area for debris, rocks, or other objects that could be thrown by the trimmer line.
• Operate the trimmer only in good visibility and dry conditions.

Image: A user demonstrating proper safety attire, including protective glasses and gloves, before operating the string trimmer.

3. Pakkens indhold

Verify that all items are present upon opening the package. If any parts are missing or damaged, contact SENIX customer service.

Image: The complete package contents, including the string trimmer, 60V Max 3.0Ah battery, 3A charger, and spooled trimmer line.

• Cordless String Trimmer (Main Unit)
• Front-Assist håndtag
• Vagt
• 60V Max 3.0 Ah Lithium-ion Battery
• 3A oplader
• Spooled Trimmer Line (0.095" dual twist line)
• Instruktionsmanual
• Installation Tools (Hexagon wrench, screw)

4. Montering

Follow these steps to assemble your SENIX X6 60V Max Cordless String Trimmer. Ensure the battery is removed before starting assembly.

1. Prepare the Coupler:

   Remove the screw on the coupler located on the main shaft. This will allow you to adjust and secure the handle.

   Video: Quick Start Guide for the SENIX Cordless String Trimmer, demonstrating assembly and initial use. This video shows how to remove and fix the coupler screw, install the handle, guard, and battery, and start the trimmer.

   Once the handle is in place, fix the coupler securely with the screw. Ensure it is tightened to prevent movement during operation.
2. Install the Front-Assist Handle:

   Attach the Front-Assist Handle to the main shaft. Position it for comfortable use and optimal balance.



   Billede: Nærbillede view of the 360-degree adjustable front-assist handle, designed for maximum control and user comfort during trimming and edging.

   Installer clamping block and then secure it with the hexagon screw. Ensure the handle is firmly attached.

   Secure the handle further using the fixed knob, ensuring it is tight and the handle does not wobble.

3. Fastgør beskyttelsen:

   First, remove the anti-loss screw from the guard. This screw is designed to prevent loss during shipping but needs to be removed for installation.

   Install the guard over the trimmer head. The guard protects the user from flying debris during operation.



   Image: The grass shield installed on the trimmer head, designed to prevent messy dirt and debris from scattering.

   Tighten the screw to secure the guard in place. Ensure it is firmly attached and does not interfere with the trimmer line.

   Tear off the blade paper from the guard. This paper protects the blade during transit.
4. Installer batteriet:

   Align the 60V Max 3.0 Ah Lithium-ion battery with the battery slot on the trimmer and slide it in until it clicks into place. Ensure it is fully seated.



   Image: The SENIX X6 60V Max battery being securely installed into the cordless string trimmer.

   For at fjerne batteriet skal du trykke på udløserknappen og skubbe batteriet ud.

5. Betjening

Before operating, ensure all safety precautions are followed and the trimmer is fully assembled.

1. Start af trimmeren:

   To start the trimmer, press the safety lock-off button and then squeeze the trigger simultaneously. Release the safety button once the trimmer starts.



   Image: The handle showing the variable speed control, ECO mode selection button, and battery level display.

2. Variabel hastighedskontrol:

   The trimmer features ECO and standard modes. Press the ECO button to switch between modes. ECO mode (No-load speed 5000rpm) conserves battery life for lighter tasks, while standard mode (No-load speed 6000rpm) provides full power for tougher conditions.

3. Display på batteriniveau:

   Monitor the battery charge level using the integrated display on the handle. This helps you manage your work time effectively.
4. Quick Line Load:

   To load new cutting line, align the arrows on the trimmer head, insert the line, and twist. This bump feed system allows for quick and easy line advancement during operation.



   Image: The trimmer head demonstrating the 16-inch cutting width and 0.095-inch dual twist line for efficient trimming.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your string trimmer. Always disconnect the battery before performing any maintenance.

• Rensning: After each use, clean the trimmer head, guard, and shaft to remove grass clippings and debris. Use a damp klud og mild sæbe om nødvendigt.
• Udskiftning af trimmertråd: Replace the trimmer line as needed. Refer to the "Quick Line Load" section for instructions on how to easily load new line. Use only 0.095" dual twist line.
• Batteripleje: Store the battery in a cool, dry place. Do not expose it to extreme temperatures. Fully charge the battery before long-term storage.
• Inspektion: Periodically inspect the trimmer for any loose screws, damaged parts, or excessive wear. Tighten loose fasteners and replace damaged components immediately.

7. Fejlfinding

If you encounter issues with your SENIX X6 60V Max Cordless String Trimmer, refer to the following common troubleshooting steps:

For issues not covered here, please contact SENIX customer support.

8. Specifikationer

9. Garanti og support

For warranty information, please refer to the documentation included with your product or visit the official SENIX website. SENIX offers various protection plans for extended coverage.

If you require technical assistance, replacement parts, or have questions regarding your SENIX X6 60V Max Cordless String Trimmer, please contact SENIX customer service. They are available to provide support and guidance.

• Kundeservice: Refer to your product packaging or the SENIX webwebsted for kontaktoplysninger.
• Online ressourcer: Besøg SENIX Store on Amazon for yderligere produktinformation og tilbehør.
