NEEWER TL120C RGB LED Tube Light Instruction Manual

1. Produktet er slutview

The NEEWER TL120C is a versatile RGB LED tube light designed for professional photography and video production. It features an extended length of 127cm, delivering a powerful 42W output with soft and uniform light quality. Utilizing RGBWW mixing technology, it offers rich color expression with ultra-high color rendering (CRI97+ / TLCI98+) and a wide color temperature range of 2500K to 10000K. The light supports precise and faithful color reproduction with 90% coverage of the Rec.2020 color gamut.

Key features include 32-bit independently controlled pixels, allowing individual adjustment of brightness, color temperature, and light effects for each pixel area. It offers 7 types of pixel effects and 18 types of scene effects, including a music sync mode, to create immersive lighting. Additionally, it comes with 40 classic gel presets (RESCO: 20 types, LEE: 20 types) for professional lighting effects.

The TL120C ensures smooth and precise brightness control through 4 types of PWM dimming methods (exponential, logarithmic, S-type, linear) and X/Y axis dimming patterns. HSI mode enables 36,000 colors, while RGBCW mode supports color ratio adjustment in 0-255 steps. A touch bar allows quick color selection and can be locked to prevent accidental changes.

Control options are extensive, including direct operation via physical buttons, wireless control via the 2.4G system, and the dedicated NEEWER app. Its unique "Infinity Network Meshing" technology allows simultaneous control of up to hundreds of lights for dynamic, animation-like effects. Precise control via a DMX512 console is also supported.

The light is powered by a built-in 6000mAh battery, providing 120 minutes of continuous illumination at maximum brightness. Its slim and elegant design, with a frameless body and 180° curved diffusion panel, blends seamlessly into various shooting environments. Multiple mounting options are available, including a 1/4-inch screw hole for light stands and included clamps and steel wire for stable setup.

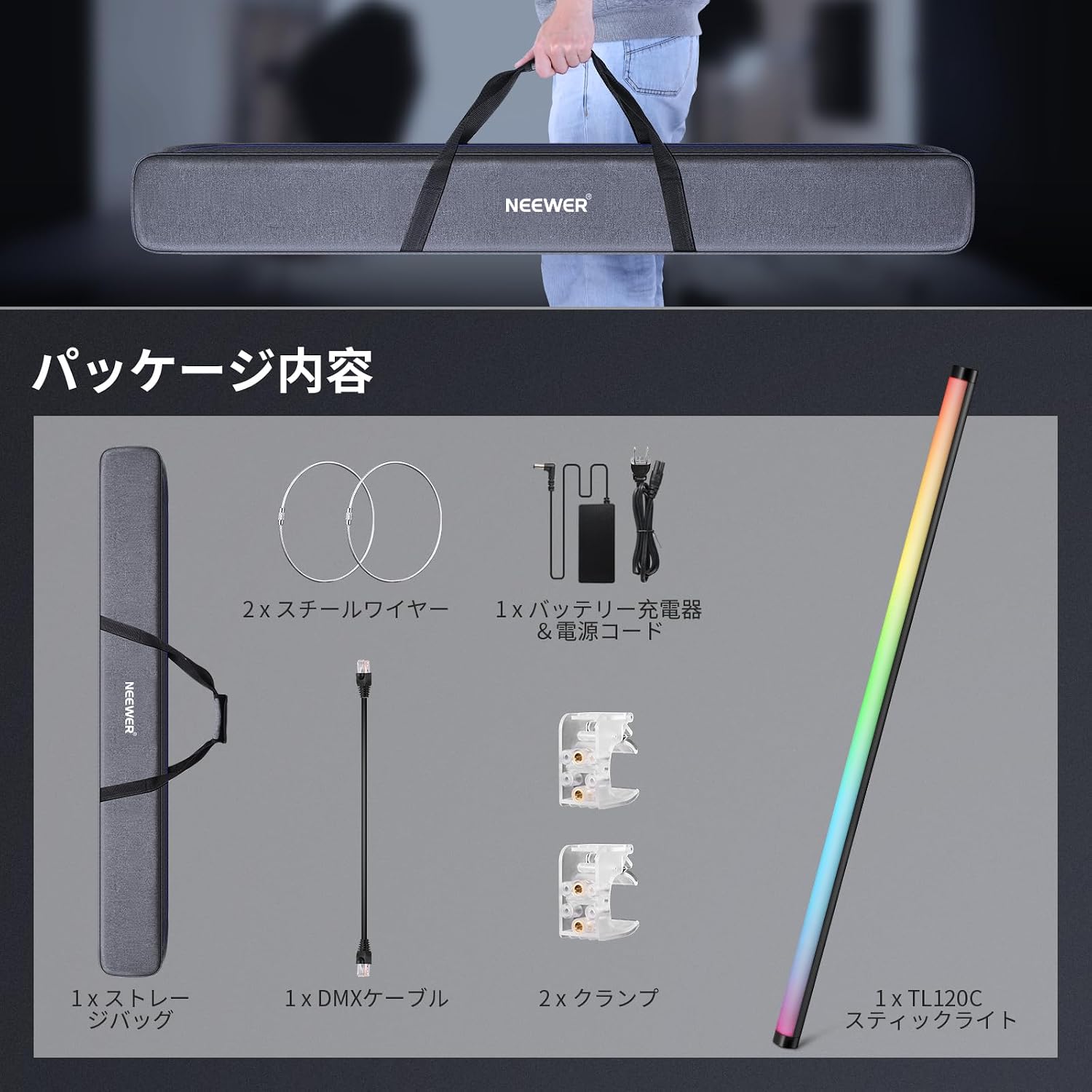

2. Pakkens indhold

Før du fortsætter med opsætningen, skal du kontrollere, at alle nedenstående varer er inkluderet i din pakke:

• 1 x NEEWER TL120C RGB LED Tube Light
• 1 x Power Adapter & Power Cord
• 2 x Clamps
• 2 x Steel Wires
• 1 x DMX kabel
• 1 x bæretaske

3. Opsætningsvejledning

3.1 Opladning af batteriet

The TL120C features a built-in 6000mAh lithium battery. Before first use, or when the battery is low, connect the included power adapter to the light's DC input port and plug it into a power outlet. A full charge takes approximately 120 minutes.

3.2 Montering af lyset

The TL120C offers several mounting options to suit various shooting scenarios:

• Montering af lysstativ: Use the 1/4-inch screw hole located at the bottom of the light to attach it to a compatible light stand. Ensure the stand is stable and can support the weight of the light.
• Clamp Montering: Den medfølgende clamps can be used to secure the light to various surfaces or structures. Attach the clamp to the light and then to your desired mounting point.
• Steel Wire Suspension: For overhead or suspended setups, utilize the provided steel wires. Attach the wires securely to the light and to a robust overhead support.

4. Betjeningsvejledning

4.1 Tænd/sluk

Locate the power button on the control panel of the light. Press and hold the button for a few seconds to power the light on or off.

4.2 kontroltilstande

The TL120C offers multiple control methods:

• Indbygget kontrol: Use the physical buttons and touch bar on the light's control panel to adjust settings directly. The touch bar can be locked to prevent accidental changes.
• 2.4G trådløs kontrol: Utilize a compatible 2.4G wireless remote control (sold separately) to adjust light settings from a distance.
• NEEWER App Control: Download the dedicated NEEWER app on your iOS or Android device. Connect to the light via Bluetooth for comprehensive control over all functions, including color, brightness, effects, and pixel control. The app supports "Infinity Network Meshing" for controlling multiple lights simultaneously.
• DMX512 kontrol: For professional setups, connect the light to a DMX512 console using the included DMX cable for precise and integrated lighting control.

4.3 Adjusting Color and Brightness

The TL120C offers various modes for color and brightness adjustment:

• CCT-tilstand: Adjust color temperature from 2500K (warm) to 10000K (cool) and green/magenta (GM) correction by ±50.
• HSI tilstand: Access 36,000 colors by adjusting Hue (0-360°), Saturation (0-100), and Intensity (brightness).
• RGBCW-tilstand: Fine-tune color ratios in 0-255 steps for Red, Green, Blue, Cool White, and Warm White channels.
• Dæmpning: Adjust brightness from 0% to 100% in 1% increments. Choose from exponential, logarithmic, S-type, or linear dimming curves for smooth transitions.

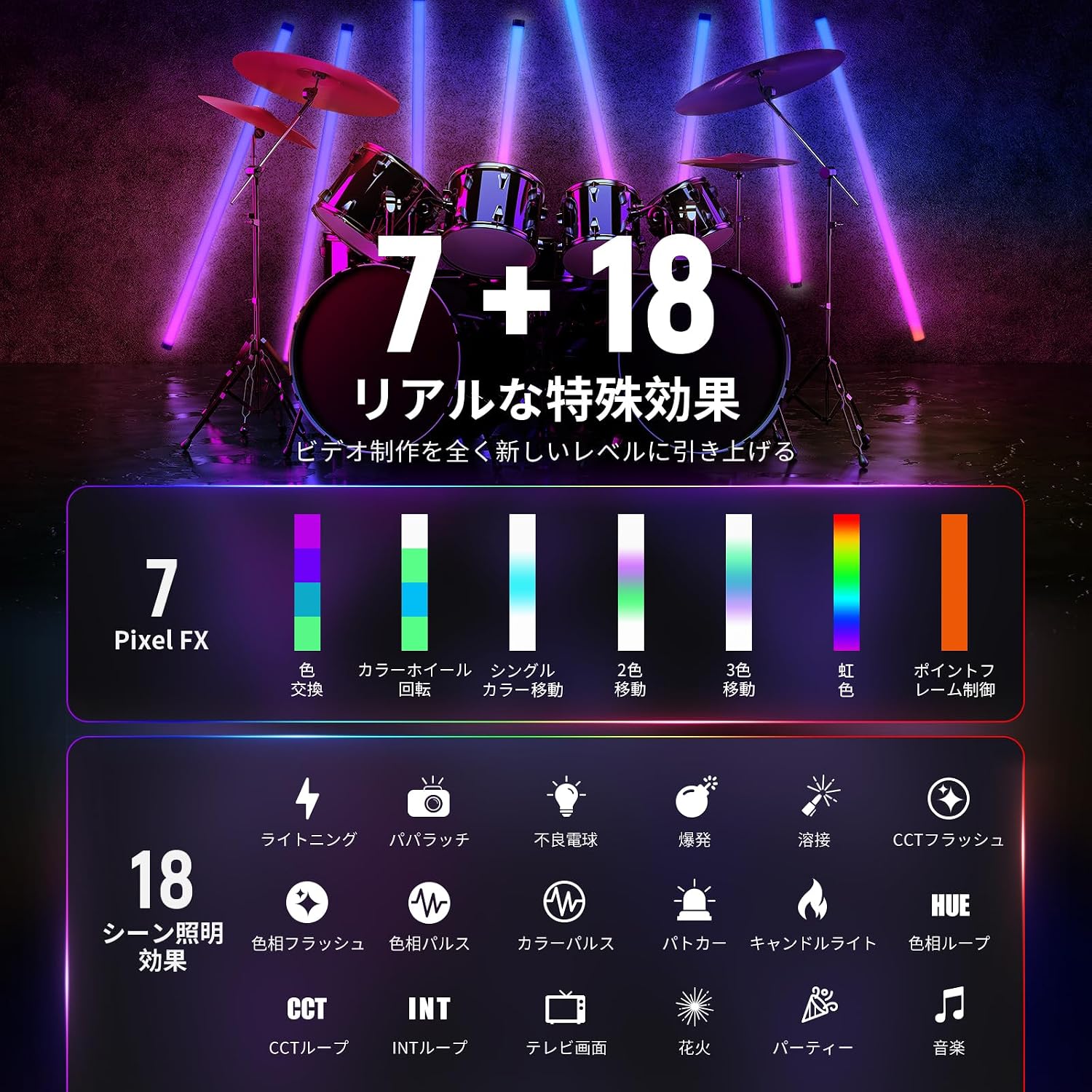

4.4 Specialeffekter

The light includes a range of built-in effects to enhance your creative output:

• Pixel Effects (7 types): Individually control the brightness, color temperature, and effects of 32 independent pixel areas to create dynamic lighting patterns.
• Scene Effects (18 types): Choose from various pre-programmed scene effects, including lightning, paparazzi, faulty bulb, explosion, welding, CCT flash, color flash, color pulse, police car, candlelight, TV screen, fireworks, party, and music sync mode.
• Gel Mode (40 presets): Access 40 classic gel presets (20 RESCO, 20 LEE) for quick and accurate color simulation.

5. Vedligeholdelse

To ensure the longevity and optimal performance of your NEEWER TL120C RGB LED Tube Light, follow these maintenance guidelines:

• Rensning: Gently wipe the light's surface with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or internal components.
• Opbevaring: Når den ikke er i brug, skal den opbevares i bæretasken på et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
• Batteripleje: For optimal battery life, avoid fully discharging the battery frequently. If storing for extended periods, charge the battery to approximately 50-70% every few months.
• Undgå påvirkning: Protect the light from drops or impacts, which can damage the internal electronics or the diffusion panel.
• Ventilation: Ensure the light has adequate ventilation during operation to prevent overheating.

6. Fejlfinding

If you encounter issues with your TL120C, refer to the following common troubleshooting steps:

• Lyset tænder ikke:
  • Check if the battery is charged. Connect the light to the power adapter and allow it to charge.
  • Sørg for, at tænd/sluk-knappen er trykket korrekt ned og holdt nede.
• Light is not responding to controls:
  • If using onboard controls, ensure the touch bar is not locked.
  • If using the app, ensure Bluetooth is enabled on your device and the light is properly connected. Try restarting the app and the light.
  • If using 2.4G or DMX, verify the connection and settings of your remote or console.
• Uregelmæssig lysudgang eller flimmer:
  • Ensure the light is not operating in an environment with extreme temperatures.
  • Check for any loose connections if using external power.
  • Kontakt kundesupport, hvis problemet fortsætter.
• Problemer med app-forbindelse:
  • Ensure the NEEWER app is updated to the latest version.
  • Restart your smartphone and the light.
  • Try re-pairing the light within the app.

7. Specifikationer

8. Garantioplysninger

The NEEWER TL120C RGB LED Tube Light comes with a 1 års producentgaranti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper storage. Please retain your proof of purchase for warranty claims.

9. Kundesupport

For any questions, technical assistance, or warranty inquiries regarding your NEEWER TL120C RGB LED Tube Light, please contact NEEWER customer support. You can typically find contact information on the NEEWER official website or through the retailer where you purchased the product. Please have your product model number (TL120C) and proof of purchase ready when contacting support.
