Indledning
Tak for købetasing the XDOBO KING MAX 140W Portable Wireless Speaker. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your speaker. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.
Sikkerhedsoplysninger
- Udsæt ikke højttaleren for ekstreme temperaturer, direkte sollys eller høj luftfugtighed.
- Hold højttaleren væk fra vand og væsker, på trods af dens IPX5-klassificering, for at forhindre skader.
- Du må ikke selv adskille, reparere eller ændre enheden. Overlad al service til kvalificeret personale.
- Use only the specified charging cable and power supply (Type C 5V3A) to avoid damage or fire.
- Undgå at lytte ved høje lydstyrker i længere perioder for at forhindre høreskader.
- Opbevares utilgængeligt for børn.
Pakkens indhold
Tjek venligst pakken for følgende varer:
- 1 x XDOBO KING MAX Speaker
- 1 x opladningskabel (Type-C)
- 1 x lydkabel
- 1 x brugsanvisning
- 1 x rem
- 2 x mikrofoner
Image: The XDOBO KING MAX speaker shown with its two accompanying wireless microphones, illustrating the complete product package.
Produkt overview
Kontrol og porte
Familiarize yourself with the various input and control options available on your speaker:
- BT (Bluetooth): Til trådløs lydstreaming.
- TF-kortslot: For playing audio directly from a MicroSD card.
- USB Flash Disk Port: For playing audio directly from a USB drive.
- 3.5mm AUX Line Input: For wired audio connection from external devices.
- 6.5mm Audio Cable Input: For connecting additional audio sources or instruments.
- Mikrofonindgange: Dedicated ports for the wireless microphones.
- Power knap: To turn the speaker on/off.
- Lydstyrkekontrol: To adjust the speaker's output volume.
- Mode knap: To switch between different playback modes.
- TWS Button (Key III): For connecting two speakers in True Wireless Stereo mode.

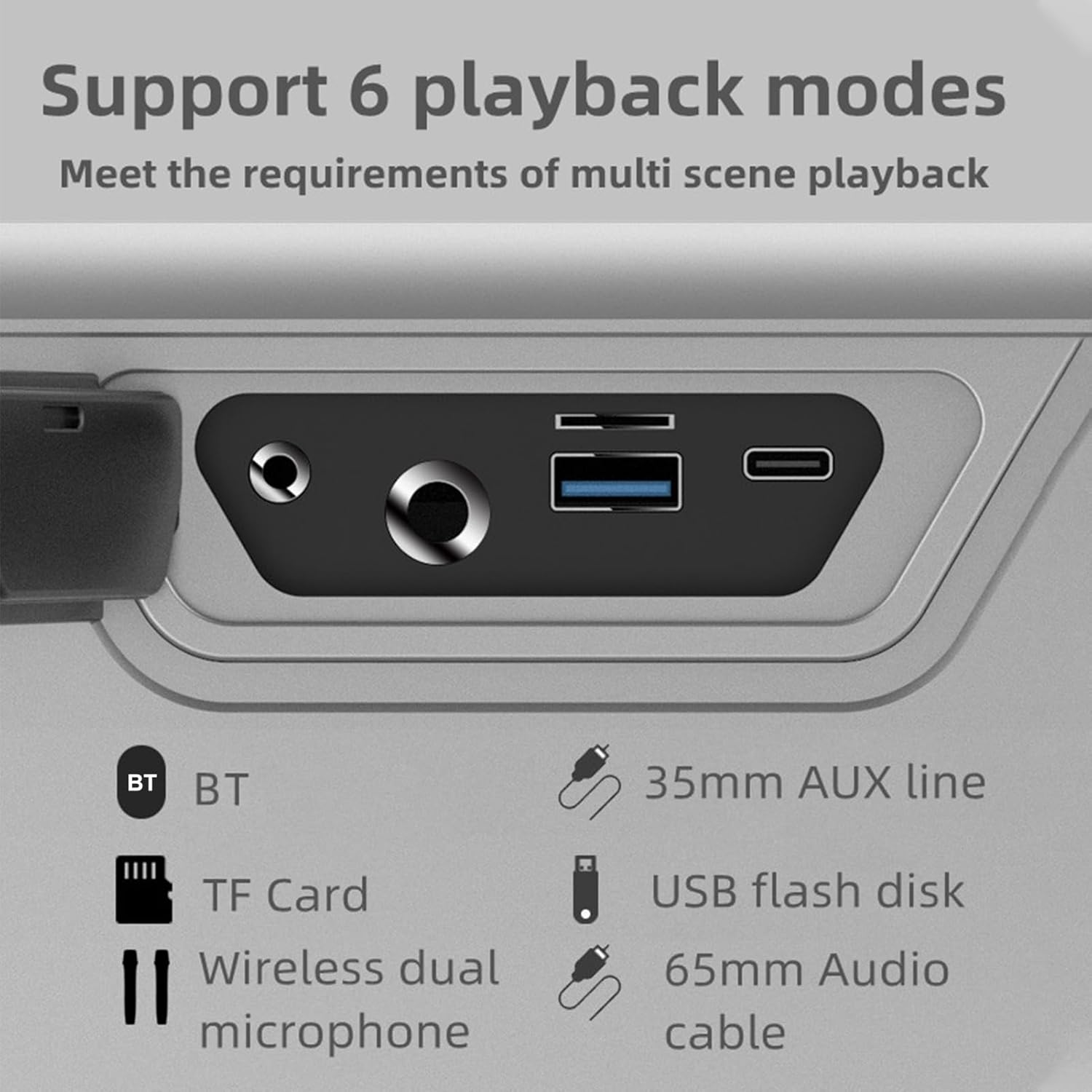

Billede: Et nærbillede view of the speaker's rear panel, highlighting the BT, TF Card, Wireless Dual Microphone, 3.5mm AUX line, USB flash disk, and 6.5mm Audio cable input ports.
Opsætning
1. Opladning af højttaleren
Before first use, fully charge the speaker. Connect the provided Type-C charging cable to the speaker's charging port and the other end to a 5V/3A power adapter (not included). The charging time is approximately 9 hours for a full charge. The battery capacity is 36000mAh (7.4V).
2. Mikrofonopsætning
The speaker comes with two UHF wireless karaoke microphones. To use them, ensure they are charged (if applicable) and powered on. They should automatically connect to the speaker when both devices are on and within range. Refer to the microphone's individual instructions for specific pairing details if needed.
Image: The XDOBO KING MAX speaker and its two wireless microphones are displayed on a wooden table, ready for use in a home setting.
Betjeningsvejledning
1. Tænd/sluk
Press and hold the Power button to turn the speaker on or off.
2. Bluetooth Pairing (BT Mode)
- Tænd højttaleren. Den vil automatisk gå i Bluetooth-parringstilstand.
- Aktiver Bluetooth på din enhed (smartphone, tablet osv.).
- Søg efter "XDOBO KING MAX" (or similar name) in your device's Bluetooth list and select it to connect.
- Once connected, the speaker will indicate successful pairing. The effective Bluetooth distance is up to 18 meters in open areas.
3. TWS-tilstand (ægte trådløs stereo)
If you have two XDOBO KING MAX speakers, you can connect them for a stereo sound experience. TWS mode is supported only in Bluetooth mode.
- Sørg for, at begge højttalere er tændt og ikke er forbundet til nogen anden Bluetooth-enhed.
- On either speaker, click the TWS button (often labeled as 'III' or a dedicated TWS icon).
- Højttalerne vil automatisk søge og parre med hinanden. Når de er forbundet, vil de fungere som et stereopar.
- Now, connect your device to one of the speakers via Bluetooth as described above. Audio will play through both speakers in stereo.

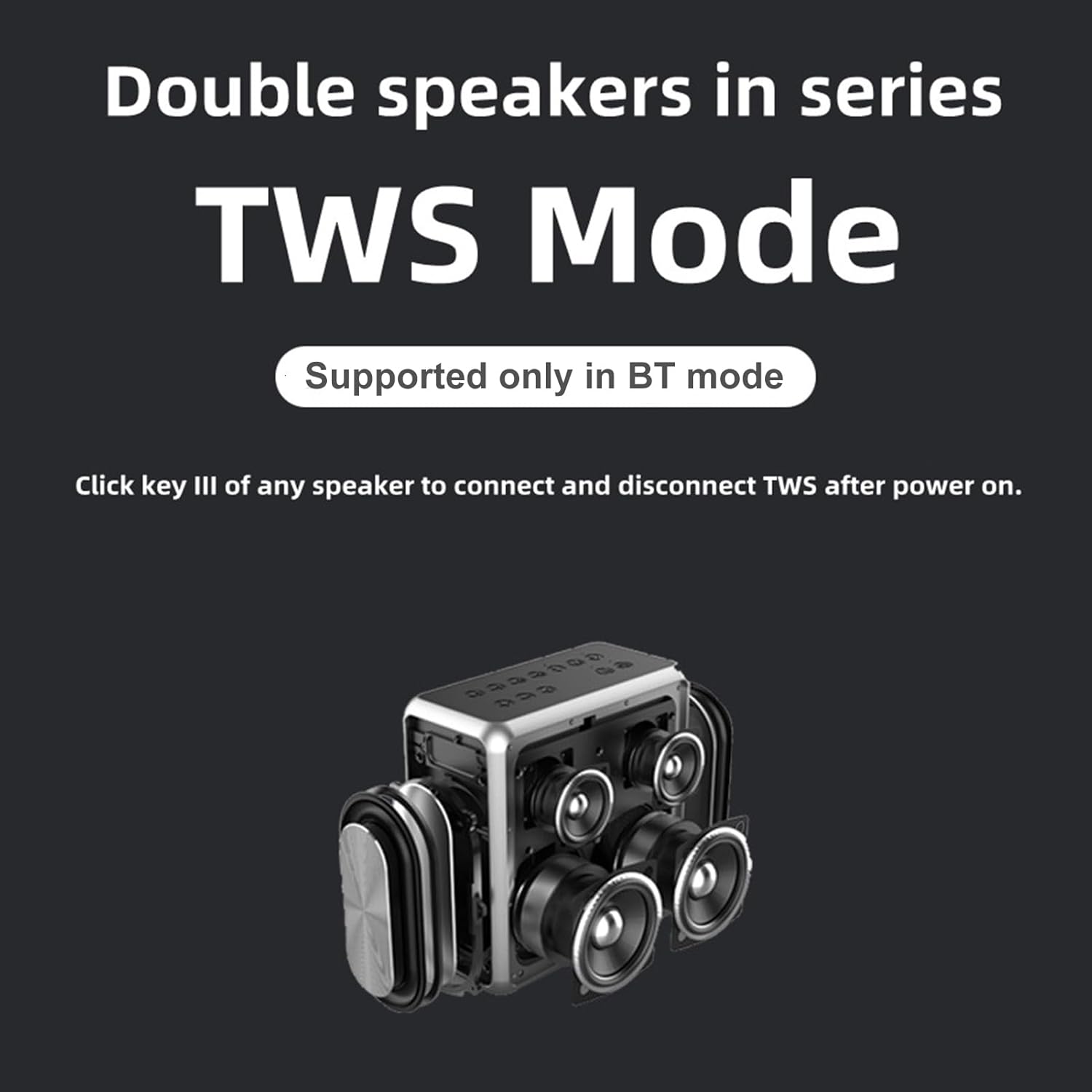

Image: A visual representation of two XDOBO KING MAX speakers wirelessly connected to create a stereo sound system, emphasizing the TWS (True Wireless Stereo) functionality.
4. Switching Playback Modes
Press the Mode button to cycle through the available playback modes:
- Bluetooth (BT)
- TF kort
- USB flash disk
- AUX Input (3.5mm or 6.5mm)
- Karaoke Mode (with microphones)
Supported audio formats include APE, FLAC, WAV, and MP3.
5. Brug af mikrofon (karaoke)
Turn on the wireless microphones. They will automatically connect to the speaker. Adjust the microphone volume and echo effects (if available on the speaker or microphone) for your karaoke experience. The speaker supports full frequency, voice, and subwoofer sound effect modes, enhancing your audio and vocal performance.
6. Output Phone Charging
The speaker supports output phone charging. You can use the USB port to charge your mobile device while the speaker is on, utilizing its large battery capacity.
Opretholdelse
- Rensning: Brug en blød, tør klud til at rengøre højttalerens overflade. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Opbevaring: Opbevar højttaleren et køligt og tørt sted, når den ikke er i brug. Undgå ekstreme temperaturer.
- Batteripleje: To prolong battery life, charge the speaker fully at least once every three months if not used regularly. Avoid completely draining the battery frequently.
- Vandtæthed: The IPX5 rating means it can resist a sustained, low-pressure water jet spray. Do not submerge the speaker in water. Ensure all port covers are securely closed before exposure to water.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Højttaleren tænder ikke | Lavt batteri; Tænd/sluk-knappen er ikke trykket korrekt ind | Charge the speaker; Press and hold the Power button for a few seconds |
| Ingen lyd | Lydstyrken er for lav; Forkert tilstand; Enheden er ikke tilsluttet | Increase volume; Switch to correct playback mode (BT, AUX, TF, USB); Reconnect device |
| Bluetooth-forbindelsen er ustabil | Too far from device; Obstacles; Interference | Move speaker closer to device (within 18M); Remove obstacles; Avoid strong electromagnetic interference |
| Mikrofon virker ikke | Microphone off; Low microphone battery; Not paired | Turn on microphone; Charge microphone; Re-pair microphone with speaker |
| TWS-parring mislykkedes | Speakers already connected to other devices; Not in BT mode | Disconnect speakers from other devices; Ensure both are in BT mode before TWS pairing |
Specifikationer
Image: A graphic detailing the technical specifications and parameters of the XDOBO KING MAX speaker, including BT version, power, waterproof rating, and battery life.
| Feature | Specifikation |
|---|---|
| BT version | V5.2 |
| Nominel effekt | 140W |
| Vandtæt vurdering | IPX5 |
| Signal-støjforhold | 75dB |
| Frekvensresponsområde | 20Hz - 20kHz |
| Forvrængning | ≤1 % |
| Effective Distance (BT) | 18M (åbent område) |
| Indgangsstrømforsyning | Type C 5V3A |
| Spilletid | 4-12 hours (varies by volume and content) |
| Opladningstid | Cirka 9 timer |
| Batterikapacitet | 36000mAh 7.4V (Built-in lithium battery) |
| TWS-forbindelse | BT |
| Lydeffekttilstande | Full frequency, Voice, Subwoofer |
| Output Phone Charging | Understøttet |
| Understøttede formater | APE, FLAC, WAV, MP3 |
| Arbejdstilstande | BT, TF card, USB flash disk, AUX cable, Karaoke |
| Produktstørrelse | 255 x 125 x 255 mm |
| Produktets vægt | 4476 g |
Image: A technical drawing illustrating the length, width, and height measurements of the XDOBO KING MAX speaker.
Garanti og support
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact the retailer or manufacturer's customer service. Keep your purchase receipt as proof of purchase.
