1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your Hilitand MPPT Solar Controller. This intelligent regulator is designed to optimize power generation from solar panels and efficiently charge various battery types in 12V or 24V automatic systems. Please read this manual thoroughly before use to ensure proper function and longevity of the device.
Produktegenskaber:
- Maksimal effektpunktssporing (MPPT): Detects real-time power generation of solar panels and tracks the highest voltage current value (V1) for maximum power charging.
- Alsidig batterikompatibilitet: Supports colloidal, sealed, open, and lithium batteries.
- Omfattende beskyttelse: Includes high input terminal voltage, short circuit, overpower, backcharge, TVS thunder, and overtemperature protection.
- Effektiv varmeafledning: Features a dual fan system to manage charging power and ensure stable operation.
- Brugervenlig LCD-skærm: Shows operating status, parameters, and control settings for easy monitoring and modification.
- Dual USB-port: Provides 5V 3A output for charging external devices.
2. Sikkerhedsoplysninger
Always observe the following safety precautions to prevent personal injury and damage to the controller or other components:
- Ensure all wiring is correctly connected before powering on the system. Incorrect wiring can cause damage.
- Forsøg ikke selv at adskille eller reparere controlleren. Kontakt kvalificeret personale for service.
- Installer styreenheden i et godt ventileret område, væk fra brandfarlige materialer og direkte sollys.
- Brug passende personlige værnemidler (PPE) når du arbejder med elektriske systemer.
- Sørg for, at batteriets voltage matcher systemet voltage (12V or 24V) before connection.
3. Produktet er slutview og komponenter
The Hilitand MPPT Solar Controller is designed for robust performance in off-grid photovoltaic systems. Below is an overview of its physical characteristics and included components.
Figur 3.1: Forside view of the Hilitand MPPT Solar Controller, showing the LCD screen and control buttons.
Figure 3.2: Dimensions of the Hilitand MPPT Solar Controller, measuring approximately 135 x 135 x 54mm.
Pakkeindhold:
- 1 x MPPT Solar Controller
- 4 x Installation Screws
- 4 x Vægstik
- 1 x Brugermanual (dette dokument)
4. Opsætning og installation
Follow these steps for proper installation of your MPPT Solar Controller.
4.1 Montering af controlleren
Mount the controller in a dry, well-ventilated indoor location. Ensure there is sufficient space around the unit for heat dissipation. The controller features mounting holes for secure wall installation.
Figur 4.1: Eksample of controller installation, highlighting the dual USB interface.
4.2 Ledningsforbindelser
Tilslut komponenterne i følgende rækkefølge for at undgå skader:
- Tilslut batteriet: Connect the battery to the controller's battery terminals. Ensure correct polarity (+ to + and - to -). The LCD display should light up.
- Tilslut solpanelet: Connect the solar panel to the controller's solar panel terminals. Ensure correct polarity. The controller will begin charging the battery.
- Tilslut belastningen (valgfrit): Tilslut din DC-belastning til controllerens belastningsterminaler. Sørg for korrekt polaritet.
Vigtig: Tilslut altid batteriet først, derefter solpanelet og til sidst belastningen. Frakobl i omvendt rækkefølge: belastning, derefter solpanelet og derefter batteriet.
Figure 4.2: System connection diagram illustrating the wiring order for solar panel, battery, and DC load.
Figure 4.3: Comprehensive system diagram showing the MPPT solar charging controller integrated into a larger solar power system with AC output.
5. Betjeningsvejledning
The controller features an LCD display and control buttons for easy operation and monitoring.
5.1 LCD-skærm og knapper
The LCD screen displays real-time system status, including battery voltage, charging current, load current, and various parameters. The buttons (SET, UP, DOWN, ESC) allow you to navigate menus and adjust settings.

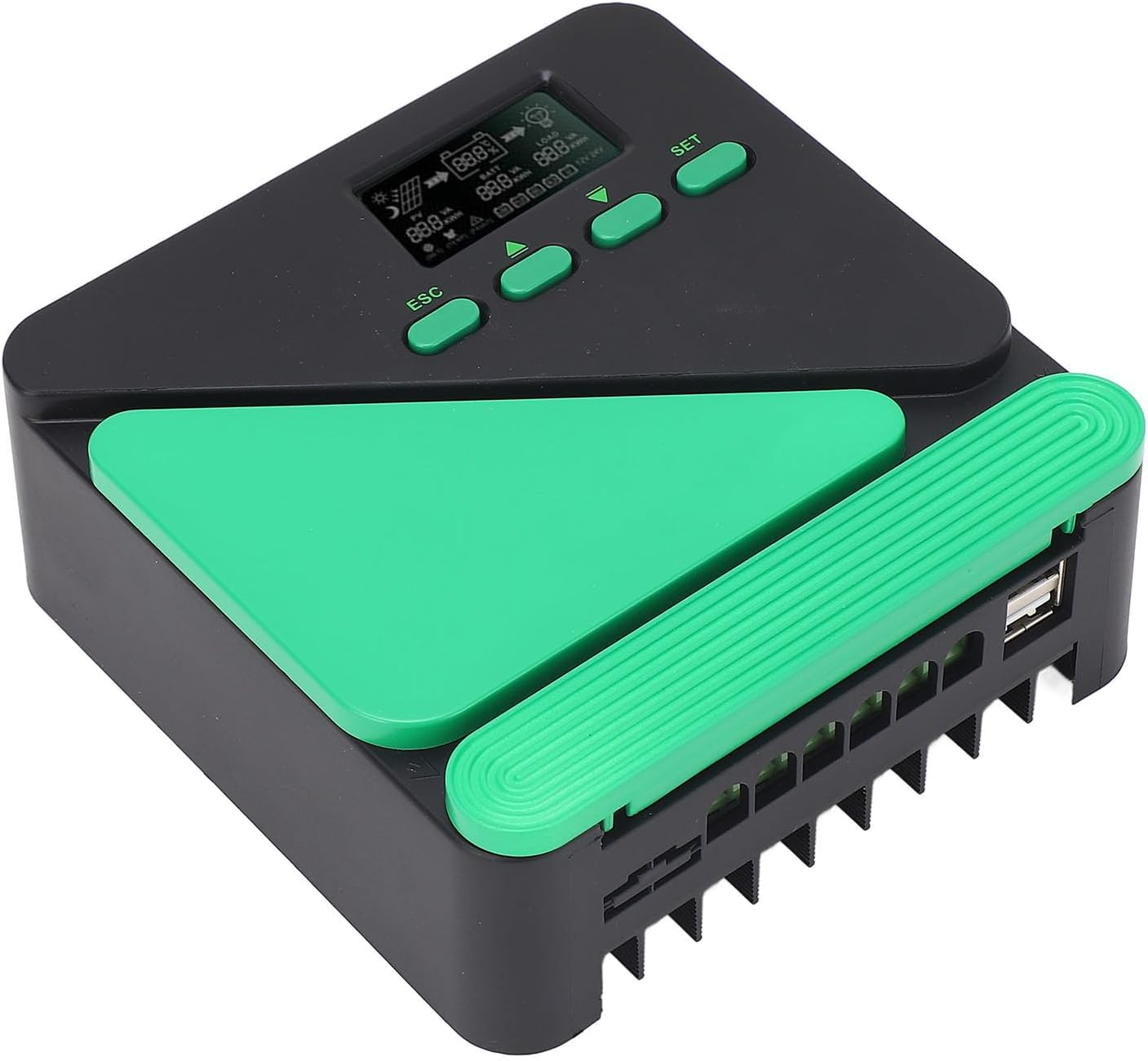

Figure 5.1: Close-up of the LCD display and control buttons (SET, UP, DOWN, ESC).
5.2 Parameterindstillinger
Tryk på SÆT knappen for at åbne parameterindstillingsmenuen. Brug UP og NED buttons to navigate through different parameters (e.g., battery type, load control mode). Press SÆT again to confirm a selection or enter edit mode. Use UP/NED to change values, then SÆT at gemme. Trykke ESC to exit the menu without saving changes.
5.3 USB-udgang
The controller is equipped with dual 5V 3A USB ports. These ports can be used to charge compatible electronic devices directly from the controller.
6. Vedligeholdelse
Regular maintenance ensures optimal performance and extends the lifespan of your solar controller.
6.1 Rengøring
Periodically clean the controller's exterior with a dry cloth. Do not use liquid cleaners or solvents. Ensure ventilation openings are free from dust and debris.
6.2 Varmeafledning
The controller features a dual fan system for efficient heat dissipation. Ensure that the fans are not obstructed and operate correctly. If the controller consistently runs hot, verify proper ventilation and ensure the solar panel power does not exceed the controller's rated current for extended periods.
Figure 6.1: The controller's dual fan system for enhanced heat dissipation.
Figur 6.2: Nederst view of the controller, revealing the heat sink fins for cooling.
6.3 Forbindelsestjek
Periodically inspect all wiring connections for tightness and corrosion. Loose or corroded connections can lead to power loss or system malfunction.
7. Fejlfinding
Dette afsnit beskriver almindelige problemer og deres mulige løsninger.
7.1 Beskyttelsesfunktioner
The controller incorporates several protection mechanisms to safeguard the system:
- Input Power Limit Protection: Prevents damage if solar panel power exceeds the controller's rated capacity.
- High Photovoltaic Input Terminal Voltage Beskyttelse: Beskytter mod overdreven volumentage from solar panels.
- Kortslutningsbeskyttelse: Automatically disconnects in case of a short circuit in the photovoltaic input or load.
- Photovoltaic Input Reverse Protection: Prevents damage from incorrect solar panel polarity.
- Load Overpower Protection: Disconnects the load if its power consumption exceeds the controller's limit.
- Beskyttelse mod kortslutning af belastning: Disconnects the load in case of a short circuit.
- Night Prevent Backcharge Protection: Forhindrer batteriafladning tilbage i solpanelerne om natten.
- TVS Thunder Protection: Provides protection against lightning surges.
- Overtemperaturbeskyttelse: Reduces charging power or shuts down if the internal temperature becomes too high.
Figur 7.1: Overview of the controller's comprehensive protection functions.
7.2 Fælles problemer
| Problem | Mulig årsag | Løsning |
|---|---|---|
| LCD-skærmen er slukket | Batteri ikke tilsluttet eller lav spændingtage | Kontroller batteriforbindelser og voltage. Ensure battery is charged. |
| Batteriet oplades ikke | Solar panel not connected, insufficient sunlight, or reverse polarity | Kontroller solpanelernes tilslutninger og polaritet. Sørg for tilstrækkeligt sollys. |
| Indlæsningen virker ikke | Load not connected, overload protection active, or short circuit | Check load connections. Reduce load. Check for short circuits. |
| Controller is hot | Poor ventilation or excessive solar input | Ensure proper airflow around the controller. Verify solar panel wattage er inden for grænserne. |
8. Specifikationer
| Parameter | Værdi |
|---|---|
| System Voltage | 12V / 24V AUTO |
| Intet belastningstab | ≤0.4W |
| Maksimal solindgang Voltage | 50V VOC |
| Batteri VoltagRækkevidde | 9~32V |
| Maximum Power Point VoltagRækkevidde | Batteri voltage +2V til 50V |
| USB udgang | 5V 3A (Dual Port) |
| Konverteringseffektivitet | ≤98 % |
| MPPT-sporingseffektivitet | >99 % |
| Temperaturkompensationskoefficient | -2mv/℃/2V (standard) |
| Driftstemperatur | -10℃ til +65℃ |
| Beskyttelsesniveau | IP21 |
| Elektromagnetisk kompatibilitet | EN61000, EN55022, EN55024 |
| Højde | ≤3000 meter |
| Dimensioner (LxBxH) | Ca. 135 x 135 x 54 mm / 5.31 x 5.31 x 2.13 tommer |
| Modelnummer | Hilitandt1sged9y2q-12 |
9. Garanti og support
9.1 Producentgaranti
This Hilitand MPPT Solar Controller comes with a manufacturer warranty for 90 days from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
9.2 Teknisk support
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact your retailer or visit the official Hilitand webwebsted for supportoplysninger.
