Whirlpool 11 Cu. Ft. Top Mount Refrigerator WT-1143K User Manual

1. Introduktion

Thank you for choosing a Whirlpool refrigerator. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read it thoroughly before using your refrigerator and keep it for future reference.

The Whirlpool WT-1143K is an 11 cubic feet Top Mount refrigerator featuring Xpert Energy Saver technology for energy efficiency, a manual-fill external water dispenser, and Cold Space storage for improved food preservation. It also includes a humidity-controlled drawer for fruits and vegetables, Fast Cool function, LED interior lighting, and a reversible door design.

Figur 1: Udvendigt view of the Whirlpool WT-1143K Top Mount Refrigerator.

2. Vigtige sikkerhedsinstruktioner

Følg disse grundlæggende forholdsregler for at reducere risikoen for brand, elektrisk stød eller personskade, når du bruger dit køleskab:

• Elektrisk sikkerhed: Plug into a grounded 3-prong outlet. Do not remove the ground prong. Do not use an adapter. Do not use an extension cord.
• Ventilation: Ensure adequate ventilation around the refrigerator. Do not block any ventilation openings.
• Børn: Supervise children when they are near the refrigerator. Do not allow children to play with or inside the appliance.
• Brandfarlige materialer: Opbevar eller brug ikke benzin eller andre brandfarlige dampe og væsker i nærheden af ​​dette eller andre apparater.
• Rensning: Tag stikket ud af køleskabet, før du rengør eller udfører nogen form for vedligeholdelse.
• Bortskaffelse: Dispose of old refrigerators according to local regulations, as they may contain refrigerants and insulation materials that require special disposal procedures.

3. Opsætning og installation

3.1 Udpakning

Remove all packaging materials, tape, and protective film from the refrigerator. Clean the interior with a mild detergent and warm water before use.

3.2 Beliggenhedskrav

Place the refrigerator on a level, sturdy floor. Allow at least 1 inch (2.54 cm) of space between the refrigerator's back and sides and the wall for proper air circulation. Avoid direct sunlight or heat sources.

3.3 Nivellering af køleskabet

Your refrigerator has adjustable leveling feet. Use a wrench to turn the feet clockwise to raise the refrigerator or counter-clockwise to lower it. Ensure the refrigerator is level and the doors close properly.

3.4 Dørvending

The refrigerator doors are reversible to accommodate different kitchen layouts. Refer to the detailed instructions in the separate installation guide for door reversal procedures. This process typically involves moving hinges and door stops from one side to the other.

3.5 Tilslutning til strøm

Plug the refrigerator into a dedicated 115 Volt, 60 Hz, AC-only, 15 or 20 Amp fused, grounded electrical supply. Do not use an extension cord.

3.6 Indledende afkøling

Allow the refrigerator to cool for at least 4 hours before placing food inside. The freezer compartment may take longer to reach optimal temperature.

3.7 Water Dispenser Setup

The external water dispenser is manual-fill. Locate the 4-liter water tank inside the refrigerator compartment. Fill the tank with potable water and place it back into its designated position. Ensure the dispenser lever operates smoothly.

4. Betjening af dit køleskab

4.1 Temperaturkontrol

Your refrigerator features an interior electronic control panel. Adjust the temperature settings for both the refrigerator and freezer compartments as needed. The recommended setting for the refrigerator is 37°F (3°C) and for the freezer is 0°F (-18°C).

Figur 2: Interiør view of the refrigerator compartment with adjustable shelves and drawers.

4.2 Xpert Energy Saver Technology

This technology optimizes compressor operation to reduce energy consumption while maintaining ideal temperatures for food preservation. No user intervention is typically required for this feature.

4.3 Cold Space Storage

The Cold Space area within the refrigerator is designed to provide slightly colder temperatures for specific items, helping to preserve freshness for longer. Utilize this area for dairy products, deli meats, or other items requiring colder storage.

4.4 Fast Cool Function

Activate the Fast Cool function when you need to rapidly cool newly added groceries or beverages. This temporarily lowers the temperature to quickly chill items. Refer to your control panel for activation instructions; the function typically deactivates automatically after a set period.

4.5 Humidity-Controlled Drawer

The drawer for fruits and vegetables includes a humidity control slider. Adjust the slider to maintain optimal humidity levels for different produce types. A higher humidity setting is ideal for leafy greens, while a lower setting is better for fruits.

4.6 Brug af vanddispenser

To dispense water, place a glass under the dispenser nozzle and press the lever. Ensure the internal water tank is filled. For best results, use filtered water.

4.7 Adjustable Shelves and Door Bins

The refrigerator features adjustable glass shelves and gallon-capacity door bins. To adjust, lift the shelf or bin straight up and pull it out. Reinsert at the desired height, ensuring it is securely seated.

Figure 3: Close-up of the refrigerator door bins, including an egg tray.

5. Vedligeholdelse og pleje

5.1 Rengøring

• Indre: Clean the interior surfaces, shelves, and drawers regularly with a solution of mild soap and warm water. Rinse thoroughly and dry.
• Ydre: Wipe exterior surfaces with a soft cloth and mild detergent. For stainless steel doors, use a stainless steel cleaner.
• Dørpakninger: Clean door gaskets with warm water and mild soap to ensure a proper seal.
• Kondensator spoler: Periodically clean the condenser coils located at the back or bottom of the refrigerator to maintain efficiency. Unplug the appliance before cleaning.

5.2 Manual Defrosting (Freezer)

The freezer compartment requires manual defrosting. When ice buildup reaches approximately 1/4 inch (0.6 cm) thick, defrost the freezer:

1. Tag stikket ud af køleskabet.
2. Fjern alle madvarer og læg dem i en køler.
3. Leave the freezer door open to allow ice to melt naturally. Place towels on the floor to absorb water.
4. Når køleskabet er optøet, skal det rengøres og tørres grundigt indvendigt, inden du sætter stikket i igen og lægger madvarerne tilbage.

5.3 Water Dispenser Cleaning

Regularly clean the manual-fill water tank and dispenser nozzle with warm, soapy water. Rinse thoroughly to prevent residue buildup.

5.4 LED belysning

The refrigerator uses long-lasting LED lighting. If an LED light requires replacement, contact authorized service personnel.

6. Fejlfinding

Før du ringer efter service, skal du kontrollere følgende almindelige problemer og løsninger:

7. Specifikationer

Detailed specifications for the Whirlpool WT-1143K Refrigerator:

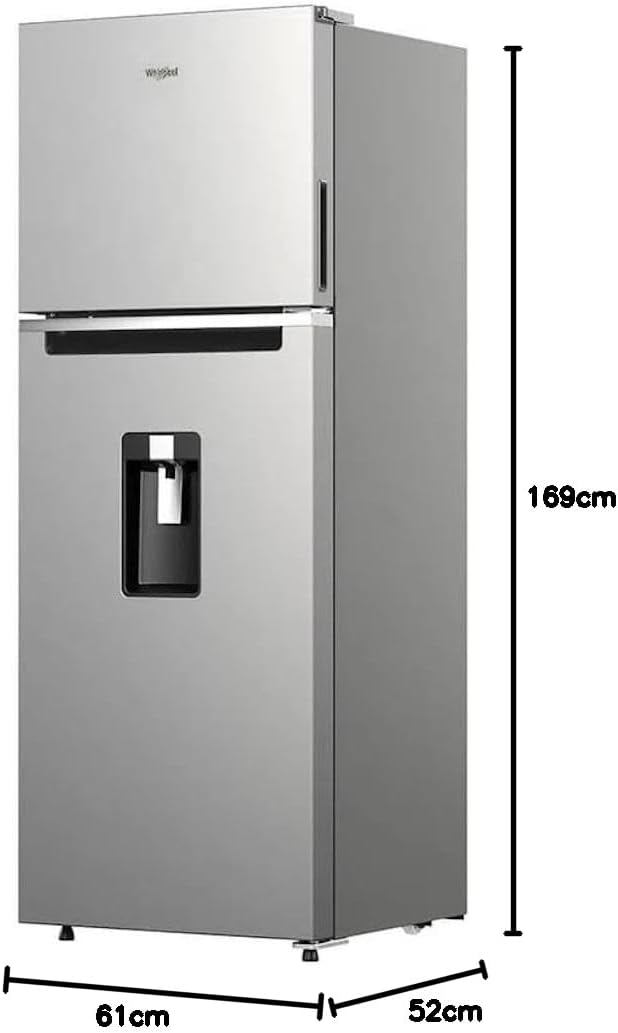

Figure 4: Dimensions of the Whirlpool WT-1143K Refrigerator.

8. Garanti og support

8.1 Producentens garanti

This Whirlpool refrigerator comes with a one-year manufacturer's warranty covering defects in materials and workmanship. Additionally, specific components, such as the compressor, may be covered by an extended 10-year warranty. Please refer to the warranty card included with your purchase for full terms and conditions.

8.2 Kundesupport

For technical assistance, service, or to order replacement parts, please contact Whirlpool Customer Service. Have your model number (WT-1143K) and serial number ready when you call.

You can find contact information on the Whirlpool official webwebstedet eller i den dokumentation, der fulgte med dit apparat.
