Growatt 5000W Solar Hybrid Inverter User Manual

1. Produktet er slutview

The Growatt 5000W Solar Hybrid Inverter is an all-in-one solution designed for off-grid solar power systems. It integrates a 5000W pure sine wave inverter, an 80A MPPT solar charge controller, and a battery charger, providing a comprehensive power management system. This unit is compatible with 48V lead-acid, lithium, and user-defined battery types, and supports 220V AC output. It is ideal for various applications including recreational vehicles, household appliances, and campopsætninger.

Figur 1.1: Forside view of the Growatt 5000W Solar Hybrid Inverter, showcasing dens kompakte design og integrerede LCD-skærm.

Figur 1.2: Overview of key specifications including 80A MPPT solar charge controller, 5000W max PV array power, and 145VDC max PV input VOC. The inverter provides pure sine wave output and supports 50/60Hz auto-sensing, along with lithium battery compatibility.

2. Nøglefunktioner

• Integreret design: 5000W Pure Sine Wave 220V AC inverter with built-in 80A MPPT Solar Controller. Max PV Power: 4500W, Max. PV Input VOC: 145VDC. Supports Utility/Generator/Solar Charge.
• Brugervenlig skærm: LCD display and 3 LED indicators provide dynamic system data and operating status. Configurable AC/Solar input priority and Load Supply Priority via LCD settings.
• Batterikompatibilitet: Compatible with 48V Lead-Acid, Lithium, and User-defined batteries. Requires a minimum battery capacity of 200Ah.
• Skalerbarhed: Supports parallel operation of up to 6 inverters for increased power output.
• Flere opladnings- og udgangstilstande: Four charging modes (Solar first, Utility first, Solar and Utility, Only solar) and three output modes (Solar first, Utility first, SBU Priority) to meet diverse application requirements.
• Remote Monitoring (Optional): Supports WIFI/GPRS remote monitoring for real-time PV system status via mobile phone or website (module sold separately).

Figure 2.1: Visual representation of the inverter's all-in-one capabilities, including integrated MPPT, configurable battery charging and load supply priorities, optional remote monitoring, and parallel support.

3. Specifikationer

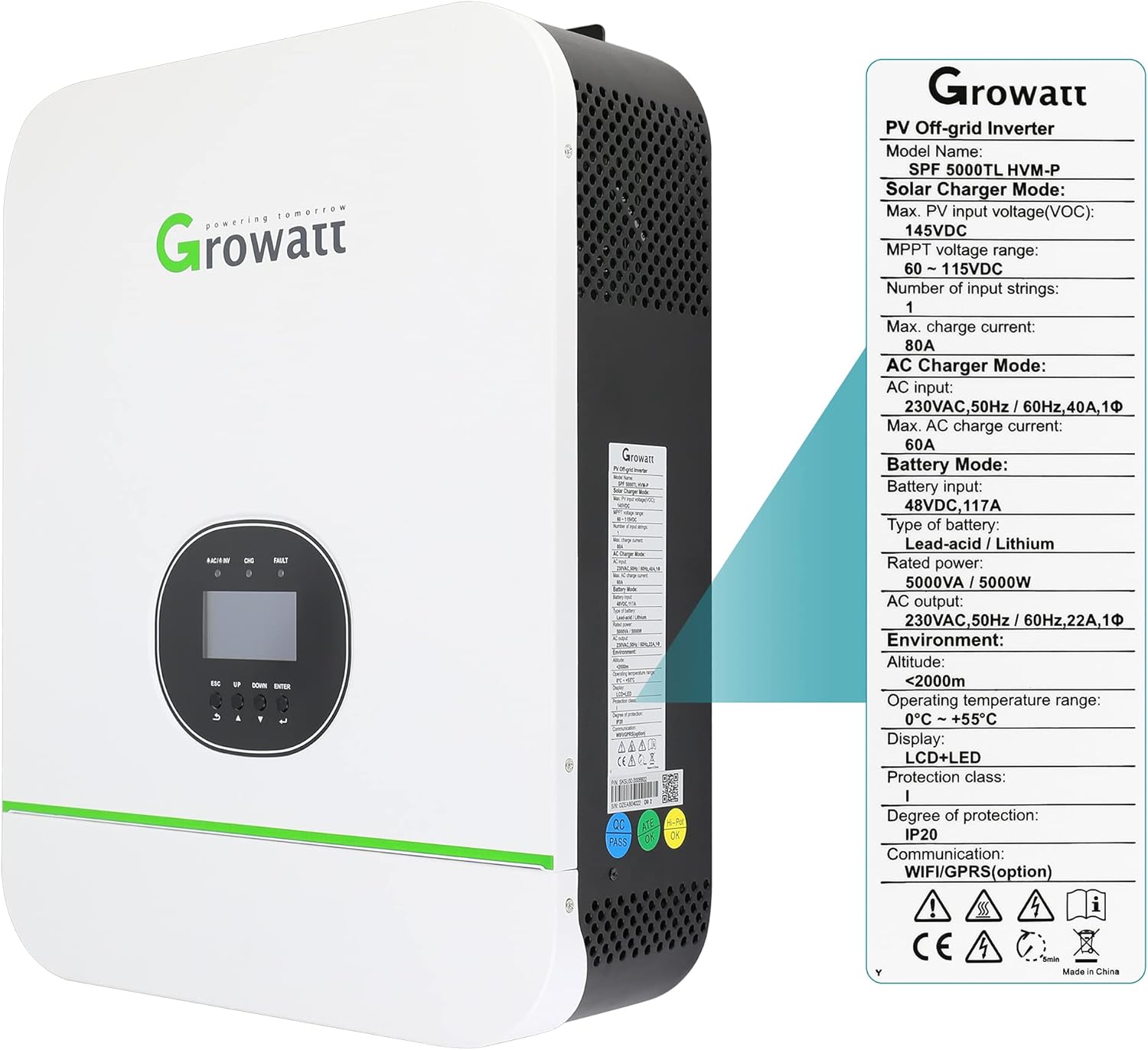

Figur 3.1: Et nærbillede view of the product label detailing electrical specifications and environmental conditions.

Figure 3.2: Physical dimensions of the inverter (130mm width, 350mm depth, 455mm height) along with key power ratings like 5000W pure sine wave energy, 80A MPPT, and 140A combined battery charge.

4. Installation og forbindelser

4.1 Fysisk overview

Familiarize yourself with the various indicators, buttons, and connection ports on the inverter before proceeding with installation.

Figure 4.1: Detailed diagram showing the location of the LCD display, function buttons, status indicators (Status, Charging, Fault), and various communication and power ports including WiFi/GPRS, USB, Dry Contact, PV Input, BMS Communication, RS485, Power On/Off Switch, AC Input, Circuit Breaker, AC Output, Current Sharing Port, Parallel Communication Port, and Battery Input Port.

4.2 Ledningsinstruktioner

Proper wiring is crucial for safe and efficient operation. Ensure all connections are secure and follow local electrical codes. This inverter outputs 220V AC and does not support 110V. Ground and Neutral are not connected together internally.

• Connect the Ground wire to the Ground terminal.
• Connect Hot Line 1 to the L terminal.
• Connect Hot Line 2 to the N terminal.
• NOTE: Do not connect AC input Neutral or Load Neutral to the inverter.
• Battery cable size: 2AWG. Torque value: 2-3 Nm.

Figure 4.2: Diagrams illustrating the correct wiring for AC output, AC input, and battery connections. Note the specific terminals for Ground (G), Hot Line 1 (L1), and Hot Line 2 (L2) for AC connections, and the ring terminal connection for the battery.

4.3 Systemforbindelsesdiagram

The following diagram illustrates a typical off-grid solar system setup with the Growatt inverter, connecting solar panels, utility grid (optional), generator (optional), battery, and home loads.

Figure 4.3: A complete system diagram showing the interconnection of solar panels, utility grid, generator, the Growatt off-grid solar inverter, 48V battery bank, and various home loads. It also indicates the optional WiFi/GPRS module for remote monitoring.

4.4 Parallel drift

For higher power requirements, up to 6 Growatt inverters can be connected in parallel. Ensure proper communication connections between units for synchronized operation.

Figure 4.4: Diagram illustrating how multiple Growatt inverters can be connected in parallel to increase total output capacity. It shows the power connections for battery, utility grid, and loads, as well as the communication connections between the inverters.

5. Driftstilstande og indstillinger

The inverter offers flexible configuration options via its LCD display to optimize power flow based on your specific needs.

5.1 Prioritet for opladerkilde

This setting determines the preferred source for charging the battery.

• Solar First: Solar energy is the primary charging source. Utility power charges the battery only when solar energy is unavailable.
• Nytte først: Utility power is the primary charging source. Solar energy charges the battery only when utility power is unavailable.
• Solenergi og forsyningsvirksomheder: Both solar energy and utility power will charge the battery simultaneously.
• Kun solenergi: Only solar energy will charge the battery, regardless of utility power availability.

5.2 Prioritet for udgangskilde

This setting determines the preferred source for powering the connected loads.

• Solar First (PV Priority): Solenergi er den primære kilde til belastninger.
• Utility First (Default): Strøm fra forsyningsselskaber er den primære kilde til belastninger.
• SBU-prioritet: Solar power loads first, then battery, and finally utility power.

Figure 5.1: Visual explanation of the four charger source priority modes (Solar First, Utility First, Solar and Utility, Only Solar) and three output source priority modes (PV Priority, Utility Priority, SBU Priority).

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your Growatt Solar Hybrid Inverter. Always disconnect all power sources before performing any maintenance.

• Rensning: Periodically clean the inverter's exterior with a dry cloth to remove dust and debris. Ensure ventilation openings are clear and unobstructed.
• Tilslutningskontrol: Annually inspect all electrical connections (PV, battery, AC input/output) for tightness and signs of corrosion. Re-tighten if necessary.
• Batteriinspektion: For lead-acid batteries, check electrolyte levels and terminal cleanliness as per battery manufacturer guidelines. For lithium batteries, monitor their health via the inverter's display or a dedicated BMS.
• Miljøtjek: Ensure the installation environment remains within specified temperature and humidity ranges. Protect the inverter from direct sunlight, rain, and excessive dust.
• Firmwareopdateringer: If remote monitoring is enabled, check for available firmware updates from the manufacturer to ensure optimal performance and access to new features.

7. Fejlfinding

This section provides guidance on common issues you might encounter. For problems not listed here, or if solutions do not resolve the issue, contact customer support.

8. Garanti og support

The Growatt 5000W Solar Hybrid Inverter comes with a manufacturer's warranty covering defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.

For technical support, warranty claims, or any inquiries regarding your inverter, please contact the manufacturer or your authorized dealer. When contacting support, please have your product model number and purchase date readily available.

Fabrikant: Temank

For yderligere hjælp, besøg Temank Store on Amazon.
