Indledning
This manual provides essential information for the safe and efficient operation of your new Haier 355 L 3 Star Frost Free Bottom Mount Double Door Refrigerator, model HEB-363TS-P. Please read these instructions thoroughly before installation and use, and retain them for future reference.

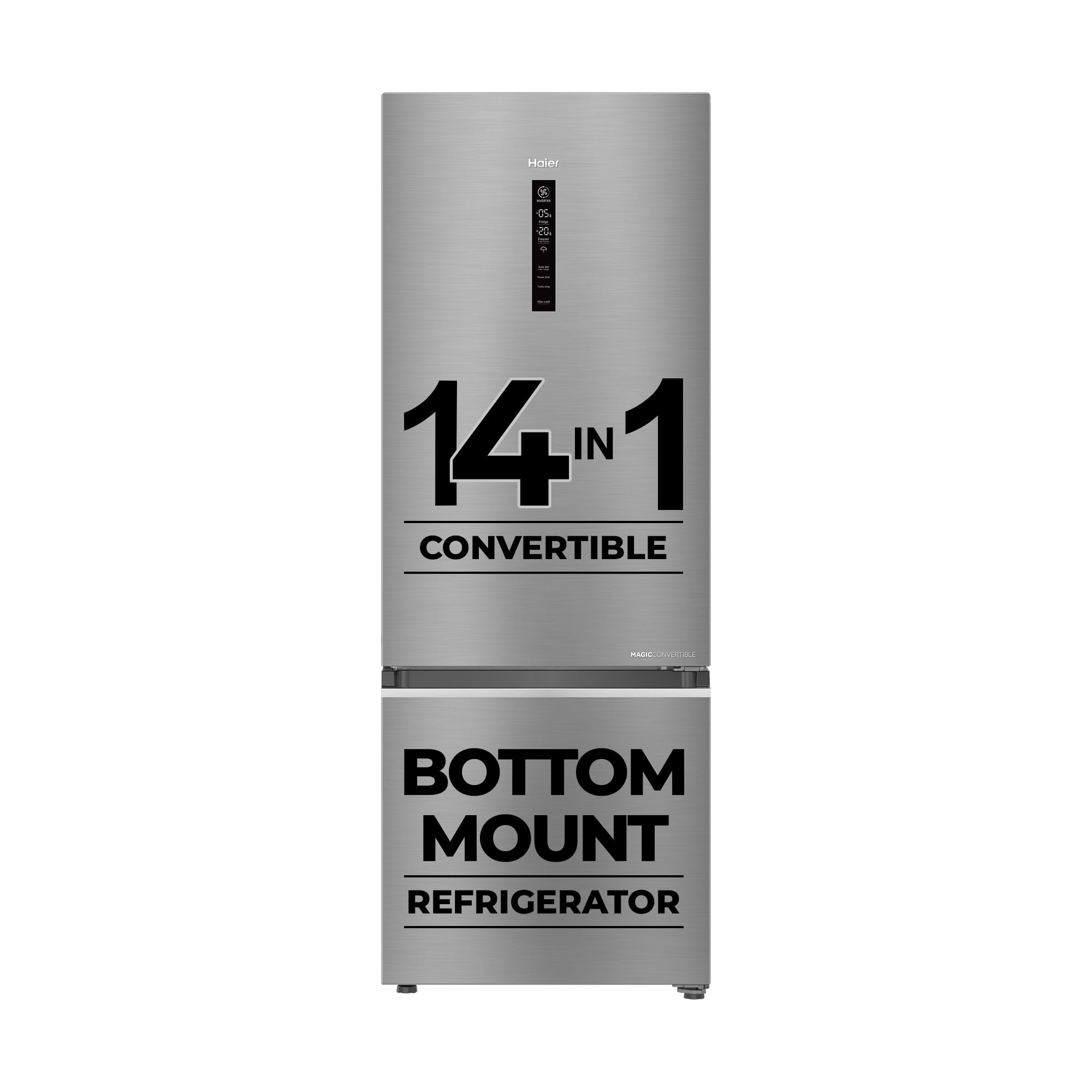

Front view of the Haier 355 L Bottom Mount Double Door Refrigerator in Inox Steel finish, showcasing dens elegante design.
Dette billede giver en klar view of the refrigerator's interior, including the spacious fresh food section with toughened glass shelves and door racks, and the bottom freezer compartment.
Sikkerhedsoplysninger
Følg disse grundlæggende forholdsregler for at reducere risikoen for brand, elektrisk stød eller personskade, når du bruger dit køleskab:
- Sørg for, at køleskabet er korrekt jordforbundet.
- Beskadig ikke kølemiddelkredsløbet.
- Hold ventilationsåbninger fri af forhindringer.
- Brug ikke mekaniske anordninger eller andre midler til at fremskynde afrimningsprocessen, ud over dem, der anbefales af producenten.
- Brug ikke elektriske apparater inde i madopbevaringsrummene, medmindre de er af den type, der anbefales af producenten.
- Tag stikket ud af køleskabet, før du rengør eller udfører vedligeholdelse.
- Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed.
Opsætning
Udpakning
Carefully remove all packaging materials, including foam and adhesive tape. Dispose of packaging materials responsibly. Ensure no parts are missing or damaged. If any damage is observed, contact customer service immediately.
Placering
Place the refrigerator on a firm, level surface. Allow adequate space around the appliance for proper ventilation (at least 10 cm at the back and sides, and 30 cm at the top). Avoid direct sunlight or heat sources. The dimensions of the refrigerator are 66.5 cm (Depth) x 62.3 cm (Width) x 173 cm (Height).
This image provides a visual representation of the refrigerator's dimensions, including its height of 1730 mm, width of 623 mm, and depth of 665 mm, with a person shown for scale.
Elektrisk tilslutning
Connect the refrigerator to a dedicated, properly grounded 230V AC power outlet. Do not use extension cords or adapter plugs. Ensure the power cord is not pinched or damaged.
Indledende drift
After placement and electrical connection, wait for at least 2-4 hours before plugging in the appliance. This allows the refrigerant to settle. Once plugged in, set the desired temperature using the control panel. Allow the refrigerator to run for several hours (e.g., 4-6 hours) to reach optimal cooling temperatures before storing food.
Betjeningsvejledning
Kontrolpanel
The refrigerator features an external digital display panel that allows you to monitor and adjust temperature settings without opening the door. Refer to the specific icons and buttons on your panel for detailed functions such as temperature adjustment, mode selection, and special features.
This image highlights the 'Jhukna Mat' design for reduced bending, the energy-efficient Triple Inverter & Dual Fan Technology, the convenient external LED display panel for temperature control, and the large vegetable box for ample opbevaring.
Convertible 14-in-1 Modes
Your Haier refrigerator offers 14 versatile modes to adapt to your storage needs. Use the control panel to select the desired mode:
A circular diagram visually explains the 14 versatile operating modes, such as Normal, Veg, Cold Drink, Soft Freezer, Vacation, Power Cool, Power Saving, Surprise Party, Turbo, Holiday, Freezer, Preserve Curd, Snow Beverages, and Dessert modes, along with their respective temperature ranges.
- Normal tilstand: Fridge 1-9°C, Freezer -24°C. Standard operation for everyday use.
- Veg Mode: Fridge 1-9°C, Freezer -5°C. Optimized for vegetable storage.
- Kold drikketilstand: Fridge 1-9°C, Freezer -2°C. Ideal for chilling beverages.
- Soft Freezer Mode: Fridge 1°C, Freezer -7°C. For items requiring light freezing.
- Ferietilstand: Fridge OFF, Freezer -2°C. Saves energy when the fridge compartment is not in use.
- Power Cool Mode: Fridge 1°C, Freezer -18°C. Rapid cooling for the fridge compartment.
- Strømbesparelsestilstand: Fridge 1-9°C, Freezer -12°C. Reduces energy consumption.
- Surprise Party Mode: Fridge 1-2°C, Freezer -24°C. Boosts cooling for sudden needs.
- Turbo tilstand: Fridge 1°C, Freezer -28°C. Provides maximum cooling performance.
- Ferietilstand: Fridge OFF, Freezer -24°C. Maintains freezer temperature while fridge is off.
- Fryser tilstand: Fridge OFF, Freezer -24°C. Converts the entire unit to a freezer.
- Preserve Curd Mode: Fridge 2-4°C, Freezer -18°C. Specific setting for curd preservation.
- Snow Beverages Mode: Fridge 1-9°C, Freezer -15°C. For beverages requiring colder temperatures.
- Desserttilstand: Fridge 1-9°C, Freezer -15°C. Optimal for storing desserts.
Twist ismaskine
The detachable Twist Ice Maker allows for convenient ice production. Fill the ice trays with water, place them in the freezer, and once frozen, twist the knobs to release ice cubes into the collection bin below.
This image illustrates the detachable Twist Ice Maker for easy ice access, the refrigerator's ability to connect to a home inverter for uninterrupted cooling, the seamless recess handle, and the rapid 1 Hour Icing Technology.
Andre funktioner
- Triple Inverter & Dual Fan Technology: Ensures energy efficiency and stable cooling performance with less fluctuation.
- Auto Connect Home Inverter: Provides uninterrupted cooling during power cuts by automatically connecting to your home inverter.
- 1 Hour Icing Technology: Produces ice cubes rapidly, typically within one hour.
- 2x Bigger Vegetable Box: Tilbud ample storage space for fresh fruits and vegetables.
- Antibakteriel pakning: Prevents the entry and build-up of bacteria and fungi, ensuring hygiene.
- LED lys: Provides bright and energy-efficient illumination inside the refrigerator.
- Big Bottle Rack: Designed to accommodate larger bottles in the door compartment.
- Recess Handle: Offers a seamless design and effortless access to the refrigerator compartments.
Opretholdelse
Rensning
Regular cleaning helps maintain hygiene and efficiency. Unplug the refrigerator before cleaning. Wipe interior and exterior surfaces with a soft cloth dampened with mild detergent and water. Clean the door gasket regularly to ensure a tight seal. Avoid using abrasive cleaners or solvents.
Afrimning
This is a Frost Free refrigerator, meaning it automatically defrosts the evaporator coils. You do not need to manually defrost the freezer compartment. Ensure the drain hole for defrost water is not blocked.
Fejlfinding
Før du kontakter kundeservice, bedes du se følgende tabel for almindelige problemer og løsninger på disse:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Køleskabet køler ikke | Power supply issue; Temperature setting too high; Door not closed properly; Obstruction of air vents. | Check power connection; Adjust temperature setting; Ensure door is fully closed; Clear any obstructions from air vents. |
| Loud noise from appliance | Refrigerator not level; Objects vibrating against the unit; Compressor noise (normal). | Adjust leveling feet; Remove objects touching the refrigerator; Normal compressor operation may produce a low hum. |
| Water leakage inside/outside | Blocked defrost drain; Door gasket not sealing properly; Excessive humidity. | Clear the defrost drain; Check and clean door gasket; Reduce frequency of door opening. |
| Ismaskine producerer ikke is | Water supply issue; Ice maker switch off; Freezer temperature too high. | Ensure water supply is connected; Check if ice maker is switched on; Lower freezer temperature. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | HEB-363TS-P |
| Kapacitet | 355 Litres (Fresh Food: 270 L, Freezer: 85 L) |
| Energivurdering | 3 Stjerne |
| Årligt energiforbrug | 255 kilowatttimer pr. år |
| Produktmål (D x B x H) | 66.5D x 62.3B x 173H Centimeter |
| Varens vægt | 67 kilo |
| Type afrimningssystem | Frostfri |
| Konfiguration | Bottom Mount, Double Door, Convertible |
| Kompressor type | Triple Inverter Compressor |
| Type hylde | Hærdet glas |
| Voltage | 230.0 volt |
| Inkluderede komponenter | 1 Unit Refrigerator |
The energy label displays the refrigerator's 3-star energy efficiency rating and an annual energy consumption of 255 Kilowatt Hours, highlighting its power-saving capabilities.
Garanti og support
Garanti
Your Haier refrigerator comes with a 10-year warranty on the Compressor and fan motor. Please retain your purchase invoice as proof of purchase to avail warranty services. For detailed terms and conditions, refer to the warranty card provided with your appliance or visit the official Haier webwebsted.
Kundesupport
For any queries, service requests, or technical assistance, please contact Haier customer support. You can find contact details on the official Haier India website or through the customer service number provided in your warranty documentation.
