Thermal Imaging Camera PF210 User Manual

1. Introduktion

The BTMETER PF210 Thermal Imaging Camera is a high-resolution infrared imager designed for accurate temperature measurement across various applications. It features a 256 x 192 IR resolution, a 5-megapixel visual camera, and a 3.5-inch LCD touch screen for detailed analysis. This manual provides essential information for the proper setup, operation, and maintenance of your device.

Key features include a wide temperature range of -200C to 5500C (-40F to 10220F), adjustable emissivity, multiple imaging modes (infrared, visible light, Picture-in-Picture, Multispectral Image Fusion), and data saving/sharing capabilities via built-in 16GB storage, WiFi hotspot, and cloud server support.

Figure 1.1: BTMETER PF210 Thermal Imaging Camera

2. Hvad er der i æsken

Kontroller venligst, at alle varer er til stede og i god stand, når du åbner pakken:

• 1 x Thermal Imaging Camera (PF210)
• 1 x brugermanual
• 1 x EVA Hardshell Bag
• 1 x Type-C USB-kabel
• 1 x Adapter Plug
• 1 x strømadapter

Figure 2.1: Packing List for PF210

3. Opsætning

3.1 Enhed overview og Dimensioner

Familiarize yourself with the physical components and dimensions of the PF210 camera.

Figure 3.1: PF210 Device Overview og Dimensioner

3.2 Tænding og første opstart

To power on the device, press and hold the power button located on the top side of the camera. The device will display the model number PF210 and a loading screen before entering the thermal imaging interface.

3.3 Opladning af enheden

Connect the provided Type-C USB cable to the camera's USB interface and the other end to the adapter plug. Plug the adapter into a power outlet to charge the device. Ensure the device is fully charged before extensive use for optimal performance.

3.4 Montering af stativ

The PF210 is equipped with a 1/4" tripod connector on its bottom side, allowing for stable and hands-free operation. Simply screw a compatible tripod mount into this connector.

3.5 Setup and Basic Operations Video Guide

Watch this video for a visual guide on powering on, navigating the touch screen, and performing basic operations.

Video 3.1: Thermal Imaging Camera PF210 - Basic Operations, Setup, and Features

4. Betjening af kameraet

4.1 High-Resolution Imaging and Display

The PF210 captures thermal radiation with a 256 x 192 IR resolution and a 5-megapixel visual camera. The 3.5-inch LCD touch screen allows for easy navigation and detailed viewing of thermal images, including maximum, minimum, and center temperature spots.

Figure 4.1: Pocket-sized Thermal Camera PF210 Key Features

4.2 Temperature Range and Emissivity

The camera supports a temperature range from -200C to 5500C (-40F to 10220F) with adjustable temperature gears. It features 0.060C thermal sensitivity and an adjustable emissivity from 0.1 to 1.0, ensuring accurate measurements for various surfaces.

4.3 Imaging Modes and Color Palettes

The PF210 offers four optional imaging modes: Infrared (IR), Visible Light (VL), Picture-in-Picture (PIP), and Multispectral Image Fusion (MIF). You can also select from 6 color palettes (Iron Red, Hot Iron, Arctic, White Hot, Rainbow, Black Heat) to best visualize temperature differences.

Figure 4.2: Temperature Settings and Color Palettes

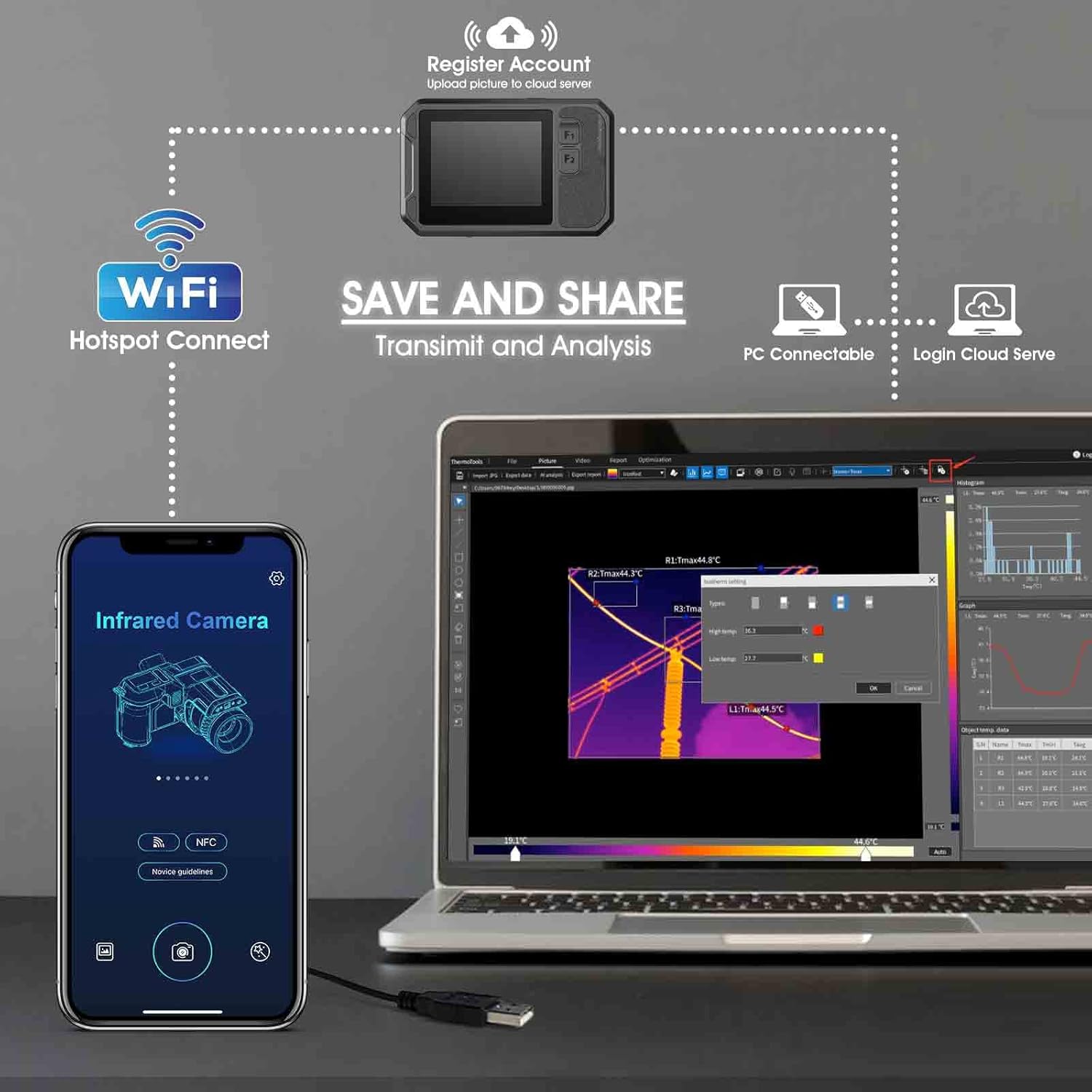

4.4 Data Save and Share

With 16GB of built-in storage, the camera can save up to 60,000 images. Images can be transmitted to mobile phones via WiFi hotspot or uploaded/downloaded from a cloud server. Customized software "Thermography" is available on App Store or Google Play for further analysis.

Figure 4.3: Data Save and Share Capabilities

4.5 D:S Ratio and Digital Zoom

The PF210 offers a 266:1 distance-to-spot ratio and 1.1x to 8x digital zoom, allowing for flexible image capture from various distances. The minimum object distance is 0.3m.

4.6 Infrared Laser Pointer

The integrated infrared laser pointer assists in precisely locating the measurement object, enhancing accuracy. It also supports laser distance measurement up to 8m and intelligent rectangular target area calculation.

Figure 4.4: Advanced Imaging and Measurement Features

5. Vedligeholdelse

Proper maintenance ensures the longevity and accuracy of your thermal imaging camera.

• Rensning: Use a soft, dry cloth to clean the camera body. For the lens and screen, use a specialized lens cleaning cloth and solution to avoid scratches. Do not use abrasive cleaners or solvents.
• Opbevaring: Store the camera in its hardshell carrying case in a cool, dry place away from direct sunlight and extreme temperatures.
• Batteripleje: If storing for extended periods, ensure the battery is partially charged (around 50%) to maintain battery health. Recharge periodically if not in use.
• Softwareopdateringer: Tjek regelmæssigt for firmwareopdateringer for at sikre optimal ydeevne og adgang til nye funktioner.

6. Fejlfinding

If you encounter issues with your BTMETER PF210, refer to the following common problems and solutions:

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.

7. Specifikationer

Detailed technical specifications for the BTMETER PF210 Thermal Imaging Camera:

8. Garanti og support

The BTMETER PF210 Thermal Imaging Camera comes with a 365 dages kvalitetsgaranti fra købsdatoen. Denne garanti dækker fabrikationsfejl og sikrer, at produktet opfylder de specificerede ydeevnestandarder.

For technical support, warranty claims, or any inquiries regarding your device, please contact BTMETER customer service. Lifetime technical support is provided to assist you with any operational or technical challenges you may encounter.

You can find more information and support resources on the official BTMETER webwebsted eller via din købsplatform.
