MD-810 Outdoor Metal Detector User Manual

1. Sikkerhedsoplysninger

Please read all safety instructions carefully before operating the MD-810 metal detector. Failure to follow these instructions may result in injury or damage to the device.

• Batterisikkerhed:
  • Use only 2 x 9V 6F22 alkaline batteries (NOT included) as specified.
  • Bland ikke gamle og nye batterier eller forskellige typer batterier.
  • Sørg for, at batterierne er isat med korrekt polaritet (+/-).
  • Fjern batterierne, hvis enheden ikke skal bruges i længere tid, for at forhindre lækage.
  • Bortskaf brugte batterier ansvarligt i henhold til lokale regler.
• General Operation Safety:
  • Indhent altid tilladelse, inden du ransager på privat ejendom.
  • Be aware of your surroundings and potential hazards such as uneven terrain, sharp objects, or live electrical lines.
  • Do not use the detector near active electrical power lines or buried cables.
  • The search coil is waterproof, but the control unit is not. Do not submerge the control unit in water.
  • Avoid operating the detector in thunderstorms or extreme weather conditions.
  • Hold enheden væk fra stærke magnetiske felter.

2. Produktet er slutview

The MD-810 is an advanced underground metal detector designed for treasure hunting, relic recovery, and general metal detection. It features multiple operation modes, adjustable sensitivity, and a clear LCD display for efficient and accurate target identification.

Figur 2.1: The MD-810 metal detector, showing the main control unit and the search coil. The control unit features a large LCD screen and various control buttons.

Nøglefunktioner:

• Practical Modes Switching: Offers 5 distinct operation modes: All-metal (A-M), Discrimination (DISC), Memory, Jewelry, and Pinpoint (P-P) for versatile detection.
• Stort LCD-display: A 3.3-inch LCD screen with white backlight provides clear target information, depth indication, and battery status.
• Brugervenlig betjening: Designed for ease of use, allowing for simple setup and intuitive control.
• Vandtæt søgespole: The 10-inch round search coil is fully waterproof, enabling detection in shallow water environments.
• Justerbar frempind: The length of the detector's stem can be easily adjusted from 105cm to 131cm (41.34-51.57in) to suit operators of different heights.
• Følsomhedskontrol: 5 grades of sensitivity adjustment to optimize performance based on ground conditions and target size.
• Target Discrimination: Capable of discriminating between 6 kinds of target metals.
• Audio feedback: 3 kinds of sound frequencies indicate different metals, with 3 grades of volume indication.

Figur 2.2: The MD-810 metal detector is suitable for hunting coins, relics, jewelry, gold, and silver, as well as for general outdoor underground metal detection.

3. Opsætning og montering

Follow these steps to assemble your MD-810 metal detector and prepare it for use.

3.1. Komponentidentifikation:

Før montering skal du sørge for, at alle komponenter er til stede:

• Control Unit with LCD display
• Search Coil (10-inch round)
• Adjustable Stem (upper, middle, lower sections)
• Armlæn
• Fasteners for search coil and control unit

3.2. Monteringstrin:

1. Fastgør søgespolen:

   Connect the search coil to the lower stem using the provided non-metallic bolt and nut. Ensure it is securely fastened but do not overtighten.

2. Saml stilken:

   Connect the lower stem (with the search coil) to the middle stem, and then connect the middle stem to the upper stem. Ensure the spring clips or locking mechanisms engage properly.

3. Monter styreenheden:

   Slide the control unit onto the top of the upper stem. Secure it in place using the designated locking collar or screw. Ensure the control unit is firmly attached and does not wobble.
4. Tilslut spolekablet:

   Carefully wrap the search coil cable around the stem, ensuring it is not tangled or pinched. Plug the coil cable connector into the corresponding port on the control unit. Tighten the collar on the connector to secure it.

5. Installer batterier:

   Open the battery compartment on the control unit. Insert two 9V 6F22 alkaline batteries, observing the correct polarity (+/-). Close the battery compartment securely.

6. Juster stilklængde:

   Adjust the length of the stem to a comfortable height. The detector should allow you to sweep the search coil parallel to the ground without bending over. The adjustable range is 105cm to 131cm (41.34-51.57in).



   Figur 3.1: The retractable rod allows for height adjustment from 105cm to 131cm for comfortable use.

4. Betjeningsvejledning

This section details how to operate your MD-810 metal detector effectively.

4.1. Tænd/sluk:

Tryk og hold på MAGT button to turn the detector on or off. The LCD screen will illuminate upon power-on.

4.2. Understanding the Display:

The LCD screen provides crucial information:

• Mål-id: Numerical value and icon indicating the probable type of metal detected.
• Depth Indication: Estimates the depth of the target (e.g., 2", 4", 6", 8"+ for coins).
• Følsomhedsniveau: Shows the current sensitivity setting (5 grades).
• Batteriindikator: Displays remaining battery life (4 grades).
• Signalstyrke: Indicates the strength of the detected signal (5 grades).
• Lydstyrke: Shows the current audio volume (3 grades).

4.3. Driftstilstande:

The MD-810 offers 5 operation modes. Press the MODE button to cycle through them.

Figur 4.1: Illustration of the 4+1 operation modes: All-Metal, Disc, Memory, Jewelry (motion modes), and Pinpoint (non-motion mode).

• ALL-METAL Mode (A-M):

  In this motion mode, the detector will respond to all types of metals. This is ideal for finding all metal objects or when the type of metal is unknown.
• DISC Mode (Discrimination):

  This motion mode allows you to eliminate certain kinds of metal from detection. You can adjust the discrimination level to ignore unwanted items like iron or foil. The detector will not respond to discriminated metals.

• MEMORY-tilstand:

  This motion mode allows the detector to remember specific kinds of metals you choose to detect. It will only respond to these selected metals, ignoring others.

• SMYKKER-tilstand:

  This motion mode is specifically designed to find jewelry. It will eliminate iron signals but will respond to other metals commonly found in jewelry.
• PINPOINT Mode (P-P):

  This is a non-motion mode used to accurately locate the exact position of a detected target. Once a target is found in a motion mode, switch to P-P mode, hold the coil steady, and move it slowly to pinpoint the target's center.

4.4. Følsomhedsjustering:

Tryk på SENS button to adjust the sensitivity level (5 grades). Higher sensitivity increases detection depth but may also increase false signals in mineralized ground. Start with a medium setting and adjust as needed.

4.5. Lydstyrkejustering:

Tryk på BIND button to adjust the audio volume (3 grades).

4.6. Sweeping Technique:

Proper sweeping technique is crucial for effective detection:

1. Keep the search coil parallel to the ground at all times, approximately 1/2 inch (1-2 cm) above the surface.
2. Move the search coil slowly and steadily from side to side in overlapping sweeps. Avoid lifting the coil at the end of each sweep.
3. Overlap each sweep by about half the coil's diameter to ensure complete ground coverage.
4. When a target is detected, the detector will emit an audio tone, and the LCD will display target information.

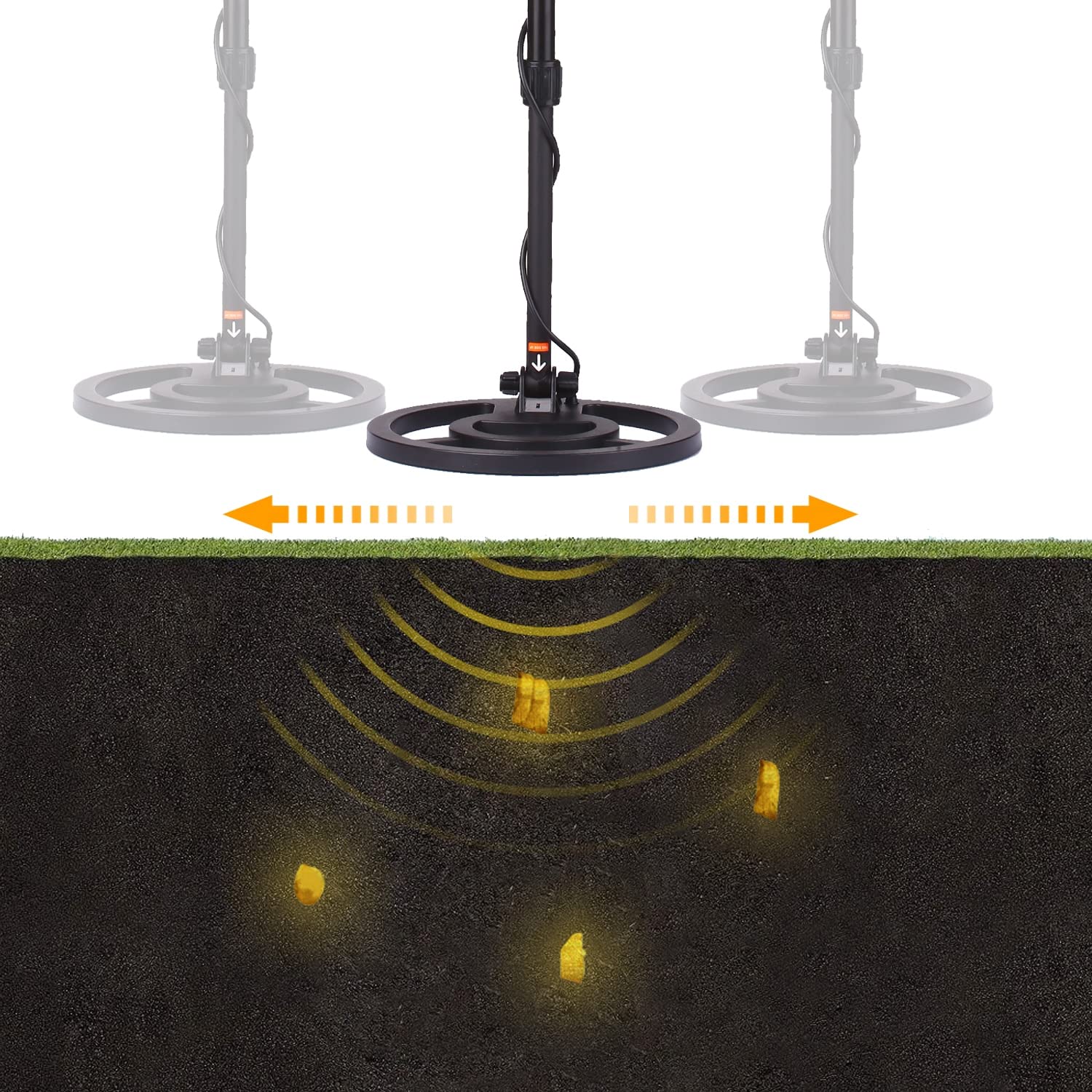

Figur 4.2: The metal detector sends signals into the ground and detects reflections from buried metal objects.

Figur 4.3: The MD-810 features adjustable sensitivity, a pinpointing function for exact target location, and DISC mode for discriminating unwanted metals.

5. Vedligeholdelse

Proper care and maintenance will extend the life of your MD-810 metal detector.

• Rensning:
  • Wipe the search coil with a damp cloth after use, especially if used in wet or muddy conditions.
  • Clean the control unit and stem with a soft, dry cloth. Do not use abrasive cleaners or solvents.
  • Ensure the control unit is kept dry.
• Batteripleje:
  • Remove batteries if the detector will not be used for more than a week to prevent corrosion from battery leakage.
  • Replace batteries when the low battery indicator appears on the LCD.
• Opbevaring:
  • Opbevar detektoren et køligt og tørt sted, når den ikke er i brug.
  • Undgå opbevaring i direkte sollys eller ekstreme temperaturer.
  • If disassembling for storage, ensure all components are clean and dry.
• Kabelpleje:
  • Do not pull on the search coil cable. Always grasp the connector when unplugging.
  • Inspect the cable periodically for any signs of damage.

6. Fejlfinding

If you encounter issues with your MD-810 metal detector, refer to the following common problems and solutions:

7. Specifikationer

Detailed technical specifications for the MD-810 metal detector:

8. Garanti og support

The MD-810 metal detector is manufactured to high quality standards. For specific warranty information, please refer to the documentation included with your purchase or contact the seller directly.

Kundesupport:

If you have any questions, require technical assistance, or need to report an issue with your MD-810 metal detector, please contact the seller or manufacturer through the platform where you purchased the product. Provide your order number and a detailed description of the issue for prompt assistance.

For general inquiries or to provide feedback, please use the contact information provided by the retailer or manufacturer.
