AFMAT Electric Pencil Sharpener User Manual

1. Introduktion

Thank you for choosing the AFMAT Electric Pencil Sharpener. This fully automatic, rechargeable device is designed for convenience and safety, suitable for various environments including classrooms, homes, and offices. It accommodates pencils with diameters from 7mm to 11.5mm and offers multiple sharpness options. Please read this manual carefully to ensure proper use and maintenance of your sharpener.

2. Produktet er slutview

The AFMAT Electric Pencil Sharpener features an automatic feed and eject mechanism, eliminating the need for manual handling during sharpening. Its compact, robot-style design makes it space-saving and portable.

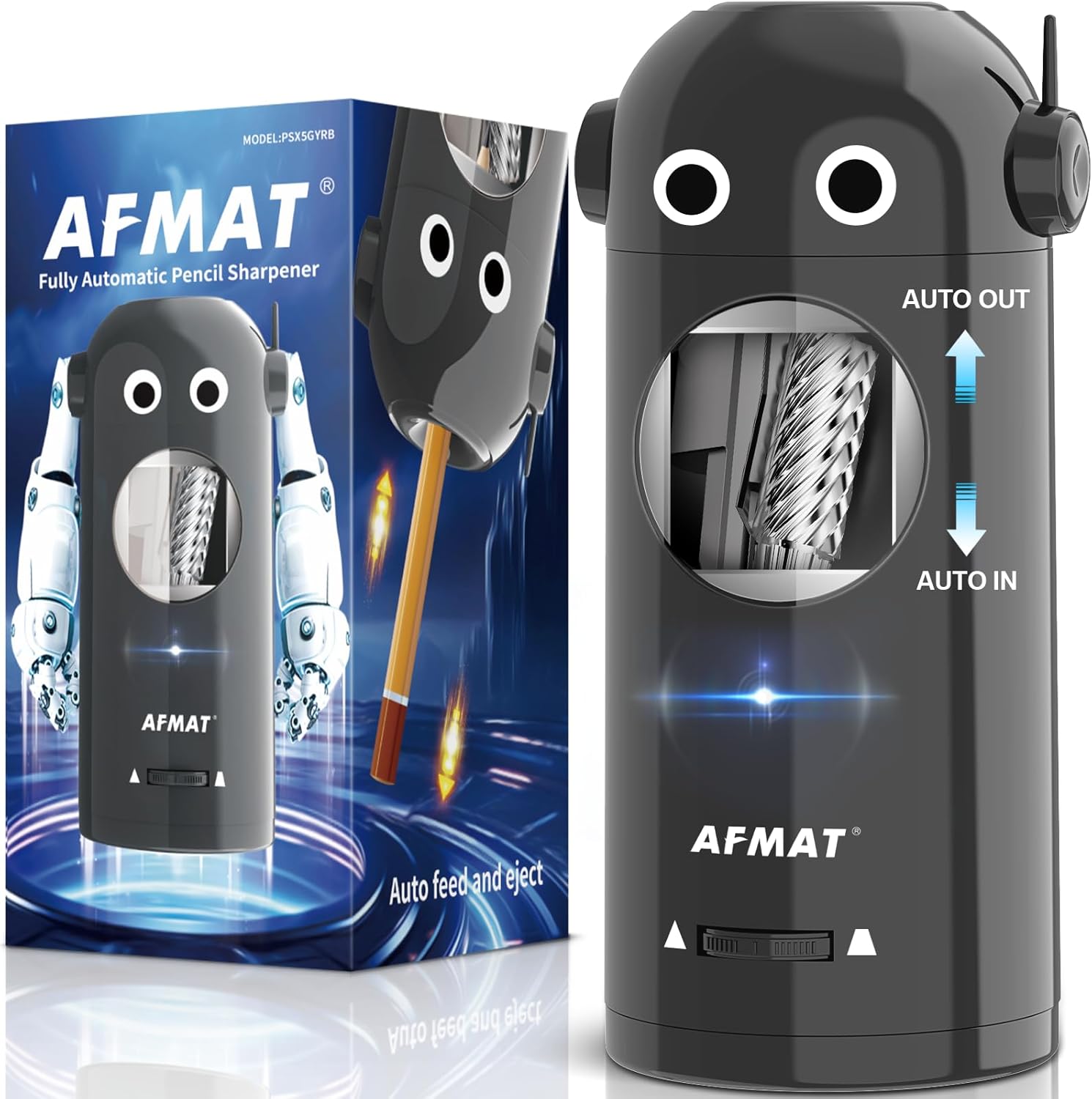

Billede 2.1: The AFMAT Electric Pencil Sharpener, showcasing its design and packaging. The sharpener is gray with a robot-like face and a clear window revealing the helical blade. The packaging highlights its 'Fully Automatic' and 'Auto feed and eject' features.

3. Opsætning og opladning

3.1 Indledende opsætning

1. Unpack the sharpener and all accessories from the box.
2. Inspect the sharpener for any visible damage.
3. Ensure the shaving receptacle is properly seated.

3.2 Opladning af enheden

The AFMAT Electric Pencil Sharpener is rechargeable and can be used wirelessly. It takes approximately 2 hours to fully charge, providing power for up to 600 sharpening cycles.

• Find opladningsporten på enheden.
• Connect the provided USB cable to the sharpener and a compatible 5V 2A power adapter (not included).
• Opladningsindikatorlampen lyser. Når den er fuldt opladet, kan lampen skifte farve eller slukke, afhængigt af modellen.
• The sharpener can be used while charging if needed.

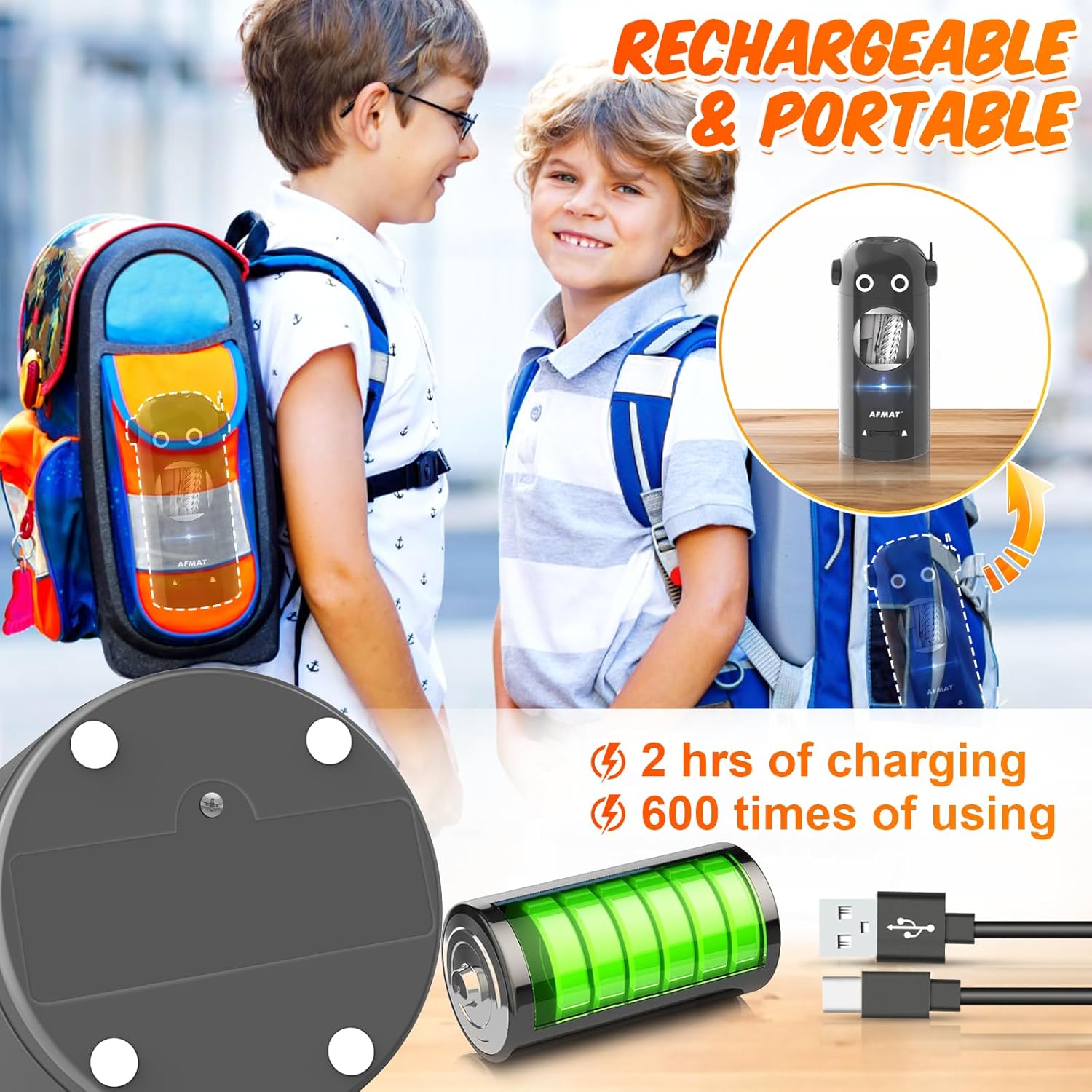

Billede 3.1: The AFMAT Electric Pencil Sharpener highlighting its rechargeable and portable features. It shows the USB charging cable, a battery icon indicating 2 hours of charging for 600 uses, and children carrying backpacks, suggesting its portability.

4. Betjeningsvejledning

4.1 Slibning af en blyant

1. Ensure the sharpener is charged or connected to a power source.
2. Gently insert a pencil into the sharpening hole. The sharpener will automatically detect the pencil and pull it in.
3. The sharpening process will begin automatically. The sharpener will stop and eject the pencil once it reaches the selected sharpness.
4. Fjern den spidse blyant.

Billede 4.1: The AFMAT Electric Pencil Sharpener illustrating its fully automatic operation. A pencil is shown being automatically inserted ('AUTO IN') and ejected ('AUTO OUT') after sharpening. A child and adult are shown happily using the sharpener.

4.2 Pencil Compatibility

This sharpener is designed to accommodate a wide range of pencils, including colored pencils, with diameters between 7mm and 11.5mm. It can sharpen pencils of various shapes (round, hexagonal, triangular).

• Note: For soft-core pencils, it is recommended to use the medium or blunt tip setting to prevent tip breakage.

Billede 4.2: The AFMAT Electric Pencil Sharpener demonstrating its compatibility with pencils ranging from 7mm to 11.5mm in diameter and various shapes (round, hexagonal, triangular). The image also shows the internal mechanism centering the pencil.

4.3 Adjusting Sharpness Options

The sharpener offers three sharpness settings: sharp, medium, and blunt. This allows you to choose the ideal tip for different uses, from fine lines to broad shading.

1. Locate the sharpness adjustment slider on the front of the sharpener.
2. Slide the control to select your desired tip:
• Skarp: For precise lines and detailed work.
• Medium: A versatile tip for general use.
• Stump: Ideal for shading, coloring, or for younger users who are harder on pencil tips.
3. Once the desired setting is selected, proceed with sharpening as described in Section 4.1.

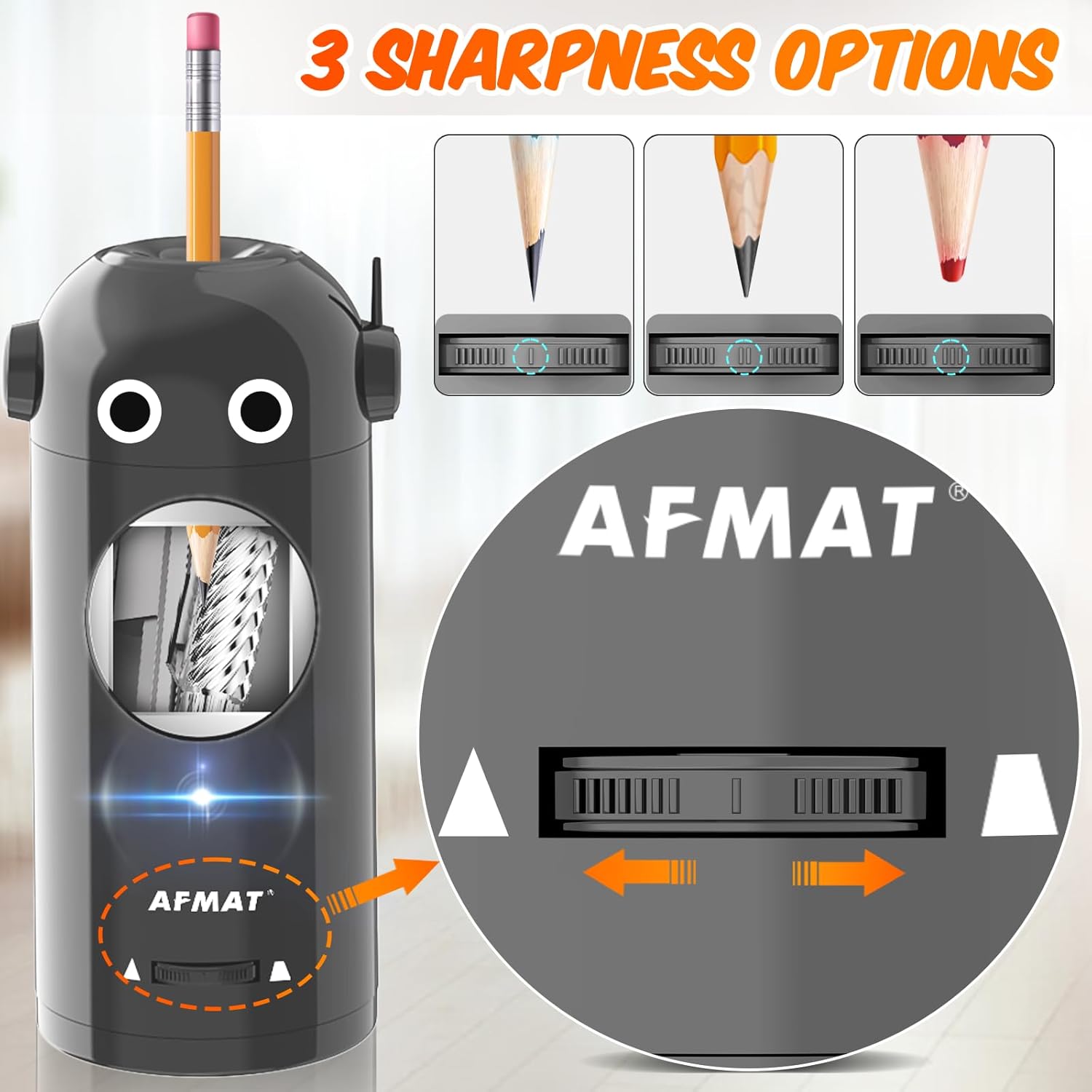

Billede 4.3: The AFMAT Electric Pencil Sharpener displaying its three sharpness options: sharp, medium, and blunt. The image shows a slider control on the sharpener and visual examples of each pencil tip type.

5. Vedligeholdelse

5.1 Tømning af spåner

Regularly empty the shaving receptacle to ensure optimal performance and prevent blockages.

1. Turn off the sharpener and disconnect it from any power source if charging.
2. Carefully remove the shaving receptacle. Refer to the product diagram for its location.
3. Empty the pencil shavings into a waste bin.
4. Reinsert the receptacle securely until it clicks into place.

5.2 Cleaning the Blade Area

Occasionally, pencil dust may accumulate around the blade. Use a soft brush or cloth to gently clean this area. Do not use water or harsh chemicals.

5.3 Udskiftning af knive

The blade of your AFMAT Electric Pencil Sharpener is replaceable. If you notice a decrease in sharpening efficiency, consider replacing the blade.

• Replacement blades can be purchased separately. The ASIN for replacement blades is B0CJ8YYSV5.
• Refer to the instructions provided with the replacement blade for proper installation.

6. Fejlfinding

• Problem: The sharpener does not turn on or sharpen.
  Løsning: Ensure the sharpener is sufficiently charged. Connect it to a power source using the USB cable. Check if the shaving receptacle is securely closed; the sharpener may have a safety mechanism preventing operation if it's open.
• Problem: Pencil is not sharpening effectively or tip breaks frequently.
  Løsning: Check the sharpness setting; a blunt setting is recommended for soft-core pencils to prevent breakage. Ensure the pencil diameter is within the 7-11.5mm range. The blade might be dull and require replacement (refer to Section 5.3).
• Problem: Pencil gets stuck or does not eject.
  Løsning: Do not force the pencil. Gently try to pull it out. Ensure the pencil is inserted straight and not at an angle. Check for any debris or broken lead inside the sharpening mechanism and clean if necessary (refer to Section 5.2).
• Problem: Shavings are overflowing.
  Løsning: Empty the shaving receptacle regularly (refer to Section 5.1).

7. Specifikationer

Billede 7.1: The AFMAT Electric Pencil Sharpener displayed with its approximate dimensions (7.3 inches height, 3.6 inches width). The image emphasizes its space-saving and adorable design, shown in a setting with a child and adult.

8. Garanti og support

8.1 Produktgaranti

AFMAT products are manufactured with quality and reliability in mind. For specific warranty details regarding your AFMAT Electric Pencil Sharpener, please refer to the warranty card included with your purchase or visit the official AFMAT brand store.

8.2 Kundesupport

If you have any questions, concerns, or require assistance with your AFMAT Electric Pencil Sharpener, please contact AFMAT customer support. You can find contact information and additional resources by visiting the AFMAT Store on Amazon.
