Generic 70.87-inch High Glossy Front TV Stand: Assembly and User Manual

1. Introduktion

Thank you for choosing the Generic 70.87-inch High Glossy Front TV Stand. This manual provides essential information for the safe assembly, proper use, and maintenance of your new furniture. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Sikkerhedsoplysninger

• Saml altid enheden på en blød, ren overflade for at undgå ridser.
• Sørg for, at alle dele er til stede og ubeskadigede før montering. Brug ikke beskadigede dele.
• Assembly should be performed by two adults to ensure safety and ease of handling.
• Overspænd ikke skruerne, da dette kan beskadige materialet.
• Placer TV-stativet på en plan overflade for at forhindre, at det vælter.
• Do not exceed the maximum weight capacity of the stand. Refer to the 'Specifications' section for details.
• Hold små dele og emballagematerialer væk fra børn og kæledyr.

3. Pakkens indhold

Before assembly, verify that all components and hardware are present. If any parts are missing or damaged, please contact customer support.

3.1. Komponenter overview

The TV stand consists of various engineered wood panels and hardware. An example of the assembled unit is shown below:

Figur 1: Assembled Generic 70.87-inch High Glossy Front TV Stand. This image displays the overall appearance of the TV stand with a television placed on top, showcasing its beige and brown finish and storage compartments.

3.2. Hardware Package

The hardware package typically includes:

• Screws, dowels, and cam locks for panel connections.
• Hinges for cabinet doors.
• Handles for cabinet doors.
• Anti-tip hardware (recommended for safety).
• Assembly tools (e.g., Allen wrench), if provided.

4. Opsætnings- og monteringsvejledning

Follow these steps carefully for proper assembly. It is recommended to have a second person assist with assembly.

1. Identify All Parts: Lay out all panels and hardware. Compare them with the parts list in your package to ensure everything is accounted for. Refer to the dimensions image for panel identification.

Figur 2: Detailed dimensions of the TV stand. This image provides measurements for the overall width (70.9 inches), height (22.8 inches), depth (15.16 inches), and internal compartment sizes, which is crucial for planning placement and identifying panels during assembly.
2. Saml bundrammen: Attach the side panels to the bottom panel using the provided screws and dowels. Ensure connections are secure.
3. Install Internal Dividers and Shelves: Insert the vertical and horizontal divider panels into their designated slots. Secure them with cam locks or screws as indicated in your specific hardware instructions.


Figur 3: Front view of the TV stand with cabinet doors open. This image illustrates the internal layout of the storage compartments and shelves, useful for understanding the structure during assembly.

4. Fastgør toppanelet: Carefully place the top panel onto the assembled frame, aligning all pre-drilled holes. Secure it using the appropriate fasteners.
5. Installer bagpaneler: Attach the back panels to the rear of the unit. Ensure the cable management cutouts are correctly oriented.


Figur 4: View of the back panel of the TV stand. This image shows the design and attachment points of the back panel, which is important for correct installation.

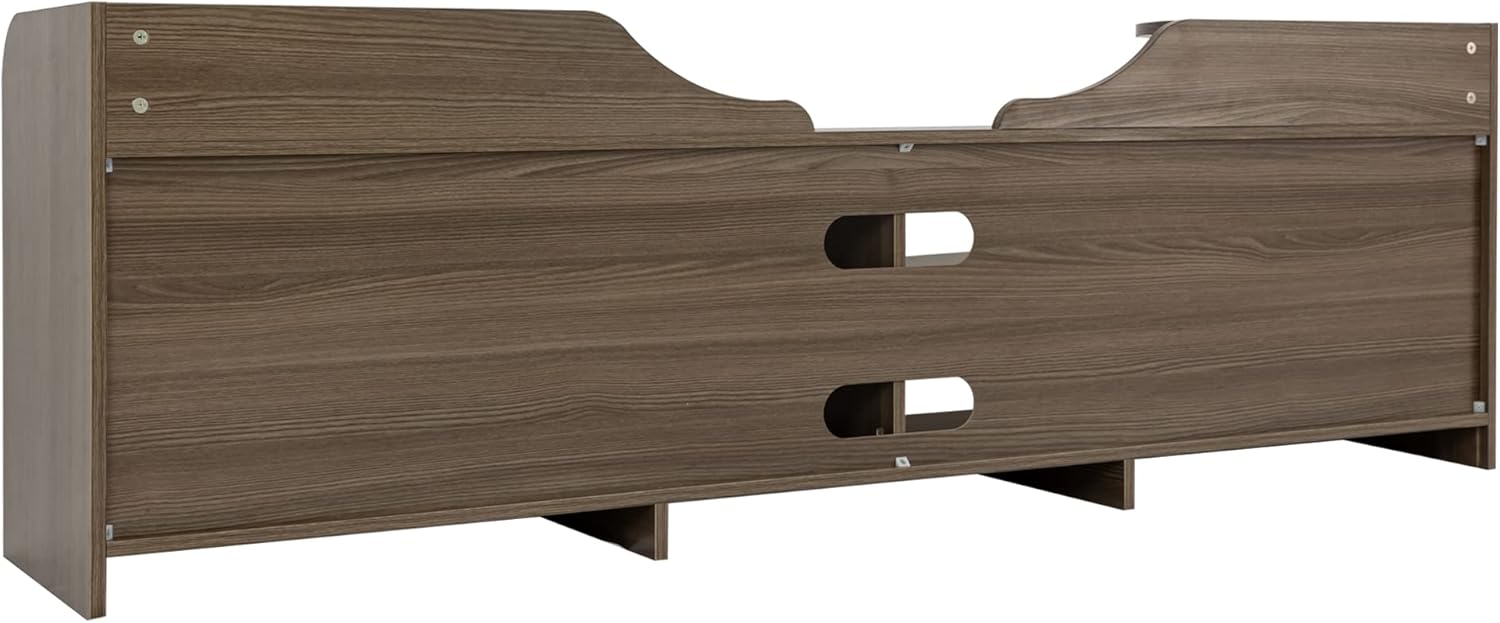

Figur 5: Bag view of the TV stand. This image highlights the cable management openings and the structural supports at the back of the unit, demonstrating how cables can be routed.
6. Fastgør skabslåger: Install the hinges onto the cabinet doors and then attach the doors to the main unit. Adjust hinges as needed for proper alignment.
7. Installer håndtag: Secure the handles to the cabinet doors.
8. Kabelstyring: Utilize the integrated cable management holes to route and organize your electronic device cables.


Figur 6: Nærbillede view of the cable management holes. This image details the design and placement of the openings for routing electronic cables, ensuring a tidy setup.

9. Installer anti-tip-beslag: For safety, especially in homes with children or pets, securely attach the provided anti-tip hardware to the TV stand and to a wall stud.

5. Betjeningsvejledning

Your TV stand is designed to hold a television and various media components. Observe the following guidelines for optimal use:

• Placering: Position the TV stand on a flat, stable surface. Avoid placing it near heat sources or in direct sunlight to prevent material damage.
• Vægtfordeling: Distribute weight evenly across the top surface and shelves. Do not place excessively heavy items on any single shelf or compartment. Refer to specifications for weight limits.
• Kabelorganisation: Use the cable management cutouts to route power cords and signal cables. This helps prevent tangles and reduces strain on connections.
• Ventilation: Ensure adequate airflow around electronic devices placed within the compartments to prevent overheating.

6. Vedligeholdelse og pleje

For at bevare dit TV-bords udseende og levetid skal du følge disse plejeinstruktioner:

• Rensning: Tør overflader af med en blød, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or polishes that may damage the high-gloss finish or engineered wood.
• Spild: Tør straks eventuelle spild op for at forhindre fugtskader eller pletter.
• Varme og fugt: Protect the surface from extreme heat and moisture. Use coasters under beverages and avoid placing hot items directly on the stand.
• Hardwarekontrol: Kontrollér regelmæssigt alle skruer og fastgørelseselementer for at sikre, at de forbliver stramme. Efterspænd om nødvendigt.

7. Fejlfinding

• Wobbly Stand: Ensure the stand is on a level surface. Check all assembly screws and cam locks to confirm they are fully tightened.
• Døre flugter ikke: Adjust the hinges on the cabinet doors. Most hinges allow for minor adjustments in height, depth, and side-to-side positioning.
• Manglende dele: If you discover missing parts during assembly, do not proceed. Contact the retailer or manufacturer's customer support for assistance.
• Ridser/Skader: For minor scratches, furniture repair kits or markers may be used. For significant damage, contact customer support.

8. Specifikationer

9. Garanti og support

For warranty information, please refer to the documentation provided at the time of purchase or contact the retailer directly. For any questions, missing parts, or assistance with assembly, please reach out to the manufacturer or retailer's customer support.
