Dalouguan 32-inch Black Modern Ceiling Fan with Lights and Remote Control

1. Sikkerhedsinstruktioner

Læs venligst alle instruktioner omhyggeligt inden installation og brug. Gem denne manual til senere brug.

• Afbryd altid strømmen ved hovedafbryderen, før du installerer, rengør eller servicerer ventilatoren.
• Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med alle lokale og nationale el-forskrifter.
• Sørg for, at monteringsstrukturen kan bære ventilatorens vægt.
• Do not bend the fan blades when installing or cleaning.
• Undgå at placere genstande i vejen for blæserbladene.
• Brug kun den fjernbetjening, der følger med ventilatoren.

2. Pakkens indhold

Carefully unpack all components and ensure all items are present before beginning installation. The package includes the fan light unit, remote control, and an accessories package.

Image: Dalouguan Ceiling Fan Components
A visual representation of the fan's components, including the main body, individual light panels, the remote control, and various screws and connectors for assembly.

3. Opsætning og installation

Most functional parts are pre-assembled. Please refer to the included English instructions for detailed steps. Ensure power is off before starting.

3.1 Monteringstrin

1. Forbered monteringspladen: Secure the mounting plate to the ceiling junction box.
2. Tilslut ledninger: Connect the household electrical wires to the fan's wiring according to the wiring diagram in the manual. Ensure all connections are secure.
3. Fastgør ventilatorhus: Mount the main fan body to the secured mounting plate.
4. Install Light Panels: Attach the decorative light panels to the fan body. Ensure they are firmly in place.
5. Installer ventilatorblade: Secure the transparent fan blades to the central motor unit.
6. Afsluttende kontrol: Dobbelttjek alle forbindelser, og sørg for, at ventilatoren er sikkert monteret, før du genopretter strømmen.

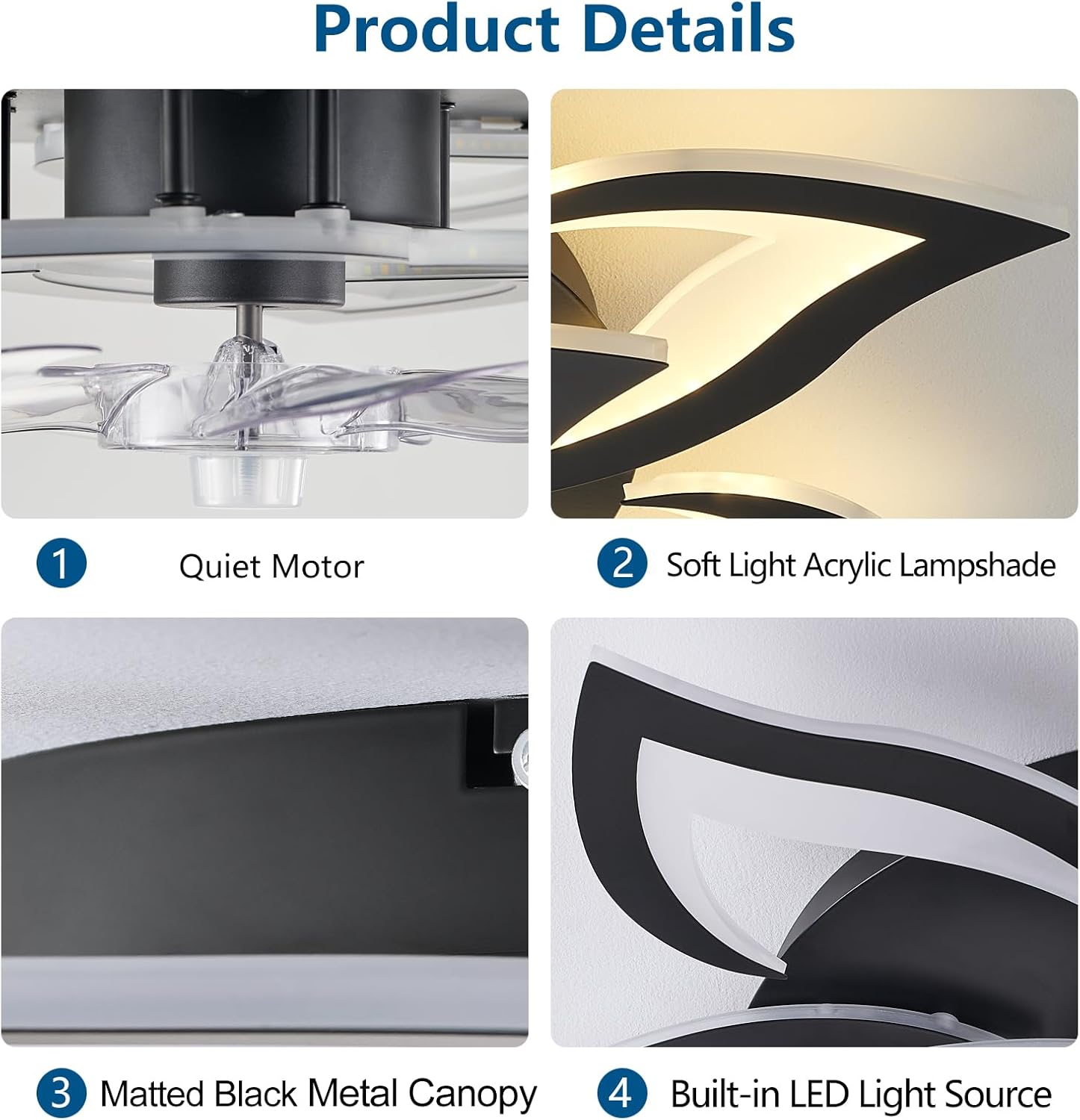

Image: Product Details for Installation
This image highlights key components like the quiet motor, soft light acrylic lampshade, matted black metal canopy, and the built-in LED light source, which are important during assembly.

4. Betjeningsvejledning

The Dalouguan ceiling fan is controlled via the included remote. Ensure batteries are installed in the remote (not included).

4.1 Fjernbetjeningsfunktioner

Image: Remote Control Layout and Functions
A detailed image of the remote control, illustrating buttons for power, fan speed selection (1-6), light on/off, color temperature adjustment (K+/K-), brightness control, and 1-hour/2-hour timer settings.

• Power knap: Tænder/slukker ventilator og lys.
• Ventilatorhastighed (1-6): Select from 6 wind speeds, from low (1) to high (6).
• Lyskontakt: Toggles the light on/off independently of the fan.
• Color Temperature (K+/K-): Adjusts the light color between white (6000K), neutral (4000K), and warm (3000K) light.
• Justering af lysstyrke: Dims or brightens the light from 5% to 100%.
• Timing Function (1H/2H): Sets the fan to automatically turn off after 1 or 2 hours.
• Frem/tilbage: Controls the direction of the fan for summer (cooling airflow) or winter (better air circulation).

4.2 Lysfunktioner

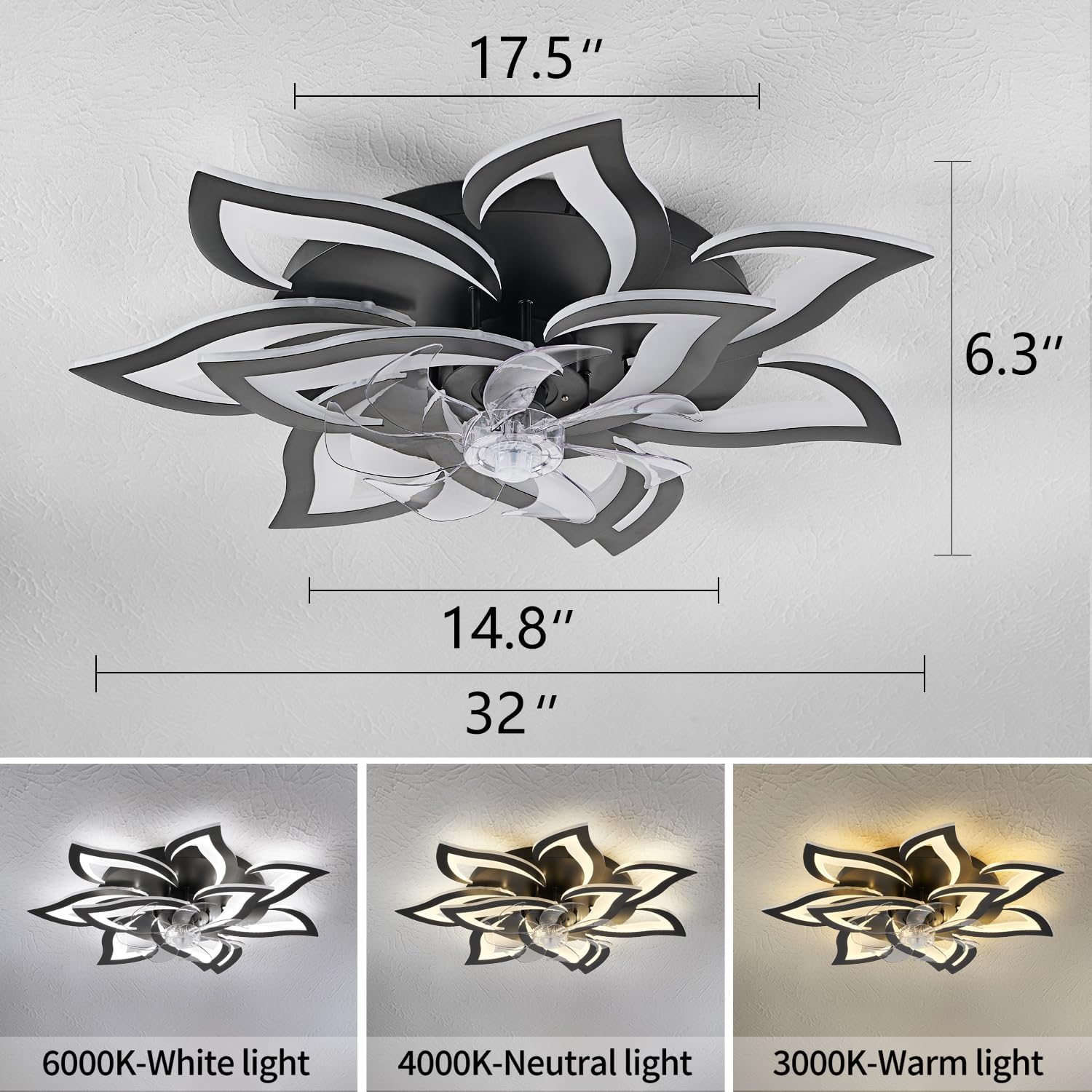

Image: Three Light Color Modes
This image displays the fan's ability to switch between three distinct light color temperatures: cool white (6000K), neutral white (4000K), and warm white (3000K).

• 3-Color Modes: Easily switch between white light, warm light, and neutral light to suit your preference.
• Dæmpbart lys: Juster lysstyrken fra 5 % til 100 %.
• Hukommelsesfunktion: The fan remembers the last color temperature and brightness setting when turned off and on again via the remote control.

4.3 Reversible Motor

Image: Reversible Motor Function
This image visually explains the reversible motor feature, indicating how it provides cooling airflow during summer and improves air circulation in winter.

The fan features a silent pure copper reversible motor. This allows for both forward and reverse functions:

• Videresend tilstand: Creates a downward airflow, ideal for cooling during warmer months.
• Omvendt tilstand: Creates an upward airflow, circulating warm air trapped near the ceiling during colder months.

5. Vedligeholdelse

Regular maintenance ensures optimal performance and longevity of your Dalouguan ceiling fan.

• Rensning: The semi-open design allows for easy cleaning of the fan blades. Use a soft, damp cloth to wipe down the fan and light panels. Do not use abrasive cleaners.
• Støvning: Periodically dust the fan and light fixture to prevent buildup that could affect performance or light output.
• Spænd skruer: Kontrollér alle skruer og forbindelser med jævne mellemrum for at sikre, at de er fastgjort.
• Ingen smøring nødvendig: Motoren er permanent smurt og kræver ikke yderligere oliering.

6. Fejlfinding

If you experience issues with your fan, please consult the following common troubleshooting steps:

• Ventilatoren kører ikke: Check if the power is on at the circuit breaker. Ensure all wiring connections are secure. Verify remote control batteries are functional and correctly inserted.
• Lyset virker ikke: Check power supply. Ensure the light switch on the remote is activated. If the light is dim, try increasing lysstyrken.
• Overdreven vaklen: Ensure the fan is securely mounted to the ceiling. Check that all screws on the light panels and fan blades are tightened.
• Fjernbetjeningen reagerer ikke: Replace remote batteries. Ensure there are no obstructions between the remote and the fan.
• Støj: Ensure all screws are tight. Check for any loose parts or obstructions.

Hvis problemerne fortsætter efter at have fulgt disse trin, bedes du kontakte kundesupport.

7. Specifikationer

8. Garanti og support

This Dalouguan ceiling fan comes with a 1 års garanti fra købsdatoen, dækker fabrikationsfejl.

For technical support, troubleshooting assistance, or warranty claims, please contact Dalouguan customer service through the retailer where the product was purchased or visit the official Dalouguan webwebsted for kontaktoplysninger.

Please have your model number (DLG-FSD51) and proof of purchase ready when contacting support.
