AOKLEY 154 Carburetor Instruction Manual

Indledning

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the AOKLEY 154 Carburetor. This carburetor is designed to fit SOLO 154SB and other brushcutters and strimmers. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

Produkt overview og pakkeindhold

The AOKLEY 154 Carburetor is a replacement part designed for specific brushcutter and strimmer models. It is manufactured to be durable and provide a perfect match for compatible machines.

Nøglefunktioner:

• 100% brand new construction.
• Durable, exquisite, and delicate design.
• Engineered for a perfect match with compatible machinery.
• Designet til nem brug og installation.
• Aims for a long service life.

Pakkeindhold:

• 1 x AOKLEY 154 Carburetor

Figur 1: Generel view of the AOKLEY 154 Carburetor. This image shows the overall design and primary components of the carburetor.

Opsætning og installation

Before beginning installation, ensure the engine is cool and disconnected from any power source. Always wear appropriate safety gear, including gloves and eye protection.

1. Forberedelse: Gather necessary tools, such as screwdrivers, wrenches, and a clean cloth. Ensure the work area is well-lit and free of debris.
2. Fjern den gamle karburator: Carefully disconnect fuel lines, throttle linkage, and any mounting bolts securing the old carburetor. Note the orientation and connections for reassembly.
3. Inspicer monteringsområde: Clean the engine's intake manifold and ensure there are no old gasket residues. Inspect for any damage or blockages.
4. Montering af ny karburator: Position the new AOKLEY 154 Carburetor, ensuring gaskets are properly seated. Secure it with the mounting bolts, tightening them evenly to prevent air leaks.
5. Forbind komponenter: Reattach the fuel lines, ensuring they are securely clamped and free of kinks. Connect the throttle linkage, verifying smooth operation.
6. Indledende kontrol: Before starting the engine, visually inspect all connections for tightness and proper routing. Check for any fuel leaks.

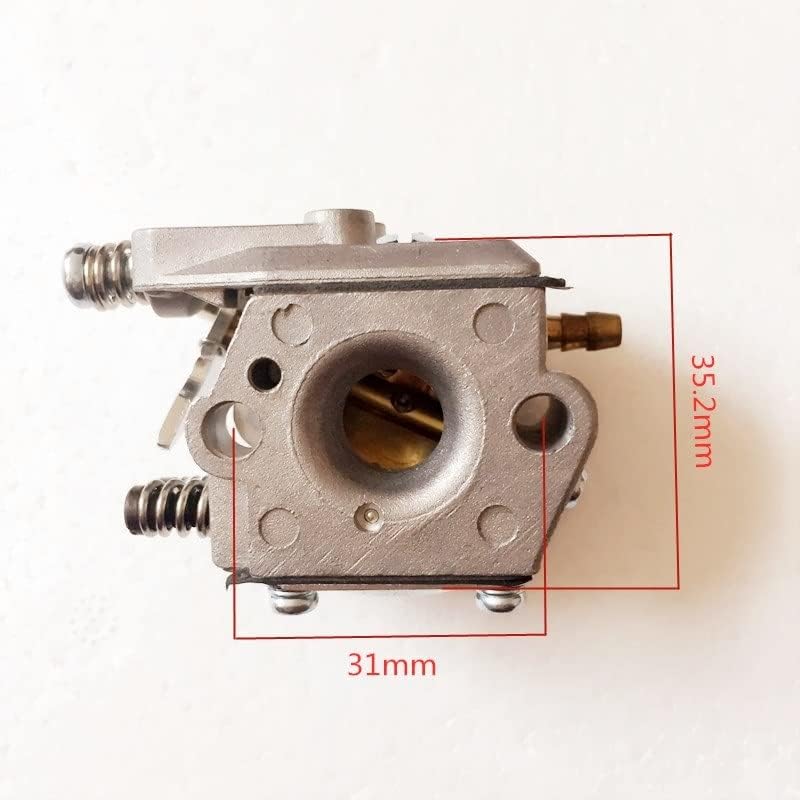

Figur 2: Side view of the carburetor illustrating key dimensions: approximately 35.2mm in height and 31mm in width. These measurements are crucial for verifying compatibility with your engine's mounting space.

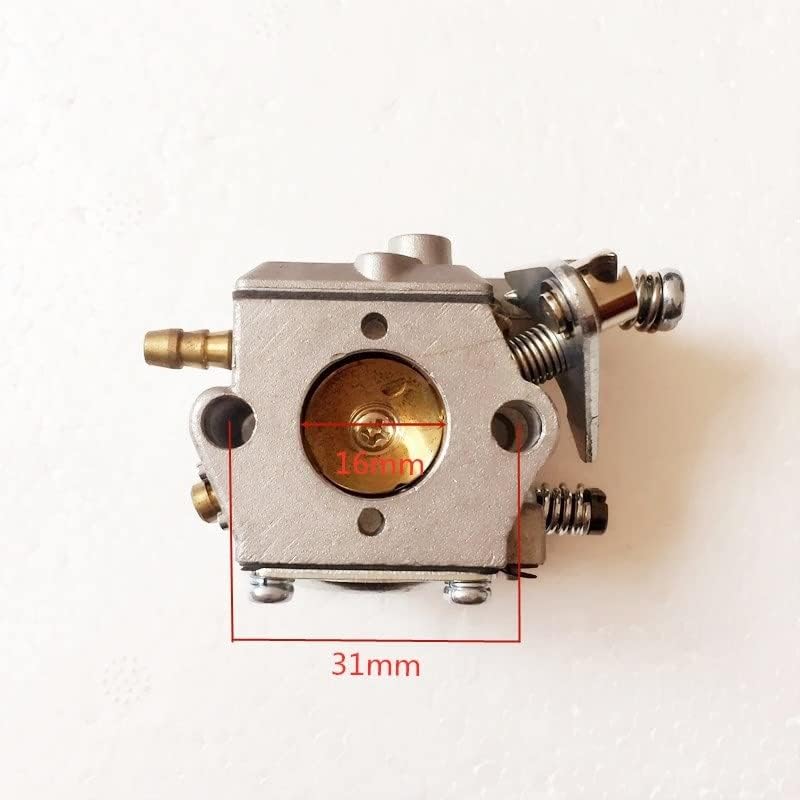

Figur 3: Front view of the carburetor showing additional dimensions: approximately 16mm for the intake bore and 31mm in width. These specifications are important for ensuring proper fit and air flow.

Betjeningsvejledning

After installation, the carburetor may require minor adjustments for optimal performance. Refer to your engine's specific manual for detailed tuning procedures.

Indledende opstart:

• Ensure the fuel tank is filled with the correct fuel mixture as specified by your engine manufacturer.
• Engage the choke if required for cold starting.
• Start the engine according to your equipment's instructions.
• Once the engine warms up, disengage the choke.

Carburetor Adjustment (if necessary):

Most carburetors have idle speed and mixture screws. Adjustments should be made incrementally and with caution.

• Tomgangshastighedsskrue: Adjusts the engine's RPM at idle. Turn clockwise to increase idle, counter-clockwise to decrease.
• Mixture Screws (High/Low): These control the fuel-air mixture. Small adjustments (typically 1/8 to 1/4 turn) are usually sufficient. Refer to your engine's manual for specific settings. Incorrect adjustments can lead to engine damage.

Figur 4: Top view of the carburetor, demonstrating the location of various screws and linkages. This perspective is useful for identifying adjustment points.

Opretholdelse

Regelmæssig vedligeholdelse sikrer din karburators levetid og optimale ydeevne.

• Brændstofkvalitet: Always use fresh, clean fuel. Stale or contaminated fuel is a common cause of carburetor issues. Consider using a fuel stabilizer if storing equipment for extended periods.
• Brændstoffilter: Kontroller og udskift brændstoffilteret regelmæssigt for at forhindre snavs i at trænge ind i karburatoren.
• Luftfilter: A clean air filter is crucial for proper air-fuel mixture. Clean or replace the air filter as recommended by your engine's manual.
• Rensning: If the carburetor becomes clogged, it may need to be disassembled and cleaned with a specialized carburetor cleaner. This should only be done by individuals familiar with carburetor mechanics.
• Opbevaring: Before long-term storage, drain the fuel system or run the engine until it runs out of fuel to prevent gumming and varnish buildup in the carburetor.

Figur 5: Side view of the carburetor, highlighting the fuel inlet nozzle. Regular inspection of this area for blockages or damage is part of routine maintenance.

Figur 6: Bund view of the carburetor, displaying the mounting screws and the main body. This view is relevant for understanding how the carburetor attaches to the engine and for accessing the float bowl if cleaning is required.

Fejlfinding

This section provides solutions to common issues you might encounter with your carburetor. For complex problems, consult a qualified technician.

Specifikationer

Garanti og support

Specific warranty information for the AOKLEY 154 Carburetor is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to the product listing on the retailer's website or contact AOKLEY customer service directly.

Det anbefales at gemme din købsbevis i tilfælde af garantikrav.
