1. Vigtige sikkerhedsoplysninger
Please read all instructions carefully before installation and use of your new Vanity Art freestanding bathtub. Retain this manual for future reference.
- This bathtub is cUPC certified, ensuring it meets rigorous safety standards.
- Ensure the installation area can support the weight of the bathtub when filled with water and a user.
- Always use caution when entering and exiting the bathtub to prevent slips.
- Brug ikke slibende rengøringsmidler eller værktøj, der kan beskadige akryloverfladen.
- Keep children supervised around the bathtub.
2. Produktet er slutview
The Vanity Art 55-inch Freestanding Bathtub is designed for comfort and durability, featuring a contemporary design and high-quality materials.
Nøglefunktioner:
- Premium kvalitet: Constructed from high-quality, durable 100% acrylic material and reinforced fiberglass for longevity. The sleek, glossy surface is resistant to stains and scratches.
- Ergonomisk design: Shaped to provide excellent lumbar support for a comfortable bathing experience.
- Freestanding Elegance: Adds a sophisticated focal point to any bathroom decor.
- Skridsikker overflade: Designed to enhance user safety.
- Integrated Overflow and Pop-up Drain: Ensures efficient water management and prevents accidental overfilling.

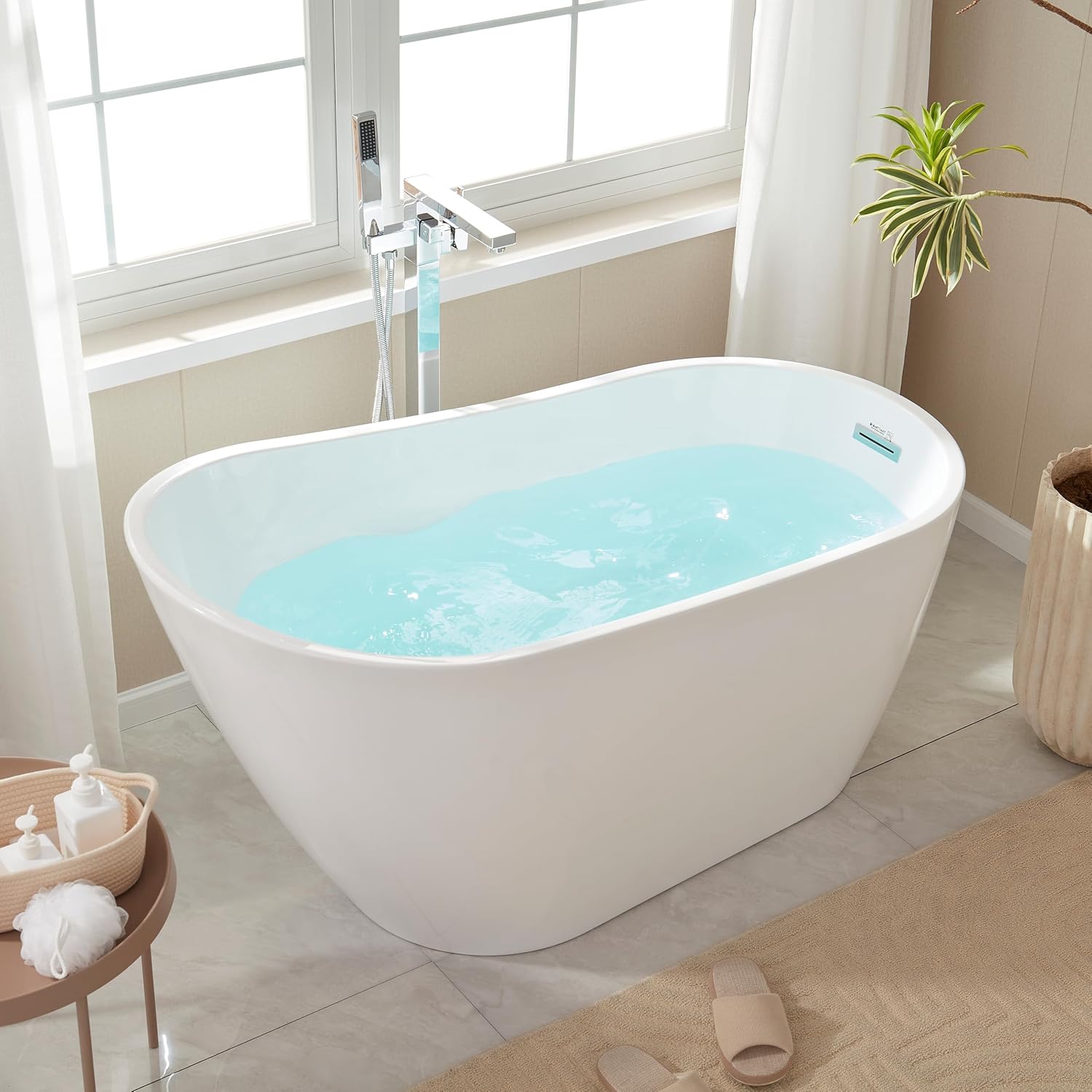

Image: The Vanity Art 55-inch Freestanding Bathtub, filled with water, highlighting its elegant design and ample bathing space.
Billede: En detaljeret view of the bathtub's overflow and pop-up drain, featuring a brushed nickel finish for a modern aesthetic.
3. Opsætning og installation
This bathtub is designed for hassle-free installation. It comes with all necessary fittings and an easy-to-follow installation guide. Professional installation is recommended to ensure proper plumbing connections and stability.
Tjekliste før installation:
- Kontroller, at alle komponenter er til stede og ubeskadigede.
- Ensure the floor is level and capable of supporting the bathtub's weight.
- Confirm plumbing connections (hot/cold water supply and drain) are correctly positioned according to the bathtub's specifications.
Installationstrin (resumé):
- Position the bathtub in the desired location.
- Connect the drain assembly to the floor drain.
- Connect the water supply lines to the faucet (faucet sold separately).
- Level the bathtub using the adjustable feet, if applicable.
- Seal the base of the bathtub to the floor with silicone sealant to prevent water ingress.
Refer to the detailed installation guide included with your product for complete step-by-step instructions and diagrams.

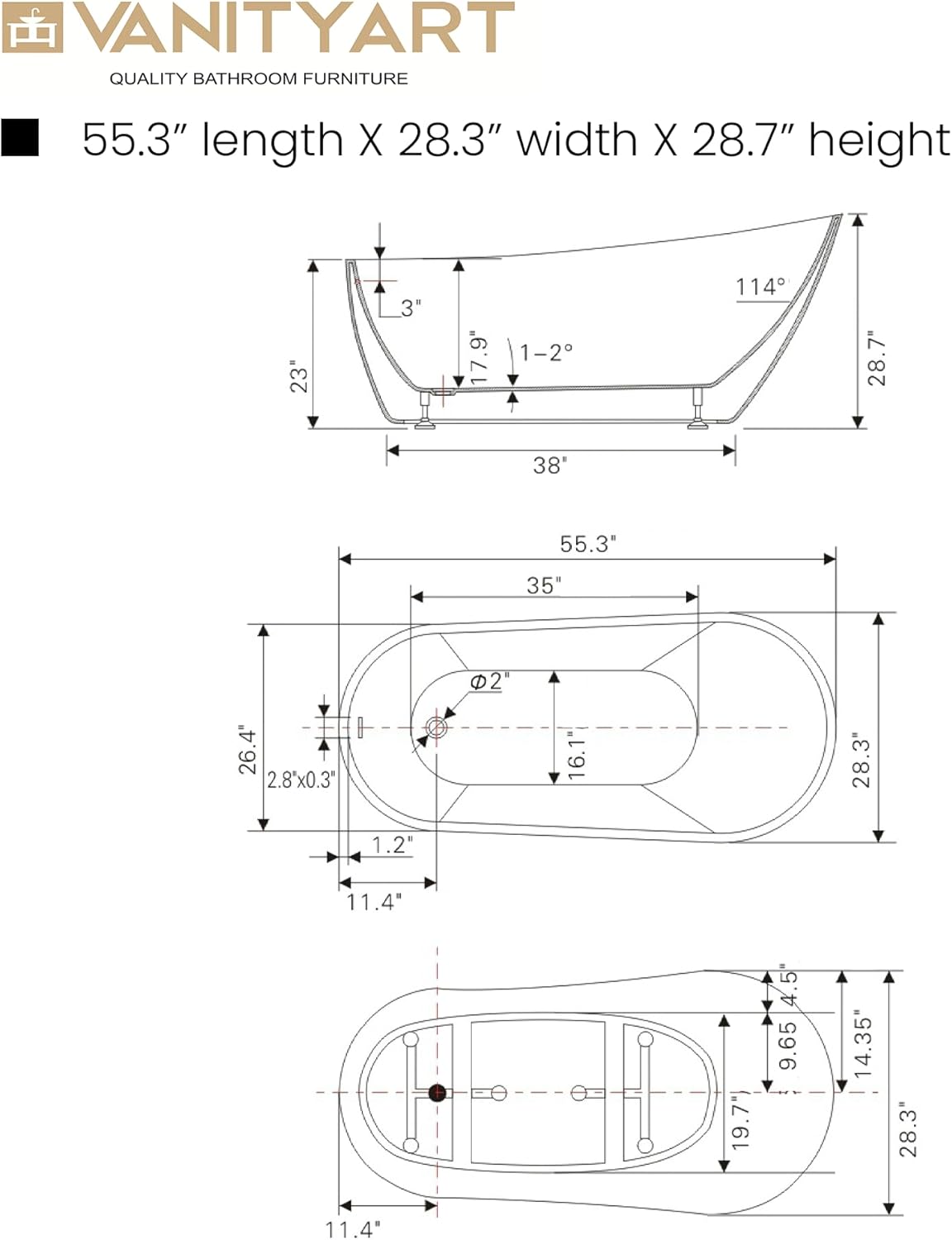

Image: Technical drawing illustrating the precise dimensions (length, width, height) and internal layout of the bathtub, crucial for planning installation.
4. Betjeningsvejledning
Filling the Bathtub:
- Ensure the pop-up drain is in the closed position.
- Turn on the faucet to the desired water temperature and flow.
- Fill the bathtub to a comfortable level, being mindful of the overflow drain to prevent overfilling.
Draining the Bathtub:
- After use, open the pop-up drain to allow water to empty.
- Rinse the bathtub with clean water to remove any soap residue.
5. Vedligeholdelse og rengøring
Regular cleaning will maintain the pristine appearance and extend the life of your Vanity Art bathtub.
Generel rengøring:
- For daily cleaning, use a soft cloth or sponge with mild, non-abrasive soap and warm water.
- Rinse thoroughly after cleaning to remove all soap residue.
- Tør efter med en blød klud for at undgå vandpletter.
Undgå:
- Abrasive cleaners, scouring pads, or harsh chemicals (e.g., acetone, paint thinner, strong acids/bases) as these can damage the acrylic surface.
- Leaving bath oils, salts, or dyes in the tub for extended periods, as they may cause staining.
6. Fejlfinding
If you encounter issues with your bathtub, refer to the following common solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Langsom dræning | Hår eller snavs i afløbet; forkert afløbsinstallation. | Remove and clean the pop-up drain assembly. Consult a plumber if the issue persists. |
| Vandlækage | Loose drain connections; damaged sealant around the base. | Check all plumbing connections for tightness. Reapply silicone sealant around the base if necessary. Ensure the tub is stable and not shifting. |
| Overfladeridser | Use of abrasive cleaners or objects. | Minor scratches may be buffed out with a fine automotive polishing compound. For deeper scratches, professional repair may be required. |
For issues not covered here, please contact Vanity Art customer support.
7. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Forfængelighedskunst |
| Model | 55-inch Freestanding Bathtub |
| Color (Drain/Overflow) | Børstet nikkel |
| Materiale | Akryl |
| Produktmål (L x B x H) | 55 cm L x 28.3 cm B x 28.7 cm H |
| Stil | Nutidige |
| Finish Type | Poleret |
| Installationstype | Frit stående |
| Form | Oval |
| Certificering | cUPC Certified |
8. Garanti og support
Vanity Art warrants this product to be free of defects in material and workmanship for a period of 1 år from the date of purchase. This limited warranty covers manufacturing defects and does not include damage resulting from improper installation, misuse, abuse, or normal wear and tear.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Vanity Art customer support. Please have your proof of purchase and model information available when contacting support.
You can find more information and contact details on the official Vanity Art store page: Vanity Art Store
