Scott Aerator Amherst 1 HP 230V Pond Fountain Instruction Manual

Vigtige sikkerhedsoplysninger

Please read and understand all instructions and safety warnings before installing, operating, or maintaining your Scott Aerator Amherst Pond Fountain. Failure to follow these instructions may result in electric shock, injury, or property damage.

• Elektrisk sikkerhed: This unit operates on 230V. Always disconnect power at the circuit breaker before performing any installation, maintenance, or service. Ensure all electrical connections are made by a qualified electrician and comply with local codes.
• Vandsikkerhed: Never enter the water while the fountain is operating or connected to power. Keep children and pets away from the fountain during operation.
• Korrekt jording: The fountain must be properly grounded to prevent electric shock. Do not use extension cords unless specifically rated for outdoor, submersible use and properly grounded.
• Minimum Pond Depth: A minimum pond depth of 34 inches is required for safe and effective operation.
• Håndtering: Use caution when handling the fountain components. The unit can be heavy.

Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

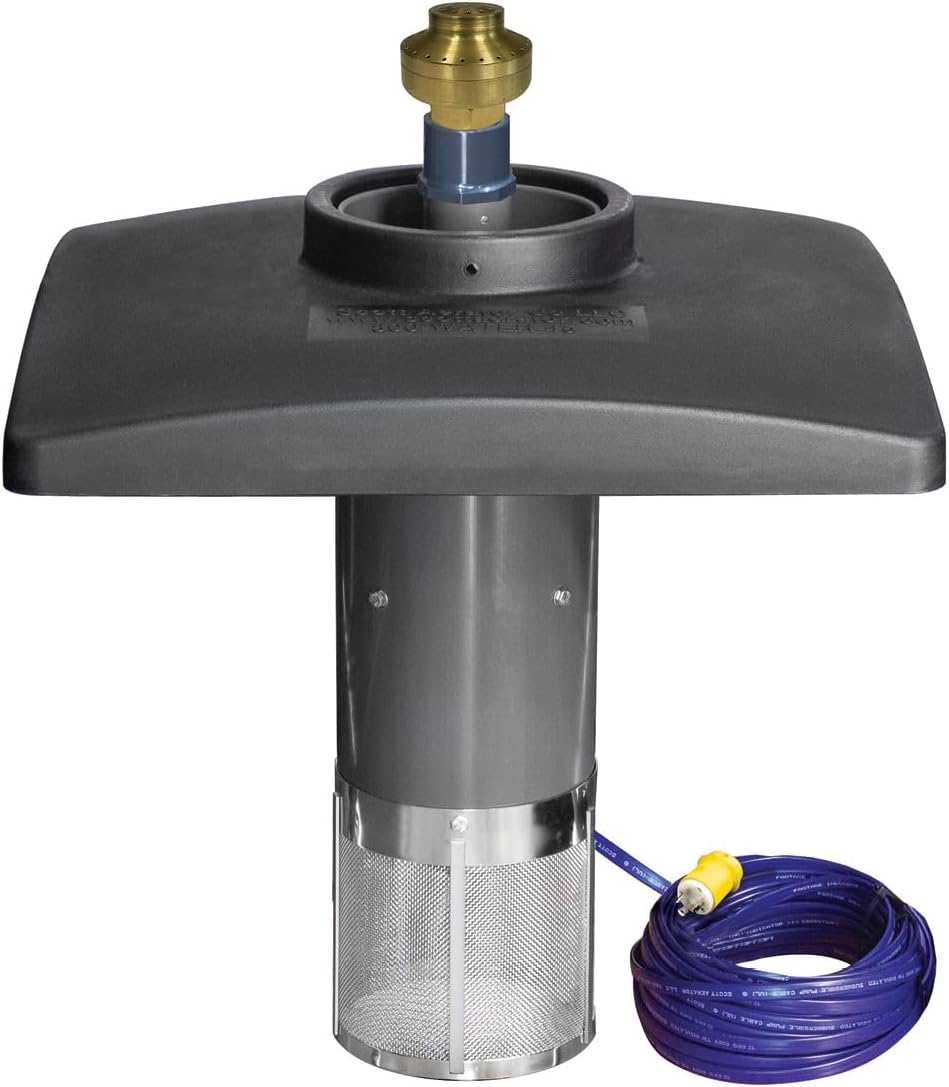

• Amherst Fountain Motor Unit (1 HP, 230V)
• Float Platform
• Nozzle Assembly (Majestic three-tier pattern)
• 100 ft. 12-gauge Submersible Power Cord
• Stainless Steel Screen/Filter Basket
• Mounting Hardware and Ropes (for anchoring)

Opsætning og installation

1. Udpakning og inspektion: Carefully remove all components from the packaging. Inspect for any signs of damage. Contact customer support immediately if any parts are missing or damaged.
2. Dysesamling: Attach the nozzle assembly to the top of the motor unit. Ensure it is securely fastened according to the provided hardware.
3. Flydetilbehør: Position the motor unit within the float platform. Secure the motor unit to the float using the designated hardware.
4. Filter Basket Installation: Attach the stainless steel screen/filter basket to the bottom of the motor unit. This prevents debris from entering the pump.
5. Ledningsstyring: Ensure the 100 ft. submersible power cord is free of kinks or damage.
6. Implementering: Carefully place the assembled fountain into the pond. Ensure the pond depth is at least 34 inches. The fountain should float freely and be level.
7. Forankring: Use the provided ropes to anchor the fountain to the pond bank. This prevents the fountain from drifting. Adjust rope length to maintain a central and stable position.
8. Elektrisk tilslutning: Route the power cord to a properly grounded 230V outdoor electrical outlet or junction box. A qualified electrician should perform the final electrical connection to ensure compliance with all local electrical codes and safety standards. Ensure a Ground Fault Circuit Interrupter (GFCI) is in place for electrical safety.

Betjeningsvejledning

1. Indledende opstart: Once the fountain is properly installed and electrically connected, turn on the power at the circuit breaker. The fountain should begin operating immediately, producing its three-tier water display.
2. Observation: Observe the fountain for proper operation. The water pattern should be consistent, reaching heights of over 35 feet with a side jet spray pattern of 40 feet in diameter.
3. Timer Use (Optional): For automated operation, connect the fountain to an outdoor-rated timer (not included). Follow the timer's instructions for setting desired operating schedules.
4. Vinterdrift: The Scott Aerator Amherst Fountain is designed for year-round use and does not need to be removed from the water in freezing temperatures. Its operation helps to keep an area of the pond open, aiding in oxygen transfer.

Opretholdelse

Regular maintenance ensures optimal performance and longevity of your fountain.

• Afbryd strømmen: ALWAYS disconnect power to the fountain at the circuit breaker before performing any maintenance.
• Rengøring af filterkurv: Periodically inspect and clean the stainless steel filter basket to remove accumulated debris (leaves, algae, etc.). A clogged filter can reduce performance and strain the motor.
• Rengøring af dyse: If the water pattern appears weak or uneven, the nozzle may be partially clogged. Carefully remove the nozzle and clean any obstructions.
• Motorinspektion: Annually, inspect the motor unit and power cord for any signs of wear, damage, or corrosion. Ensure all connections are secure.
• Vinterpleje: As the fountain is designed for winter operation, no special winterization is required for the unit itself. However, ensure the power supply remains protected from winter elements.

Fejlfinding

If troubleshooting steps do not resolve the issue, please contact Scott Aerator customer support.

Specifikationer

• Model: Amherst
• Varemodelnummer: 13239
• Hestekraft: 1 HK
• Voltage: 230V
• Ampalder: 8.2 amps
• Wattage: 1,210 watt
• Frekvens: 60 Hz, single phase
• Strømledning: 100 ft., 12-gauge submersible
• Flowhastighed: Op til 75 gallon i minuttet
• Max Spray Height: Over 35 feet (three-tier pattern)
• Max Spray Diameter: 40 feet (side jets)
• Minimum Pond Depth: 34 tommer
• Konstruktion: Stainless Steel Motor
• UPC: 810094920562

Garanti og support

Scott Aerator Company provides an industry-leading 5 års motorgaranti for dette produkt. Denne garanti dækker materiale- og fabrikationsfejl under normal brug.

For warranty claims, technical support, or replacement parts, please contact Scott Aerator customer service directly. Have your model number (13239) and date of purchase available when contacting support.

Kontaktoplysninger: Please refer to the official Scott Aerator webwebstedet eller din købsdokumentation for at få de seneste kontaktoplysninger.
