tectake Foldable Transport Cart User Manual

1. Produktet er slutview

The tectake Leon Foldable Transport Cart is designed for versatile outdoor use, offering ease of maneuverability and ample storage. Its robust construction and thoughtful features make it an ideal companion for various activities, from beach trips to gardening tasks.

Nøglefunktioner:

• Unrivaled Versatility: Velegnet til camping, beach, picnics, festivals, and shopping.
• Imponerende kapacitet: Large loading volume with two external mesh pockets for additional storage.
• Robust and Maneuverable Design: Stable steel frame, 4 rubberized wheels (two swiveling with brakes) for exceptional handling.
• Komfort og brugervenlighed: Adjustable telescopic handle and removable, easy-to-clean Oxford 600D fabric insert.
• Komplet tilbehør: Includes a practical carry bag for convenient transport and storage.

This image displays the tectake foldable transport cart in its fully assembled state, highlighting its sturdy frame, spacious interior, and four wheels. The telescopic handle is visible, ready for adjustment.

This diagram illustrates the core functionalities of the cart, including its pre-assembled delivery, quick folding mechanism, generous storage capacity, 360° swivel wheels with rubber coating, secure brakes, two external mesh pockets, ergonomic and continuously extendable handle, and a high load capacity of up to 80 kg.

2. Opsætning

The tectake Foldable Transport Cart is delivered pre-assembled and ready for immediate use. No complex assembly steps are required.

Udfoldning af vognen:

1. Remove the cart from its carry bag.
2. Placer den sammenfoldede vogn på en flad, stabil overflade.
3. Gently pull the sides of the cart outwards until the frame fully extends and locks into place. Ensure all joints are securely engaged.
4. Press down on the center of the cart's base to flatten the fabric insert.

This image sequence illustrates the transformation of the cart from its compact, folded state to its fully extended, ready-to-use form, emphasizing the ease of its folding mechanism.

3. Betjeningsvejledning

Adjusting the Telescopic Handle:

The ergonomic telescopic handle can be adjusted in height and angle to suit your preference and body height.

1. Locate the spring-loaded adjustment mechanism on the handle.
2. Press the release button or lever (if present) and extend or retract the handle to the desired length.
3. Release the button/lever to lock the handle securely in position.

Brug af bremserne:

The two front wheels are equipped with brakes to prevent unintentional movement.

1. To engage the brakes, press down firmly on the brake levers located above the front wheels.
2. To release the brakes, lift the levers upwards.
3. Always engage the brakes when the cart is stationary, especially on inclines or uneven surfaces.

This composite image highlights the practical aspects of the cart's operation: its ability to fold compactly for storage in a car, the adjustable ergonomic handle for comfortable pulling, and the secure braking system on the wheels.

Indlæsning af kurven:

The cart has a maximum load capacity of 80 kg. Distribute weight evenly to maintain stability.

• Place heavier items at the bottom and center of the cart.
• Utilize the two external mesh pockets for smaller items that require quick access.
• Do not exceed the maximum load capacity to ensure safe operation and prevent damage to the cart.

Dette billede giver en detaljeret view of the cart's robust wheels, emphasizing their 360° pivot capability and integrated brakes. It also visually suggests the cart's suitability for diverse surfaces such as asphalt, dirt, gravel, and grass.

Foldning af vognen til opbevaring:

1. Ensure the cart is empty and clean.
2. Pull up on the fabric loop located in the center of the cart's base. This will cause the cart to begin collapsing inwards.
3. Push the sides of the cart together until it is fully folded.
4. Secure the folded cart with any integrated straps or clips, if available.
5. Place the folded cart into its carry bag for compact storage and transport.

This image showcases the cart's intelligent design, highlighting its ability to fold into a compact form for easy storage. It also features the water-repellent Oxford 600D fabric, demonstrating its practical use for carrying various items.

4. Vedligeholdelse

Rengøring af stoffet:

The removable fabric insert is made of dirt and water-resistant Oxford 600D polyester, making it easy to clean.

• For light dirt, wipe the fabric with a damp klud og mild sæbe.
• For heavier stains, the fabric insert can be removed for more thorough cleaning. Follow care instructions on the fabric label if available.
• Allow the fabric to air dry completely before folding or storing the cart to prevent mold or mildew.

Stel og hjul:

• Wipe the epoxy-coated steel frame with a damp klud til at fjerne snavs og snavs.
• Periodically check the wheels and axles for any obstructions or damage. Clean as necessary.
• Ensure all moving parts, such as the handle mechanism and wheel pivots, operate smoothly.

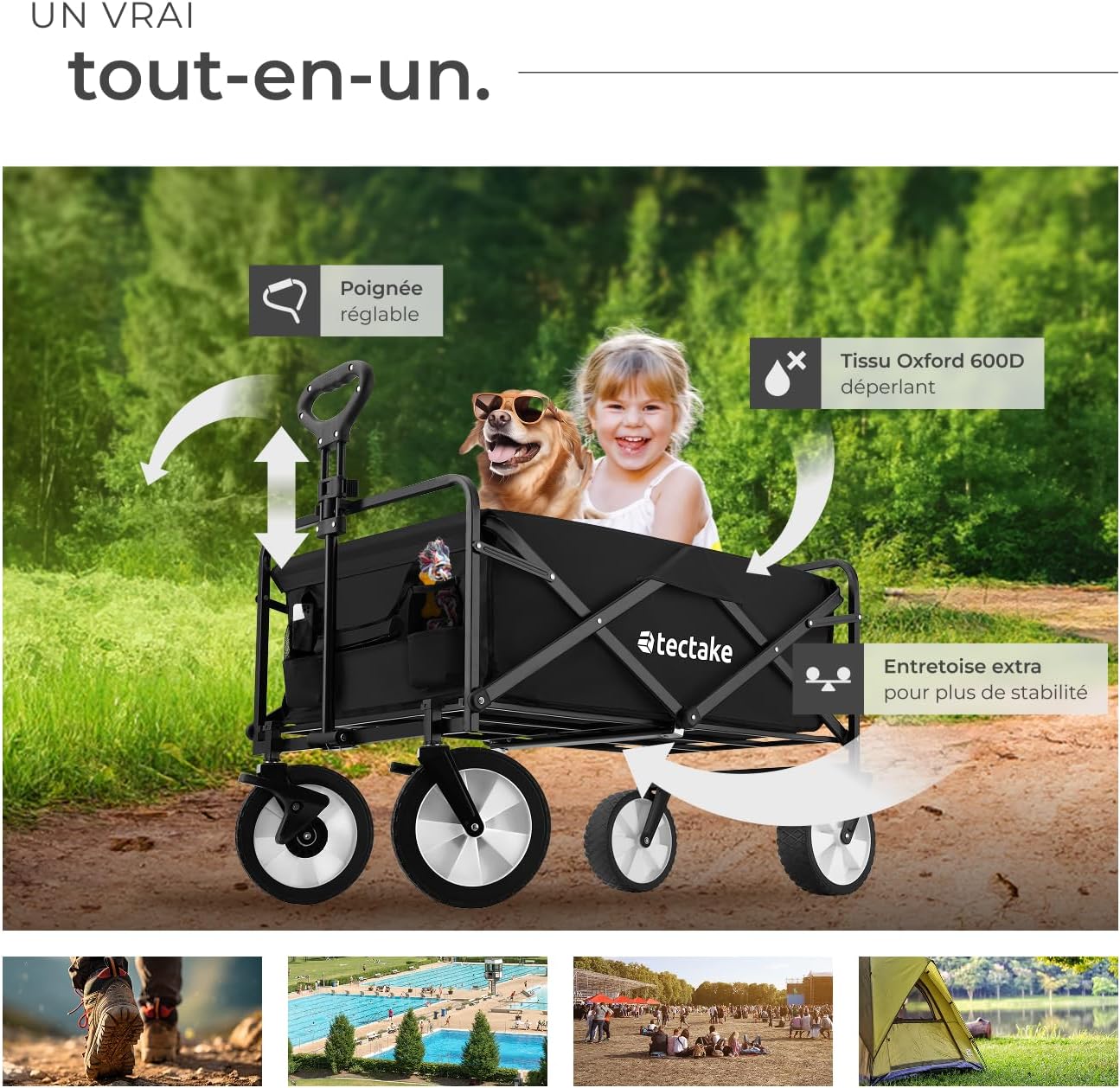

This image emphasizes the cart's practical features for active use, including its adjustable handle, the durable and water-repellent Oxford 600D fabric, and an extra brace for enhanced stability. It also visually suggests various outdoor settings where the cart can be utilized, such as muddy trails, poolside, festivals, and camping.

5. Fejlfinding

No specific troubleshooting information is provided for this product. If you encounter any issues not covered in this manual, please refer to the contact information for customer support.

6. Specifikationer

Content of Delivery:

• Sammenklappelig vogn
• Carry Bag
• Instruktionsmanual

Dette billede giver et omfattende overblikview of the cart's dimensions, including overall, folded, and loading area measurements, along with technical specifications such as load capacity, weight, and materials.

7. Garanti og support

Specific warranty information for this product is not provided in the available data. For warranty claims, spare parts availability, or customer support, please contact the manufacturer or your retailer directly.

Du kan også besøge TecTake Brand Store for mere information.
