JVC XS-N318B Portable Bluetooth Speaker User Manual

1. Introduktion

This manual provides essential information for the safe and efficient operation of your JVC XS-N318B Portable Bluetooth Speaker. Please read it thoroughly before use and retain it for future reference. Your speaker features Bluetooth and Wi-Fi connectivity, integrated Alexa voice control, 360-degree omnidirectional audio with Dolby technology, and a long-lasting battery for extended playtime. It is also designed with IPX4 splash resistance for outdoor use.

2. Produktet er slutview

2.1 Pakkens indhold

• JVC XS-N318B Portable Bluetooth Speaker
• Ladekabel
• Fjernbetjening
• Brugermanual

2.2 Højttalerkomponenter og betjeningselementer

The JVC XS-N318B speaker features an intuitive control panel located on the top surface, along with indicator lights for connectivity status. A remote control is also included for convenient operation from a distance.

• Power knap: Tryk og hold nede for at tænde eller slukke for højttaleren.
• Lydstyrke + knap: Øger afspilningslydstyrken.
• Lydstyrke - Knap: Reducerer afspilningslydstyrken.
• Afspil/pause knap: Controls audio playback (play/pause).
• Tap Button (Alexa): Activates the Alexa voice assistant.
• Bluetooth-indikator: Illuminates when connected via Bluetooth.
• Wi-Fi-indikator: Illuminates when connected to a Wi-Fi network.
• Aux-indikator: Illuminates when an auxiliary device is connected.

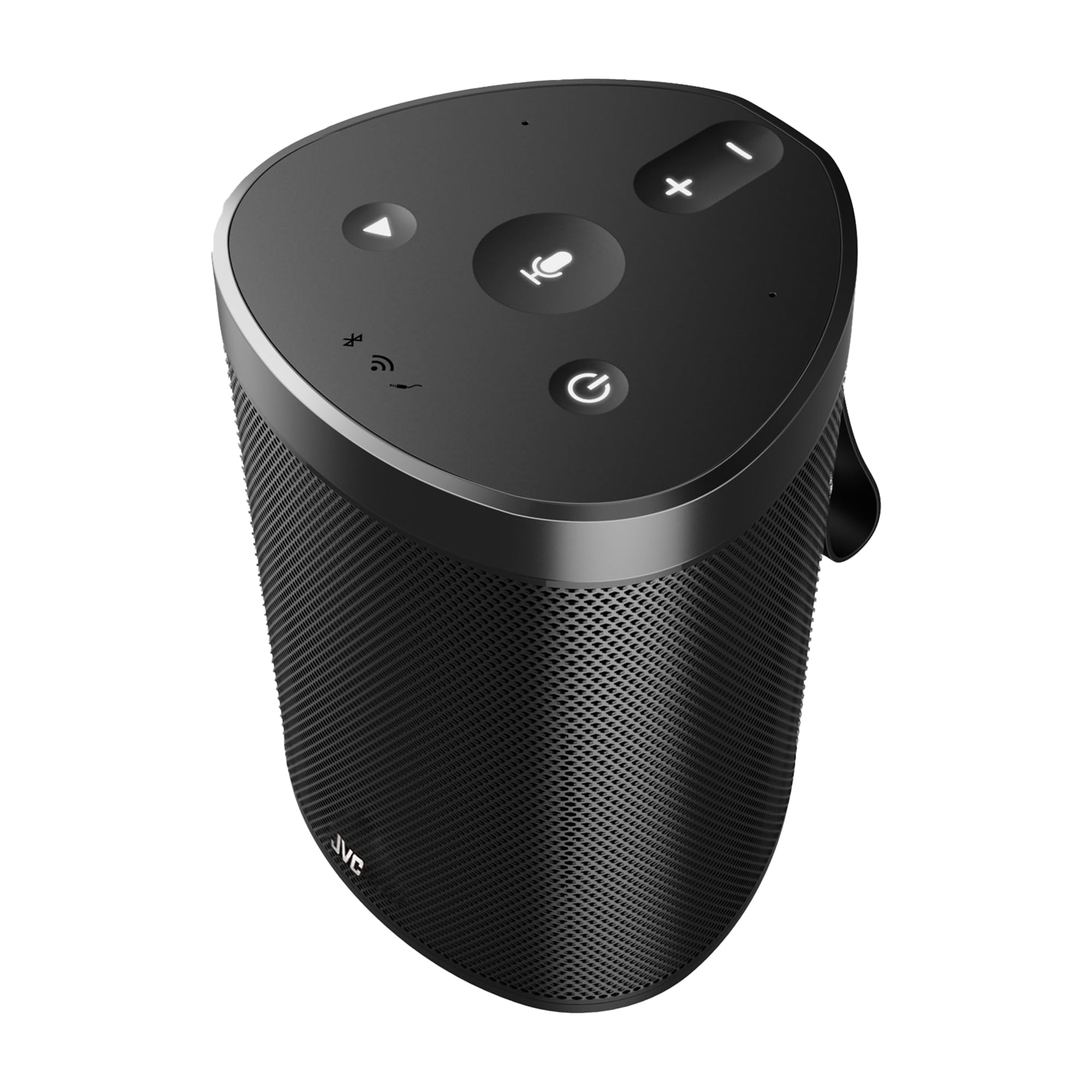

Figur 1: Forside view of the JVC XS-N318B Portable Bluetooth Speaker, showcasing dens elegante design.

Figur 2: Side view of the JVC XS-N318B Portable Bluetooth Speaker, highlighting its compact form factor.

Figur 3: Tilbage view of the JVC XS-N318B Portable Bluetooth Speaker, showing the rear panel.

3. Opsætning

3.1 Opladning af højttaleren

Before initial use, fully charge the speaker. Connect the provided charging cable to the speaker's charging port and a compatible 5V USB power adapter (not included). The charging indicator will show the charging status and turn off when fully charged. A full charge provides up to 9 hours of playtime.

Figure 4: The JVC XS-N318B speaker is equipped with a built-in 7.4V 6600mAh lithium battery, offering extended playtime.

3.2 Tænd/sluk

To power on the speaker, press and hold the Power button until the indicator lights illuminate. To power off, press and hold the Power button again until the lights turn off.

3.3 Bluetooth -parring

1. Ensure the speaker is powered on and the Bluetooth indicator is blinking, indicating it is in pairing mode.
2. Aktiver Bluetooth på din mobilenhed, og søg efter tilgængelige enheder.
3. Select "JVC XS-N318B" from the list of devices.
4. Once paired, the Bluetooth indicator on the speaker will glow steadily.

3.4 Wi-Fi-forbindelse

For Wi-Fi streaming and Alexa functionality, connect your speaker to a Wi-Fi network. Refer to the JVC Connect app (if applicable, or general Wi-Fi setup instructions) for detailed steps on connecting your speaker to your home network. The Wi-Fi indicator will illuminate steadily once connected.

3.5 Hjælpeindgang

To connect an external audio device via the auxiliary input, use a 3.5mm audio cable (not included). Plug one end into the speaker's Aux-In port and the other into your device's headphone jack. The Aux indicator will illuminate.

Figure 5: The JVC XS-N318B offers seamless connectivity options including Bluetooth, Wi-Fi, and Aux In.

4. Betjeningsvejledning

4.1 Lydafspilning

Once connected via Bluetooth, Wi-Fi, or Aux-In, begin playing audio from your source device. Use the Play/Pause button on the speaker or remote to control playback. The speaker delivers 20 Watts RMS output for clear audio.

Figure 6: Experience crystal-clear audio with 20 Watts of output power from your JVC XS-N318B speaker.

4.2 Lydstyrke- og sporkontrol

Adjust the volume using the Volume + and Volume - buttons on the speaker's top panel or the dedicated buttons on the remote control. For track selection, use the remote control's track navigation buttons.

4.3 Brug af Alexa Stemmestyring

With Wi-Fi connected and Alexa configured (via the JVC Connect app or Amazon Alexa app), tap the Tap Button (Alexa icon) on the speaker to activate Alexa. You can then issue voice commands for music playback, information, smart home control, and more.

Figure 7: Control your music and more using just your voice with built-in Alexa support on the JVC XS-N318B speaker.

4.4 360-Degree Omnidirectional Audio and Dolby

The JVC XS-N318B is engineered with 360-degree omnidirectional audio and dual stereo speakers powered by Dolby technology, providing immersive sound that fills your space evenly.

5. Vedligeholdelse

5.1 Rengøring

To clean the speaker, use a soft, dry, lint-free cloth. Do not use abrasive cleaners, waxes, or solvents. Ensure no liquids enter the speaker openings.

5.2 Pleje af batterier

To prolong battery life, avoid fully discharging the speaker frequently. Recharge the battery regularly, even if the speaker is not in use for extended periods. Store the speaker in a cool, dry place.

5.3 Vandtæthed (IPX4)

The JVC XS-N318B speaker has an IPX4 rating, meaning it is resistant to splashes of water from any direction. It is suitable for outdoor use and can withstand light rain or splashes. Do not submerge the speaker in water or expose it to pressurized water jets.

Figure 8: The JVC XS-N318B speaker is IPX4 waterproof, making it suitable for use in splash-prone environments.

6. Fejlfinding

• Ingen strøm: Ensure the speaker is charged. Connect the charging cable and allow it to charge for a few minutes before attempting to power on again.
• Ingen lyd: Check the volume level on both the speaker and your connected device. Ensure the correct input source (Bluetooth, Wi-Fi, Aux) is selected and active.
• Problemer med Bluetooth-parring: Make sure the speaker is in pairing mode (blinking Bluetooth indicator). Turn off and on Bluetooth on your device, and try pairing again. Ensure no other devices are currently connected to the speaker.
• Problemer med Wi-Fi-forbindelse: Verify your Wi-Fi network is active and within range. Re-attempt the Wi-Fi setup process via the JVC Connect app.
• Alexa svarer ikke: Ensure the speaker is connected to Wi-Fi and your Alexa account is properly linked. Tap the Alexa button to activate it before speaking your command.
• Fjernbetjeningen virker ikke: Kontrollér batteriet i fjernbetjeningen. Sørg for, at der ikke er nogen forhindringer mellem fjernbetjeningen og højttaleren.

7. Specifikationer

8. Garanti og support

8.1 Garantioplysninger

Your JVC XS-N318B Portable Bluetooth Speaker comes with a 1 års garanti from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

8.2 Kundesupport

For technical assistance, warranty inquiries, or further information, please refer to the official JVC website or contact your local JVC customer support. Contact details can typically be found on the product packaging or the official brand webwebsted.
