Indledning
Thank you for choosing the COFaR Metal Storage Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new cabinet. Please read these instructions carefully before beginning assembly and retain them for future reference.
This versatile cabinet features two mesh doors and adjustable shelves, designed to offer practical storage solutions in various settings. Constructed from high-gauge cold-rolled steel, it ensures durability and a high load-bearing capacity.
Sikkerhedsoplysninger
- Saml altid skabet i henhold til de medfølgende instruktioner.
- Do not exceed the weight limit of 80 pounds per shelf.
- Be cautious of pinch points and sharp edges when handling the metal cabinet components.
- Always use appropriate safety gear, such as gloves, when assembling or moving the cabinet.
- Ensure the cabinet is placed on a level surface and the adjustable feet are properly set for stability.
Pakkens indhold
Before assembly, verify that all parts are present and undamaged. Refer to the included parts list in your package for detailed identification.
- Toppanel
- Bundpanel
- Sidepaneler (2)
- Bagpanel
- Justerbare hylder (2)
- Mesh Doors (2)
- Dørhåndtag (2)
- Justerbare fødder (4)
- Hardware Kit (screws, wrench, gloves)
Monteringsvejledning
Follow these steps to assemble your COFaR Metal Storage Cabinet. All parts are labeled with letters for easy identification, as shown in the included instructions.
- Udpak komponenter: Tag forsigtigt alle dele ud af emballagen. Læg dem på en ren, blød overflade for at undgå ridser.
- Saml bundrammen: Attach the side panels to the bottom panel using the provided screws. Ensure all connections are secure.
- Installer bagpanelet: Slide or attach the back panel into the designated grooves or screw points on the side and bottom panels.
- Fastgør toppanel: Fastgør toppanelet til den samlede ramme.
- Indsæt justerbare hylder: Place the adjustable shelves into the desired height slots. The shelves can be repositioned later to accommodate items of varying sizes.
- Fastgør døre: Mount the mesh doors to the cabinet frame using the hinges and screws provided. Ensure they swing freely.
- Installer dørhåndtag: Attach the handles to the mesh doors.
- Juster fødder: Screw in the adjustable feet to the bottom of the cabinet. Adjust them to level the cabinet on uneven floors and prevent scratching.
Video: This video demonstrates the assembly process for the COFaR Metal Storage Cabinet, showing how to connect the main panels, install shelves, and attach the doors. The video features an orange cabinet, but the assembly steps are identical for all colors.
Billede: Detail of the mesh door, highlighting its design and construction.
Billede: Close-up of an adjustable foot, designed to protect floors and ensure stability.
Betjeningsvejledning
Justerbare hylder
The cabinet includes two adjustable shelves. To change their height, simply lift the shelf, remove the support pins from the side panels, reposition them to the desired height, and then place the shelf back onto the pins. This allows for customized storage configurations to fit various items.
Magnetic Door Closure
The mesh doors are equipped with a magnetic closure system, ensuring they remain securely shut when not in use. To open, gently pull the handle. To close, push the door until the magnet engages.
Pleje og vedligeholdelse
- Rensning: The powder-coated steel surface is easy to clean. Use a soft, damp cloth with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Wipe dry immediately to prevent water spots.
- Spild: In case of spills, wipe them up promptly with a soft cloth. The metal construction is resistant to warping, unlike wood.
- Inspektion: Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver fastspændte. Spænd om nødvendigt.
- Flytning: When moving the cabinet, lift it rather than dragging it to prevent damage to the adjustable feet and your flooring.
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | COFaR |
| Modelnavn | Mesh |
| Farve | Påfugl blå |
| Materiale | Metal (High-gauge cold-rolled steel) |
| Produktmål (D x B x H) | 40 cm D x 80 cm B x 101 cm H (15.8 cm D x 31.5 cm B x 40 cm H) |
| Varens vægt | 17.7 pund |
| Vægtgrænse (pr. hylde) | 80 pund |
| Antal hylder | 3 (2 justerbare) |
| Særlige funktioner | Adjustable Feet, Adjustable Shelves, Removable Shelves, Magnetic Lock Type |
| Monteringstype | Gulvmontering (fritstående) |
| Montering påkrævet | Ja |

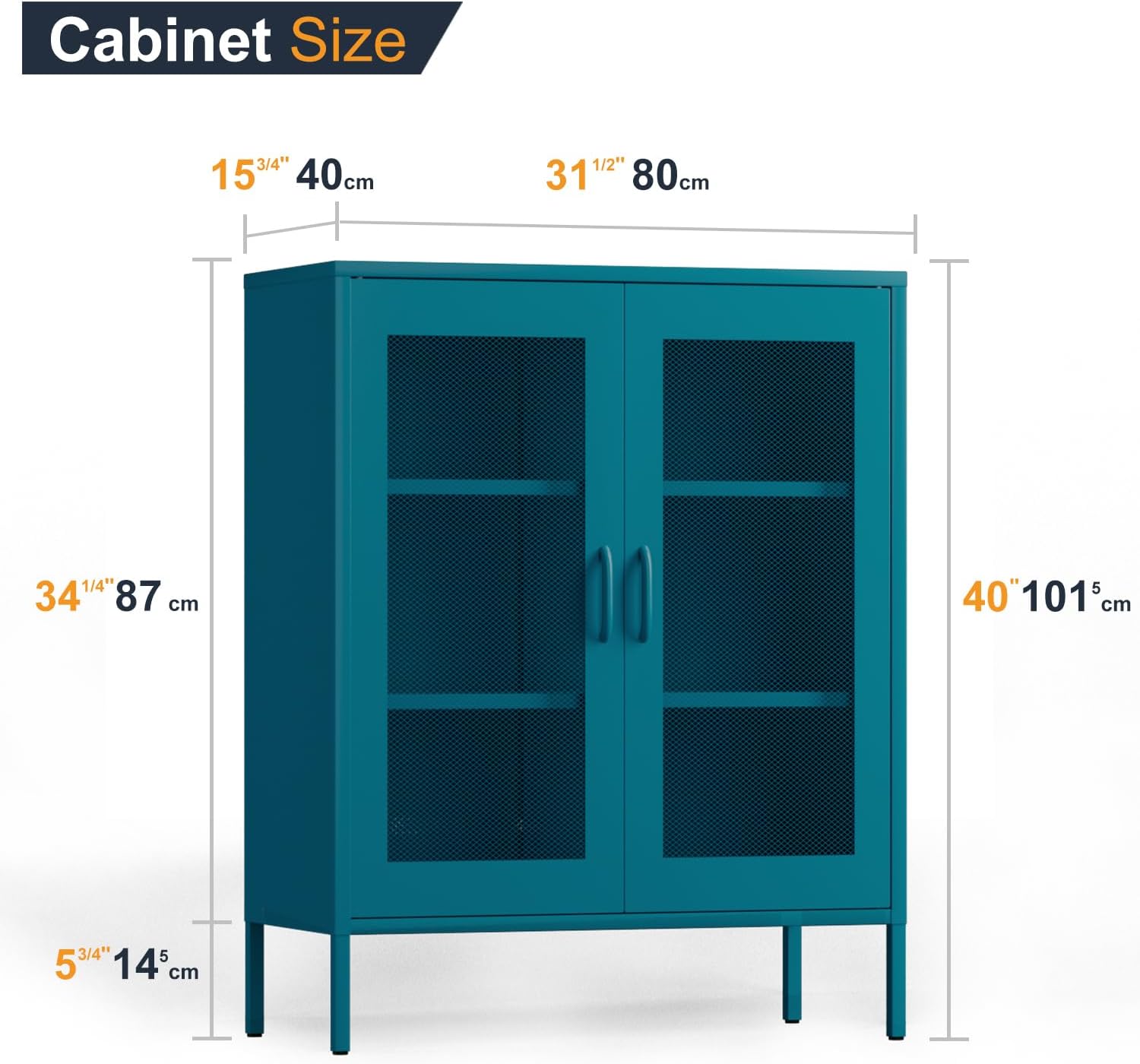

Billede: Detailed dimensions of the COFaR Metal Storage Cabinet.
Fejlfinding
- Vakkelagtigt kabinet: Ensure all screws are tightened. Adjust the leveling feet on the bottom of the cabinet to stabilize it on uneven surfaces.
- Døre lukker ikke ordentligt: Check that the cabinet is level. Verify that the door hinges are correctly installed and tightened. Ensure no obstructions are preventing the magnetic closure from engaging.
- Manglende dele: If any parts are missing or damaged upon arrival, please contact customer service immediately for assistance.
Garanti og support
For any questions, concerns, or assistance regarding your COFaR Metal Storage Cabinet, please contact the COFaR customer service team. Refer to your purchase documentation for specific warranty details.
