COOKTRON Dobbelt Induktionskogeplade Brugermanual

1. Vigtige sikkerhedsoplysninger

Læs venligst alle instruktioner omhyggeligt, inden apparatet tages i brug. Gem denne manual til senere brug.

• Elektrisk sikkerhed: Ensure the appliance is connected to a properly grounded outlet. Do not immerse the appliance in water or other liquids.
• Varmesikkerhed: The cooktop surface will be hot after use. Allow it to cool before cleaning. Do not touch the hot surface.
• Gryder: Use only compatible magnetic cookware. Non-magnetic cookware will not heat.
• Ventilation: Sørg for tilstrækkelig ventilation omkring apparatet under brug. Bloker ikke luftventilerne.
• Børnesikringslås: Brug børnesikringsfunktionen for at forhindre utilsigtet betjening af børn.
• Placering: Place the cooktop on a stable, flat, heat-resistant surface. Keep away from flammable materials.

2. Produktet er slutview

The COOKTRON Double Induction Cooktop is a portable, 1800W appliance designed for efficient and precise cooking. It features two independent burners with touch controls, multiple power and temperature settings, and integrated safety features.

Figure 2.1: COOKTRON Double Induction Cooktop Burner

Nøglefunktioner:

• Dobbeltbrændere: Cook two dishes simultaneously with independent control.
• Høj effekt: Up to 1800W total power for rapid heating.
• Præcisionskontrol: 9 power levels and 10 temperature settings for versatile cooking.
• Integreret timer: Adjustable timer from 1 minute to 4 hours for convenient cooking.
• Børnesikringslås: Locks controls to prevent accidental changes or activation.
• Let at rengøre: Polished black ceramic glass surface is scratch-proof and waterproof.
• Bærbart design: Ideal for kitchens, RVs, camping, and other limited spaces.

Figure 2.2: Versatile applications of the cooktop in different environments.

3. Opsætning

Before first use, ensure the cooktop is placed on a stable, level, and heat-resistant surface. Ensure there is sufficient clearance around the appliance for proper ventilation.

• Pak kogepladen ud, og fjern al emballage.
• Place the cooktop on a dry, flat, and stable surface. Ensure the rubber feet are securely in place to prevent scratching.
• Sæt netledningen i en standard 120V stikkontakt.
• Ensure the cooktop surface is clean and dry before placing any cookware.

4. Betjeningsvejledning

The cooktop features intuitive touch controls for easy operation.

Figure 4.1: Slanted control panel for safe and easy access.

4.1 Tænd/sluk

• For at tænde skal du trykke på ON/OFF button. The display will show '00'.
• For at slukke skal du trykke på ON/OFF knappen igen.

4.2 Justering af effekt og temperatur

The cooktop offers two main cooking modes: Power and Temperature.

Figure 4.2: Cooktop displaying various cooking modes and settings.

• After turning on, select the desired burner.
• Tryk på Fungere button to switch between Power (W) and Temperature (°F/°C) modes.
• Brug + og - buttons to adjust the settings.
• Strømtilstand: 9 levels, from 200W to 1800W in 200W increments.
• Temperaturtilstand: 10 levels, providing precise heat control.

4.3 Power Sharing Feature

When both burners are active, the total power does not exceed 1800W. The system intelligently distributes power, with a maximum of 1200W per burner when both are in use.

Figure 4.3: Illustration of the cooktop's power sharing capability.

4.4 Timer funktion

• Tryk på Timer knappen for at aktivere timeren.
• Brug + og - buttons to set the desired cooking time, ranging from 1 minute to 4 hours.
• Kogepladen slukker automatisk, når timeren udløber.

4.5 Børnesikkerhedslås

• For at aktivere børnesikringen skal du trykke på og holde Låse button for a few seconds until 'LOC' appears on the display.
• For at deaktivere skal du trykke på og holde Låse button again until 'LOC' disappears.

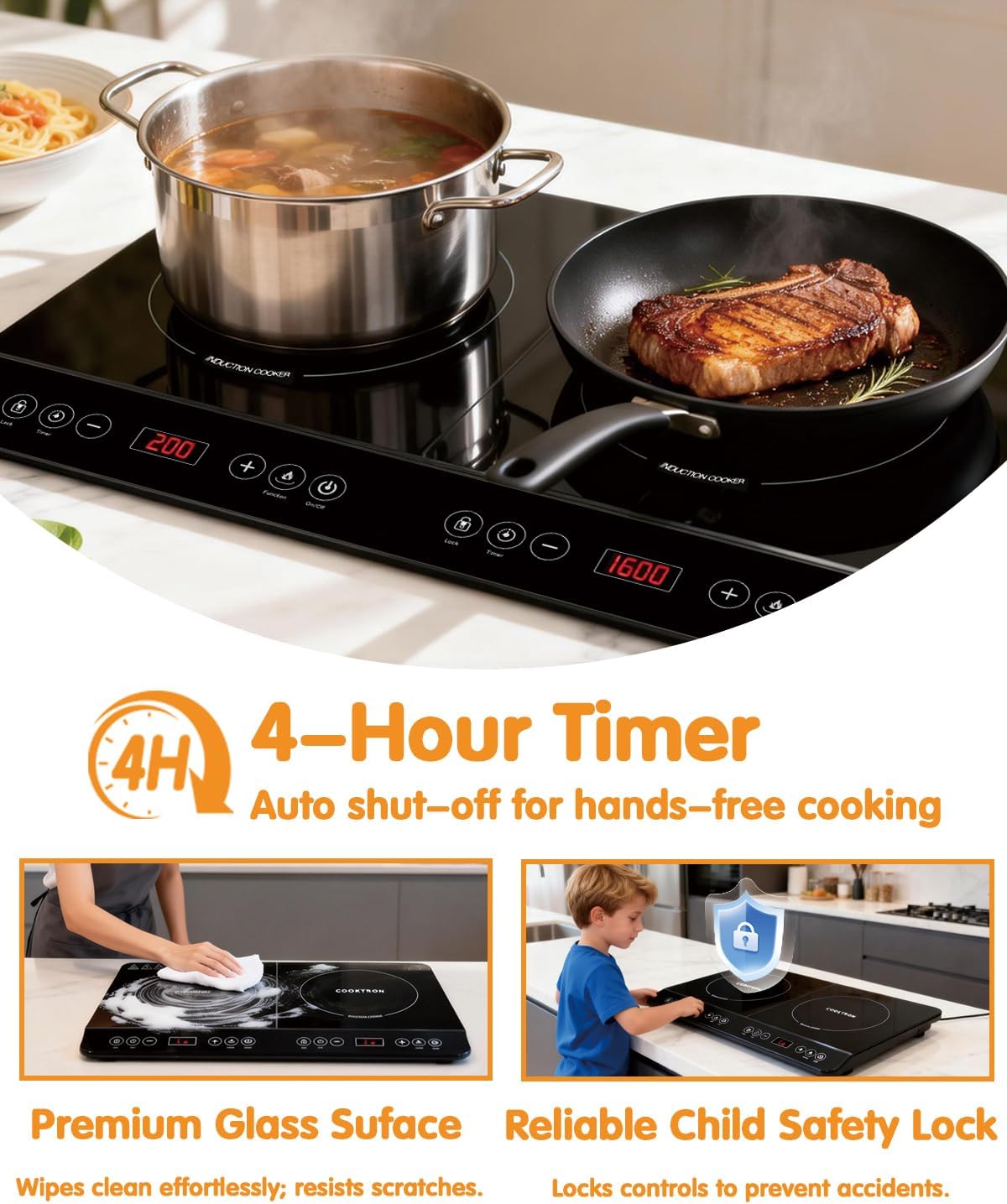

Figure 4.4: Timer and Child Safety Lock features.

5. Kompatibelt køkkenudstyr

Induction cooktops require specific types of cookware to function correctly. The cooktop will only heat pots and pans with a magnetic base.

5.1 The Magnet Test

To check if your cookware is compatible, simply place a magnet on the bottom of the pot or pan. If the magnet sticks, the cookware is suitable for induction cooking.

5.2 Suitable Cookware Materials

• Stainless steel (with magnetic base)
• Støbejern
• Emaljeret støbejern

5.3 Unsuitable Cookware Materials

• Aluminium
• Keramisk
• Kobber
• Glas
• Cookware with a concave base

5.4 Cookware Dimensions

The induction cooker is compatible with cookware ranging from 5 inches to 8 inches in diameter. For optimal heating efficiency, use cookware with a smooth, flat bottom.

Figure 5.1: Visual guide for compatible and incompatible cookware.

6. Vedligeholdelse og rengøring

Korrekt vedligeholdelse sikrer din kogeplades levetid og optimale ydeevne.

• Daglig rengøring: After each use, allow the cooktop to cool completely. Wipe the ceramic glass surface with a damp klud og et mildt rengøringsmiddel. Tør grundigt med en blød klud.
• Genstridige pletter: For tougher stains, use a non-abrasive ceramic cooktop cleaner. Follow the cleaner's instructions.
• Undgå slibemidler: Do not use abrasive sponges, scouring pads, or harsh chemical cleaners, as these can scratch or damage the surface.
• Spild: Clean up spills immediately to prevent them from baking onto the surface.
• Opbevaring: If storing the cooktop, ensure it is clean and dry. Store in a cool, dry place.

7. Fejlfinding

Hvis du støder på problemer med din kogeplade, kan du se følgende almindelige problemer og løsninger.

7.1 Almindelige problemer og løsninger

• Kogepladen tænder ikke: Ensure the power cord is securely plugged into a working outlet. Check if the ON/OFF button was pressed.
• Kogepladen varmer ikke op: Verify that compatible magnetic cookware is placed on the burner. The cookware must be centered on the heating zone.
• Error Code 'E0': This code typically indicates that no cookware is detected, the cookware is incompatible, or the cookware is not properly centered on the heating zone. Adjust or replace cookware as needed.
• Kontrolelementer reagerer ikke: Check if the Child Safety Lock is activated. Deactivate it if necessary.
• Usædvanlige lyde: A slight humming sound during operation is normal for induction cooktops. If the noise is loud or unusual, ensure the cooktop is on a stable surface and the cookware is flat.

Hvis problemet fortsætter efter at have prøvet disse løsninger, bedes du kontakte kundesupport.

8. Specifikationer

9. Garanti og support

For warranty information or technical support, please refer to the product packaging or contact COOKTRON customer service. Keep your purchase receipt as proof of purchase.

Kontaktoplysninger: Please visit the official COOKTRON webwebstedet eller se kontaktoplysningerne på din produktemballage for at få support.
