HY-T02

HY T02 Bluetooth 5.3 Øretelefoner Brugermanual

Brand: Generic | Model: HY-T02

Produkt overview

These HY T02 Bluetooth 5.3 Earbuds are designed to provide an exceptional audio experience with advanced noise reduction and crystal-clear call quality. They offer superior sound, noise-free conversations, and extended usage convenience in a compact design.

Nøglefunktioner:

  • Enestående batterilevetid: Each earbud provides 5-6 hours of continuous music playback with a 40mAh battery. The 300mAh charging case extends total listening time significantly, offering an additional 60 hours of standby time.
  • Ubesværet opladning: Equipped with a Type-C charging interface, the 300mAh charging case ensures quick and efficient power-ups. The case can recharge the earbuds up to 3 times.
  • Krystalklare samtaler: Four high-performance microphones are integrated to ensure your voice is transmitted clearly during calls, enhancing communication quality regardless of your environment.
  • Unparalleled Noise Cancelling: Featuring cutting-edge environmental noise cancelling technology, these earbuds allow for immersive audio experiences by minimizing external distractions.
  • Elevate Your Audio: Experience pure soundscapes, clear calls, and seamless connectivity for an enhanced audio journey.

Hvad er der i æsken

Upon opening your HY T02 Earbuds package, you will find the following components:

  • 2 x HY T02 Earbuds (Left and Right)
  • 1 x opladningsetui

Produktkomponenter

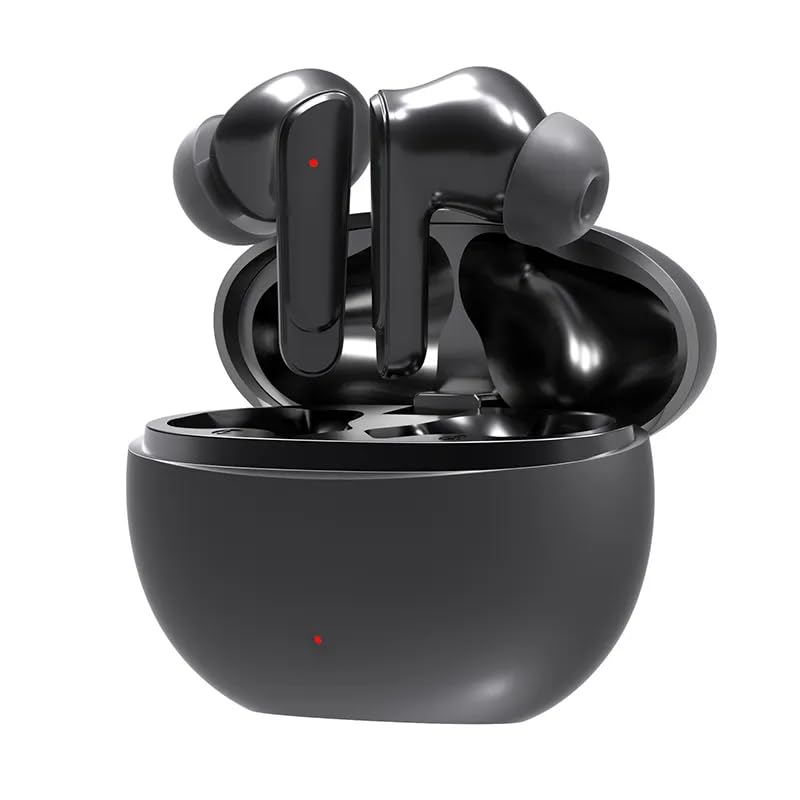

HY T02 Earbuds in open charging case, showing both earbuds inserted.
Figure 1: HY T02 Earbuds securely placed within their open charging case, ready for use or charging.

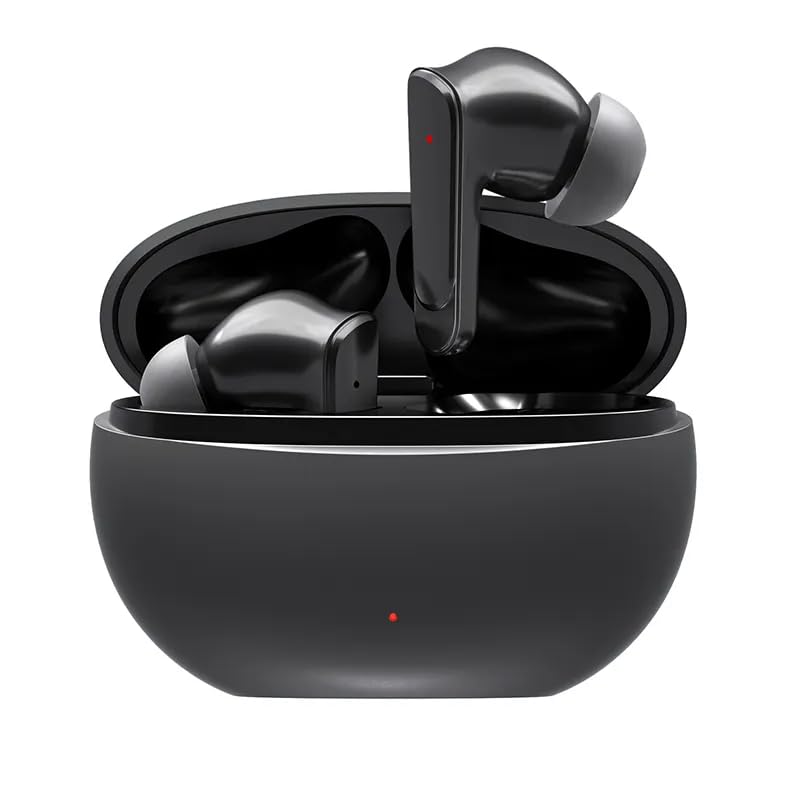

HY T02 Earbuds in open charging case, front view.
Figur 2: Forside view of the HY T02 Earbuds inside the open charging case, highlighting their compact design.

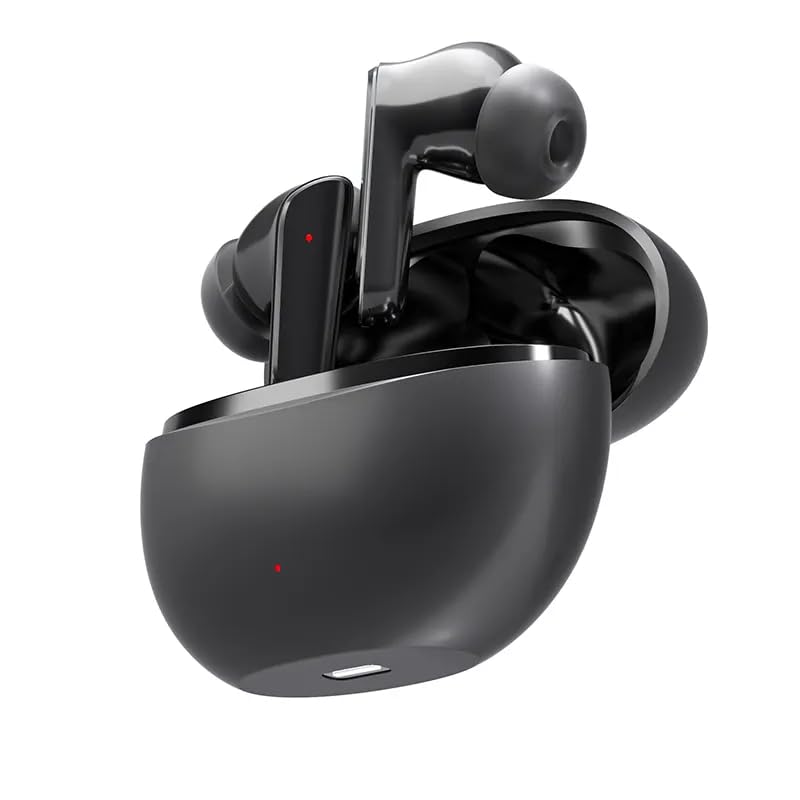

HY T02 Earbuds in open charging case, angled view.
Figure 3: Angled perspective of the HY T02 Earbuds within the charging case, showing the charging indicators.

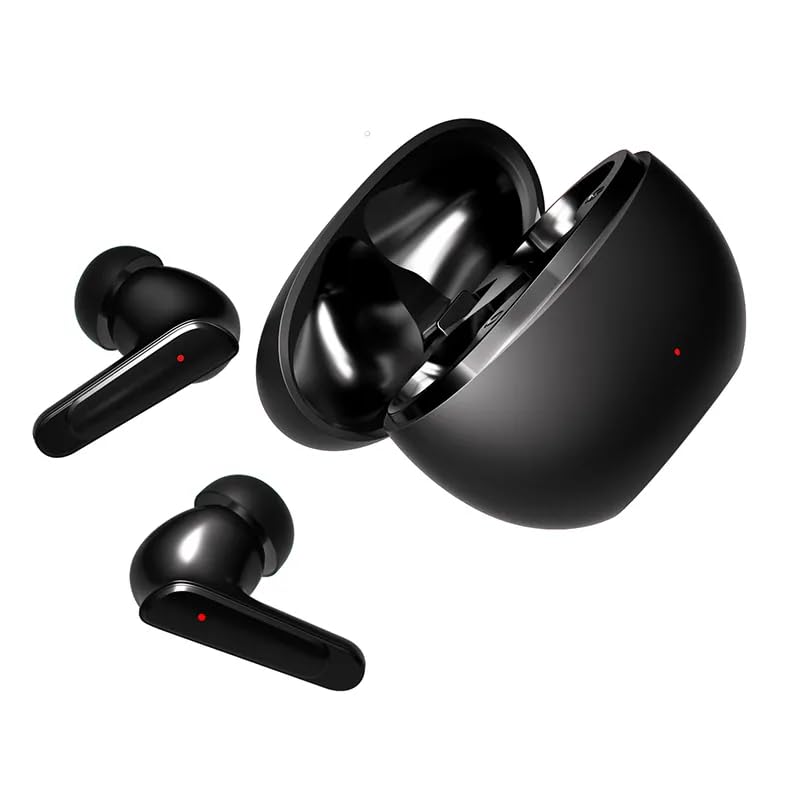

HY T02 Earbuds removed from case, next to open charging case.
Figure 4: The HY T02 Earbuds displayed outside their open charging case, illustrating their individual form factor.

Opsætningsvejledning

1. Første opladning

Before first use, ensure the charging case and earbuds are fully charged. Connect the Type-C charging cable (not included, but required for charging) to the charging port on the case and a USB power source. The indicator light on the case will show charging status. Once fully charged, the indicator will change or turn off.

2. Tænd/sluk

  • Tænd: Open the charging case, and the earbuds will automatically power on. Alternatively, press and hold the touch control area on both earbuds for a few seconds.
  • Sluk: Place the earbuds back into the charging case and close the lid; they will automatically power off and begin charging. Alternatively, press and hold the touch control area on both earbuds for an extended period until they power off.

3. Bluetooth-parring

  1. Ensure the earbuds are powered on and in pairing mode (indicator lights will typically flash).
  2. Aktiver Bluetooth på din enhed (smartphone, tablet osv.).
  3. Søg efter tilgængelige Bluetooth-enheder.
  4. Select "HY T02" from the list of found devices.
  5. Once connected, the earbud indicator lights will stop flashing or change to a steady light.

Note: The earbuds should automatically reconnect to the last paired device when removed from the case, if Bluetooth is enabled on the device.

Betjeningsvejledning

Tryk på kontrolelementer

The HY T02 Earbuds feature intuitive touch controls on each earbud. The specific functions are as follows:

HandlingFungere
Enkelt tryk (venstre/højre øreprop)Afspil/pause musik, besvar opkald
Dobbelttryk (højre øretelefon)Næste spor
Dobbelttryk (venstre øretelefon)Forrige spor
Triple Tap (venstre/højre øreprop)Aktiver Voice Assistant
Tryk og hold (2 sekunder)Afvis opkald
Tryk og hold (3 sekunder)Toggle Noise Cancelling/Transparency Mode

Note: Specific touch control functions may vary slightly depending on the connected device and its operating system.

Opretholdelse

Rensning

  • Rengør regelmæssigt ørepropperne og opladningsetuiet med en blød, tør og fnugfri klud.
  • Brug ikke slibende rengøringsmidler, alkohol eller kemiske opløsningsmidler.
  • Fjern forsigtigt ørevoks eller snavs fra ørepropperne og højttalernettet med en lille, blød børste eller vatpind.
  • Ensure charging contacts on both earbuds and the case are clean and dry to ensure proper charging.

Opbevaring

  • Når ørepropperne ikke er i brug, skal de altid opbevares i deres opladningsetui for at beskytte dem og holde dem opladede.
  • Store in a cool, dry place, away from extreme temperatures, humidity, and direct sunlight.

Batteripleje

  • To prolong battery life, avoid fully discharging the earbuds or charging case frequently.
  • Oplad enheden regelmæssigt, selvom den ikke bruges hyppigt, for at forhindre dyb afladning.

Fejlfinding

ProblemMulig årsagLøsning
Øretelefoner parres ikke med enheden.Øretelefoner er ikke i parringstilstand; Bluetooth slukket på enheden; tidligere parrede enheder forstyrrer.Ensure earbuds are powered on and in pairing mode. Turn on Bluetooth on your device. Forget "HY T02" from your device's Bluetooth list and re-pair. Restart both earbuds and device.
Kun én øreprop virker.One earbud not charged; earbuds not properly synced; connection issue.Place both earbuds back into the charging case, close the lid, then open it again. Ensure both earbuds are charged. Try resetting the earbuds (refer to manual for specific reset procedure, if available).
Øretelefonerne oplader ikke.Charging contacts dirty; cable faulty; power source issue; case battery depleted.Clean the charging contacts on both earbuds and inside the case. Try a different Type-C cable and power adapter. Ensure the charging case itself is charged.
Dårlig lydkvalitet eller afbrydelser.Afstand fra enhed; interferens; lavt batteri.Ensure earbuds are within Bluetooth range (typically 10 meters) of your device. Avoid environments with strong Wi-Fi or other wireless interference. Charge the earbuds.

Specifikationer

FeatureDetalje
ModelnavnHY-T02
MærkeGenerisk
Trådløs kommunikationsteknologiBluetooth 5.3
FormfaktorIn Ear
FarveSort
KontrolmetodeRøre
Earbud batterikapacitet40mAh (hver)
Opladningsetui Batterikapacitet300mAh
Musik afspilningstid5-6 hours (per charge)
Standby tid60 timer
OpladningsgrænsefladeType-C
MikrofonerFour high-performance microphones
StøjreduktionEnvironmental Noise Cancelling (ENC)
MaterialePlast
Produktdimensioner10.2 x 7.6 x 4.4 cm
Varens vægt100 g
FabrikantHyundai Technology USA
Inkluderede komponenter1 Charging Case, 2 Earbuds

Garanti og support

For warranty information, please refer to the warranty policy provided at the time of purchase or contact the retailer. General support for the HY T02 Earbuds can be obtained through the manufacturer, Hyundai Technology USA, or your point of purchase.

For further assistance or technical support, please visit the official website of the brand or contact their customer service department. Keep your purchase receipt as proof of purchase for any warranty claims.
