ROMECH 350W Heat Gun Instruction Manual

Indledning

Thank you for choosing the ROMECH 350W Heat Gun. This compact and versatile tool is designed for a wide range of applications, including DIY crafts, embossing, shrink wrapping, paint drying, and electronic device repair. Its dual-temperature settings and quick heating capabilities make it an essential tool for both hobbyists and professionals. Please read this manual thoroughly before operation to ensure safe and efficient use.

The ROMECH 350W Heat Gun features fast heating technology, reaching desired temperatures within seconds. It offers two adjustable temperature settings: 400°F (5.3 CFM airflow) for delicate tasks and 660°F (7 CFM airflow) for larger projects. Built-in overheating protection and a UL/ETL certified power cord ensure user safety. The lightweight, ergonomic, and pencil-shaped design provides a comfortable grip for precise application in hard-to-reach areas.

Image: The ROMECH 350W Heat Gun in red and black, shown with its two included nozzles.

Sikkerhedsoplysninger

Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød og personskade.

• Læs alle instruktioner: Familiarize yourself with the heat gun's operation and safety features before use.
• Hold arbejdsområdet rent: Rodede områder indbyder til ulykker. Sørg for, at din arbejdsplads er godt oplyst og fri for forhindringer.
• Undgå brændbare materialer: Do not use the heat gun near flammable liquids, gases, or dust. The heat gun produces sparks and high temperatures that can ignite these materials.
• Brug i godt ventilerede områder: Ensure adequate ventilation to disperse fumes and heat.
• Do Not Touch Hot Nozzle: The nozzle and surrounding area become extremely hot during and after use. Allow the tool to cool completely before handling or storing.
• Overophedningsbeskyttelse: The heat gun is equipped with built-in overheating protection that automatically shuts off the device if the temperature exceeds a safe level.
• Strømledningssikkerhed: The power cord is UL/ETL certified. Do not abuse the cord. Never carry the tool by the cord or yank it to disconnect from an outlet. Keep the cord away from heat, oil, sharp edges, or moving parts.
• Opbevar sikkert: When not in use, store the heat gun in a dry, secure place out of reach of children.

Image: An illustration highlighting the heat gun's 1.5-second fast heating, built-in overheating protection, and UL/ETL certified power cord.

Hvad er der i æsken

Your ROMECH 350W Heat Gun package includes the following items:

• ROMECH 350W Heat Gun (Red)
• Flad dyse
• Reflektordyse
• Instruktionsmanual

Image: A visual representation of the heat gun, its packaging, instruction manual, and the two included nozzles (flat and reflector).

Opsætning

Before using your ROMECH Heat Gun, ensure it is properly set up for your task.

1. Vælg den rigtige dyse: Select either the Flat Nozzle for broader heat distribution or the Reflector Nozzle for concentrating heat around objects (e.g., for shrink tubing).
2. Fastgør dyse: Gently push the chosen nozzle onto the heat gun's outlet until it clicks securely into place. Ensure it is firmly attached before operation.
3. Placering af varmepistolen: The heat gun features a built-in stand for stable, hands-free operation. Flip out the stand and place the heat gun on a stable, heat-resistant surface.
4. Tilslut til strøm: Plug the heat gun's UL/ETL certified power cord into a standard electrical outlet.

Billede: Nærbillede view of the two accessory nozzles: a Flat Nozzle for wide heat application and a Reflector Nozzle for focused heat, demonstrating their use in different DIY scenarios.

Betjeningsvejledning

The ROMECH 350W Heat Gun offers two temperature settings for various applications.

1. Tænd: Locate the power switch on the handle. Slide the switch to the first position (Level I) for the lower temperature setting.
2. Vælg temperatur:
   • Niveau I: Provides 400°F with 5.3 CFM (150L/MIN) airflow. Ideal for delicate work such as embossing, drying watercolors, or gentle heating.
   • Niveau II: Slide the switch to the second position for 660°F with 7 CFM (200L/MIN) airflow. Suitable for larger-scale projects like shrink wrapping, paint removal, or soldering.
3. Anvendelse: Direct the hot air flow towards your desired work area. Maintain a safe distance to prevent damage to the material or overheating.
4. Sluk: When finished, slide the switch back to the 'OFF' position. Allow the heat gun to cool down completely on its stand before storing.

Image: A diagram illustrating the two temperature settings (Level I: 400°F, 5.3 CFM; Level II: 660°F, 7 CFM) and their corresponding airflow patterns.

Image: A collage demonstrating various uses of the heat gun, including repairing electronics, removing paint, making candles, and craft embossing.

Opretholdelse

Proper maintenance ensures the longevity and optimal performance of your heat gun.

• Rensning: After each use, ensure the heat gun is unplugged and completely cool. Wipe the exterior with a clean, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Dysepleje: Remove the nozzles and clean any residue from them. Ensure the air vents are clear of dust and debris to maintain proper airflow.
• Opbevaring: Store the heat gun in a dry, dust-free environment. Use the built-in stand to keep the hot nozzle elevated and prevent damage to surfaces.
• Ledningsinspektion: Regularly inspect the power cord for any signs of damage, cuts, or fraying. If damaged, do not use the heat gun and contact customer support.

Fejlfinding

If you encounter any issues with your ROMECH Heat Gun, refer to the table below for common problems and solutions.

Specifikationer

Detailed technical specifications for the ROMECH 350W Heat Gun.

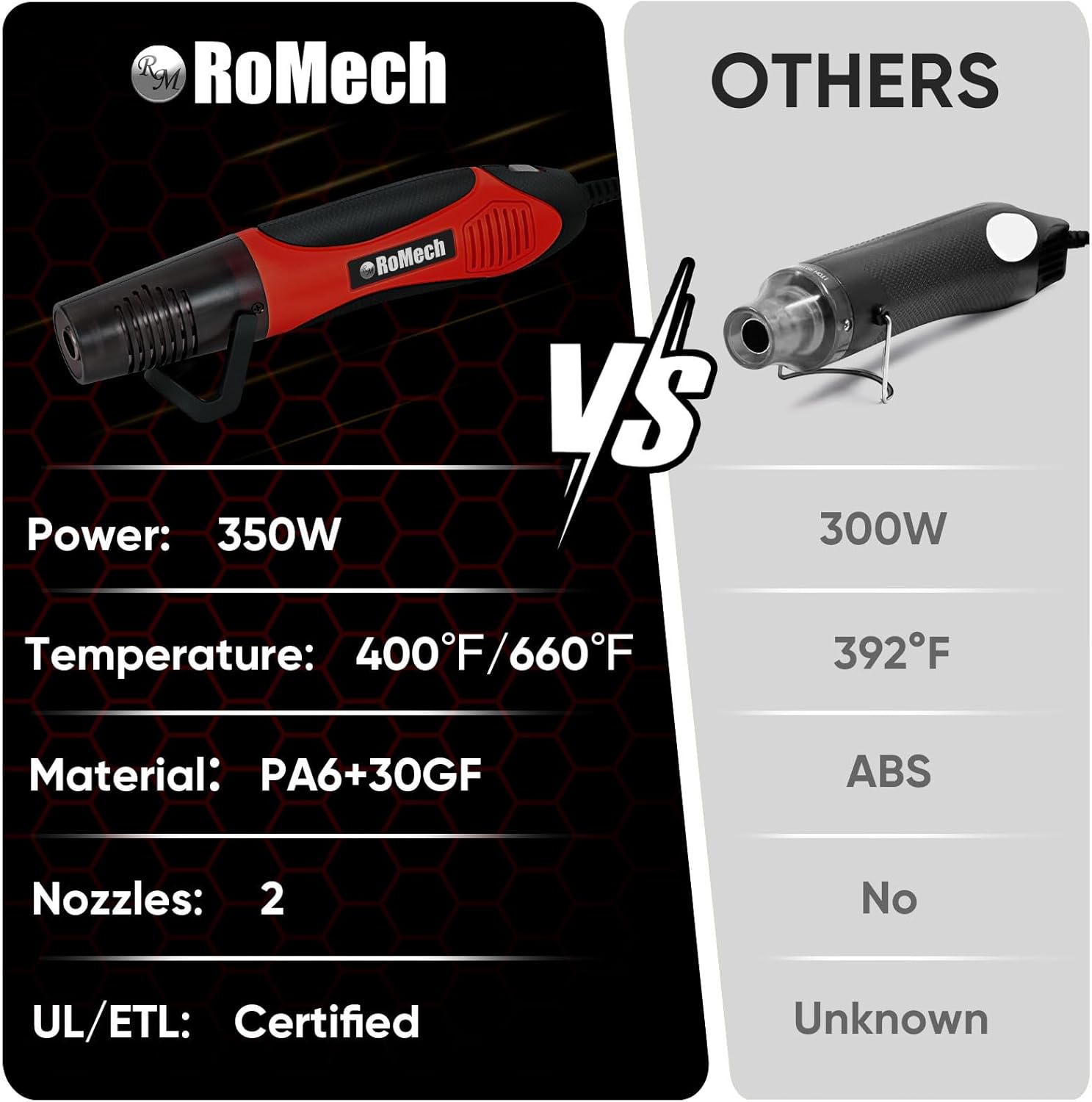

Image: A comparison chart highlighting the ROMECH heat gun's specifications (350W power, 400°F/660°F temperature, PA6+30GF material, 2 nozzles, UL/ETL certified) against generic alternatives.

Garanti & Support

ROMECH is committed to the quality of its products. Your ROMECH 350W Heat Gun comes with a comprehensive warranty and dedicated customer support.

• Garanti: We provide a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use.
• Penge-tilbage-garanti: Få 30 dages pengene-tilbage-garanti, hvis du ikke er tilfreds med dit køb.
• Kundesupport: For any questions, concerns, or warranty claims, please contact ROMECH customer service. Our team is dedicated to providing 100% satisfaction and risk-free shopping.

For further assistance, please visit the official ROMECH Store on Amazon: ROMECH Store
