ROSIERES RFC5M594PN Built-in Pyrolytic Oven User Manual

1. Vigtige sikkerhedsinstruktioner

Please read this manual carefully before installing, operating, or performing maintenance on your oven. Keep this manual for future reference.

• Elektrisk sikkerhed: Ensure the oven is correctly earthed and connected to a suitable power supply. Do not use adapters or extension cords.
• Børn og udsatte personer: Dette apparat kan bruges af børn i alderen 8 år og derover og personer med nedsatte fysiske, sensoriske eller mentale evner eller mangel på erfaring og viden, hvis de har fået opsyn eller instruktion i brugen af ​​apparatet på en sikker måde og forstår de involverede farer. . Børn må ikke lege med apparatet. Rengøring og brugervedligeholdelse må ikke udføres af børn uden opsyn.
• Varme overflader: The oven becomes very hot during operation. Avoid touching heating elements inside the oven. Use oven mitts when handling hot dishes.
• Pyrolytisk rengøring: During pyrolytic cleaning, the oven reaches very high temperatures. Ensure the kitchen is well-ventilated. Remove all accessories and large food residues before starting the cycle. The oven door remains locked during this process.
• Cool-Touch Door: The oven features a 4-pane cool-touch door to minimize external surface temperature, enhancing safety, especially for households with children. However, caution is still advised.
• Installation: Installationen skal udføres af en kvalificeret tekniker i overensstemmelse med lokale regler.

2. Produktet er slutview

The ROSIERES RFC5M594PN is a 70-liter built-in pyrolytic oven designed for efficient and versatile cooking. It features advanced functions and smart connectivity.

2.1 Nøglefunktioner

• Kapacitet: 70 liter, der giver ampplads til forskellige retter.
• Madlavningsfunktioner: 7 functions including Fan-assisted heat, Natural Convection, Bottom heat with fan, Defrost, Grill, and Pulsed heat for even temperature distribution and odor prevention.
• Pyrolytisk selvrensende: High-temperature cleaning system that carbonizes food residues, making them easy to wipe away.
• Cool-Touch Door: Equipped with 4 panes of glass to keep the external door temperature low during operation.
• Soft-Close Door: Ensures gentle and silent closing of the oven door.
• hOn Connectivity: Smart control via the hOn app, offering remote operation, over 300 automatic recipes, and maintenance tips.

2.2 Komponenter

Familiarize yourself with the main parts of your oven:

• Control Panel (Knobs and Digital Display)
• Ovnhulrum
• Oven Door (with 4 glass panes)
• Ovn Lamp
• Trådhylde
• Bageplade

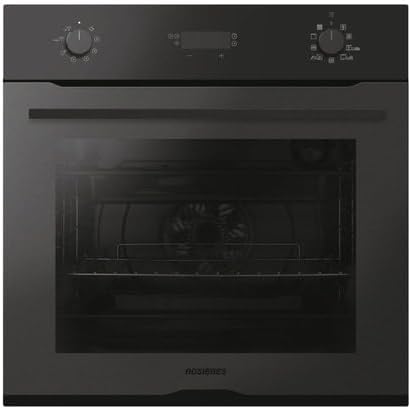

Figur 1: Forside view of the ROSIERES RFC5M594PN built-in oven, showing the control panel with two rotary knobs and a central digital display, and the oven door.

Figure 2: Close-up of the oven's black control panel, featuring two rotary knobs for function and temperature selection, and a central digital display for settings and time.

3. Opsætning og installation

Proper installation is crucial for the safe and efficient operation of your oven. It must be installed by a qualified professional.

• Udpakning: Carefully remove all packaging materials. Inspect the oven for any damage. Report any damage to your retailer immediately.
• Forberedelse af kabinet: Ensure the cabinet opening dimensions comply with the installation requirements. Provide adequate ventilation around the oven.
• Elektrisk tilslutning: Connect the oven to a dedicated, earthed electrical supply as per local wiring regulations. The voltage and frequency must match the specifications on the rating plate.
• Securing the Oven: Secure the oven into the cabinet using the provided screws to prevent tipping.
• Første brug: Rengør ovnens inderside med en sprayflaske før første brug.amp klud. Varm den tomme ovn op ved maksimal temperatur i cirka 30 minutter for at brænde eventuelle produktionsrester af. Sørg for god ventilation under denne proces.

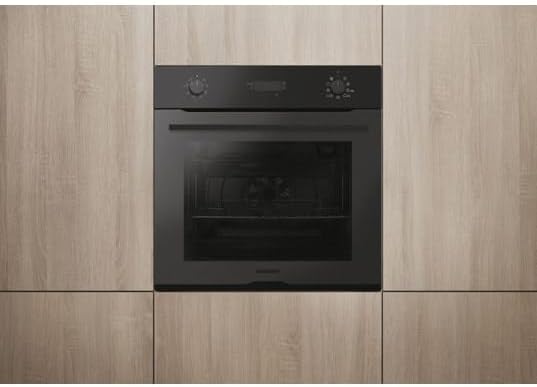

Figure 3: The ROSIERES built-in oven seamlessly integrated into light wooden kitchen cabinetry, with its door closed, showcasing dens elegante sorte finish.

4. Betjeningsvejledning

This section details how to use your ROSIERES RFC5M594PN oven for various cooking tasks and its special functions.

4.1 Grundlæggende betjening

1. Tænd: Rotate the function selector knob (left knob) to choose a desired cooking function.
2. Indstil temperatur: Rotate the temperature selector knob (right knob) to set the desired temperature. The digital display will show the selected temperature.
3. Forvarmning: Allow the oven to preheat to the set temperature. An indicator light or display icon will typically show when the oven has reached temperature.
4. Madlavning: Placer maden i ovnen med passende bageforme.
5. Sluk: Once cooking is complete, turn both knobs to the "OFF" position.

4.2 madlavningsfunktioner

The oven offers 7 cooking functions:

• Naturlig konvektion: Ideal for traditional baking and roasting.
• Fan-assisted Heat: Circulates hot air for even cooking, suitable for multiple dishes simultaneously.
• Pulsed Heat: Ensures perfect temperature homogeneity without mixing odors.
• Bottom Heat with Fan: For dishes requiring more heat from the bottom.
• Grill: Til grillning og bruning.
• Afrimning: Optøer forsigtigt frosne fødevarer.
• Refer to the full manual for specific temperature and time recommendations for each function.

Figur 4: En åben view of the ROSIERES oven interior, showing a wire rack and a baking tray positioned on different levels, ready for cooking.

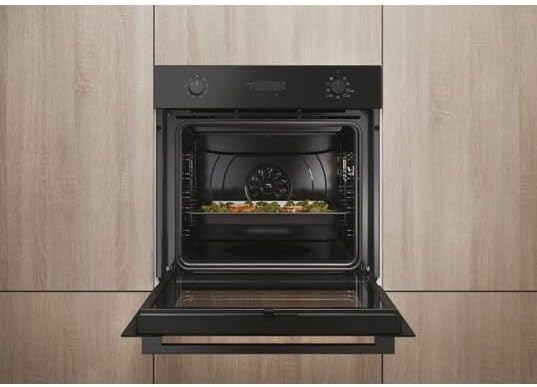

Figure 5: The ROSIERES built-in oven with its door open, revealing a dish being cooked on a rack inside the oven cavity, integrated into light wooden kitchen cabinetry.

4.3 Pyrolytic Cleaning Cycle

The pyrolytic cleaning function uses high temperatures to burn off food residues.

1. Forberedelse: Remove all accessories (racks, trays, side supports) from the oven cavity. Wipe away any large food spills.
2. Start cyklus: Select the pyrolytic cleaning function using the function knob. The oven door will automatically lock.
3. Ventilation: Ensure the kitchen is well-ventilated during the cycle.
4. Færdiggørelse: Once the cycle is complete and the oven has cooled down, the door will unlock. Wipe away the fine ash residue with a damp klæde.

4.4 hOn-app-forbindelse

Your oven is equipped with hOn connectivity, allowing you to control and monitor it remotely.

1. Download app: Download hOn-appen fra din smartphones appbutik.
2. Parring: Follow the in-app instructions to pair your oven with your smartphone via Wi-Fi.
3. Funktioner:
   • Remote control of cooking functions and temperature.
   • Access to over 300 automatic recipes.
   • Receive maintenance tips and notifications.

5. Vedligeholdelse og rengøring

Regelmæssig rengøring og vedligeholdelse vil sikre din ovns levetid og optimale ydeevne.

• Udvendig rengøring: Clean the exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or scourers.
• Indvendig rengøring: For general cleaning, wipe the interior with a damp cloth and mild detergent after each use, once the oven has cooled. For heavy soiling, use the pyrolytic cleaning function (see Section 4.3).
• Dørglas: The inner glass panes of the oven door can be removed for thorough cleaning. Refer to the detailed instructions in the full manual for this procedure.
• Udskiftning af ovnen Lamp: Ensure the oven is disconnected from the power supply before attempting to replace the lamp. Use a high-temperature resistant bulb suitable for ovens.

6. Fejlfinding

Før du kontakter kundeservice, bedes du læse følgende almindelige problemer og løsninger:

7. Specifikationer

Technical details for the ROSIERES RFC5M594PN Built-in Pyrolytic Oven.

Figure 6: Energy efficiency label for the ROSIERES RFC5M594PN oven, indicating an energy class of A, a capacity of 70 liters, and energy consumption values per cycle.

8. Garanti og support

For warranty information, technical support, or to order spare parts, please contact your retailer or the ROSIERES customer service department.

• Garanti: The warranty period and conditions are subject to the terms provided at the time of purchase and local regulations. Please retain your proof of purchase.
• Reservedele: Information regarding the availability of spare parts may be obtained from your retailer or the manufacturer's official webwebsted.
• Kundeservice: For assistance, please visit the official ROSIERES webwebstedet eller se de kontaktoplysninger, der følger med din købsdokumentation.
