GGM Gastro GKK1 Gas Stove User Manual

1. Introduktion

Thank you for choosing the GGM Gastro GKK1 Gas Stove. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read these instructions carefully before use and retain them for future reference. This appliance is designed for professional use and is suitable for both propane and natural gas.

2. Sikkerhedsinstruktioner

Din og andres sikkerhed er altafgørende. Overhold venligst alle sikkerhedsadvarsler og instruktioner.

• Installation: Installation must be performed by a qualified technician in accordance with all local and national regulations and standards for gas appliances.
• Ventilation: Ensure adequate ventilation in the area where the stove is operated. An extraction system is recommended for optimal performance and safety.
• Gasforbindelse: Verify that the gas type (propane or natural gas) matches the appliance's specifications. Check all gas connections for leaks using a soapy water solution; never use an open flame.
• Brandfarlige materialer: Hold brændbare materialer væk fra apparatet under drift.
• Overvågning: Efterlad aldrig apparatet uden opsyn, mens det er i drift.
• Termoelementsikkerhed: This appliance is equipped with a thermocouple safety element that automatically cuts off the gas supply if the flame extinguishes. Do not attempt to bypass or modify this safety feature.
• Rensning: Always disconnect the gas supply and allow the appliance to cool completely before cleaning.
• Opretholdelse: Regular maintenance should be performed by qualified personnel.
• Børn: Hold børn og uautoriseret personale væk fra apparatet.

3. Produktet er slutview

The GGM Gastro GKK1 is a robust, single-burner gas stove designed for efficiency and durability in professional environments. It features a high-quality stainless steel casing and a powerful 9 kW burner.

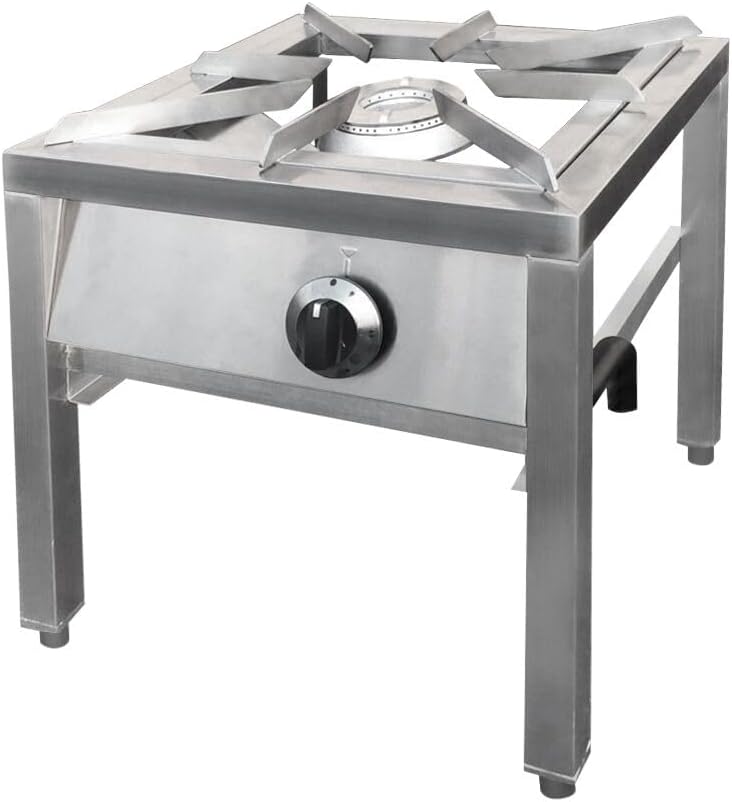

Figur 1: Forsiden view of the GGM Gastro GKK1 Gas Stove. This image shows the stainless steel construction, the single burner grate on top, and the control knob on the front panel.

Nøglekomponenter:

• Rustfrit stål Casing: Holdbar og nem at rengøre.
• Enkeltbrænder: High-power burner for efficient cooking.
• Burner Grate: Provides stable support for cookware.
• Betjeningsknap: For adjusting flame intensity and ignition.
• Thermocouple Safety Element: Monitors flame presence and cuts off gas if the flame goes out.
• Gasindtag: Connection point for gas supply.

4. Opsætning og installation

Proper installation is crucial for the safe and efficient operation of your GGM Gastro GKK1 Gas Stove. This appliance must be installed by a certified professional.

Installationstrin:

1. Udpakning: Carefully remove the appliance from its packaging. Inspect for any damage incurred during transit. Report any damage immediately to the carrier and supplier.
2. Placering: Place the stove on a stable, non-combustible surface. Ensure there is adequate clearance from walls and other appliances as per local regulations.
3. Ventilation: Confirm that the installation area has sufficient ventilation. Consider installing an appropriate extraction system.
4. Gas Type Conversion (if necessary): The appliance is factory-set for a specific gas type. If converting to a different gas type (e.g., from propane to natural gas or vice-versa), this must be done by a qualified technician using the appropriate conversion kit and following the manufacturer's instructions.
5. Gasforbindelse: Connect the appliance to the gas supply line using approved fittings and flexible hoses (if applicable). Ensure all connections are tight and leak-free. Perform a leak test using a soapy water solution.
6. Nivellering: Adjust the feet of the stove to ensure it is level and stable.
7. Indledende kontrol: Before first use, ensure all safety devices are correctly installed and functioning.

5. Betjeningsvejledning

Follow these steps for safe and effective operation of your GGM Gastro GKK1 Gas Stove.

Tænding:

1. Sørg for, at hovedgasforsyningsventilen er åben.
2. Place your cookware on the burner grate.
3. Push in the control knob for the burner you wish to light and turn it counter-clockwise to the 'MAX' position.
4. While holding the knob in, use an external ignition source (e.g., a long match or lighter) to ignite the burner.
5. Once the burner is lit, continue to hold the knob in for approximately 5-10 seconds. This allows the thermocouple to heat up and activate the safety valve.
6. Release the knob. If the flame goes out, repeat steps 3-5.

Justering af flammen:

• Rotate the control knob between 'MAX' and 'MIN' to adjust the flame intensity as required for cooking.

Lukker ned:

1. Turn the control knob clockwise to the 'OFF' position. The flame will extinguish.
2. For complete shutdown, close the main gas supply valve.

6. Vedligeholdelse og rengøring

Regular cleaning and maintenance will ensure the longevity and optimal performance of your GGM Gastro GKK1 Gas Stove.

Daglig rengøring:

1. Ensure the appliance is cool and the gas supply is turned off.
2. Remove the burner grates and clean them with warm soapy water. Rinse thoroughly and dry.
3. Tør overfladerne af rustfrit stål af med adamp cloth and a mild detergent. Avoid abrasive cleaners or scouring pads that can scratch the surface.
4. Til genstridige pletter skal du bruge et specialrengøringsmiddel til rustfrit stål.
5. Ensure all parts are completely dry before reassembling and using the stove.

Periodisk vedligeholdelse:

• Have the appliance inspected by a qualified technician at least once a year. This includes checking gas connections, burner efficiency, and safety devices like the thermocouple.
• Ensure burner ports are clear of debris to maintain efficient flame distribution.

7. Fejlfinding

If you encounter issues with your GGM Gastro GKK1 Gas Stove, refer to the following common problems and solutions. For complex issues, contact a qualified service technician.

8. Tekniske specifikationer

Detailed specifications for the GGM Gastro GKK1 Gas Stove.

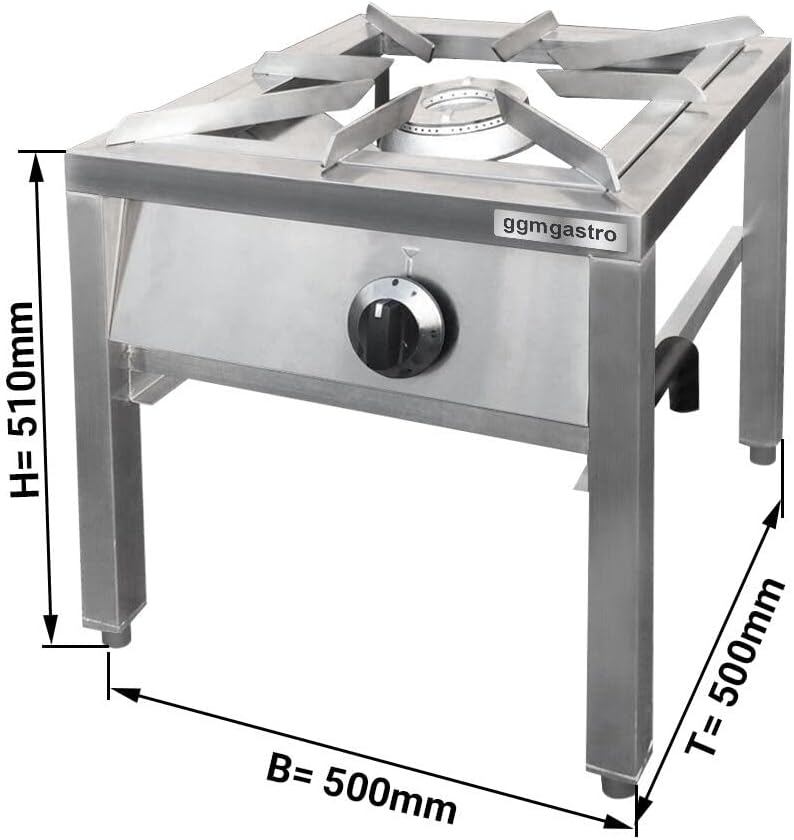

Figur 2: GGM Gastro GKK1 Gas Stove with labeled dimensions. Height (H) = 510mm, Width (B) = 500mm, Depth (T) = 500mm.

9. Garanti og support

For warranty information, technical support, or spare parts availability, please contact your supplier or the manufacturer directly. Ensure you have your product model number (GKK1) and purchase details ready when contacting support.

The material of this product complies with European food standards and bears the CE mark, confirming its adherence to relevant hygiene and safety directives.
