Indledning
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your MTD Smart 46 SPO thermal self-propelled lawnmower. Please read these instructions carefully before assembly, operation, or maintenance.
Sikkerhedsinstruktioner
Prioritér altid sikkerhed ved betjening af elektrisk udstyr. Manglende overholdelse af sikkerhedsinstruktionerne kan resultere i alvorlig personskade.
- Læs manualen: Gør dig bekendt med alle betjeningselementer og korrekt brug af maskinen.
- Personligt beskyttelsesudstyr: Brug altid robust fodtøj, lange bukser og øjenbeskyttelse. Undgå løstsiddende tøj.
- Ryd området: Før du slår græs, skal du rydde området for sten, pinde, ledninger og andet affald, der kan blive slynget ud af knivene.
- Hold tilskuere væk: Sørg for, at børn, kæledyr og andre personer er i sikker afstand fra driftsområdet.
- Brændstofhåndtering: Handle fuel with extreme care. It is highly flammable. Store fuel in approved containers in a cool, well-ventilated area. Never refuel a hot or running engine.
- Hældning: Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes. Avoid excessively steep slopes.
- Klingesikkerhed: Placer aldrig hænder eller fødder i nærheden af roterende dele. Frakobl tændrørskablet, før du udfører vedligeholdelse eller fjerner blokeringer.
- Motor slukket: Always turn off the engine and wait for the blade to stop completely before leaving the operating position, clearing blockages, or making adjustments.
- Opretholdelse: Perform regular maintenance as described in this manual to keep the machine in safe working condition.
Produkt overview
The MTD Smart 46 SPO is a robust thermal self-propelled lawnmower designed for efficient lawn care. Key features include:
- Motor: MTD THORX 132 cm3 engine.
- Klippebredde: 46 cm (18 tommer).
- Selvkørende: Yes, for easier operation.
- Klippehøjdejustering: Centralized adjustment with 7 positions, ranging from 25 mm to 75 mm.
- 3-i-1 funktionalitet: Capable of grass collection, mulching, and rear discharge.
- Græspose: 60-liter hard top grass bag.
- Hjul: Large rear wheels (260 mm) and front wheels (180 mm) with bushings for smooth movement.
- Styr: Ergonomic and foldable for comfortable use and compact storage, with 3 height adjustment positions.
- Mulching Plug: Included for mulching functionality.
- Rear Deflector: Included for rear discharge without the grass bag.
- Bolig: Durable steel deck.
- Anbefalet område: Suitable for lawns up to 1000 m².

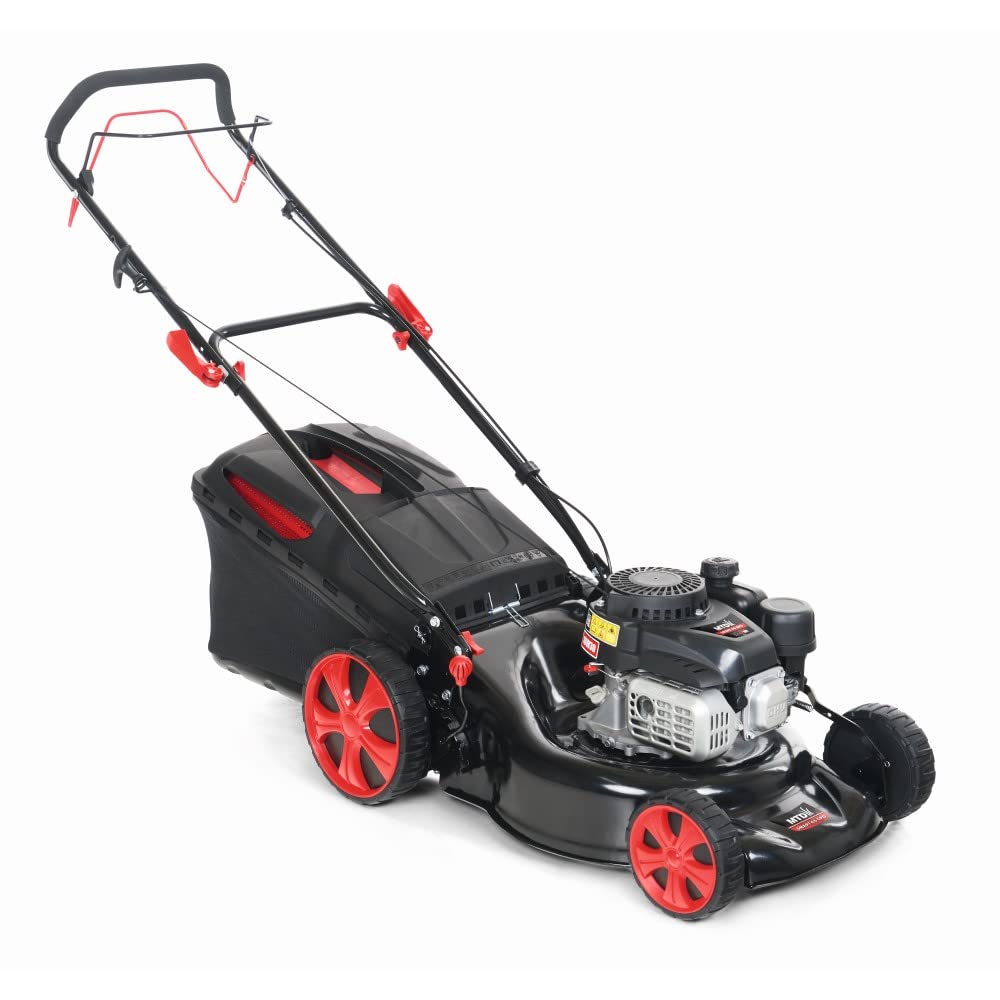

Image 1: MTD Smart 46 SPO Thermal Self-Propelled Lawnmower. This image shows the overall design of the lawnmower, highlighting its robust steel deck, large rear wheels, and ergonomic handlebar. The grass collection bag is visible at the rear.
Opsætning
1. Udpakning og montering
Fjern forsigtigt alle komponenter fra emballagen. Sørg for, at alle dele er til stede, før monteringen påbegyndes.
Samling af styr
- Unfold the lower handlebar section and secure it in place.
- Attach the upper handlebar section to the lower section using the provided bolts and knobs. Ensure the cables are not pinched.
- Adjust the handlebar height to one of the 3 available positions for comfortable operation.
Græsposesamling
Assemble the grass bag according to the instructions provided with the bag components. Once assembled, hook the grass bag onto the rear of the mower, ensuring it is securely seated.
Mulching Plug / Rear Deflector Installation
Depending on your desired mowing method:
- Til bioklip: Insert the mulching plug into the rear discharge opening.
- For Rear Discharge (without bag): Ensure the mulching plug is removed and the rear deflector is in place.
- For Collection: Fjern bioklipsproppen, og monter græsposen.
2. Brændstof og olie
Your lawnmower is shipped without fuel or oil. It is crucial to add both before the first start.
Tilsætning af motorolie
- Placer plæneklipperen på en plan overflade.
- Find oliepåfyldningsdækslet/målepinden.
- Carefully add the recommended engine oil (refer to the engine manual for specific type and quantity, typically SAE 30 or 10W-30 for small engines) until the oil level reaches the "FULL" mark on the dipstick. Do not overfill.
- Sæt oliepåfyldningsdækslet ordentligt på.
Tilsætning af brændstof
- Ensure the engine is cool and the lawnmower is on a level surface.
- Use fresh, clean unleaded gasoline with an octane rating of 87 or higher. Do not use E85 fuel.
- Carefully pour fuel into the fuel tank, avoiding spills. Do not fill the tank completely; leave some space for expansion.
- Sæt brændstofdækslet sikkert på igen.
Warning: Never refuel a hot or running engine. Always ensure adequate ventilation when handling fuel.
Betjeningsvejledning
1. Tjekliste før drift
- Kontroller motoroliestanden.
- Tjek brændstofniveauet.
- Sørg for, at alle møtrikker, bolte og skruer er stramme.
- Verify the grass bag, mulching plug, or rear deflector is correctly installed.
- Ryd klippeområdet for eventuelt affald.
- Adjust cutting height as desired.
2. Justering af klippehøjde
The MTD Smart 46 SPO features a centralized cutting height adjustment with 7 positions, from 25 mm to 75 mm.
- Ensure the engine is off and the blade has stopped.
- Locate the height adjustment lever, typically near one of the wheels.
- Pull the lever outwards and move it to the desired height setting. Ensure all wheels are set to the same height.
- Release the lever to lock it in position.
3. Starting the Engine (Manual Starter)
- Sørg for, at tændrørskablet er forsvarligt tilsluttet.
- Push the primer bulb (if present) 3-5 times until fuel is visible in the bulb. (Consult engine manual for exact priming procedure).
- Move the throttle lever (if present) to the "FAST" or "START" position.
- Grasp the starter rope handle firmly.
- Pull the starter rope with a smooth, continuous motion until the engine starts. Do not let the rope snap back; guide it gently.
- Once the engine starts, release the starter rope and allow the engine to warm up for a few moments.
Caution: Keep hands and feet clear of the cutting deck when starting the engine.
4. Klippeteknikker
The MTD Smart 46 SPO offers 3-in-1 functionality: collection, mulching, and rear discharge.
Græssamling
Attach the 60-liter grass bag. This method collects clippings for disposal or composting, leaving a clean lawn.
Mulching
Insert the mulching plug. Mulching finely chops grass clippings and returns them to the lawn as natural fertilizer. This is ideal for frequent mowing of shorter grass.
Bagudledning
Remove the grass bag and mulching plug, ensuring the rear deflector is in place. This method discharges clippings directly onto the lawn from the rear, suitable for taller grass where collection or mulching is not desired.
For best results, mow when the grass is dry. Avoid cutting more than one-third of the grass blade length at a time. Overlap cutting swaths slightly to ensure an even cut.
5. Standsning af motoren
- Release the operator presence control bar (if equipped).
- Move the throttle lever to the "STOP" or "OFF" position.
- Wait for the blade to come to a complete stop before approaching the mower.
Opretholdelse
Regular maintenance ensures the longevity and safe operation of your lawnmower. Always disconnect the spark plug wire before performing any maintenance.
1. Rensning
- After each use, clean the underside of the cutting deck to prevent grass buildup, which can affect cutting performance.
- Use a stiff brush or scraper. Avoid using high-pressure water directly on the engine or electrical components.
- Rengør plæneklipperens yderside med enamp klæde.
2. Knivpleje
- Inspect the blade regularly for sharpness and damage. A dull blade tears grass, leading to an unhealthy lawn.
- Sharpen or replace the blade as needed. Always use genuine MTD replacement parts.
- When removing or installing the blade, wear heavy-duty gloves and ensure the spark plug wire is disconnected.
3. Motorvedligeholdelse
Olieskift
Change the engine oil after the first 5 hours of operation, then every 25-50 hours or annually, whichever comes first. Refer to the engine manual for detailed instructions.
Tændrør
Inspect and clean the spark plug annually or every 50 hours. Replace if electrodes are worn or pitted. Ensure correct gap setting.
Luftfilter
Clean or replace the air filter regularly, especially in dusty conditions. A clogged air filter can reduce engine performance and increase fuel consumption.
4. Opbevaring
For seasonal storage, prepare your lawnmower as follows:
- Clean the entire mower thoroughly.
- Drain the fuel tank or add a fuel stabilizer to prevent fuel degradation. Run the engine until it stops to consume all fuel in the carburetor.
- Skift motorolien.
- Remove the spark plug and pour a small amount of engine oil into the cylinder. Pull the starter rope a few times to distribute the oil, then reinstall the spark plug.
- Store the mower in a clean, dry, and well-ventilated area, away from heat sources and open flames.
- The ergonomic handlebar can be folded for more compact storage.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Motoren starter ikke | Intet brændstof Gammelt eller forældet brændstof Tændrørsledning frakoblet Beskidt tændrør Tilstoppet brændstoffilter Lavt olieniveau (på modeller med afbrydelse ved lav oliestand) | Tilsæt frisk brændstof Tøm og fyld op med frisk brændstof Tilslut tændrørsledningen Rengør eller udskift tændrøret Rengør eller udskift brændstoffilteret Tilsæt olie til det korrekte niveau |
| Motoren kører ujævnt eller går i stå | Beskidt luftfilter Gammelt brændstof Beskidt tændrør Problemer med karburatoren | Rengør eller udskift luftfilteret Tøm og fyld op med frisk brændstof Rengør eller udskift tændrøret Kontakt servicecenter |
| Dårlig skæreydelse | Mat eller beskadiget klinge Grass buildup under deck Mowing wet grass Motorhastigheden er for lav | Slib eller udskift kniven Rengør undersiden af dækket Slå græsset når det er tørt Ensure throttle is at "FAST" position |
| Overdreven vibration | Bøjet eller ubalanceret blad Løse knivbolte Engine mounting issues | Inspect and replace blade if bent; ensure it's balanced Spænd knivboltene Kontakt servicecenter |
Specifikationer
| Feature | Detalje |
|---|---|
| Model | MTD Smart 46 SPO |
| Motor | MTD THORX 132 cm³ |
| Nominel effekt | 2.2 KW at 2800 rpm |
| Forskydning | 132 cm³ |
| Startmetode | Manuel starter |
| Skærebredde | 46 cm |
| Justering af klippehøjde | Centralized, 7 positions (25-75 mm) |
| Funktioner | 3-in-1 (Collection, Mulching, Rear Discharge) |
| Græsposekapacitet | 60 Liters (Hard Top) |
| Materiale til hus | Stål |
| Wheel Diameter (Front/Rear) | 180 mm / 260 mm |
| Styr | Ergonomic, Foldable, 3 Height Positions |
| Anbefalet græsplæneareal | Op til 1000 m² |
| Produktmål (L x B x H) | 50 x 50 x 28 cm |
| Produktets vægt | 32.9 kg |
Garantioplysninger
The MTD Smart 46 SPO lawnmower comes with a 2 års garanti fra købsdatoen. Denne garanti dækker materiale- og fabrikationsfejl under normal brug og service.
Garantien dækker ikke:
- Normal wear and tear parts (e.g., blades, belts, spark plugs, filters).
- Damage caused by improper use, neglect, lack of maintenance, or accidents.
- Skader som følge af uautoriserede reparationer eller ændringer.
- Kommerciel brug af produktet.
To make a warranty claim, please retain your proof of purchase and contact your authorized MTD dealer or service center.
Support og kontaktoplysninger
For technical assistance, spare parts, or service inquiries, please contact your local authorized MTD dealer.
You can find more information and locate a service center by visiting the official MTD webwebsted:
When contacting support, please have your model number (46 SPO) and serial number ready to expedite assistance.
