ASHATA RTL8852CE 6E Card User Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your ASHATA RTL8852CE 6E Card. This NGFF (M.2) module is designed to enhance your computer's wireless connectivity with Wi-Fi 6E technology and Bluetooth 5.3, offering high speeds and low latency across 2.4GHz, 5GHz, and 6GHz bands.

Image 1.1: The ASHATA 6E Card, highlighting its capability to deliver higher rates and lower latency over a wider spectrum range with WiFi 6E technology.

2. Sikkerhedsoplysninger

Please read the following safety precautions before installing or using the device:

• Always disconnect power from your computer before opening the case or installing any internal components.
• Handle the card by its edges to avoid touching the gold connectors or electronic components, which can be sensitive to static electricity.
• Sørg for korrekt jordforbindelse for at forhindre skader forårsaget af elektrostatisk udladning (ESD).
• Hold enheden væk fra fugt, støv og ekstreme temperaturer.

3. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• 1 x ASHATA 6E Card (RTL8852CE)
• 1 x Bracket Plate (for securing the card)
• 1 x Screw (for installation)

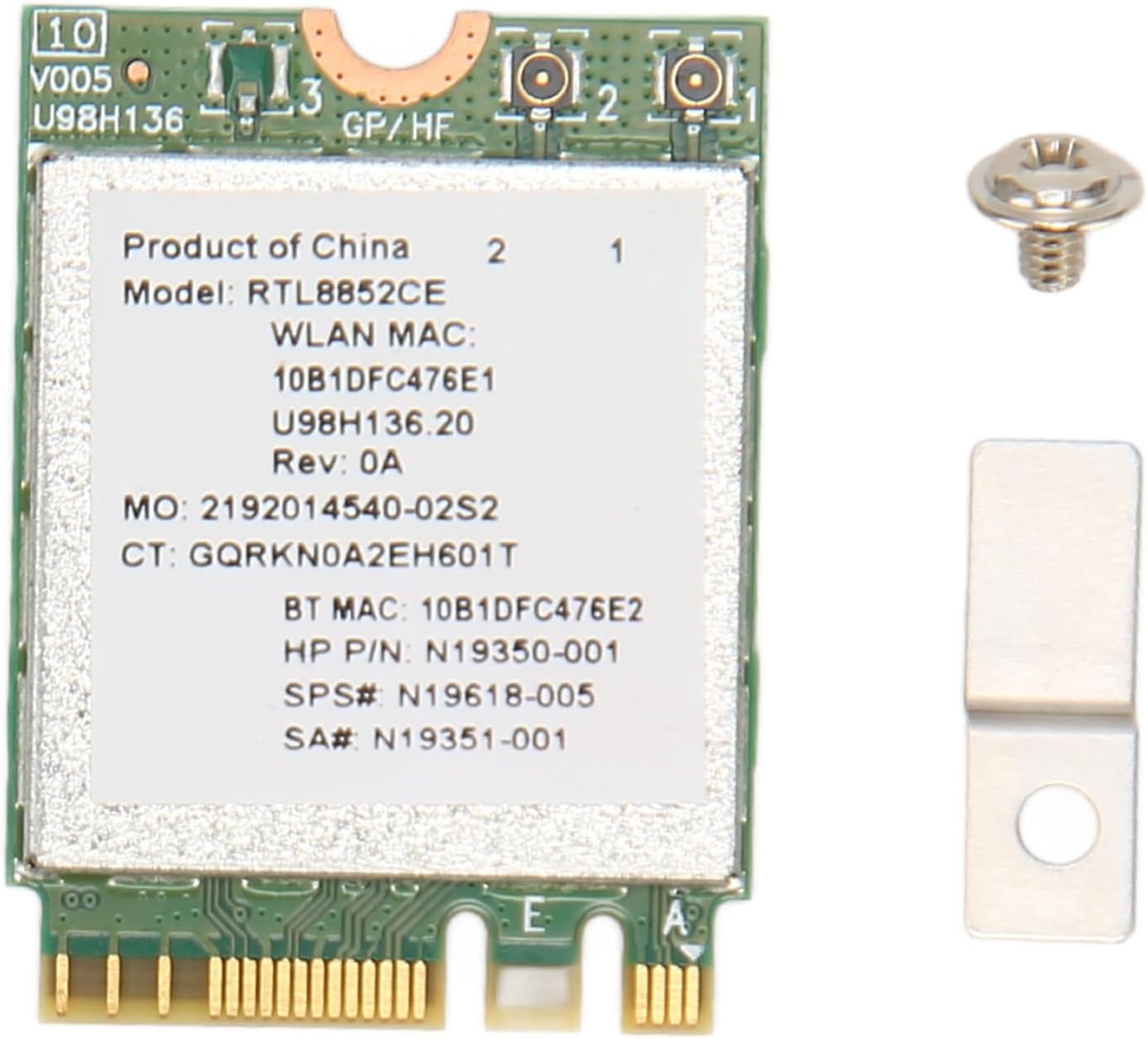

Image 3.1: The ASHATA 6E Card shown with its accompanying bracket plate and screw, which are essential for installation.

4. Specifikationer

Billede 4.1: Nærbillede view of the ASHATA 6E Card, showing the RTL8852CE chip which provides fast and stable wireless connectivity across 2.4GHz, 5GHz, and 6GHz bands.

5. Opsætning og installation

Installing the ASHATA 6E Card requires careful attention to detail, especially regarding driver installation. Follow these steps:

5.1. Pre-Installation: Driver Download

1. Before disconnecting your computer from the internet, identify the model number on the back of your Wi-Fi card (e.g., RTL8852CE).
2. Search online for the latest drivers for the RTL8852CE chip, specifically for your operating system (e.g., Windows 10, Windows 11). It is recommended to search on the official Realtek website or your computer/motherboard manufacturer's support page.
3. Download the Wi-Fi and Bluetooth drivers. Unzip or unpack them into an easily accessible folder on your computer (e.g., a folder on your desktop).

5.2. Fysisk installation

4. Power down your computer completely og afbryd den fra strømkilden.
5. Open your computer case (for desktops) or access the M.2 slot (for laptops). Refer to your computer's manual for specific instructions on how to do this.
6. Carefully insert the ASHATA 6E Card into an available NGFF (M.2) slot. Ensure it is seated firmly.
7. Secure the card with the provided screw and bracket plate, if applicable.
8. Connect your Wi-Fi antennas to the card's connectors (if external antennas are used). Ensure they are properly connected for optimal performance.
9. Luk computerens kabinet.

Billede 5.1: Forside og bagside views of the ASHATA 6E Card, showing the M.2 connector and component layout for proper installation.

5.3. Driver Installation (Post-Physical Installation)

10. Reconnect your computer to power and turn it on. Allow it to boot into your operating system.
11. Your internet connection may not be working immediately. Wait a minute or two to see if Windows automatically detects and installs the drivers. This is unlikely for new hardware.
12. Åben Enhedshåndtering. You can usually find this by right-clicking the Start button (Windows) and selecting 'Device Manager'.
13. Look for an 'Unknown device' or a device with a yellow exclamation mark next to it, typically under 'Network adapters' or 'Other devices'. This is likely your newly installed Wi-Fi card.
14. Right-click on this device and select 'Update driver'.
15. Choose 'Browse my computer for drivers'.
16. Navigate to the folder where you downloaded and unzipped the drivers in Step 5.1. Select this folder. The system should then begin installing the drivers.
17. Repeat this process for both the Wi-Fi and Bluetooth components if they appear as separate unknown devices.
18. Once the installation is successful, close Device Manager. Your Wi-Fi and Bluetooth functionalities should now be available.

6. Betjeningsvejledning

6.1. Tilslutning til Wi-Fi

1. After successful driver installation, click on the Wi-Fi icon in your system tray (usually bottom-right of the screen).
2. Vælg dit ønskede Wi-Fi-netværk fra listen over tilgængelige netværk.
3. Indtast netværksadgangskoden, hvis du bliver bedt om det, og klik på 'Opret forbindelse'.
4. Your computer should now be connected to the internet via the ASHATA 6E Card.

6.2. Parring af Bluetooth-enheder

1. Ensure Bluetooth is enabled on your computer. You can usually find this in your operating system's settings (e.g., Windows Settings > Devices > Bluetooth & other devices).
2. Put your Bluetooth device (headphones, speaker, keyboard, etc.) into pairing mode. Refer to your device's manual for specific instructions.
3. Klik på 'Tilføj Bluetooth eller anden enhed' på din computer, og vælg 'Bluetooth'.
4. Vælg din enhed på listen, og følg eventuelle vejledninger på skærmen for at fuldføre parringsprocessen.

7. Vedligeholdelse

To ensure optimal performance and longevity of your ASHATA 6E Card:

• Hold drivere opdateret: Periodically check for updated Wi-Fi and Bluetooth drivers for the RTL8852CE chip from the manufacturer's website. Updated drivers can improve performance, stability, and security.
• Fysisk renlighed: If your computer case is opened for other maintenance, gently clean any dust accumulation around the card using compressed air. Ensure the computer is powered off before doing so.
• Antenneforbindelse: Ensure that any external antennas are securely connected and positioned for the best signal reception.

8. Fejlfinding

If you encounter issues with your ASHATA 6E Card, refer to the following common problems and solutions:

9. Garanti og support

For garantioplysninger eller teknisk support henvises til den dokumentation, der fulgte med dit køb, eller kontakt din forhandler. Gem din købsbevis til garantikrav.

For further assistance, you may also visit the ASHATA brand store on Amazon: ASHATA Store
