CCLIFE 7-Pin Trailer Plug Adaptor User Manual

1. Introduktion

Thank you for choosing the CCLIFE 7-Pin Trailer Plug Adaptor. This adaptor is designed to provide a reliable electrical connection between your towing vehicle and a trailer, ensuring proper functioning of lights and other electrical systems. It is suitable for most trailer couplings and operates with 12V systems.

The robust plastic construction and high-quality galvanized copper contacts ensure durability and optimal conductivity, extending the product's service life.

Image 1.1: CCLIFE 7-Pin Trailer Plug Adaptor. This image shows the complete 7-pin trailer plug adaptor, highlighting its robust design and the arrangement of the seven brass pins.

Pakkeindhold:

• 1 x CCLIFE 7-Pin Trailer Plug Adaptor

2. Sikkerhedsoplysninger

• Always ensure the vehicle's ignition is off and the battery is disconnected before attempting any electrical installation or maintenance.
• Verify all wiring connections are correct and secure to prevent short circuits, electrical damage, or malfunction of trailer lights.
• Do not expose the adaptor to excessive moisture or extreme temperatures.
• If you are unsure about any installation steps, consult a qualified automotive electrician.

3. Opsætning og installation

The CCLIFE 7-Pin Trailer Plug Adaptor is designed for straightforward installation. Follow these steps to connect the adaptor to your trailer's wiring system.

Ledningsdiagram:

Refer to the diagram below for the standard 7-pin wiring configuration. Ensure each wire from your trailer's electrical system is connected to the corresponding pin on the adaptor.

Image 3.1: 7-Pin Trailer Wiring Diagram. This diagram illustrates the standard pin assignments for a 7-pin trailer socket. The labels indicate: 1 - Left Turn Signal, 2 - Fog Light, 3 - Ground, 4 - Right Turn Signal, 5 - Right Tail Light, 6 - Brake Lights, 7 - Left Tail Light.

Installationstrin:

1. Forbered ledninger: Strip the insulation from the ends of your trailer's electrical wires, exposing approximately 1/4 inch of copper.
2. Disassemble Adaptor: Carefully unscrew and separate the adaptor housing to access the internal terminals.
3. Tilslut ledninger: Following the wiring diagram (Image 3.1), connect each trailer wire to its corresponding terminal inside the adaptor. Ensure a secure connection for each wire.
4. Sikker bolig: Once all wires are connected, reassemble the adaptor housing, ensuring it is tightly secured to protect the connections from environmental elements.
5. Test forbindelse: Before driving, connect the trailer to the vehicle and test all lights (turn signals, brake lights, tail lights, fog light) to ensure they function correctly.

Image 3.2: CCLIFE 7-Pin Adaptor Disassembled. This image shows the adaptor separated into its main components, illustrating how it can be opened for wiring access.

4. Betjeningsvejledning

Once the CCLIFE 7-Pin Trailer Plug Adaptor is correctly installed on your trailer, operating it is simple:

1. Tilslut til køretøj: Align the 7-pin adaptor with the 7-pin socket on your towing vehicle. Push firmly until it is fully seated and secure.
2. Sikker forbindelse: Ensure the adaptor is locked into place, if your vehicle's socket has a locking mechanism.
3. Tjek før turen: Before each trip, perform a quick check of all trailer lights (turn signals, brake lights, tail lights, and any auxiliary lights) to confirm they are functioning correctly.
4. Afbryde: To disconnect, release any locking mechanism and pull the adaptor straight out from the vehicle's socket.

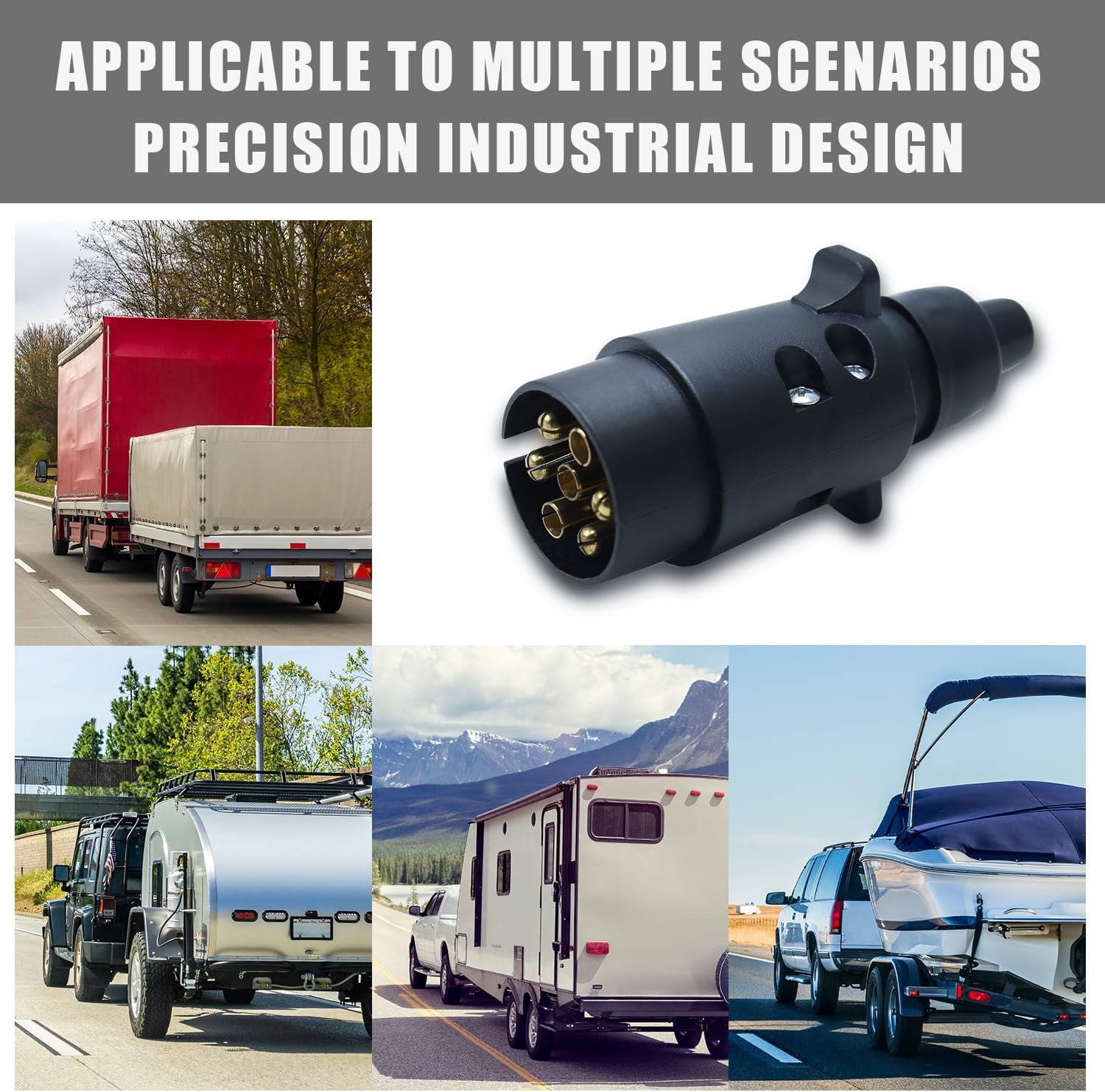

Image 4.1: Trailer Adaptor Application Scenarios. This image displays various vehicles towing trailers, demonstrating the universal applicability of the 7-pin adaptor for different types of trailers and towing setups.

5. Vedligeholdelse

Regular maintenance will help ensure the longevity and reliable performance of your CCLIFE 7-Pin Trailer Plug Adaptor.

• Rensning: Periodically clean the pins and the interior of the adaptor with a dry, non-abrasive cloth to remove dirt, dust, or corrosion. Avoid using harsh chemicals.
• Inspektion: Regularly inspect the adaptor for any signs of wear, damage, or corrosion on the pins or housing. Check for loose connections or frayed wires.
• Smøring: A small amount of dielectric grease can be applied to the pins to protect against corrosion and ensure smooth connections.
• Opbevaring: When not in use, store the adaptor in a clean, dry place away from direct sunlight and extreme temperatures.

6. Fejlfinding

If you encounter issues with your trailer's electrical connection, refer to the following troubleshooting tips:

• No Lights or Intermittent Lights:
  • Check that the adaptor is fully seated in the vehicle's socket.
  • Inspect the pins on both the adaptor and the vehicle's socket for dirt, corrosion, or damage. Clean or repair as necessary.
  • Verify the wiring connections inside the adaptor are secure and correctly matched according to the wiring diagram (Image 3.1).
  • Check the trailer's light bulbs and fuses.
• Specifik lys virker ikke:
  • Identify the specific pin for that light using the wiring diagram (Image 3.1).
  • Inspect the connection for that specific pin within the adaptor and at the light fixture on the trailer.
  • Check the bulb and wiring for that specific light.
• Løs forbindelse:
  • Ensure the adaptor's housing is securely fastened.
  • If the adaptor feels loose in the vehicle's socket, inspect the socket for wear or damage.

7. Specifikationer

8. Garanti og support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the seller directly. Specific warranty terms may vary depending on your region and point of purchase.

For further assistance, you may also visit the official CCLIFE webwebsted eller kontakt deres kundeserviceafdeling.
