Vikye C11 Wireless Car Charger Instruction Manual

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of your Vikye C11 Wireless Car Charger. Please read this manual thoroughly before use to ensure proper function and safety.

Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• 1 x trådløs oplader
• 1 x Air Outlet Support
• 1 x ladekabel
• 1 x Micro USB Magnetic Adapter
• 1 x Type C Magnetic Adapter
• 1 x Lightning Magnetic Adapter
• 1 x Instruktioner (denne manual)

Produktegenskaber

• 360-graders rotation: The rear bracket allows for multi-angle rotation, enabling flexible adjustment of the viewing angle for navigation.
• Auto-Clampmekanisme: Features a built-in rear fingerprint touch button. A simple touch opens the clamping arms, which then automatically secure the phone. This design allows for quick one-handed placement and removal of the device. The operation is silent due to a built-in silencer.


  Image: The charger with a sound wave icon, indicating its silent operation feature.
• Universal telefonkompatibilitet: Supports mobile phones ranging from 4.7 to 7 inches. The transparent shell tempered glass panel ensures efficient and stable charging.

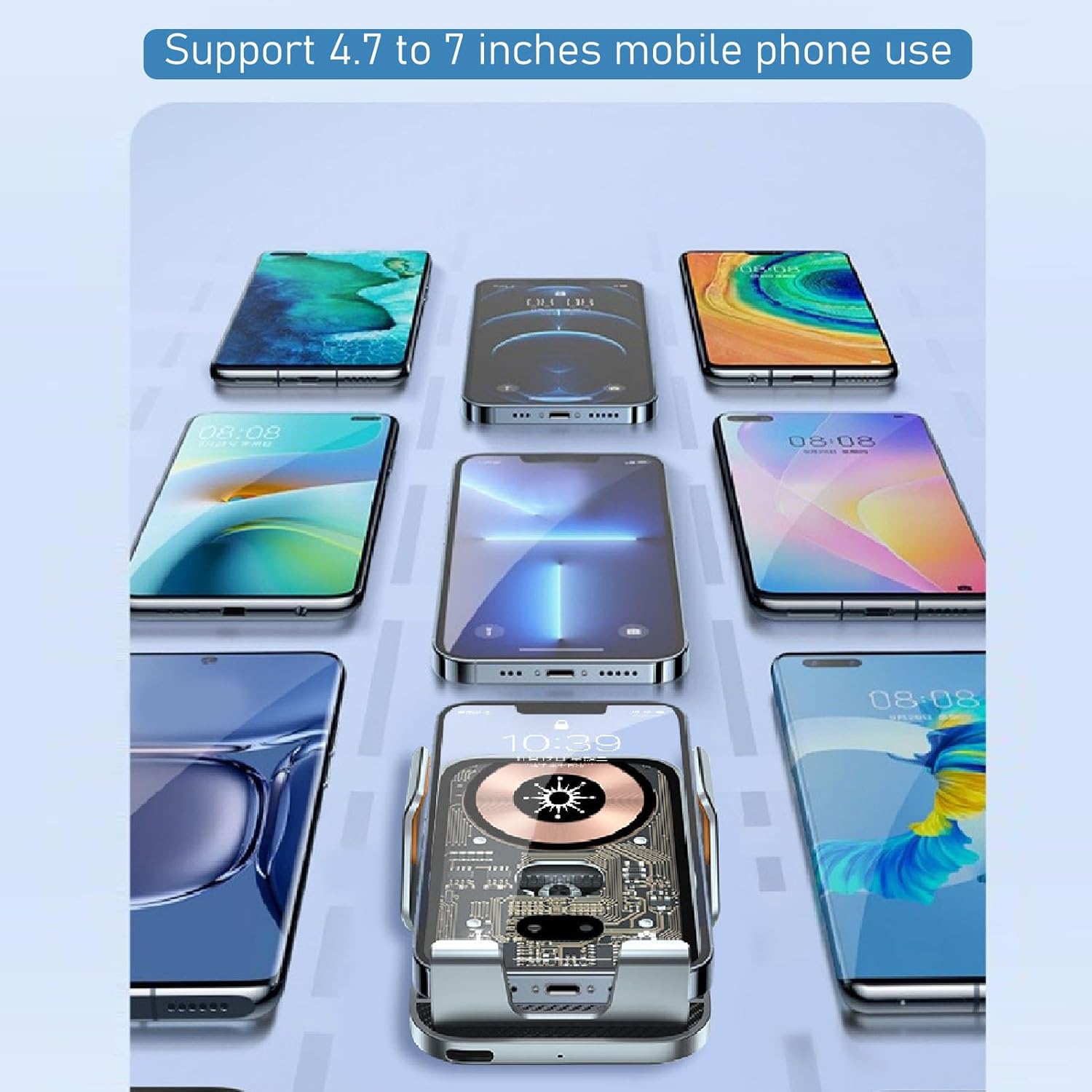

  Image: Various phone models displayed around the charger, demonstrating its compatibility with 4.7 to 7-inch devices.

• Non-Wireless Charging Phone Support: Includes Micro USB, Type-C, and Lightning magnetic adapters, allowing charging for phones without built-in wireless charging capabilities.
• Durable and Stable Design: Constructed with an aircraft-grade aluminum shell for strength and stability. Features infrared sensing for automatic operation and a professional anti-shake function to maintain balance during vehicle movement.


  Billede: En intern view of the charger's automatic gear system, highlighting its robust construction.

Opsætningsinstruktioner

1. Attach Air Outlet Support: Securely attach the air outlet support to the back of the wireless charger. Ensure it clicks into place firmly.
2. Installer i køretøj: Insert the air outlet support into a suitable air vent in your vehicle. Adjust the angle for optimal viewog tilgængelighed.


   Image: The C11 charger installed in a car vent, showing its small footprint and how it does not block the air flow.

3. Tilslut strøm: Connect the provided charging cable to the charger's power input port and then to your car's USB port or a car charger adapter (not included). Ensure the power source provides sufficient output for fast charging.
4. Initial Phone Placement: When power is connected, the clamping arms will automatically open. Place your phone into the holder. The arms will automatically close and secure your phone.


   Image: Visual representation of the charger's automatic clamping arms, showing how they open to receive a phone and close to secure it.

Betjeningsvejledning

1. Automatic Phone Clamping: The charger features intelligent infrared sensing. When a phone is detected, the clamping arms will automatically open and then close to securely hold the device.


   Image: The charger holding a phone, highlighting its intelligent sensing capability that automatically adjusts to the phone's size.

2. Trådløs opladning: Once your wireless charging compatible phone is securely clamped, charging will begin automatically. The transparent panel allows for efficient power transfer.
3. Using Magnetic Adapters (for non-wireless charging phones): For phones without wireless charging, insert the appropriate magnetic adapter (Micro USB, Type-C, or Lightning) into your phone's charging port. Then, place your phone into the charger. The magnetic connection will facilitate charging.
4. Releasing the Phone: To release your phone, gently touch the rear fingerprint touch button. The clamping arms will automatically open, allowing you to remove your device.


   Image: A finger touching the rear sensor button, demonstrating the method to automatically open the charger's arms for phone removal.
5. Justering Viewvinkel: The charger features a 360-degree rotatable bracket. Loosen the nut on the back, adjust the phone to your desired portrait or landscape orientation, and then tighten the nut to secure it.


   Image: The charger displaying a phone in both vertical and horizontal positions, illustrating the 360-degree rotation feature for flexible viewing.

Opretholdelse

• Rensning: Use a soft, dry cloth to wipe the surface of the charger. Avoid using abrasive cleaners or solvents.
• Opbevaring: Når opladeren ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
• Undgå væsker: Udsæt ikke opladeren for vand eller andre væsker.

Fejlfinding

Opladeren tænder ikke:

Ensure the charging cable is securely connected to both the charger and a functional power source in your vehicle. Check the vehicle's power outlet or USB port for power.

Phone not charging wirelessly:

• Bekræft, at din telefon understøtter trådløs opladning.
• Sørg for, at telefonen er centreret på opladningspad'en.
• Fjern alle tykke telefoncovers, der kan forstyrre trådløs opladning.
• Check if the power source provides sufficient output (e.g., a QC 3.0 car charger for fast wireless charging).

Clamping arms not opening/closing:

• Sørg for, at opladeren er tændt.
• Gently touch the rear fingerprint touch button to activate the arms.
• Check for any obstructions in the clamping mekanisme.

Phone not charging with magnetic adapters:

• Ensure the correct magnetic adapter is fully inserted into your phone's charging port.
• Verify the magnetic connection between the adapter and the charger is secure.
• Kontroller opladningskablet og strømkilden.

Specifikationer

Garanti og support

The Vikye C11 Wireless Car Charger comes with a standard manufacturer's warranty. For specific warranty details, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or the official Vikye webwebsted.
