Heng Long RC T34-85 Tank 1/16 3909 Pro Edition Instruction Manual

1. Introduktion

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Heng Long RC T34-85 Tank 1/16 3909 Pro Edition. Please read this manual thoroughly before operating the tank to ensure safe and correct usage.

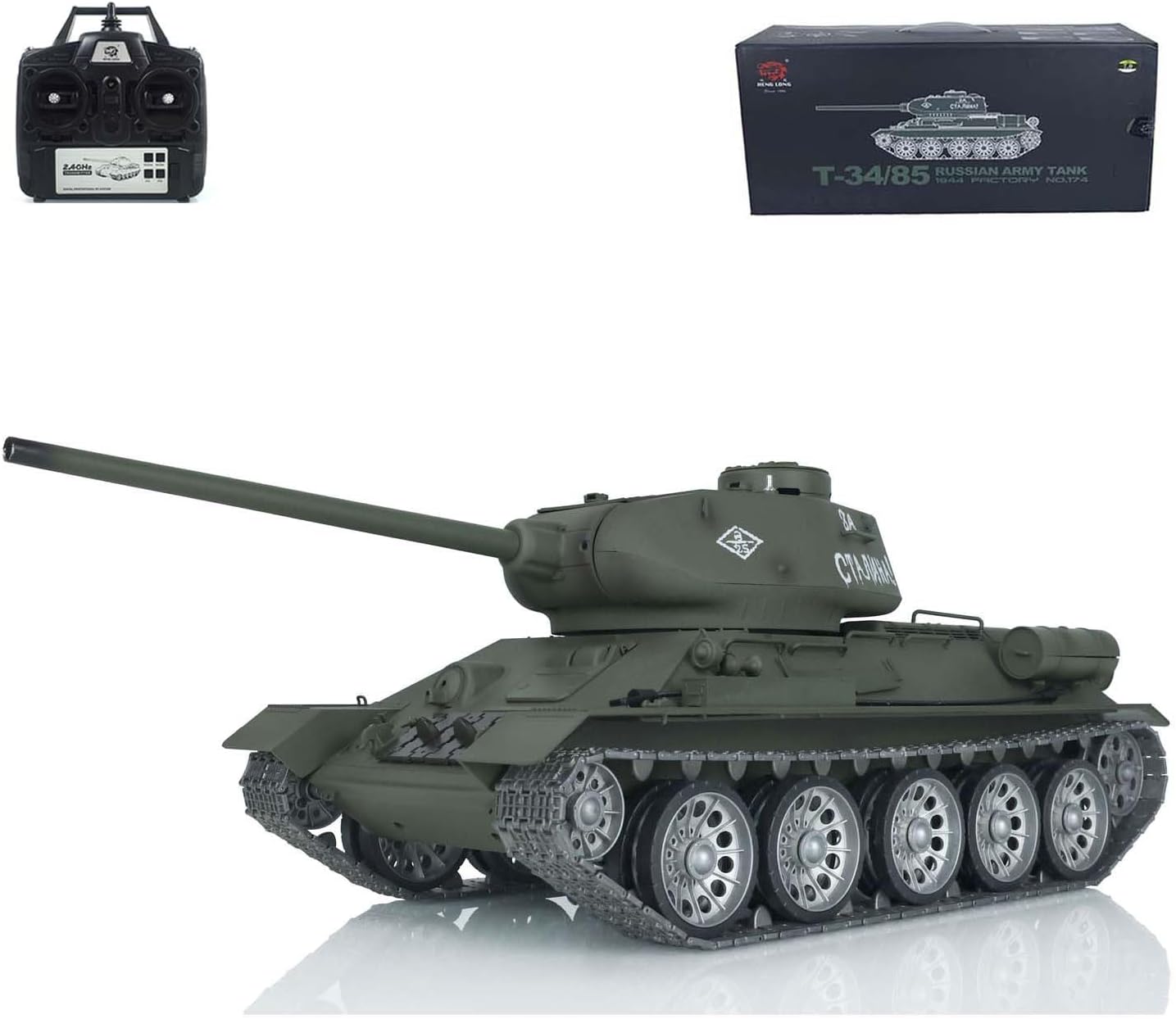

Figure 1: The Heng Long RC T34-85 Tank, remote control, and product packaging.

2. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Heng Long RC T34-85 Tank Model
• Fjernbetjening
• BB-kugler (6 mm)
• Smoke Liquid (if applicable, may not be shipped to all countries)
• Rechargeable Battery for Tank
• Batterioplader
• Instruktionsmanual (dette dokument)

3. Opsætning

3.1 Batteriinstallation og opladning

1. Tankbatteri: Locate the battery compartment on the tank. Connect the rechargeable battery to the tank's power connector. Secure the battery within the compartment.
2. Batterier til fjernbetjening: Insert appropriate batteries (usually AA, not specified in product data) into the remote control's battery compartment.
3. Opladning: Use the provided charger to fully charge the tank's rechargeable battery before first use. Refer to the charger's specific instructions for charging times and indicators.

3.2 BB Pellet Loading

1. Sørg for, at strømmen til tanken er slukket.
2. Locate the BB loading hatch on the tank's turret.
3. Carefully open the hatch and pour the 6mm BB pellets into the designated reservoir. Do not overfill.
4. Luk lugen forsvarligt.

Figure 2: Loading BB pellets into the tank's turret.

3.3 Smoke Liquid Filling

The tank features an idle smoking function. To activate this, smoke liquid is required.

1. Locate the smoke unit's filling port, typically near the engine deck.
2. Carefully add kun én dråbe of smoke liquid into the port. Warning: Adding more than one drop can damage the smoke unit.
3. Luk porten forsvarligt.

Figure 3: Smoke effect from the tank's exhaust.

4. Betjeningsvejledning

4.1 Tænd/sluk

1. Turn on the tank's power switch (usually located on the underside or rear).
2. Turn on the remote control's power switch. The remote and tank should automatically pair.

4.2 Kørekontroller

Use the joysticks on the remote control to maneuver the tank:

• Frem/tilbage: Skub begge joysticks fremad/bagud.
• Drejning: Push one joystick forward and the other backward to turn in place, or push one joystick more than the other to turn while moving.

4.3 Tårn- og tøndekontrol

• Tårnrotation: The turret can rotate 360 degrees. Use the designated controls on the remote (refer to remote diagram in separate manual) to rotate the turret left or right.
• Tøndehøjde: The main barrel can be controlled to move up and down by almost 30 degrees. Use the designated controls on the remote.

Figure 4: Tank turret rotation capability.

Figure 5: Tank barrel elevation.

4.4 BB-skydning

The tank can shoot 6mm BB pellets with a range of up to 20 meters. It features hull-recoil action and firing sound effects.

• Sørg for, at BB-kugler er isat (se afsnit 3.2).
• Aim the tank's barrel using the turret and elevation controls.
• Press the designated firing button on the remote control to shoot.

4.5 Infrarødt kampsystem

The tank is equipped with an infrared combating system, allowing multiple similar tanks to engage in combat without radio interference (2.4Ghz radio control system).

• Refer to the remote control's specific instructions for activating and utilizing the infrared combat features.

4.6 Officiel produktvideo

5. Vedligeholdelse

5.1 Generel rengøring

After each use, especially if operated outdoors, gently clean the tank to remove dirt, dust, and debris. Use a soft, dry cloth. Avoid using water or harsh chemicals, which can damage electronic components.

5.2 Track and Wheel Inspection

Regularly inspect the metal tracks, sprocket wheels, idler wheels, and full metal road wheels for any obstructions or damage. Clear any debris that may hinder smooth operation.

Figur 6: Detaljeret view of the tank's metal tracks and wheels.

5.3 Smoke Unit Care

To maintain the smoke function, ensure only one drop of smoke liquid is added at a time. Overfilling can lead to damage. If the smoke output decreases, ensure the unit is clean and has sufficient liquid.

6. Fejlfinding

• Tanken reagerer ikke:
  • Check if both the tank and remote control are powered on.
  • Ensure batteries in both the tank and remote are fully charged or replaced.
  • Verify that the remote control and tank are properly paired.
• BB Pellets Not Firing:
  • Confirm that BB pellets are loaded correctly and the hatch is closed.
  • Kontroller for eventuelle blokeringer i tønden.
• Røgenhed producerer ikke røg:
  • Ensure smoke liquid has been added (one drop only).
  • Verify the smoke unit is not damaged from overfilling.
• Interference During Operation:
  • The 2.4Ghz radio system is designed to minimize interference. If issues persist, try operating in a different location away from other electronic devices.

7. Specifikationer

8. Garanti og support

For maintenance services and technical guidance, Wheelfun RC Hobby provides a professional after-sales team and a technical maintenance team. Technicians can offer guidance in English through video or text for repairs.

If the item is damaged out of the box, a free replacement part can be resent. Please contact Wheelfun RC Hobby customer support for assistance.

For further inquiries or support, please visit the Wheelfun Store on Amazon.
