1. Introduktion
Thank you for choosing the Joy Pebble 1200W Oil Heater. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new heater. Please read it thoroughly before use and keep it for future reference.
This oil heater is designed to provide uniform and comfortable warmth throughout your room, making cold winters more pleasant. It features energy-saving functions, silent operation, and robust safety mechanisms for peace of mind.

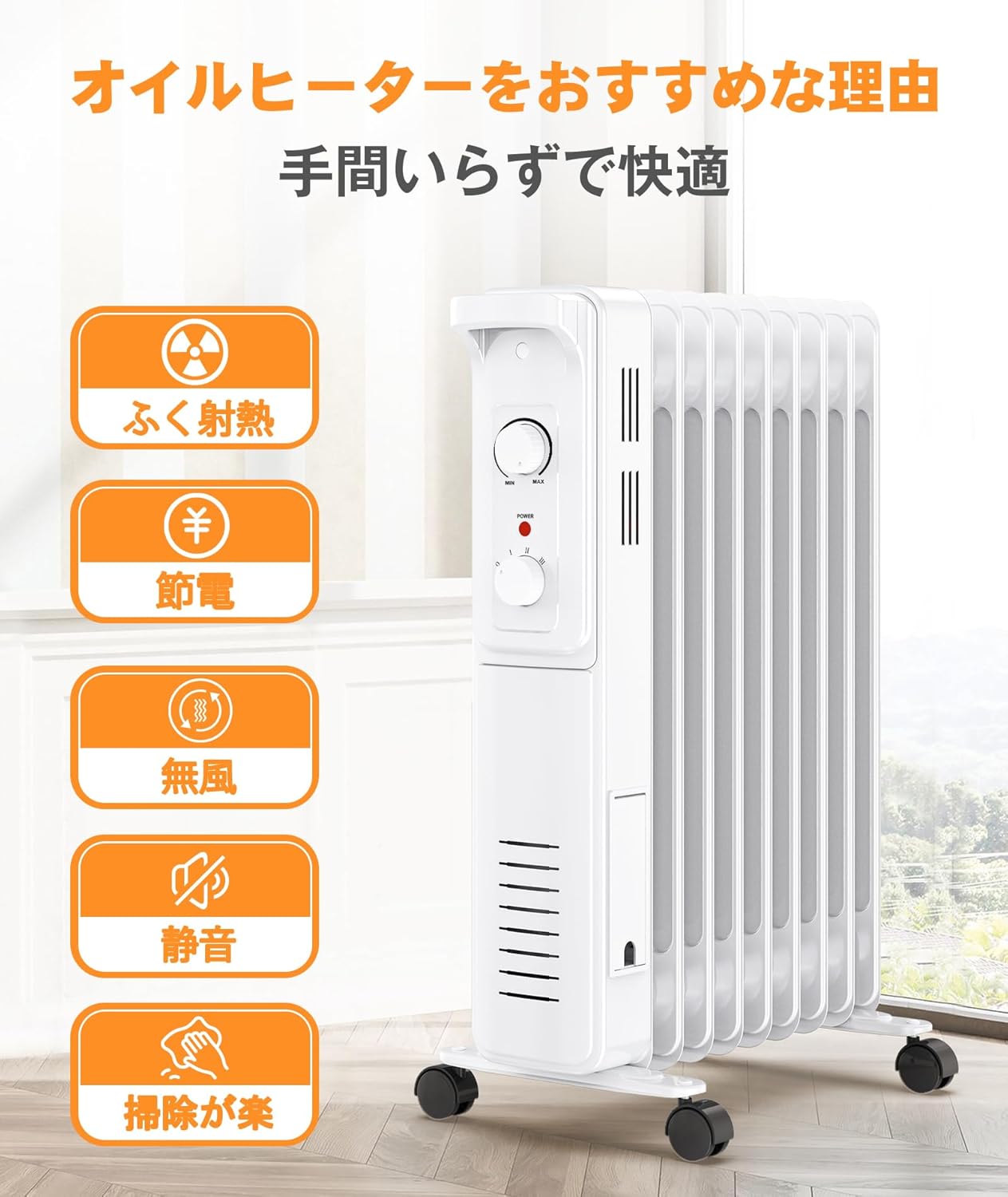

Billede: Overview of Joy Pebble Oil Heater benefits.
2. Vigtige sikkerhedsinstruktioner
Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød og personskade.
- Læs alle instruktioner, før du bruger denne varmeovn.
- Brug ikke varmeren i nærheden af vand eller i damp steder.
- Hold brandfarlige materialer mindst 0.9 meter væk fra forsiden, siderne og bagsiden af varmeapparatet.
- Indsæt eller lad ikke fremmedlegemer trænge ind i ventilations- eller udsugningsåbninger, da dette kan forårsage elektrisk stød eller brand eller beskadige varmeren.
- Tag altid stikket ud af varmeren, når den ikke er i brug.
Sikkerhedsfunktioner:
- Overophedningsbeskyttelse: The heater is equipped with an internal overheat prevention device that automatically shuts off the unit if it reaches an unsafe temperature.
- Beskyttelse mod væltning: In case of accidental impact or if the unit tilts, the heater will automatically stop operation to prevent hazards. This feature provides enhanced safety for households with children and pets.
Image: Automatic stop function for enhanced safety.
3. Produktkomponenter
Your Joy Pebble Oil Heater package includes the following components:
- Oil Heater Unit
- Hjul (4 stk.)
- Mounting Brackets for Casters (2 pieces)
- Wing Nuts and Bolts for Caster Assembly
- Instruktionsmanual
Image: Portable design with handle, casters, and cord storage.
4. Opsætning og montering
The caster wheels need to be attached to the main unit before first use. Follow these steps:
- Carefully turn the heater upside down on a soft, flat surface to avoid scratching.
- Align the caster mounting brackets with the holes on the bottom of the heater.
- Insert the bolts through the holes and secure them with the wing nuts. Ensure they are tightened firmly.
- Once both caster assemblies are securely attached, carefully turn the heater upright.
For en visuel vejledning, se venligst monteringsvideoen nedenfor:
Video: Step-by-step assembly of the Joy Pebble Oil Heater's caster wheels.
5. Betjeningsvejledning
Your Joy Pebble Oil Heater is designed for simple operation with intuitive dial controls.
Power On/Off and Temperature Adjustment:
- Plug the heater into a suitable 100V AC power outlet.
- Turn the upper dial (Temperature Control) clockwise from MIN to MAX to select your desired room temperature. The heater will automatically turn off when the set temperature is reached and turn back on when the temperature drops.
- Turn the lower dial (Power Mode) to select one of the three heating modes.
- To turn off the heater, turn both dials to their 'OFF' or 'MIN' positions and unplug the unit.
Valg af strømtilstande:
The heater offers three power output modes to suit different heating needs:
- Mode I (500W): Ideal for smaller spaces or maintaining warmth with minimal energy consumption.
- Mode II (700W): Provides moderate heat for general room warming and energy efficiency.
- Mode III (1200W): For rapid heating of larger rooms or when maximum warmth is desired.
Image: Temperature and power mode controls with energy-saving feature.
Image: Explanation of natural convection and radiant heat.
Image: Three power modes for different room sizes and heating needs.
Lydløs drift:
The Joy Pebble oil heater operates without a fan, ensuring silent heating. This creates a comfortable environment for sleeping, working, or any activity requiring concentration, without the disturbance of noise or dry air.
Image: Silent operation for peaceful sleep.
6. Vedligeholdelse og pleje
Regular cleaning will help maintain the efficiency and appearance of your oil heater.
- Tag altid stikket ud af stikkontakten, og lad varmelegemet køle helt af, inden rengøring.
- Wipe the exterior surfaces with a soft, dry cloth to remove dust and dirt. Do not use abrasive cleaners, waxes, or polishes.
- Nedsænk ikke varmelegemet i vand, og lad ikke vand dryppe ind i varmelegemets indre.
- The oil inside the heater is permanently sealed and never needs refilling or replacement.
- Store the heater in a cool, dry place when not in use. Utilize the integrated cord holder for neat storage of the power cord.
Image: Easy cleaning with a dry cloth.
7. Fejlfinding
If your heater is not operating correctly, please check the following common issues before contacting support:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Varmeapparatet tænder ikke. | Not plugged in; power outlet malfunction; temperature dial set too low; power mode not selected. | Ensure the heater is securely plugged into a working outlet. Turn the temperature dial to a higher setting. Select a power mode (I, II, or III). |
| Varmeapparatet slukker uventet. | Overheat protection activated; tip-over switch activated; room temperature reached set point. | Unplug the heater, allow it to cool down, and check for obstructions. Ensure the heater is on a stable, level surface. The heater will automatically resume operation if the room temperature drops below the set point. |
| Utilstrækkelig opvarmning. | Power mode set too low; room size too large for selected mode; drafts. | Increase the power mode setting. Ensure windows and doors are closed to minimize heat loss. Allow sufficient time for the room to warm up, as oil heaters provide gradual, consistent heat. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Fabrikant | Joy Pebble |
| Modelnummer | JPU6343 |
| Strømudgang | 1200 W (maks.) |
| Strømtilstande | 500 W / 700 W / 1200 W |
| Voltage | 100 volt (AC) |
| Farve | Hvid |
| Dimensioner (samlet) | 64 x 44 x 24 cm (ca.) |
| Bærbarhed | Caster wheels, Integrated handle, Cord holder |
| Sikkerhedsfunktioner | Overheat protection, Tip-over auto-off |
| Indendørs/Udendørs brug | Indendørs |
9. Garanti og support
The Joy Pebble Oil Heater comes with a one-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.
For technical support, warranty inquiries, or any questions not covered in this manual, please contact Joy Pebble customer service through the retailer where you purchased the product or visit the official Joy Pebble webwebsted for kontaktoplysninger.
