EWA A110 Portable Bluetooth Speaker User Manual

1. Introduktion

Thank you for choosing the EWA A110 Portable Bluetooth Speaker. This compact and versatile speaker is designed to deliver powerful sound with deep bass, featuring a unique camera-inspired design and a built-in flashlight. It supports Bluetooth 5.0 for stable wireless connection and includes a TF card slot for expanded music playback options. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your device.

Image: The EWA A110 Portable Bluetooth Speaker in GrayWhite, showcasing its compact, square design with a speaker grille resembling a camera lens and a small flashlight on the top left corner. A lanyard is attached for portability.

2. Hvad er der i æsken

Kontroller venligst pakkens indhold for at sikre, at alle varer er til stede:

• 1 x EWA A110 Small Bluetooth Speaker
• 1 x Micro USB-kabel
• 1 x brugermanual

Image: The EWA A110 speaker visible through the clear plastic front of its retail packaging, indicating the product as a "Wireless Speaker A110".

3. Produktet er slutview

3.1 Nøglefunktioner

• Kraftig lyd: Equipped with a 5W high-performance driver and passive subwoofer for rich, loud, and deep sound without distortion.
• Kompakt design: Small and portable, measuring approximately 2.75"D x 2.23"W x 2.75"H.
• Bluetooth 5.0: Sikrer stabil og effektiv trådløs forbindelse.
• Indbygget lommelygte: Unique design feature for added utility.
• TF-kortunderstøttelse: Afspil musik direkte fra et TF-kort (MicroSD).
• Lang spilletid: Op til 12 timers batterilevetid.

3.2 Visual Features and Design

Image: The EWA A110 speaker from the side, highlighting its powerful sound capabilities with a metallic-looking passive subwoofer and blue light effect, emphasizing its compact body and 5W driver.

Image: The EWA A110 speaker hanging from a bicycle handlebar by its lanyard, illustrating its portable design and ease of carrying for outdoor use.

Image: The EWA A110 speaker placed inside a washing machine drum, emphasizing its stylish camera-like appearance and compact size.

Image: The EWA A110 speaker on a desk in a dimly lit room, with its flashlight illuminated, demonstrating its unique flashlight design feature.

3.3 Produktdemonstrationsvideo

4. Opsætning

4.1 Opladning af højttaleren

Before first use, fully charge the speaker. Connect the micro USB cable to the charging port on the speaker and the other end to a USB power adapter (not included) or a computer's USB port. The indicator light will show charging status and turn off when fully charged.

4.2 Bluetooth -parring

1. Tænd: Long press the ON/OFF button (usually the play/pause button) until you hear a power-on prompt and the indicator light flashes, indicating it's in pairing mode.
2. Aktiver Bluetooth: On your smartphone or tablet, go to Bluetooth settings and turn on Bluetooth.
3. Vælg enhed: Look for "EWA A110" in the list of available devices and select it to pair.
4. Tilslutningsbekræftelse: Once successfully paired, you will hear a confirmation sound, and the indicator light will stop flashing and remain solid.

Image: A person holding a smartphone next to the EWA A110 speaker, with a Bluetooth icon and text "Advanced Bluetooth 5.0" indicating stable and efficient wireless connection.

5. Betjeningsvejledning

5.1 Control Button Functions

Image: A diagram illustrating the control buttons and ports on the EWA A110 speaker. It labels the ON/OFF/Play/Pause/Flashlight button, Next Track/Volume+ button, Previous Track/Volume- button, Flashlight, Charging Port, Indicator, and TF Card Port.

• 1. ON/OFF / Play/Pause / Flashlight Button:
  • Tænd/sluk: Langt tryk.
  • Afspil/pause: Press once during music playback.
  • Lommelygte: Press twice to turn on/off the flashlight.
• 2. Next Track / Volume + Button:
  • Næste nummer: Tryk én gang.
  • Volumen +: Tryk længe for at øge lydstyrken.
• 3. Previous Track / Volume - Button:
  • Forrige nummer: Tryk én gang.
  • Lydstyrke -: Tryk længe for at sænke lydstyrken.
• 4. Flashlight: The LED light located on the top left corner.
• 5. Opladningsport: Micro USB input for charging.
• 6. Indikator: LED light indicating power, charging, and Bluetooth status.
• 7. TF Card Port: Slot for inserting a TF (MicroSD) card for direct music playback.

5.2 TF-kortafspilning

Indsæt et TF-kort (MicroSD) med MP3-lyd files into the TF Card Port. The speaker will automatically switch to TF card playback mode. Use the track control buttons to navigate through your music.

6. Vedligeholdelse

• Keep the speaker away from extreme temperatures, direct sunlight, and moisture.
• Rengør højttaleren med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Undgå at tabe eller udsætte højttaleren for kraftige stød.
• Opbevar højttaleren et køligt og tørt sted, når den ikke er i brug i længere perioder.
• This product is not waterproof. Avoid exposure to water or rain.

7. Fejlfinding

8. Specifikationer

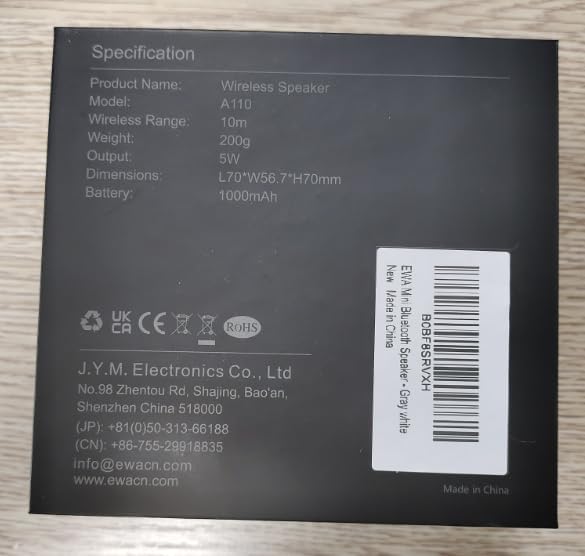

Image: The back of the EWA A110 speaker's packaging, displaying detailed specifications such as product name, model, wireless range, weight, output, dimensions, and battery capacity.

9. Garanti og support

The EWA A110 Portable Bluetooth Speaker comes with a Begrænset garanti. For detailed warranty terms and conditions, please refer to the warranty card included in your package or visit the official EWA webwebsted.

For technical support, troubleshooting assistance, or any inquiries regarding your product, please contact EWA customer service. You can find contact information on the official EWA webhjemmeside eller gennem den forhandler, hvor du købte produktet.
