1. Sikkerhedsoplysninger
Read all instructions carefully before assembly and use of the Lorelli Twin Twin Double Stroller. Failure to follow these instructions could result in serious injury to your child.
- Always use the 5-point safety harness to secure your child in the stroller.
- Efterlad aldrig børn uden opsyn i klapvognen.
- Sørg for, at alle låseanordninger er aktiveret før brug.
- Do not overload the storage basket or hang bags on the handle, as this can cause the stroller to become unstable.
- The stroller is designed for two children. Do not exceed the maximum recommended weight of 15 kg per child (total 30 kg).
- Avoid placing hot liquids or heavy objects in the cup holders.
- Keep children clear of moving parts during adjustment or folding.
- Regularly check the stroller for loose parts, damaged components, or worn fabric. Discontinue use if any damage is found.
- This stroller is not suitable for children under 6 months without appropriate accessories.
2. Pakkens indhold
Kontroller, at alle komponenter er til stede, før monteringen påbegyndes:
- Barnevognsstel
- 2 Seat Units with Canopies
- 4 Wheels (2 front swiveling, 2 rear)
- 2 Footcovers
- 1 Shopping Basket (integrated)
- 1 Organizer Bag
- Instruktionsmanual (dette dokument)
3. Opsætning og montering
3.1. Unfolding the Stroller Frame
Carefully remove the stroller frame from its packaging. Release any transport locks and unfold the frame until it clicks securely into place. Ensure all frame joints are locked before proceeding.
Image: Stroller frame and components laid out for assembly.
3.2. Montering af hjulene
Attach the front wheels by inserting their shafts into the designated slots on the front legs of the stroller frame until they click. Repeat for the rear wheels. Ensure all wheels are securely attached and rotate freely.

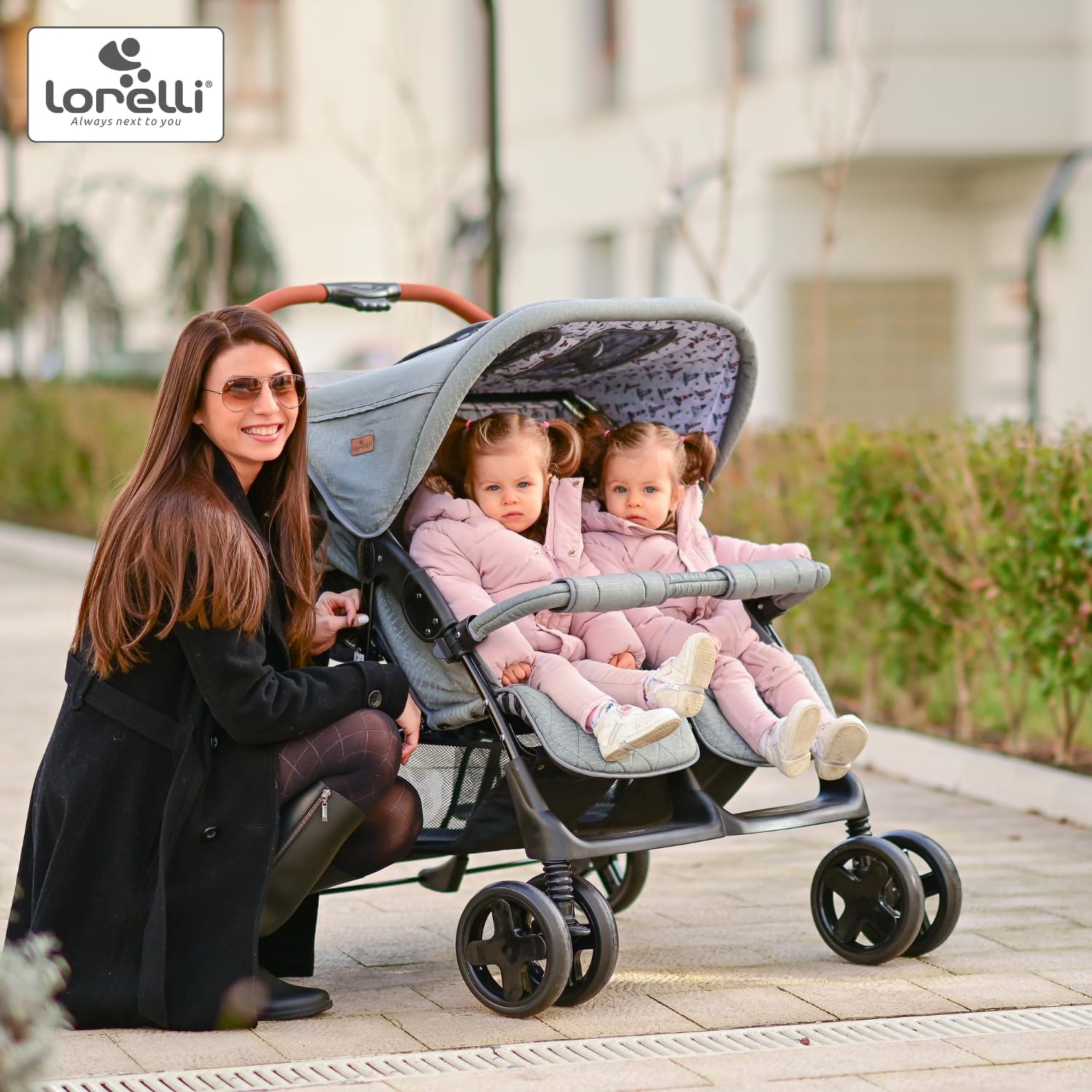

Image: Swiveling front wheels for enhanced maneuverability.
3.3. Installing the Seat Units
Align each seat unit with the attachment points on the stroller frame. Press down firmly until each seat unit locks into place. Verify that both seats are securely fastened before placing children in them.
Image: Fully assembled Lorelli Twin Twin Double Stroller.
3.4. Montering af tilbehør
Attach the footcovers to the bottom of each seat unit. The organizer bag can be hung on the stroller handle for convenience.

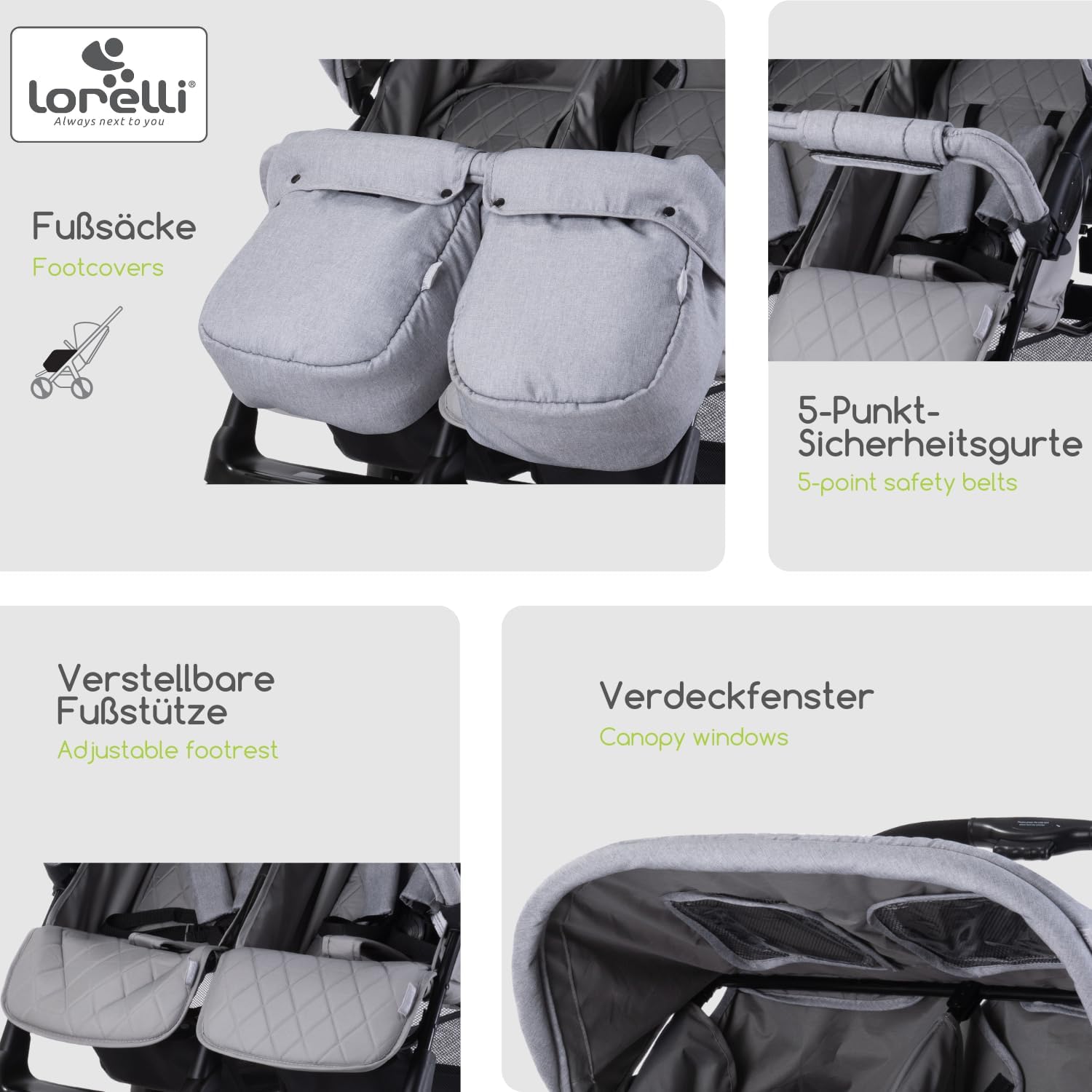

Image: Footcovers attached to the seat units.
Image: Organizer bag for storing essentials.
4. Betjeningsvejledning
4.1. Securing Your Child with the 5-Point Harness
Place your child in the seat. Bring the shoulder straps over the child's shoulders and the waist straps around their waist. Connect the buckles and adjust the straps for a snug, secure fit. Ensure the harness is not twisted.
Image: Detail of the 5-point safety harness.
4.2. Adjusting the Backrest and Footrest
The backrests can be adjusted independently to multiple recline positions by pressing the levers on the sides of each seat. The footrests can also be adjusted for your child's comfort.
Image: Adjustable backrest for customized comfort.
4.3. Using the Canopies
Each seat has an independent canopy that can be extended or retracted to provide shade and protection from the elements. The canopies are foldable for compact storage.

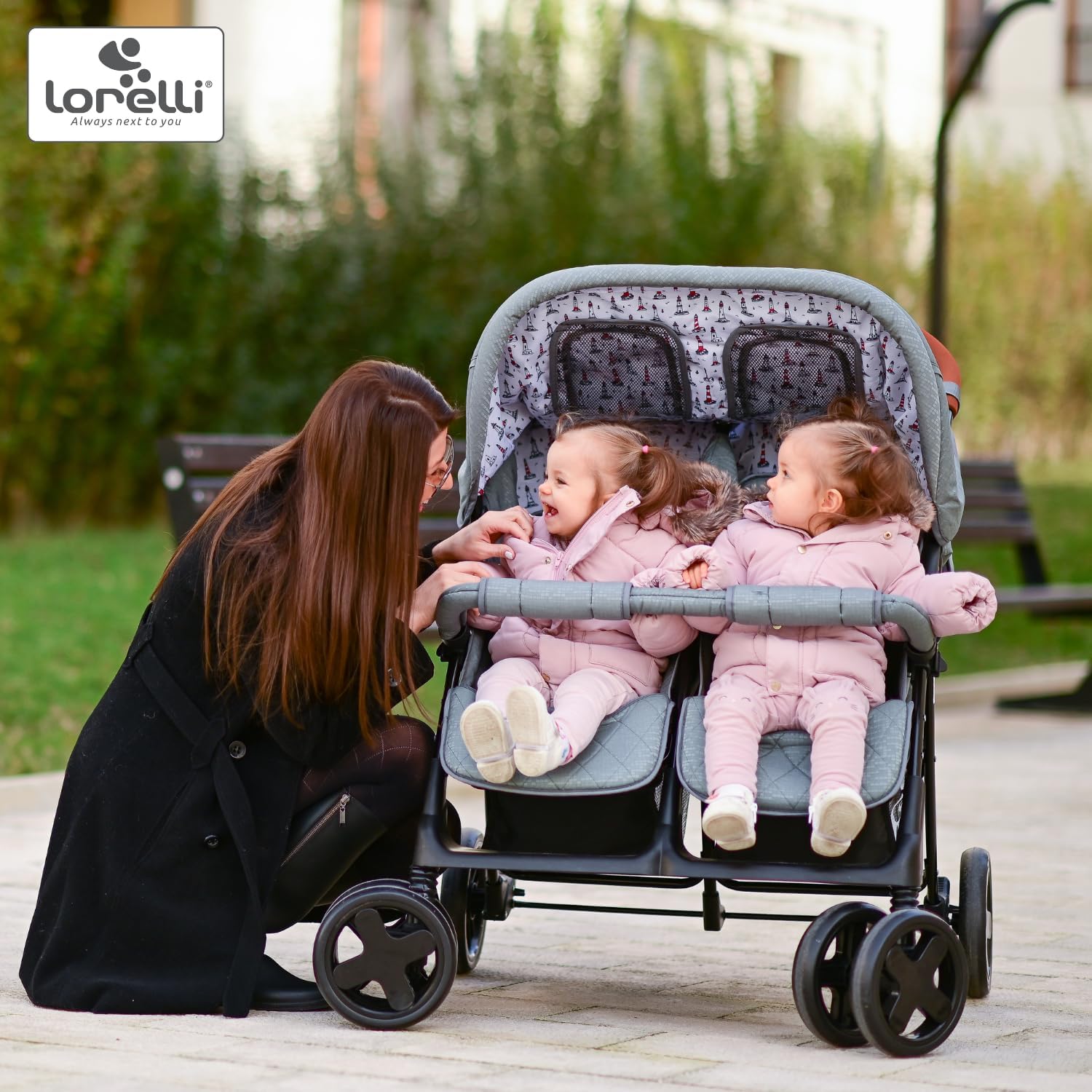

Image: Foldable canopy for sun and wind protection.
4.4. Aktivering af bremserne
To engage the brakes, press down firmly on the brake pedal located near the rear wheels. Ensure the stroller is stationary before releasing your grip. To release, lift the brake pedal.
4.5. Folding the Stroller (One-Hand Folding System)
The Lorelli Twin Twin features a one-hand folding system for convenience. Locate the folding mechanism (usually on the handle or frame) and follow the specific instructions in the quick start guide or product video for your model. Ensure children are clear of the stroller before folding.
5. Vedligeholdelse
- Rensning: The fabric parts of the stroller can be cleaned with a damp cloth and mild soap. Do not use harsh detergents or bleach. The frame can be wiped clean with a soft, damp klæde.
- Hjul: Regularly check the wheels for debris and ensure they rotate smoothly. Lubricate axles if necessary.
- Opbevaring: Opbevar klapvognen et tørt, køligt sted væk fra direkte sollys for at forhindre falmning og materialeforringelse.
- Inspektion: Periodically inspect all fasteners, rivets, and moving parts to ensure they are secure and functioning correctly.
6. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Barnevognen folder sig ikke jævnt ud/ud. | Låsemekanismerne er aktiveret, eller der er snavs i vejen for bevægelsen. | Ensure all locks are disengaged. Clear any obstructions. Lubricate moving parts if needed. |
| Hjulene er stive eller knirkende. | Dirt or debris in the wheel mechanism, lack of lubrication. | Rengør hjul og aksler. Påfør et silikonebaseret smøremiddel. |
| Barnevognen trækkes til den ene side. | Uneven weight distribution, bent wheel axle, or locked swivel wheel. | Distribute weight evenly. Check for bent axles. Ensure swivel wheels are unlocked if desired. |
| Selen er svær at spænde/afspænde. | Debris in the buckle, or mechanism is stiff. | Clean the buckle mechanism. Avoid forcing it. |
7. Specifikationer
- Produktdimensioner: 88 x 81 x 106 cm
- Varens vægt: 14.7 kg
- Fabrikant: Lorelli
- Modelnummer: 10020072386
- Farve: Grå/sort
- Materiale: Polyester, Metal
- Rammemateriale: Metal
- Aldersinterval (beskrivelse): Barn
- Seletype: 5 point
- Recommended Maximum Weight: 30 kg (15 kg per child)
- Foldet størrelse: 93 cm (L) x 43 cm (B) x 106 cm (H)
- Barnevognstype: Standard klapvogn
- Stoftype: 100% polyester
- Materiale til baldakin: 100% polyester
- Sæde Materiale: Polyester
- Hjul materiale: Gummi
- Installationstype: Sammenfoldelig
- Kompatibel med bilsæde: Ingen
- Harness Feature: Justerbare stropper
- Seat Capacity: 2
- Særlige funktioner: One-hand folding system
- Integreret Lamp: Ingen
- Antal hjul: 4
- Buggy Brake System: Ja
- Inkluderede komponenter: Shopping basket, organizer bag
8. Garanti og support
For warranty information, please refer to the documentation provided with your purchase or contact Lorelli customer support directly. Keep your proof of purchase for any warranty claims.
For further assistance, technical support, or to order replacement parts, please visit the official Lorelli webwebsted eller kontakt deres kundeserviceafdeling.
