ALLPOWERS S1500 PLUS bærbar kraftstation brugermanual

1. Introduktion

Thank you for choosing the ALLPOWERS S1500 PLUS Portable Power Station. This device is designed to provide reliable and versatile power for various applications, from outdoor adventures and camping to emergency home backup. Its compact and lightweight design, combined with high power output and multiple charging options, makes it an essential tool for modern power needs. Please read this manual thoroughly before use to ensure safe and optimal operation.

Figure 1.1: ALLPOWERS S1500 PLUS Portable Power Station main unit.

2. Produktet er slutview

2.1. Komponenter og funktioner

The ALLPOWERS S1500 PLUS is equipped with a variety of ports and features to meet diverse power requirements:

• AC-udgang: Four AC outlets (100V, 1500W rated, 3000W surge) with pure sine wave output, suitable for most household appliances.
• USB-C porte: Two USB-C ports (PD100W) for fast charging of compatible devices.
• USB-A porte: Two USB-A ports (Max 18W x2) for standard USB charging.
• DC5525 udgang: One DC5525 port (Max 12V/5A) for DC-powered devices.
• Cigarettænderstik: One 12V/10A cigarette lighter output port.
• Stor kapacitet: 1092Wh (approx. 295,200mAh) battery for extended power supply.
• Letvægtsdesign: Weighs approximately 10kg with dimensions of 32x22x19cm, making it highly portable.
• Stille drift: Operates at a low noise level of 43dB, comparable to a library environment.
• UPS funktion: Features a 15ms Uninterruptible Power Supply (UPS) function for seamless power transition during outages.
• BMS System: Integrated Battery Management System for comprehensive protection.
• LED lys: Built-in LED light for illumination in dark environments or emergencies.

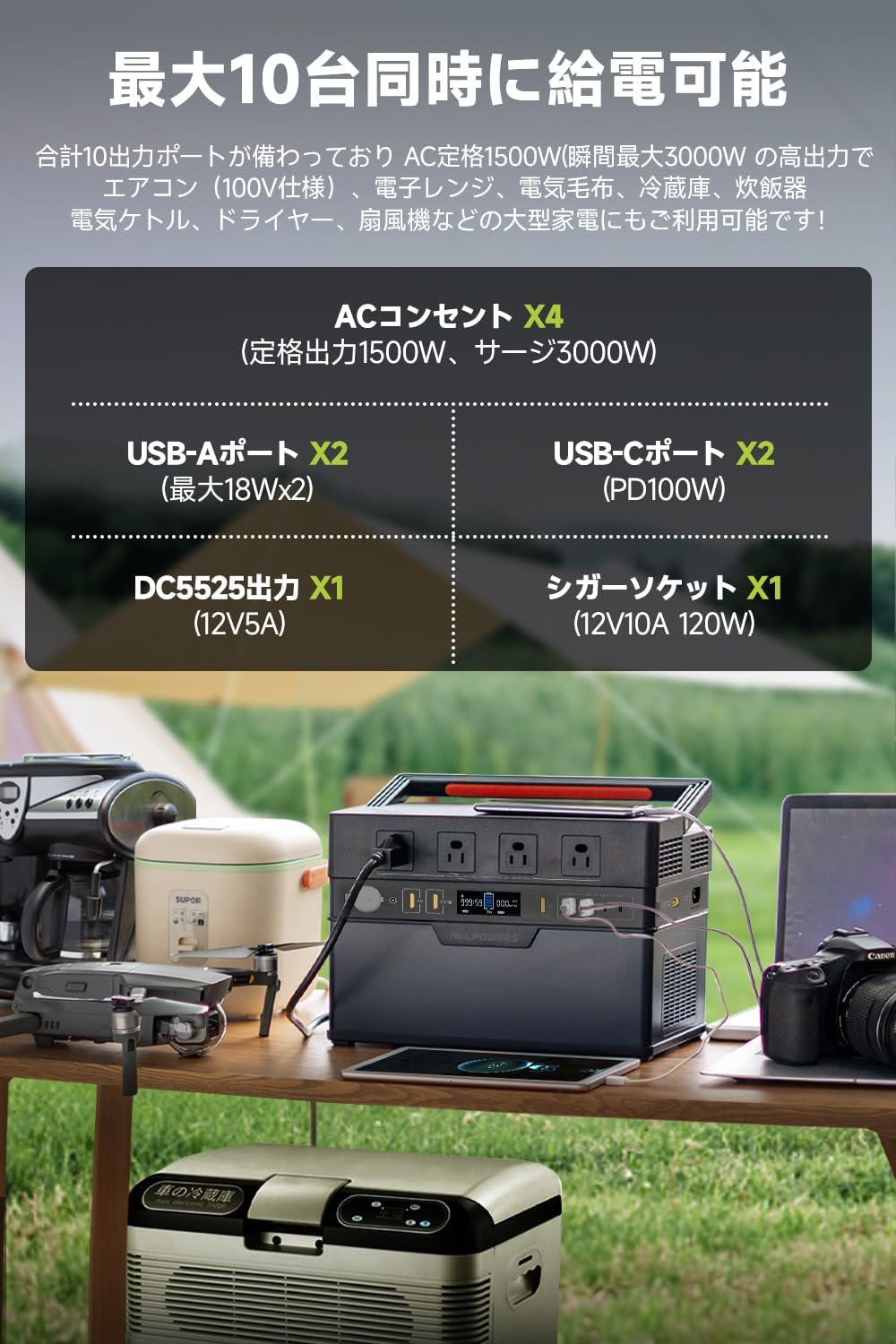

Figure 2.1: The S1500 PLUS can power up to 10 devices simultaneously.

Figure 2.2: Quiet operation at 43dB, suitable for indoor use.

3. Opsætning

3.1. Oprindelig opkrævning

Before first use, it is recommended to fully charge the ALLPOWERS S1500 PLUS. Connect the provided AC charging cable to the AC input port on the power station and then to a wall outlet. The display will show the charging status. A full charge typically takes about 1.2 hours using AC input.

3.2. Tænd/sluk

To power on the unit, press and hold the main power button for a few seconds until the display illuminates. To power off, press and hold the same button until the display turns off.

4. Betjeningsvejledning

4.1. Brug af AC-udgang

Press the AC power button to enable the AC outlets. Plug your appliances into the AC ports. Ensure the total power consumption does not exceed 1500W (or 3000W surge). The pure sine wave output ensures compatibility with sensitive electronics.

4.2. Brug af USB- og DC-udgange

The USB-C, USB-A, and DC5525 ports are typically active when the unit is powered on. Simply connect your devices to the appropriate ports for charging or power supply.

4.3. LED-lysets betjening

The LED light located on the back of the unit can be activated by pressing its dedicated button. Multiple presses may cycle through different lighting modes (e.g., steady, SOS). This feature is useful for emergency lighting or general illumination.

Figure 4.1: The integrated LED light provides convenient illumination.

5. Opladningsmetoder

The ALLPOWERS S1500 PLUS offers versatile charging options:

• AC vægudtag: Connect the included AC charging cable to a standard wall outlet. Supports up to 1000W input for a full charge in approximately 1.2 hours.
• Solpanel: Connect compatible solar panels (MPPT up to 650W) for eco-friendly charging. Charging time varies based on sunlight intensity and panel wattage.
• Biloplader: Use the car charging cable to charge from your vehicle's 12V/24V cigarette lighter socket (Max 100W).
• Dobbelt opladning: Combine AC input with solar or car charging for faster recharge times, up to a total of 1000W input, allowing a full charge in as little as 1.2 hours.

Figure 5.1: Multiple charging options for flexibility.

6. Appkontrol

The ALLPOWERS S1500 PLUS can be conveniently controlled and monitored via the ALLPOWERS mobile application, available for both iOS and Android devices. Connect your power station via Bluetooth to access features such as:

• Monitoring battery remaining capacity.
• Checking input and output power.
• Estimating remaining usage time.
• Turning AC, DC, and USB outputs on/off.
• Switching AC output frequency between 50Hz and 60Hz.
• Controlling the LED light.

Figure 6.1: Remote control and monitoring through the ALLPOWERS app.

7. Sikkerhedsfunktioner

The ALLPOWERS S1500 PLUS incorporates advanced safety mechanisms to ensure reliable and secure operation:

• Batteristyringssystem (BMS): An intelligent BMS protects against various issues, including:
• Overtemperaturbeskyttelse
• Overopladningsbeskyttelse
• Overbelastningsbeskyttelse
• Kortslutningsbeskyttelse
• Overstrømsbeskyttelse
• Lav voltage beskyttelse
• Pure Sine Wave Output: Provides clean and stable AC power, preventing damage to sensitive electronics.
• UPS funktion: The 15ms Uninterruptible Power Supply (UPS) feature automatically switches to battery power in case of a grid outage, protecting connected devices like computers from data loss.

Figure 7.1: Advanced BMS for comprehensive battery protection.

Figure 7.2: Pure Sine Wave output ensures stable power for all devices.

8. Ansøgninger

The ALLPOWERS S1500 PLUS is versatile and can be used in various scenarios:

• Udendørs aktiviteter: Ideel til camping, RV trips, picnics, and other outdoor adventures, powering lights, small appliances, and electronic devices.
• Nødbackup: Giver essentiel kraft under outtages for critical home appliances like refrigerators, lights, and communication devices.
• Telework/Workcation: Ensures you have power for laptops, monitors, and other office equipment wherever you are.
• Daglig brug: Can be used for power saving by running certain appliances off the power station during peak hours.

Figure 8.1: Powering outdoor activities with the S1500 PLUS.

Figure 8.2: Seamless power transition for sensitive electronics with UPS function.

9. Vedligeholdelse

To ensure the longevity and optimal performance of your ALLPOWERS S1500 PLUS, follow these maintenance guidelines:

• Opbevaring: Store the unit in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the battery to 50-80% every 3-6 months to prevent deep discharge.
• Rensning: Use a soft, dry cloth to clean the exterior of the unit. Do not use abrasive cleaners or solvents. Keep ventilation openings clear of dust and debris.
• Undgå vand: Do not expose the unit to water or high humidity.
• Håndteres med forsigtighed: Undgå at tabe enheden eller udsætte den for kraftige stød.

10. Fejlfinding

If you encounter any issues with your ALLPOWERS S1500 PLUS, please refer to the following common troubleshooting tips:

• Enheden tænder ikke: Ensure the battery is charged. If completely discharged, connect to AC power for a few minutes before attempting to power on.
• Ingen output fra porte: Check if the respective output (AC, USB, DC) is enabled by pressing its button. Ensure the device you are trying to power is within the unit's power limits.
• Overbelastningsbeskyttelse aktiveret: If the unit shuts down due to overload, disconnect some devices and restart the unit. Reduce the total power draw.
• Problemer med appforbindelse: Ensure Bluetooth is enabled on your smartphone and the power station. Try restarting both devices.

For persistent issues or technical support, please contact ALLPOWERS customer service.

11. Specifikationer

Figur 11.1: Produktdimensioner for nem reference.

12. Garanti og support

The ALLPOWERS S1500 PLUS comes with a 2+3 års garanti, providing a total of 5 years of coverage. While no electronic device is immune to issues, ALLPOWERS is committed to providing excellent after-sales service for product malfunctions or troubles.

Our customer service team aims to respond within 24 hours (excluding holidays). Domestic repair services are available in Japan.

For any inquiries or support, please contact ALLPOWERS customer service through the official channels.

13. Pakkens indhold

Når du åbner pakken, skal du kontrollere, at alle følgende varer er inkluderet:

• ALLPOWERS S1500 PLUS Portable Power Station Main Unit
• AC-opladerkabel
• Japanese Instruction Manual

Figure 13.1: Included items in the ALLPOWERS S1500 PLUS package.
