1. Produktet er slutview
This remote control is designed to operate various air conditioner units, including those from Midea, Ecox, and KORYO, as well as specific compatible models. It provides full functionality for controlling temperature, mode, fan speed, and other features of your air conditioning system.

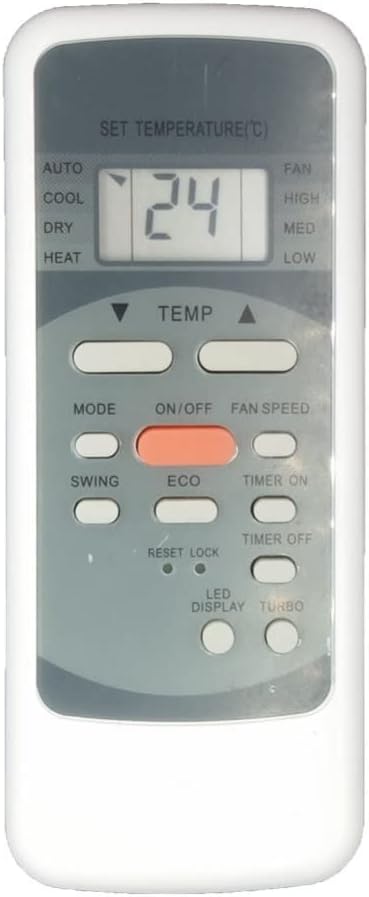

Billede: Forside view of the remote control, showing the display and various control buttons.
2. Opsætning og batteriinstallation
2.1 Batterikrav
- The remote control requires two (2) AAA batteries (not included).
- Ensure to use new, high-quality batteries for optimal performance.
2.2 Installationstrin
- Find batterirummet på bagsiden af fjernbetjeningen.
- Skub batteridækslet nedad, eller tryk på låsen for at åbne det.
- Insert the two AAA batteries, ensuring the positive (+) and negative (-) ends align correctly with the markings inside the compartment.
- Luk batteridækslet ordentligt, indtil det klikker på plads.

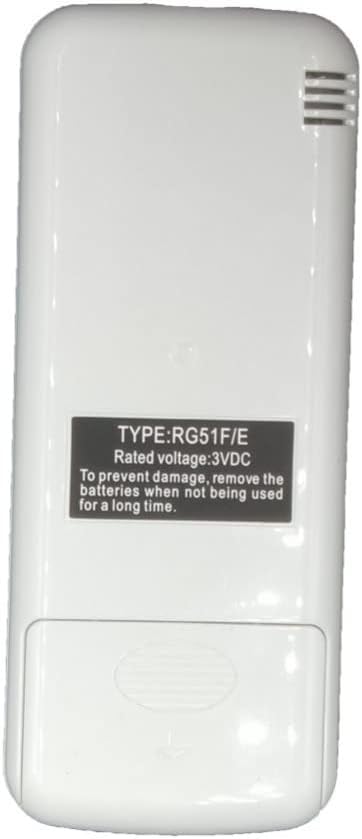

Billede: Bagside view of the remote control, showing the battery compartment and product label.
3. Betjeningsvejledning
Point the remote control directly at the air conditioner unit's receiver when pressing buttons. Ensure there are no obstructions between the remote and the unit.
3.1 Knapfunktioner
| Knap | Fungere |
|---|---|
| ON/OFF | Powers the air conditioner unit on or off. |
| MODE | Skifter mellem driftstilstande: AUTO, KØLING, TØRRING, VARME. |
| TEMP ▲/▼ | Adjusts the desired temperature setting up or down. |
| BLÆSERHASTIGHED | Cycles through fan speeds: HIGH, MED (Medium), LOW, or AUTO. |
| SWING | Controls the vertical swing of the air conditioner's louvers. |
| ØKO | Activates or deactivates the energy-saving mode. |
| TIMER TIL | Sets a timer for the air conditioner to automatically turn on. |
| TIMER FRA | Sets a timer for the air conditioner to automatically turn off. |
| RESET/LOCK | Used to reset settings or lock the remote's buttons to prevent accidental changes. |
| LED DISPLAY | Slår LED-displayet på klimaanlægget til eller fra. |
| TURBO | Aktiverer hurtig afkøling eller opvarmning for hurtig temperaturjustering. |
Billede: Vinklet view på fjernbetjeningen, hvilket fremhæver knaplayoutet.
4. Vedligeholdelse
4.1 Udskiftning af batteri
Replace batteries when the remote's range decreases or the display becomes dim. Always replace both batteries at the same time. Dispose of used batteries according to local regulations.
4.2 Rengøring af fjernbetjeningen
Tør fjernbetjeningen af med en blød, tør klud. Brug ikke flydende rengøringsmidler eller slibende materialer, da de kan beskadige fjernbetjeningens overflade eller interne komponenter.
5. Fejlfinding
If your remote control is not functioning as expected, please refer to the following common issues and solutions:
- Remote is not working:
- Kontroller, om batterierne er korrekt installeret med den korrekte polaritet (+/-).
- Replace old batteries with new ones. Sometimes, rolling the batteries inside the compartment can improve connection if springs are loose.
- Ensure there are no obstructions between the remote and the air conditioner's infrared receiver.
- Remote is not responding to the unit:
- Verify that the remote control is compatible with your specific air conditioner model. Refer to the 'Compatible Air Conditioner Models' section.
- This remote typically does not require programming. If you suspect it needs pairing, consult your air conditioner's original manual.
- Begrænset rækkevidde eller intermitterende respons:
- This could indicate low battery power. Replace the batteries.
- Ensure you are within the effective operating range of the air conditioner's IR receiver.
6. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnumre | RG51F/E, RG51F2/BGEF, RG51F3/BGEF |
| Mærke | Generisk |
| Trådløs kommunikation | Infrarød (IR) |
| Controller type | Knap kontrol |
| Maks. antal understøttede enheder | 1 (One air conditioner unit) |
| Farve | RG51F3 BGEF (as per product variant) |
| Nominel voltage | 3VDC |
7. Compatible Air Conditioner Models
This remote control is compatible with various air conditioner models, including but not limited to:
- Midea Air Conditioners
- Ecox Air Conditioners
- KORYO Air Conditioners
- Edem009c18b
- Edem012c18b
- Edem012c18a
- Edem018c18b
- Edem024c18b
- Edem036h18b
- Edem030h18b
If your specific model is not listed, please compare your original remote with the images provided or consult the product listing for further compatibility details.
8. Garanti og support
Specific warranty information is not provided with this manual. For any issues, questions, or support regarding your remote control, please contact the seller or manufacturer directly through your purchase platform. Ensure to provide your order details and the product model number for efficient assistance.
