Generisk CHF100A-015G/018P-4 VFD-inverter brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Generic CHF100A-015G/018P-4 Variable Frequency Drive (VFD) Inverter. This VFD is designed for controlling the speed and torque of AC induction motors, offering precise control and energy efficiency for various industrial applications. Please read this manual thoroughly before using the product to ensure proper functionality and safety.

2. Sikkerhedsoplysninger

WARNING: Failure to follow these safety instructions may result in serious injury, electric shock, or equipment damage.

• Fare for elektrisk stød: Denne enhed fungerer ved høj voltages. Ensure all power is disconnected before installation, inspection, or maintenance.
• Kondensatorafladning: DC bus capacitors retain a high voltage charge even after power is disconnected. Wait at least 10 minutes after power-off for capacitors to discharge before touching any internal components. Verify voltage med et multimeter.
• Korrekt jording: Always ensure the VFD is properly grounded according to local and national electrical codes to prevent electric shock.
• Kvalificeret personale: Installation, wiring, and maintenance should only be performed by qualified electrical personnel familiar with VFDs and electrical safety procedures.
• Miljøforhold: Do not expose the VFD to moisture, corrosive gases, flammable materials, or extreme temperatures.
• Sikker montering: Mount the VFD securely in a suitable enclosure to prevent accidental contact and ensure proper ventilation.

3. Produktet er slutview

The Generic CHF100A-015G/018P-4 VFD Inverter is a robust unit designed for industrial motor control. It features a user-friendly control panel for easy operation and monitoring.

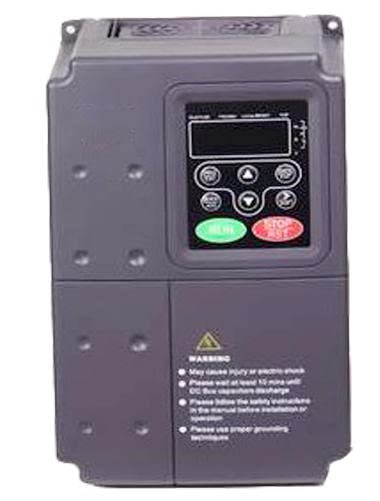

Figur 3.1: Forside view of the Generic CHF100A-015G/018P-4 VFD Inverter. The image displays the gray-colored VFD unit, featuring a black control panel with a digital display and several buttons (green 'RUN', red 'STOP/RESET', and directional/function buttons). Below the control panel, a yellow triangular warning symbol is visible, followed by a list of safety precautions.

3.1 Nøglefunktioner

• Input bindtage: 380V
• Power Output: 15.0KW (015G) / 18.5KW (018P)
• Current Rating: 35A (015G) / 38A (018P)
• Integrated control panel with digital display
• Variable frequency output for precise motor speed control

3.2 Komponenter

• Hovedenhed: The VFD enclosure containing power electronics and control circuitry.
• Kontrolpanel: Front-mounted interface for parameter setting, monitoring, and manual operation. Includes a digital display, function buttons, and RUN/STOP buttons.
• Klemmeblok: Located internally or on the bottom/side for power input, motor output, control signals, and grounding connections.
• Køleventilator: Sikrer korrekt varmeafledning under drift.

4. Opsætning

Careful installation is crucial for the VFD's performance and longevity. Refer to the wiring diagrams provided with your specific unit for detailed connection instructions.

4.1 Montering

• Mount the VFD vertically on a flat, non-flammable surface within a suitable electrical enclosure.
• Ensure adequate clearance (minimum 10 cm) around the VFD for proper ventilation and heat dissipation.
• Avoid mounting near heat sources or in direct sunlight.

4.2 Ledningsføring

• Strømtilførsel (R, S, T): Connect the 380V AC power supply to the designated input terminals. Use appropriate circuit breakers or fuses for protection.
• Motoreffekt (U, V, W): Connect the motor leads to the VFD output terminals. Ensure correct phase sequence.
• Jordforbindelse (PE): Connect the VFD's grounding terminal to a reliable earth ground. The motor frame must also be properly grounded.
• Styreledninger: Connect external control signals (e.g., start/stop, speed reference, fault relays) to the control terminals as per your application requirements. Use shielded cables for control signals to minimize interference.

4.3 Indledende opstart

• Before applying power, double-check all wiring connections for correctness and tightness.
• Ensure no tools or foreign objects are inside the VFD or motor.
• Apply power to the VFD. The control panel display should illuminate.
• Perform basic parameter settings as required for your motor and application (e.g., motor rated voltage, current, frequency, acceleration/deceleration times). Refer to the detailed parameter list in the full manual.

5. Betjeningsvejledning

This section outlines basic operation using the VFD's control panel.

5.1 Kontrolpanel overview

• Vise: Shows operating status, frequency, current, voltage og parameterværdier.
• RUN Button (Green): Starter motordrift.
• STOP/RESET Button (Red): Stops motor operation or clears fault indications.
• Retningsknapper (op/ned/venstre/højre): Bruges til at navigere i menuer og justere parameterværdier.
• Function/Enter Button: Confirms selections or enters parameter editing mode.

5.2 Start og stop af motoren

• At begynde: Tryk på LØBE knappen. Motoren accelererer til den indstillede frekvens.
• At stoppe: Tryk på STOP/NULSTIL knappen. Motoren vil decelerere og stoppe.

5.3 Justering af frekvens/hastighed

• Depending on the VFD's configuration, speed can be adjusted via the control panel's directional buttons, an external potentiometer, or a control signal (e.g., 0-10V, 4-20mA).
• If using the control panel, enter the frequency setting mode (refer to the full manual for specific parameter codes) and use the Up/Down buttons to change the target frequency.

6. Vedligeholdelse

Regular maintenance ensures optimal performance and extends the lifespan of your VFD.

6.1 Rutinemæssige kontroller (månedlige)

• Inspect the VFD for any signs of overheating, discoloration, or unusual odors.
• Check cooling fan operation. Clean any dust or debris from the fan blades and heatsink fins.
• Verify that all terminal connections are tight. Retighten if necessary.
• Ensure the VFD enclosure is free from dust, moisture, and corrosive substances.

6.2 Årlig inspektion

• Perform a thorough cleaning of the VFD's interior, paying attention to dust accumulation on circuit boards and power components. Use compressed air if available, ensuring it is dry and oil-free.
• Inspect DC bus capacitors for swelling or leakage.
• Check for any signs of wear or damage on wiring insulation.
• Verify grounding integrity.

Always disconnect and lock out power, and wait for capacitor discharge before performing any internal maintenance.

7. Fejlfinding

This section provides solutions for common issues. For complex problems, contact technical support.

8. Specifikationer
