Yato YT-86240 20L Engine-Powered Sprayer User Manual

Model: YT-86240

1. Introduktion

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Yato YT-86240 20L Engine-Powered Sprayer. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage to the equipment. Keep this manual in a safe place for future reference.

2. Sikkerhedsinstruktioner

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury or death.

  • Læs manualen: Understand all instructions and warnings before operating the sprayer.
  • Personligt beskyttelsesudstyr (PPE): Always wear appropriate PPE, including eye protection, gloves, long sleeves, long pants, and a respirator or mask, especially when handling chemicals.
  • Ventilation: Operate the sprayer in well-ventilated areas to avoid inhaling fumes.
  • Brændstofhåndtering: Handle fuel with extreme care. Store fuel in approved containers, away from ignition sources. Do not refuel while the engine is running or hot.
  • Kemikaliehåndtering: Følg alle instruktioner og sikkerhedsadvarsler fra kemikalieproducenten. Sprøjt ikke med brandfarlige væsker.
  • Motorsikkerhed: Keep hands, feet, and clothing away from moving parts. The engine and muffler become very hot during operation; avoid contact to prevent burns.
  • Stabilitet: Ensure the sprayer is stable during operation and when refilling.
  • Børn og tilskuere: Hold børn og tilskuere på sikker afstand af driftsområdet.
  • Opbevaring: Opbevar sprøjten og kemikalierne et sikkert, køligt og tørt sted, utilgængeligt for børn.

3. Produktet er slutview og komponenter

The Yato YT-86240 is a powerful engine-powered sprayer designed for efficient application of liquids. Familiarize yourself with its main components.

Yato YT-86240 Engine-Powered Sprayer front view

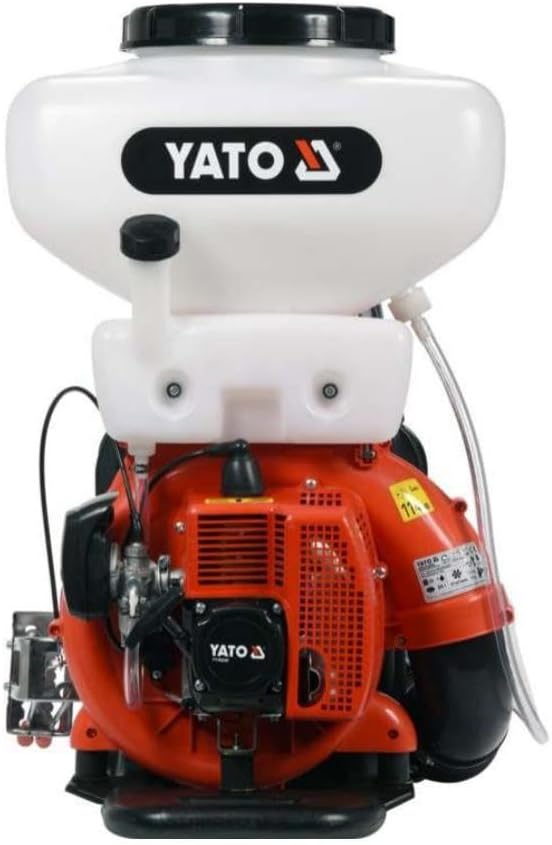

Figur 3.1: Front view of the Yato YT-86240 Engine-Powered Sprayer. This image shows the main body, engine housing, and the large white tank for liquids.

  • Liquid Tank: Large capacity tank (20L) for holding spraying solutions.
  • Motorenhed: The core power unit for generating spray pressure.
  • Brændstoftank: For gasoline.
  • Starthåndtag: Til manuel motorstart.
  • Throttle/Control Lever: Manages engine speed and spray output.
  • Spray Wand/Nozzle: Directs the spray.
  • Selesystem: For comfortable backpack-style carrying.

4. Opsætning og montering

Before first use, ensure all components are correctly assembled and secured.

  1. Udpakning: Fjern forsigtigt alle komponenter fra emballagen. Kontroller for eventuelle skader under transporten.
  2. Fastgør sprøjtepen: Connect the spray wand and hose securely to the sprayer unit. Ensure all connections are tight to prevent leaks.
  3. Tankning:
    • Sørg for, at motoren er slukket og afkølet.
    • Brug en ren, godkendt brændstofbeholder.
    • Fill the fuel tank with the recommended fuel type (refer to engine specifications, typically a gasoline/oil mix for 2-stroke engines). Do not overfill.
    • Sæt brændstofdækslet sikkert på igen.
  4. Filling the Liquid Tank:
    • Sørg for, at sprøjten står på en plan overflade.
    • Open the liquid tank cap.
    • Pour the desired spraying solution into the tank. Do not exceed the maximum fill line.
    • Securely replace the liquid tank cap.
  5. Juster sele: Adjust the shoulder straps for a comfortable and secure fit when carrying the sprayer on your back.
Yato YT-86240 Sprayer with spray wand attached

Figur 4.1: The Yato YT-86240 sprayer with the spray wand and hose assembly connected, ready for use after fueling and filling.

5. Betjeningsvejledning

Follow these steps for safe and effective operation of your sprayer.

5.1 Start af motoren

  1. Place the sprayer on a firm, level surface.
  2. Sørg for, at tændingsnøglen er i "ON"-positionen.
  3. Move the choke lever to the "CLOSED" or "START" position (if cold engine).
  4. Tryk flere gange på primerpumpen, indtil brændstoffet er synligt.
  5. Træk fast og jævnt i starthåndtaget, indtil motoren starter. Træk ikke snoren helt ud.
  6. Once the engine starts, gradually move the choke lever to the "OPEN" or "RUN" position.
  7. Lad motoren varme op i et par øjeblikke.

5.2 Sprøjtning

  1. Put on the sprayer using the harness system.
  2. Adjust the throttle lever to the desired engine speed and spray output.
    Close-up of the control lever on Yato YT-86240 sprayer

    Figur 5.1: Detail of the control lever, used to adjust engine speed and spray volume during operation.

  3. Direct the spray wand towards the target area.
  4. Hold en konstant afstand og hastighed for en jævn påføring.

5.3 Standsning af motoren

  1. Reducer motorens omdrejningstal til tomgang.
  2. Flyt tændingsnøglen til "OFF"-positionen.
  3. Lad motoren køle af før opbevaring eller yderligere håndtering.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din sprøjtes levetid og optimale ydeevne.

  • Rensning: After each use, thoroughly clean the liquid tank, hoses, and nozzle with clean water. Run clean water through the system to flush out any chemical residues.
  • Luftfilter: Periodically inspect and clean the air filter. Replace if damaged or excessively dirty.
  • Tændrør: Check the spark plug regularly. Clean or replace as needed to ensure proper ignition.
  • Brændstoffilter: Inspect and clean or replace the fuel filter as part of routine maintenance.
  • Opbevaring: When storing for extended periods, drain all fuel from the tank and carburetor. Clean the entire unit. Store in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
  • Generel inspektion: Regularly check all nuts, bolts, and fasteners for tightness. Inspect hoses and connections for wear or damage.

7. Fejlfinding

This section addresses common issues you might encounter with your sprayer.

Problem Mulig årsag Løsning
Motoren starter ikke No fuel; Ignition switch OFF; Choke incorrect; Fouled spark plug; Clogged fuel filter. Check fuel level; Turn ignition ON; Adjust choke; Clean/replace spark plug; Clean/replace fuel filter.
Lavt sprøjtetryk Clogged nozzle; Low engine RPM; Air leak in hose connections; Insufficient liquid in tank. Clean nozzle; Increase throttle; Check and tighten connections; Refill liquid tank.
Motoren kører dårligt Dirty air filter; Stale fuel; Incorrect fuel mixture; Fouled spark plug. Clean air filter; Use fresh, correct fuel mixture; Clean/replace spark plug.
Lækager fra forbindelser Loose connections; Damaged O-rings/seals; Cracked hose. Tighten connections; Replace O-rings/seals; Replace damaged hose.

8. Specifikationer

Key technical specifications for the Yato YT-86240 Engine-Powered Sprayer.

Technical specifications icons for Yato YT-86240 sprayer

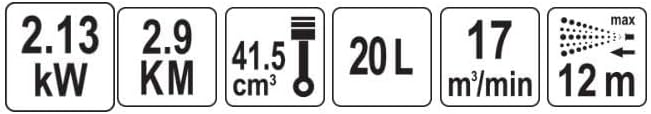

Figur 8.1: Visual representation of key specifications including power, engine displacement, tank capacity, and spray range.

  • Model: YT-86240
  • Mærke: Yato
  • Fabrikant: Yato
  • Liquid Tank Capacity: 20 liter
  • Strømudgang: 2.13 kW (2.9 KM)
  • Motorvolumen: 41.5 cm³
  • Maks. luftmængde: 17 m³/min
  • Max Spray Range: 12 m
  • ASIN: B0C26YHR71

9. Garanti og support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact Yato customer service directly. Keep your proof of purchase for any warranty claims.

Fabrikant: Yato

Modelnummer: YT-86240

© 2023 Yato. All rights reserved. This manual is subject to change without notice.
