Yitouniu TYTE-D1 Tuya WiFi Smart 16A Temperature Controller Switch Sensor User Manual

1. Introduktion

The Yitouniu TYTE-D1 Tuya WiFi Smart 16A Temperature Controller Switch Sensor is designed for precise temperature monitoring and control of various electrical appliances. It integrates seamlessly with the Tuya Smart Life app, offering remote control, energy consumption monitoring, and voice control capabilities. This device is suitable for applications such as seedling heat mats, terrestrial heat control, heating pumps, and more.

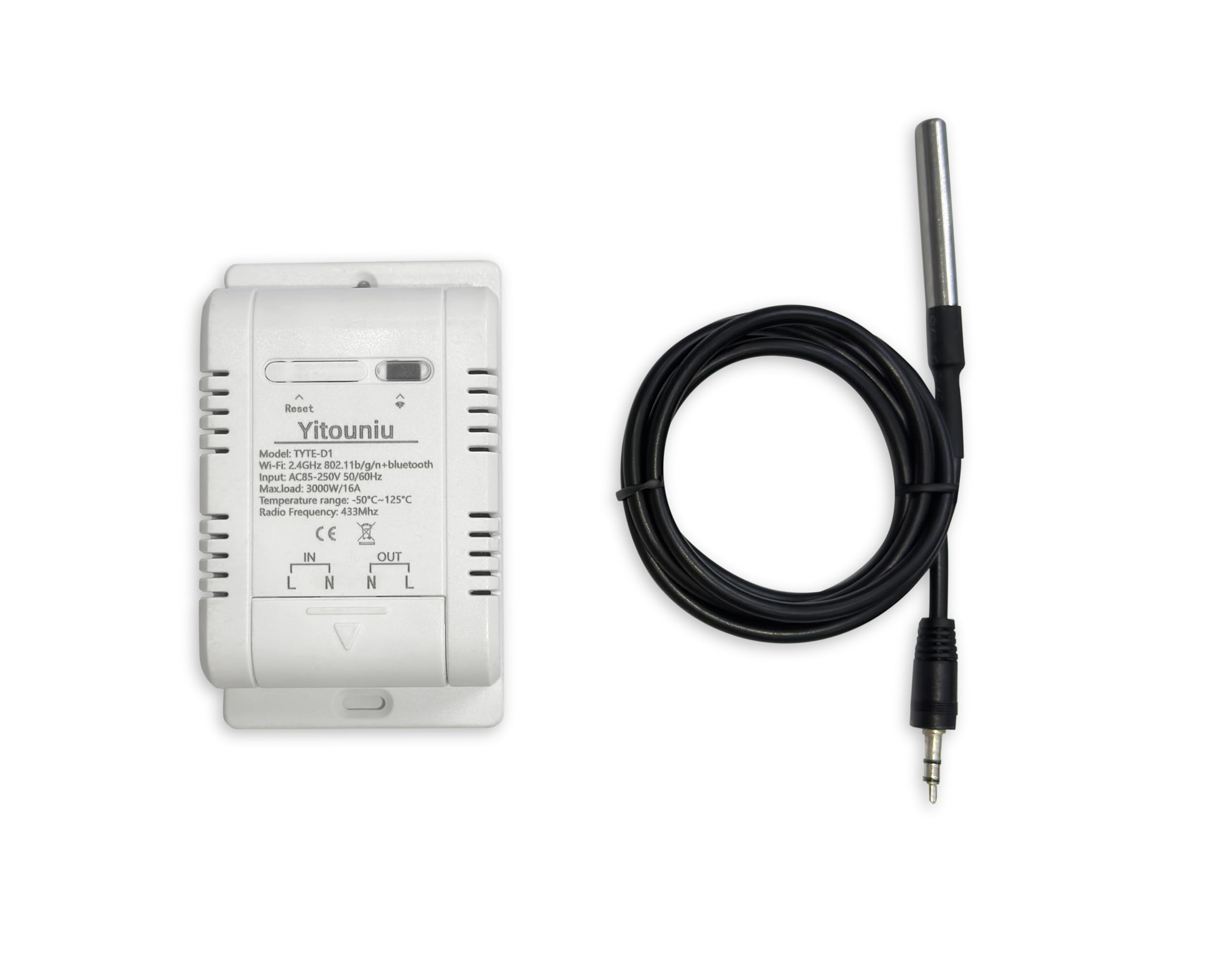

Figure 1: Yitouniu TYTE-D1 Smart Switch with key features and app compatibility.

Figur 2: Overview of Smart Temperature Control features including WiFi, voice control, remote access, temperature monitoring, and electricity statistics.

2. Opsætning

2.1 Ledningsinstruktioner

Proper wiring is crucial for safe and effective operation. Please follow the diagram below carefully.

Figure 3: Wiring diagram for the Yitouniu Smart Switch. Connect AC 85-250V input to 'IN' (L and N) and the appliance to 'OUT' (L and N).

2.2 App-forbindelse (Tuya Smart Life)

To connect your device to the Tuya Smart Life app, follow these steps:

1. Oplad enheden: First, ensure the device is powered on.
2. Indikatorlys: Observe the indicator light on the device. If it is not flashing quickly, press and hold the button for a few seconds until it blinks rapidly.
3. Åbn Tuya-appen: Åbn Tuya Smart Life-appen på din smartphone.
4. Tilføj enhed: Click the '+' sign in the top right corner of the app to add a new device.
5. Aktiver Bluetooth: If the device is not automatically discovered, ensure your phone's Bluetooth is enabled. The app should then detect the device.
6. Indtast Wi-Fi-oplysninger: Select the discovered device, enter your Wi-Fi network password, and confirm.
7. Komplet opsætning: Follow any remaining on-screen prompts to complete the device addition.

3. Betjeningsvejledning

3.1 Remote Temperature Monitoring and Control

Once connected to the Tuya Smart Life app, you can remotely monitor the temperature and control your connected appliances.

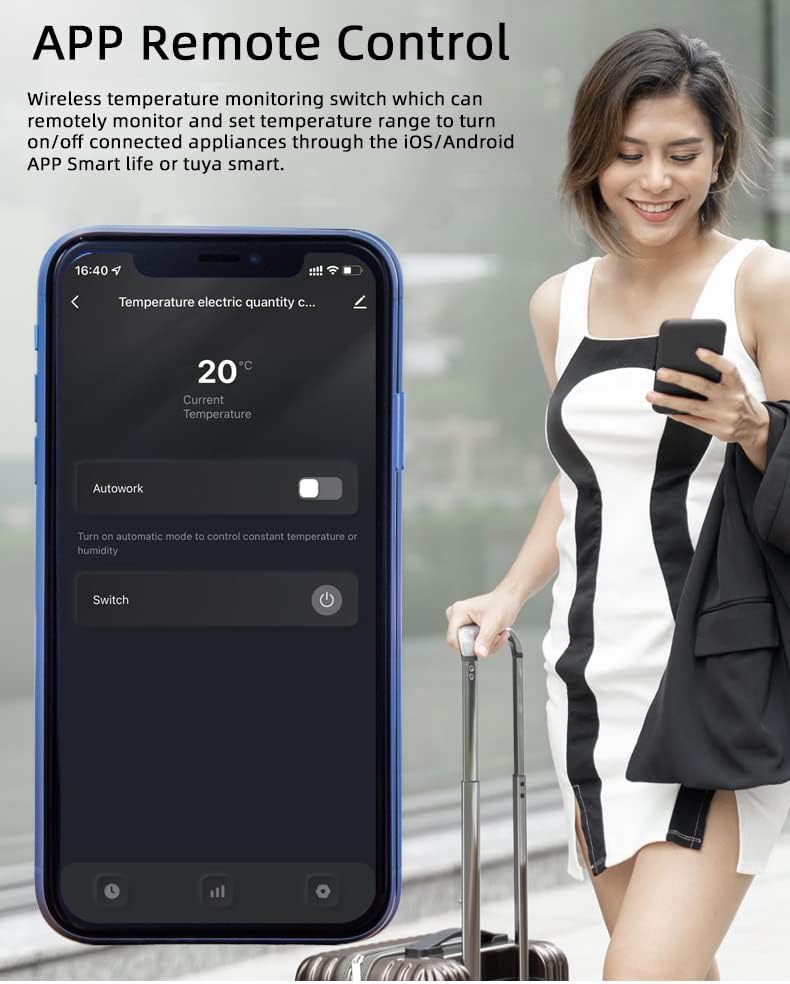

Figure 4: App interface for remote temperature monitoring and manual switch control.

3.2 Automatic Mode and Timing

Set the device to automatic mode to turn your appliances on or off based on a specified temperature range. You can also set scheduled, countdown, or loop timers.

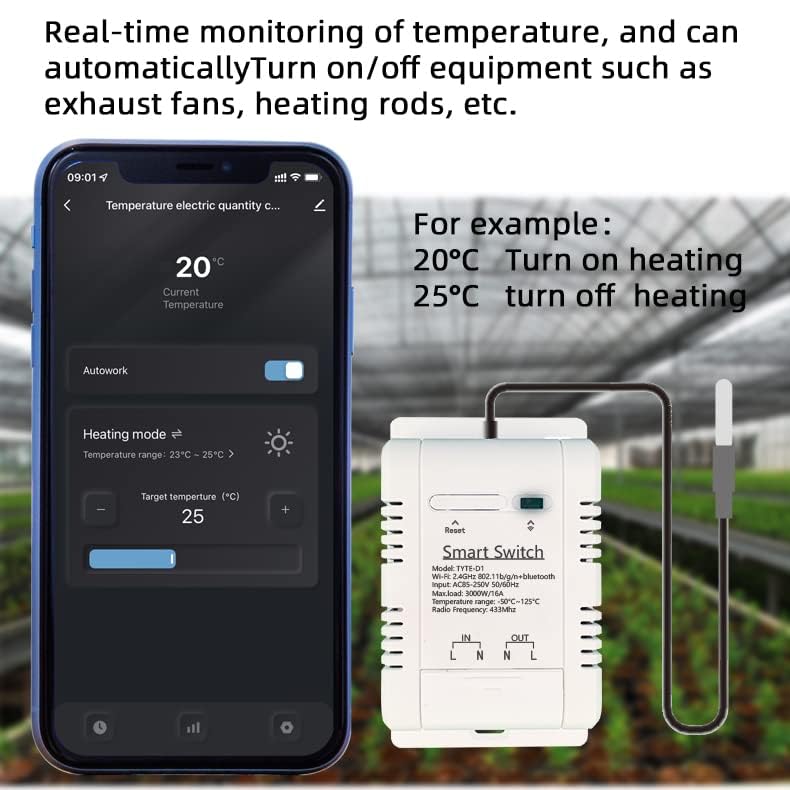

Figure 5: Real-time temperature monitoring with automatic heating mode settings (e.g., turn on heating at 20°C, turn off at 25°C).

3.3 Energy Consumption Monitoring and History

The app provides real-time monitoring of energy consumption and allows you to view historical temperature and power data by year, month, and day.

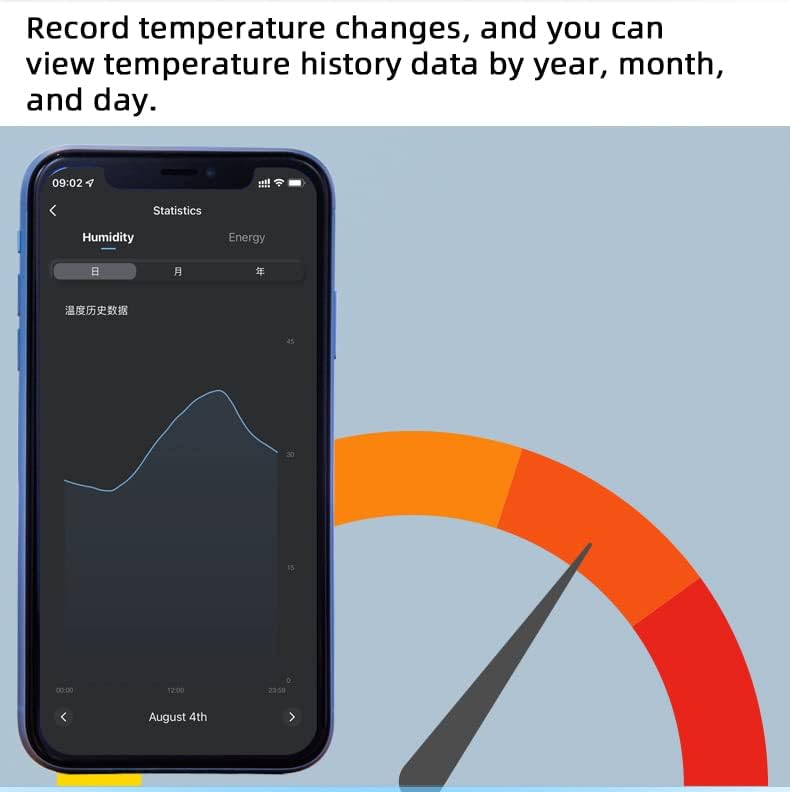

Figur 6: View historical temperature data to track changes over time.

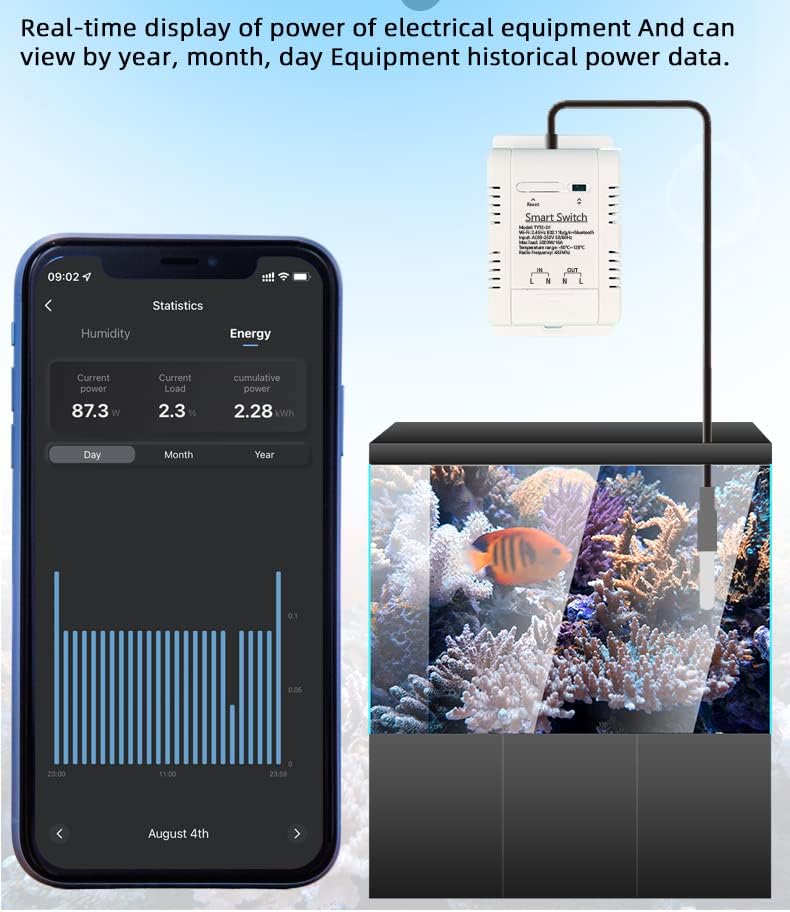

Figure 7: Real-time display of electrical equipment power and historical power data.

3.4 Stemmekontrol

The device is compatible with smart speakers such as Amazon Echo, Echo Dot, Amazon Tap, and Google Home. You can manage your devices through voice commands by creating smart scenes in the Smart Life app.

Figure 8: Voice control integration with Amazon Alexa and Google Home for convenient operation.

3.5 Delingskontrol

Easily share control of your smart home devices with family members through the Wi-Fi app.

4. Vedligeholdelse

To ensure the longevity and optimal performance of your Yitouniu TYTE-D1 Temperature Controller, follow these maintenance guidelines:

• Rensning: Regularly wipe the device with a dry, soft cloth. Avoid using harsh chemicals or abrasive cleaners.
• Probepleje: Keep the temperature probe clean and free from debris. Although waterproof, avoid unnecessary prolonged immersion in liquids.
• Miljøforhold: Ensure the device is operated within its specified operating temperature range (-20°C to 70°C) and away from excessive moisture or direct sunlight.
• Firmwareopdateringer: Check the Tuya Smart Life app periodically for any available firmware updates to ensure your device has the latest features and security enhancements.

5. Fejlfinding

If you encounter issues with your Yitouniu TYTE-D1 Temperature Controller, refer to the following common troubleshooting steps:

• Enheden opretter ikke forbindelse til Wi-Fi:
  • Sørg for, at dit Wi-Fi-netværk er 2.4 GHz. Enheden understøtter ikke 5 GHz-netværk.
  • Bekræft, at den indtastede Wi-Fi-adgangskode i appen er korrekt.
  • Sørg for, at enheden er inden for rækkevidde af din Wi-Fi-router.
  • Reset the device by pressing and holding the button until the indicator light flashes rapidly, then attempt to re-pair.
• Unøjagtige temperaturmålinger:
  • Check if the temperature probe is securely connected to the device.
  • Ensure the probe is placed correctly in the environment you wish to monitor and is not obstructed.
  • Avoid placing the probe near heat sources or cold drafts that could affect readings.
• App-kontrol svarer ikke:
  • Check your internet connection and ensure the device is online in the app.
  • Genstart Tuya Smart Life-appen.
  • If the issue persists, try restarting the temperature controller by unplugging and re-plugging it.
• Problemer med stemmestyring:
  • Ensure the device is properly linked to your Amazon Alexa or Google Home account.
  • Verify the device name used in voice commands matches the name set in the Smart Life app.
  • Check the internet connection of your smart speaker.

Hvis disse trin ikke løser problemet, bedes du kontakte kundesupport.

6. Specifikationer

Figur 9: Detaljerede produktparametre og dimensioner.

7. Garanti og support

For warranty information or technical support, please refer to the product packaging or contact the seller directly through your purchase platform. Ensure you have your product model number (TYTE-D1) and purchase details available when seeking support.
