GATEXPERT GT2200
GATEXPERT Sliding Automatic Gate Opener Kit Instruction Manual
Model: GT2200
Mærke: GATEXPERT
1. Introduktion
This manual provides comprehensive instructions for the installation, operation, and maintenance of your GATEXPERT GT2200 Sliding Automatic Gate Opener Kit. This system is designed for enhancing security and convenience for sliding gates up to 40 feet long and weighing up to 2200 lbs. Please read this manual thoroughly before installation and operation to ensure proper function and safety.
2. Sikkerhedsoplysninger
ADVARSEL: Improper installation or use can lead to serious injury or property damage. Always follow all safety precautions and instructions.
- Sørg for, at alle elektriske forbindelser overholder lokale forskrifter og bestemmelser.
- Keep hands and feet clear of the gate and opener mechanism during operation.
- Do not allow children to play with or operate the gate opener or its remote controls.
- Inspicer regelmæssigt porten og åbneren for tegn på slid, skader eller forkert justering.
- The infrared photocell sensor is a critical safety feature; ensure it is installed and functioning correctly to prevent the gate from closing on obstructions.
- I tilfælde af strømsvigt skal du bruge den manuelle udløserknap til at betjene porten.
3. Produktet er slutview og komponenter

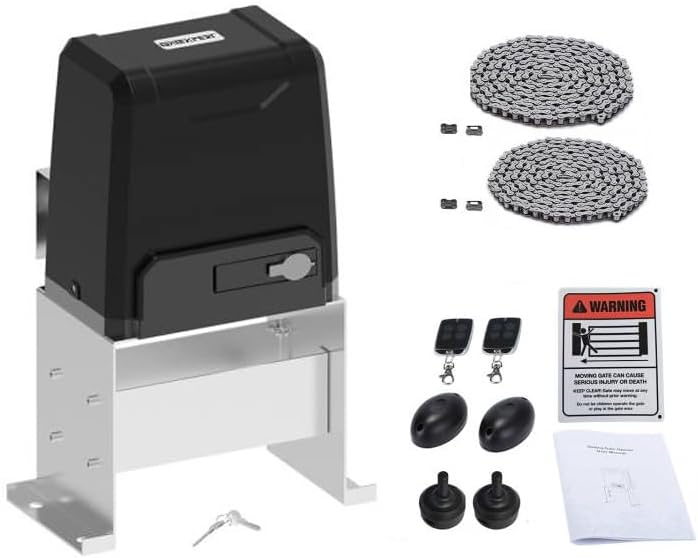

The GATEXPERT GT2200 kit includes the main gate opener unit and essential accessories for installation and operation.
Hovedkomponenter:
- Gate Opener Unit: The primary motor and control housing.
- Fjernbetjeninger (x2): For wireless operation of the gate.
- Infrared Photocell Sensor: Safety device to detect obstructions.
- Drive Chain (20ft): Connects the opener to the gate. Can be shortened or lengthened with compatible chain.
- Monteringshardware: Bolts, nuts, and brackets for installation.
- Advarselsskilt: For placement near the gate to alert users of automatic operation.
4. Specifikationer
| Feature | Specifikation |
|---|---|
| Max portvægt | 2200 lbs (1000 kg) |
| Max portlængde | 40 fod (12 meter) |
| Chain Length Included | 20 fod (6 meter) |
| Fjernbetjeningstilstand | Single button (OPEN/STOP/CLOSE/STOP cycle), Pedestrian mode |
| Maks. antal understøttede fjernbetjeninger | 25 |
| Automatic Close Function | Adjustable (12, 24, 36 seconds) or disabled |
| Kontrolkort funktioner | Soft start and slow stop |
| Varens vægt | 48 pund |
| Produktdimensioner | 13.4 x 9.3 x 20.1 tommer (340 mm x 237 mm x 510 mm) |
| Farve | Sort |
5. Opsætning og installation
Careful installation is crucial for the safe and efficient operation of your gate opener. Professional installation is recommended.
5.1 Forberedelse af stedet
- Ensure the gate slides smoothly and is properly aligned before installing the opener.
- Prepare a stable, level concrete pad or foundation for mounting the opener unit.
- Ensure access to a suitable power supply (AC 110V/60Hz or as per local requirements).
5.2 Montering af åbnerenheden
- Position the opener unit on the prepared foundation, ensuring the drive sprocket aligns with the gate's chain path.
- Secure the unit firmly using the provided mounting hardware.
5.3 Installing the Drive Chain
- Attach the drive chain to the gate, ensuring it is taut but not overly tight, allowing for smooth movement.
- The included chain is 20ft long. If your gate requires a longer chain, ensure to use the same type of chain for extension. If shorter, remove excess links.
5.4 Wiring and Electrical Connections
- Connect the power supply to the control board inside the opener unit. Refer to the wiring diagram provided in the separate detailed wiring manual (if applicable).
- Install the infrared photocell sensor on both sides of the gate opening, ensuring they are aligned and connected to the control board as per instructions. This is a crucial safety device.
5.5 Justering af grænsekontakt
- Adjust the limit switches to define the gate's fully open and fully closed positions. This prevents the gate from over-traveling.
6. Betjeningsvejledning
Your GATEXPERT GT2200 gate opener offers convenient and secure operation.
6.1 Betjening af fjernbetjening
- The remote control operates in a single-button mode for the main gate function. Pressing the same button cycles through OPEN → STOP → CLOSE → STOP.
- The remote also features a dedicated button for pedestrian mode, allowing the gate to open partially for foot traffic.
- Up to 25 remote controls can be programmed to the system. Refer to the programming section in the detailed manual for adding or removing remotes.
6.2 Automatic Close Function
- The gate can be configured to close automatically after a set period.
- Auto-close times can be set to 12, 24, or 36 seconds. This function can also be disabled.
- Consult the control board settings section in the detailed manual to adjust this feature.
6.3 Infrared Photocell Sensor Function
- During the closing process, if the infrared beam of the photocell sensor is interrupted by an obstruction, the gate will immediately reverse and open.
- This feature is designed to protect users and property from being struck by the moving gate. Ensure the sensors are clean and unobstructed.
6.4 Soft Start and Slow Stop
- The intelligent control board incorporates soft start and slow stop functions. This means the gate begins and ends its movement gradually, reducing wear and tear on the motor and extending the life of the gate opener.
7. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din portåbner's lange levetid og pålidelige drift.
- Månedlig: Inspect the gate for smooth movement, ensuring no binding or excessive friction. Check the drive chain for proper tension and lubricate if necessary.
- Kvartalsvis: Clean the infrared photocell sensors to ensure their beams are not obstructed by dirt, dust, or spiderwebs. Test the safety reversal mechanism by intentionally breaking the beam during closing.
- Årligt: Check all mounting hardware for tightness. Inspect electrical wiring for any signs of wear or damage. Lubricate all moving parts of the gate and opener as recommended by the gate manufacturer.
- Keep the area around the gate opener clear of debris and vegetation.
8. Fejlfinding
Se tabellen nedenfor for almindelige problemer og deres mulige løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Gaten reagerer ikke på fjernbetjeningen. | Fuldt batteri i fjernbetjeningen, fjernbetjening uden for rækkevidde, fjernbetjening ikke programmeret, strømafbrydelsetage. | Replace remote battery, move closer to opener, reprogram remote, check power supply. |
| Porten åbner, men lukker ikke. | Photocell sensor obstructed or misaligned, limit switch issue. | Clear and align photocell sensors, check limit switch settings. |
| Porten stopper uventet under drift. | Obstruction detected by safety sensor, motor overheating, mechanical binding. | Check for obstructions, allow motor to cool, inspect gate for smooth movement. |
| Porten bevæger sig langsomt eller med besvær. | Insufficient lubrication, worn chain, gate binding. | Lubricate chain and gate rollers, inspect chain for wear, check gate alignment. |
| Ingen strøm til enheden. | Circuit breaker tripped, power cord disconnected. | Check circuit breaker, ensure power cord is securely plugged in. |
Hvis du støder på problemer, der ikke er nævnt her, eller hvis løsningerne ikke løser problemet, bedes du kontakte kundesupport.
9. Garanti og support
GATEXPERT products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions.
For technical assistance, troubleshooting, or parts inquiries, please contact GATEXPERT customer support through the retailer where you purchased the product or visit the official GATEXPERT webwebsted for kontaktoplysninger.
