CAZON Blood Pressure Monitor User Manual

1. Introduktion

This user manual provides essential information for the safe and effective operation of your CAZON Blood Pressure Monitor. Please read this manual thoroughly before first use and keep it for future reference. This device is designed for home use to measure systolic and diastolic blood pressure and pulse rate in adults.

Image 1: CAZON Blood Pressure Monitor and Cuff. This image shows the main unit with its large LCD display and the adjustable arm cuff.

2. Vigtige sikkerhedsoplysninger

Always follow basic safety precautions when using electrical products, especially when children are present. This device is not intended to be a substitute for professional medical advice, diagnosis, or treatment. Consult your physician for any health concerns.

• Brug ikke denne enhed på spædbørn, børn eller personer, der ikke kan give deres samtykke.
• Do not use the device for purposes other than measuring blood pressure.
• Avoid using the device in environments with strong electromagnetic fields.
• Hold apparatet og manchetten væk fra vand og ekstreme temperaturer.
• Forsøg ikke selv at reparere eller ændre enheden. Kontakt kundesupport for at få hjælp.

3. Pakkens indhold

Når du åbner pakken, skal du kontrollere, at alle komponenter er til stede og ubeskadigede:

• 1 x CAZON Blood Pressure Monitor (Main Unit)
• 1 x Adjustable Arm Cuff (22-40cm)
• 1 x brugsanvisning
• 1 x USB-kabel (til strøm, adapter medfølger ikke)
• 1 x Opbevaringspose

Image 2: Package Contents. This image displays all items included in the CAZON Blood Pressure Monitor package: the monitor, arm cuff, owner's manual, storage bag, USB cable, and packaging box.

4. Produktfunktioner

The CAZON Blood Pressure Monitor is equipped with several features designed for ease of use and accurate measurement:

• Stor LCD-skærm: Provides clear, easy-to-read display of measurements.
• Two User Mode: Supports two individual users with separate memory storage.
• 2x99 Memory Storage: Stores up to 99 readings per user with date and time stamps.
• Indikator for uregelmæssig hjerterytme: Alerts the user to detected irregular heartbeats.
• Fuldautomatisk drift: One-button operation for convenient measurement.
• Adjustable Cuff: Fits arm circumferences from 22cm to 40cm.
• Dobbelt strømforsyning: Can be powered by 4x AA batteries (not included) or USB cable.

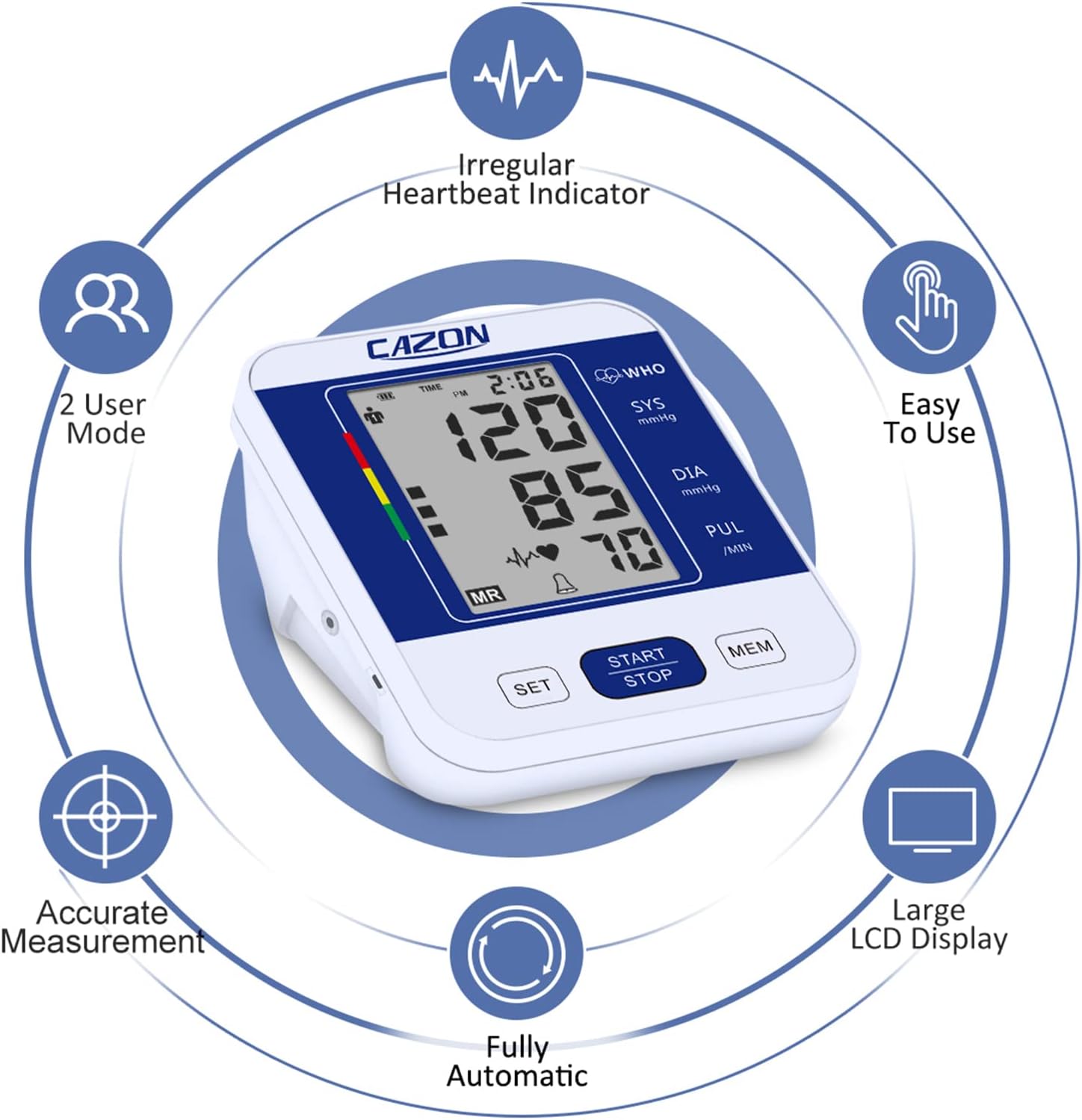

Image 3: Key Features Diagram. This diagram highlights the main features of the monitor, including Irregular Heartbeat Indicator, Easy To Use, Large LCD Display, Fully Automatic, Accurate Measurement, and 2 User Mode.

5. Opsætning

5.1 Strømforsyning

The CAZON Blood Pressure Monitor can be powered by batteries or a USB cable.

• Batteri installation: Open the battery compartment on the back of the device. Insert 4 AA batteries (not included), ensuring correct polarity (+/-). Close the compartment.
• USB Strøm: Connect the provided USB cable to the monitor's USB port and the other end to a USB power adapter (not included) or a computer USB port.

Note: Do not use both power methods simultaneously. Remove batteries if using USB power for extended periods.

Image 4: Power Supply Methods. This image illustrates the two ways to power the monitor: using 4 AA batteries (not included) or via a USB Type Cable (included, adapter not included).

5.2 Indstilling af dato og klokkeslæt

Before first use, it is recommended to set the date and time for accurate record-keeping.

1. Når enheden er slukket, skal du trykke på SÆT button. The year will begin to flash.
2. Tryk på MEM knappen for at justere året.
3. Trykke SÆT again to confirm and move to the month, day, hour, and minute settings. Repeat the adjustment process using the MEM knap.
4. Trykke SÆT one last time to save the settings and exit.

6. Betjeningsvejledning

6.1 Forberedelse til måling

• Sid i en behagelig stilling med ryggen støttet og fødderne fladt på gulvet.
• Hvil armen på et bord, så manchetten er i hjertehøjde.
• Undgå at tale eller bevæge dig under målingen.
• Ensure you have rested for at least 5 minutes before taking a measurement.
• Do not measure immediately after eating, bathing, or exercising.

Image 5: Tips for Accurate Measurement. This image provides visual guidance on how to prepare for a blood pressure reading, including sitting still, resting, and positioning the arm and cuff correctly at heart level.

6.2 Påføring af armmanchetten

1. Ensure the cuff is placed directly on your bare skin or over thin clothing (less than 5mm thick).
2. Slide the cuff onto your left upper arm, with the air tube pointing towards your forearm.
3. Position the cuff so its lower edge is about 1-2 cm above your elbow joint.
4. Wrap the cuff snugly around your arm, ensuring two fingers can fit comfortably between the cuff and your arm. The center of the cuff should be at the same height as your heart.

Image 6: Adjustable Cuff and Button to Operate. This image demonstrates how to properly apply the adjustable arm cuff, showing the size range from 22cm to 40cm.

Image 7: Method of Use. This image provides a four-step visual guide on how to wear the cuff, position it, check for proper fit, and start the measurement.

6.3 Tage en måling

1. Once the cuff is correctly applied and you are in a relaxed position, press the START/STOP knap.
2. The cuff will automatically inflate. Remain still and silent during inflation and deflation.
3. After approximately 30-60 seconds, your systolic pressure, diastolic pressure, and pulse rate will be displayed on the LCD screen.
4. The measurement will automatically be saved to the selected user's memory.
5. For at slukke enheden skal du trykke på START/STOP button again, or it will automatically shut off after 60 seconds of inactivity.

6.4 Viewgemte målinger

The device stores up to 99 readings for each of the two users.

1. Når enheden er slukket, skal du trykke på MEM button. The most recent measurement will be displayed.
2. Tryk på MEM button repeatedly to cycle through previous readings.
3. For at skifte mellem Bruger 1 og Bruger 2 hukommelse, tryk på SÆT knappen mens viewhukommelse.
4. To exit memory mode, press the START/STOP button or wait for automatic shut-off.

Image 8: Two Users & 2*99 Memories. This image shows the monitor's display with two different readings, illustrating its capacity to store up to 99 memory sets for each of two users, complete with date and time stamps.

7. Vedligeholdelse og opbevaring

• Rengør monitoren og manchetten med en blød, tør klud. Brug ikke slibende rengøringsmidler, og nedsænk dem ikke i vand.
• Store the device in the provided storage bag in a cool, dry place, away from direct sunlight and extreme temperatures.
• Fjern batterierne, hvis enheden ikke skal bruges i længere tid, for at forhindre lækage.
• Do not fold the cuff too tightly or twist the air tube, as this may damage it.

8. Fejlfinding

9. Specifikationer

• Model: BSX516
• Målemetode: Oscillometrisk
• Måleområde:
  • Tryk: 0-299 mmHg
  • Puls: 40-199 slag/minut
• Nøjagtighed:
  • Tryk: ± 3 mmHg
  • Puls: ±5 % af aflæsning
• Manchetstørrelse: 22-40 cm (8.7-15.7 tommer)
• Hukommelse: 2 users, 99 sets of data per user
• Strømkilde: 4 x AA batteries (not included) or DC 5V USB
• Vise: Stort LCD digitalt display
• Automatisk slukning: Cirka 60 sekunders inaktivitet
• Dimensioner: Cirka 16.6 x 12.3 x 8.7 cm
• Vægt: Cirka 410 g (uden batterier)

10. Garanti og support

For warranty information or technical support, please contact CAZON customer service through the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.

Fabrikant: SHENZHENSHIAILINGKEJIYOUXIANGONGSI

ASIN: B0BYZ4K92N

UPC: 717886601947
