Zulay Kitchen 18 oz Personal Blender Instruction Manual

1.Overview

Thank you for choosing the Zulay Kitchen 18 oz Personal Blender. This portable, USB-C rechargeable blender is designed for convenience, allowing you to create smoothies, shakes, and other blended drinks on the go. Its powerful 6-blade system is capable of crushing ice and frozen fruits for smooth, delicious results.

Image 1: The Zulay Kitchen 18 oz Personal Blender, highlighting its sleek and portable design.

2. Produktfunktioner

• Ice Crushing Blades: Equipped with 6 sharp, serrated stainless steel blades for efficient blending of ice and frozen ingredients.
• Bærbart design: Cordless and lightweight, ideal for use at home, work, or during travel.
• USB-C genopladelig: Features a USB-C port for rapid charging and LED battery life indicators.
• Leak-Proof Flip Lid: Ensures spill-free storage and easy drinking directly from the blender.
• One-touch betjening: Simple double-tap power button for blending, designed to prevent accidental activation.
• Let at rengøre: Jar and lid are detachable and dishwasher safe. Self-cleaning function by adding water and activating.
• Smarte sikkerhedsfunktioner: Will not operate unless the jar is securely locked in place. Includes overloading and overheating prevention.

Image 2: Key features of the Zulay Kitchen Personal Blender, including its cord-free design and safety mechanisms.

3. Hvad er inkluderet

• Zulay Kitchen 18 oz Personal Blender (Base with motor and blades, Blender Jar, Lid)
• USB-C ladekabel
• Rengøringsbørste

Image 3: The Zulay Kitchen Personal Blender shown with its included USB-C charging cable and cleaning brush.

4. Opsætning

4.1 Indledende opladning

1. Before first use, fully charge the blender. Connect the provided USB-C cable to the charging port on the blender base and the other end to a USB power source (e.g., wall adapter, computer, power bank).
2. The LED indicators on the base will show the charging status. A full charge is indicated when all lights are solid.
3. For extended battery life, it is recommended to disconnect the cable once fully charged and avoid charging for over 3 hours.

Image 4: The blender connected to a power source via its USB-C cable, illustrating the charging process.

4.2 Montering

1. Sørg for, at blenderens base er ren og tør.
2. Place the blender jar onto the base, aligning the arrow on the jar with the power button on the base. Twist clockwise until securely locked. The blender will not operate if the jar is not properly aligned and secured.
3. Attach the lid firmly to the top of the jar.

5. Betjeningsvejledning

5.1 Tilberedning af ingredienser

• Cut fruits and vegetables into small pieces (approximately 1 inch or smaller) to ensure optimal blending.
• For ice crushing, add a small amount of liquid (water, milk, juice) to the blender before adding ice cubes. This helps the blades move freely.
• Do not overfill the blender. Ensure ingredients do not exceed the 'Max' fill line (18.5 oz / 500ml).

5.2 Blanding

1. Add your desired ingredients and liquid to the blender jar.
2. Securely attach the lid and ensure the jar is properly aligned and locked onto the base.
3. To start blending, double-tap the power button. The blender will run for approximately 40 seconds and then automatically shut off.
4. For thicker blends or if ingredients are stuck, gently shake the blender during operation.
5. To stop blending manually, press the power button once.

Image 5: The blender prepared with ingredients, demonstrating its versatility for different recipes.

5.3 Drinking

The leak-proof flip lid allows you to drink directly from the blender jar after blending. Simply open the flip-top spout and enjoy your fresh drink.

6. Rengøring og vedligeholdelse

6.1 Easy Cleaning Method

1. After use, empty the blender jar.
2. Add water and a couple of drops of dishwashing liquid to the jar.
3. Secure the lid and double-tap the power button to activate the self-cleaning cycle.
4. Skyl krukken grundigt med rent vand.

6.2 Grundig rengøring

• The jar and lid are detachable and dishwasher safe for thorough cleaning.
• Use the provided cleaning brush to clean around the blades and any hard-to-reach areas.
• Tør blenderbunden af ​​med adamp klud. Nedsænk ikke basen i vand.

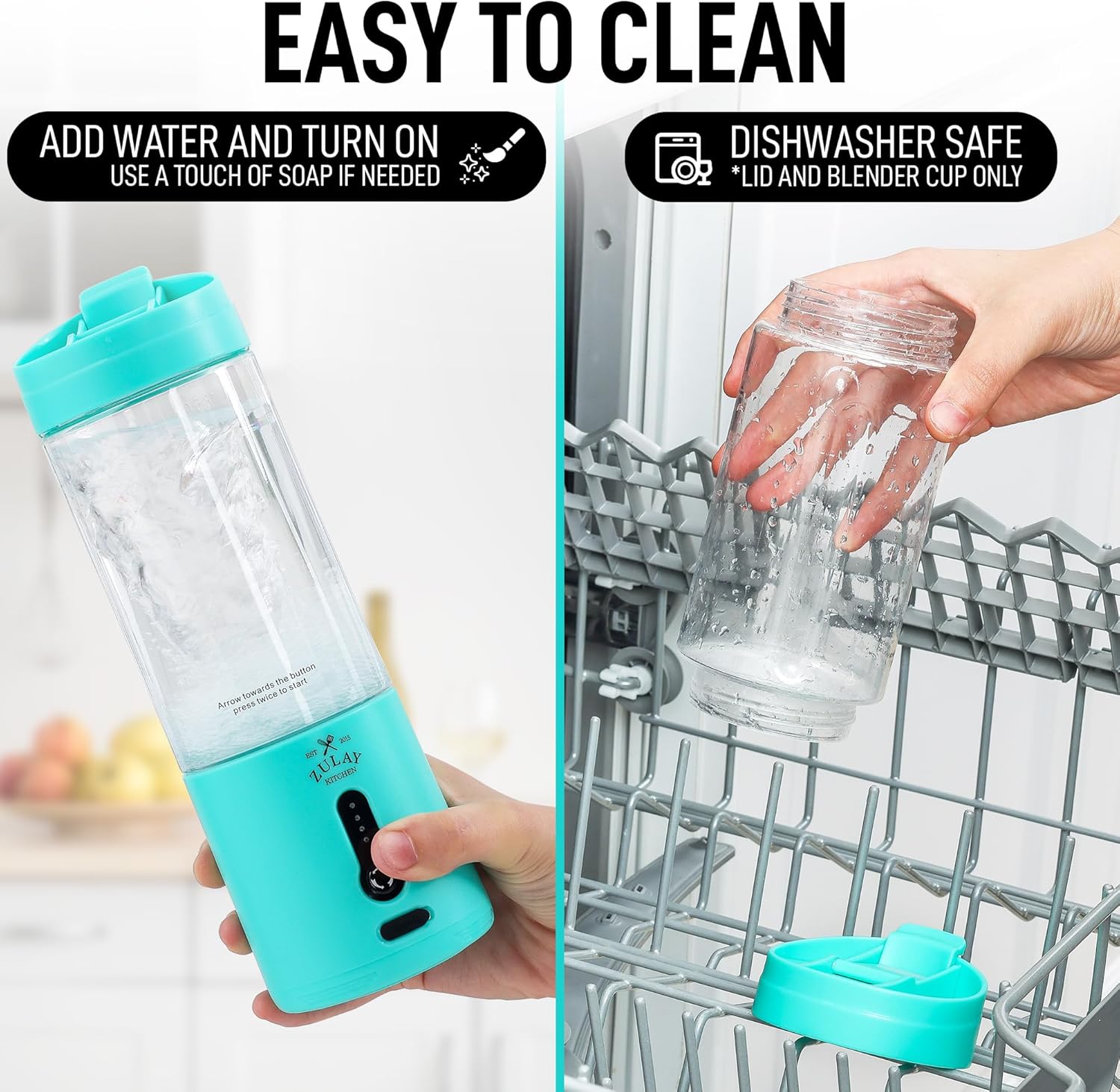

Image 6: Instructions for cleaning the blender, including the self-cleaning function and dishwasher compatibility for the jar and lid.

7. Safety Features and Warnings

• Secure Jar: The blender will not operate unless the jar is correctly aligned and securely locked onto the base. An alert will sound if not properly secured.
• Double-Tap Activation: The power button requires a double-tap to start, preventing accidental operation, especially when carrying in a bag.
• Overbelastningsbeskyttelse: The blender is equipped with features to prevent overloading and overheating, ensuring long-lasting use and user safety.
• PROP 65 ADVARSEL: This product may contain chemical(s) known to the State of California to cause cancer, birth defects and/or other reproductive harm.
• Opbevares utilgængeligt for børn.
• Brug ikke blenderen, når den er tom.
• Avoid touching the blades when the blender is in operation or when cleaning manually.

8. Fejlfinding

9. Specifikationer

• Kapacitet: 500 ml (18 væskeounces)
• Bladmateriale: Stainless Steel (6-point serrated)
• Strømkilde: Batteridrevet (USB-C genopladelig)
• Wattage: 65 watt
• Voltage: 7.4 volt
• RPM: 22,000
• Kontroltype: Push Button (Double-tap to start)
• Materiale: Acrylic (Jar), Stainless Steel (Blades)
• Produktdimensioner: 3" D x 3.25" B x 10.2" H
• Varens vægt: 508 gram
• Tåler opvaskemaskine: Yes (Jar and Lid only)

10. Garanti og support

Zulay Kitchen stands behind the quality of its products. This Personal Blender comes with a Livstidsgaranti. For any questions, concerns, or warranty claims, please contact Zulay Kitchen customer support through their official webwebstedet eller forhandleren, hvor produktet blev købt.
