User Manual for Kehua Tech KR3000A-RML 3KVA Online 120V UPS

1. Introduktion

This manual provides essential information for the safe and efficient operation of your Kehua Tech KR3000A-RML 3KVA Online 120V Uninterruptible Power Supply (UPS). Please read this manual thoroughly before installation and operation, and retain it for future reference.

The KR3000A-RML is designed to provide reliable power protection for sensitive electronic equipment, ensuring continuous operation during power outages and protecting against power fluctuations.

2. Sikkerhedsinstruktioner

Always adhere to the following safety precautions to prevent injury or damage to the UPS and connected equipment.

• Elektrisk sikkerhed:
  • Åbn ikke UPS'en casing. Der er ingen dele indeni, som brugeren kan servicere. Overlad al service til kvalificeret servicepersonale.
  • Sørg for, at UPS'en er tilsluttet en jordet stikkontakt.
  • Do not connect non-computer related items, such as medical equipment or life support systems, to the UPS.
  • Frakobl UPS'en fra vekselstrømskilden, før du udfører vedligeholdelse eller rengøring.
• Batterisikkerhed:
  • The UPS contains a Lithium-Ion battery. Do not dispose of the battery in fire, as it may explode.
  • Do not attempt to replace the battery yourself. Battery replacement should only be performed by qualified service personnel.
  • If battery leakage occurs, avoid contact with skin and eyes. Rinse affected areas with plenty of water and seek medical attention.
• Placement and Environment:
  • Install the UPS in a well-ventilated area, free from excessive dust, humidity, and corrosive substances.
  • Avoid placing the UPS near heat sources or in direct sunlight.
  • Ensure adequate clearance around the UPS for proper airflow.
  • Bloker ikke ventilationsåbninger.

3. Pakkens indhold

Carefully unpack the UPS and check the contents. If any items are missing or damaged, contact your dealer immediately.

• Kehua Tech KR3000A-RML UPS Unit
• Brugervejledning (dette dokument)
• Strømledning(er)
• USB kommunikationskabel
• Rackmonteringssæt (hvis relevant)
• Tower Stand (if applicable)

4. Produktet er slutview

4.1 Frontpanel

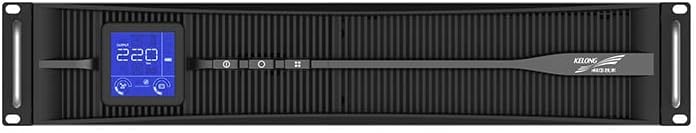

Figur 4.1: Forside view of the KR3000A-RML UPS. This image displays the front panel of the UPS, featuring a prominent LCD screen that shows operational status and input/output voltage. Below the screen are several control buttons for navigating menus and managing UPS functions. The overall design is a sleek black rack-mountable unit with ventilation grilles.

The front panel features an LCD display for real-time status monitoring and control buttons for configuration.

• LCD-skærm: Viser input/output lydstyrketage, batteriniveau, belastningsprocenttage, and various alarm messages.
• Kontrolknapper: Used to navigate menus, confirm selections, and perform specific operations like self-test or alarm mute.

4.2 Bagpanel

Figur 4.2: Side view of the KR3000A-RML UPS in tower configuration. This image shows the UPS oriented vertically with optional tower stands. The front panel with its LCD display is visible, emphasizing the unit's compact design when used in a tower setup. The side view highlights the depth and overall form factor of the UPS.

The rear panel provides all necessary connection ports for power input, output, and communication.

• AC-indgang: Power cord connection for utility power.
• Udgangsbeholdere: Seven (7) outlets for connecting protected equipment.
• Kommunikationsporte: USB, RS-232, and optional SNMP card slot for monitoring and management.
• EPO-port (nødafbrydelse): For remote shutdown in emergencies.

5. Opsætning

5.1 Valg af sted

Vælg en placering, der opfylder følgende kriterier:

• Indoors, away from direct sunlight and heat sources.
• Well-ventilated, with ambient temperature between 0°C and 40°C (32°F and 104°F).
• Humidity between 20% and 90% (non-condensing).
• Away from flammable gases, corrosive liquids, and excessive dust.
• On a stable, flat surface capable of supporting the UPS weight.

5.2 Indledende opladning

Before initial use, connect the UPS to a standard AC power outlet for at least 8 hours to ensure the internal Lithium-Ion battery is fully charged. The UPS will charge the battery whether it is turned on or off.

5.3 Tilslutning af udstyr

1. Ensure the UPS is turned off and disconnected from the AC power source.
2. Connect your critical equipment (computers, monitors, network devices) to the output receptacles on the rear panel of the UPS. Do not overload the UPS beyond its rated capacity (3000W).
3. Connect the UPS power cord to a grounded AC power outlet.
4. (Optional) Connect the USB communication cable from the UPS to your computer for monitoring and graceful shutdown capabilities using compatible UPS management software.

6. Betjening af UPS'en

6.1 Tænd UPS'en

Press and hold the power button on the front panel for approximately 3 seconds until you hear a beep and the LCD display illuminates. The UPS will perform a self-test and then enter online mode.

6.2 Slukning af UPS'en

To turn off the UPS, press and hold the power button for approximately 3 seconds until the LCD display turns off. If the UPS is connected to AC power, it will continue to charge the battery even when off.

6.3 LCD-display og indikatorer

The LCD display provides real-time information about the UPS status. Common indicators include:

• Input bindtage: Displays the current utility power voltage.
• Udgang Voltage: Viser voltage leveret af UPS'en til tilsluttet udstyr.
• Batteriniveau: Viser den resterende batteriopladning.
• Belastningsprocenttage: Angiver procententagaf UPS'ens kapacitet, der bruges af tilsluttet udstyr.
• Driftstilstand: Shows if the UPS is in Online, Battery, or Bypass mode.
• Alarmindikatorer: Icons or messages indicating specific warnings or errors (e.g., overload, battery low, fault).

6.4 Selvtestfunktion

It is recommended to perform a self-test periodically (e.g., once a month) to ensure the battery and internal circuitry are functioning correctly. Refer to the UPS's front panel button guide or management software for initiating a self-test.

7. Vedligeholdelse

Korrekt vedligeholdelse sikrer din UPS' levetid og optimal ydeevne.

• Rensning: Brug en blød, tør klud til at rengøre UPS'ens yderside. Brug ikke flydende rengøringsmidler eller rengøringsmidler på aerosol.
• Batteripleje: The Lithium-Ion battery has an average life of 8 years. To maximize battery life, avoid frequent deep discharges. Keep the UPS connected to AC power to keep the battery charged.
• Ventilation: Regularly check that the ventilation openings are clear of dust and obstructions.
• Miljøforhold: Ensure the UPS operates within the recommended temperature and humidity ranges.

8. Fejlfinding

This section provides solutions to common issues you may encounter with your UPS. If the problem persists, contact technical support.

9. Specifikationer

10. Garanti og support

For warranty information and technical support, please refer to the warranty card included with your product or visit the official Kehua Tech webwebsted. Behold din købskvittering som købsbevis i tilfælde af garantikrav.

For further assistance, you may contact the seller, Critical Power Warehouse, through the Amazon platform or their direct support channels.
